3 - Brakes, Brake System
▶
3-58 - FIXING PARTS; OIL PIPING
▶
3-58 — FIXING PARTS; OIL PIPING
(#95331) — 19 parça
Tümü
A - TBB5SF
B - TBB5VC
C - TBB5VF
◀
[358A] FRAME SIDE (11 parça)

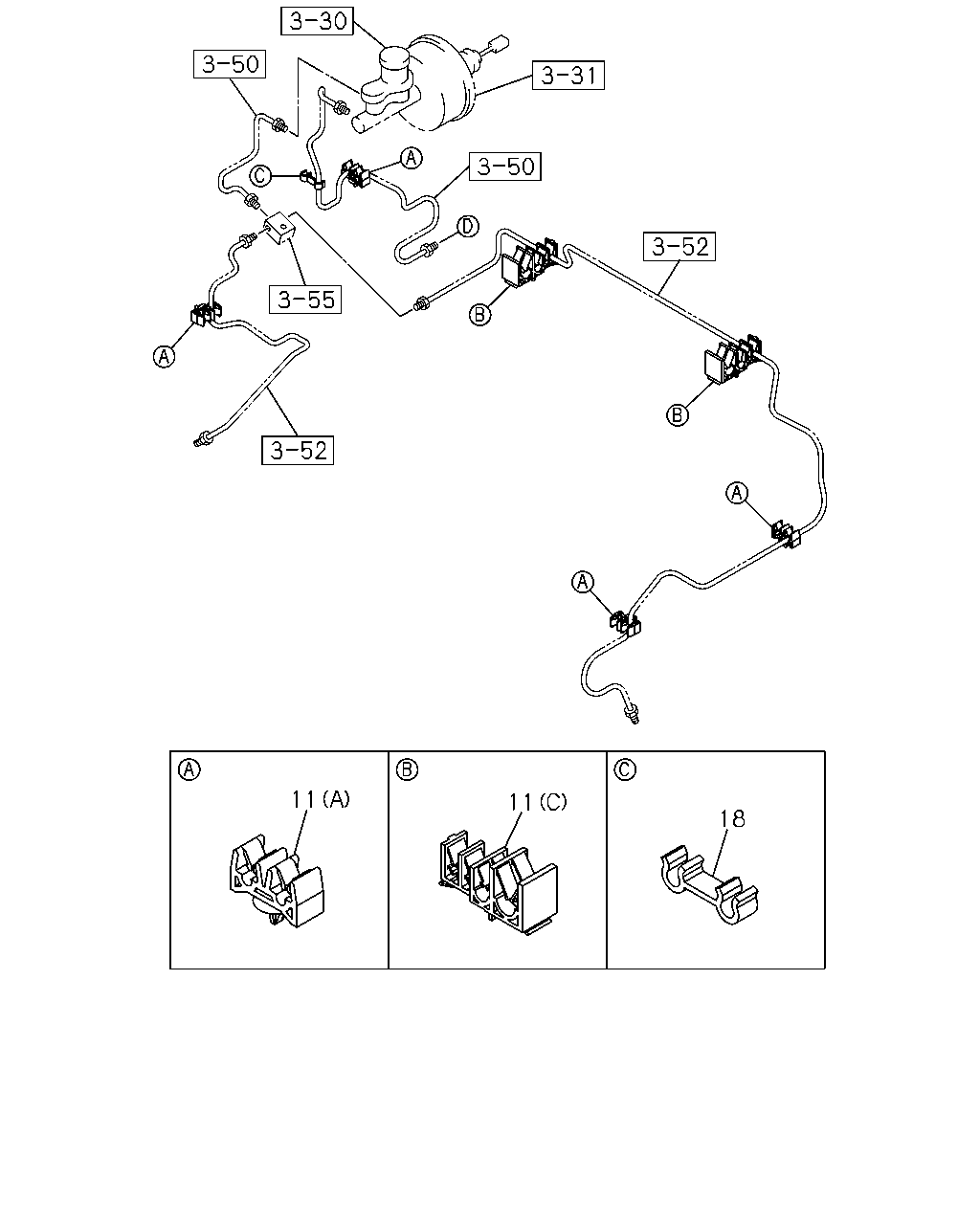

[358A] ENG ROOM (8 parça)
▶
44
11
3
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
3
CLIP; BRK PIPE
H=28.8
8-94222-877-1
02
1
0008-0106
●
●
●
3
CLIP; BRK PIPE
H=28.8
8-94222-877-1
02
1
0107-
●
●
11
CLIP; OIL PIPE
(A)
8-94222-044-2
04
1
0008-0106
●
●
●
11
CLIP; OIL PIPE
(A)
8-94222-044-2
04
1
0107-
●
●
11
CLIP; OIL PIPE
(B)
8-94435-553-0
01
1
0008-0106
●
●
●
11
CLIP; OIL PIPE
(B)
8-94435-553-0
01
1
0107-
●
●
11
CLIP; OIL PIPE
(C)
8-97102-873-0
02
1
0008-0106
●
●
●
11
CLIP; OIL PIPE
(C)
8-97102-873-0
02
1
0107-
●
●
44
BOLT; CLIP TO FRAME
M8X30 FLANGE
0-28680-830-0
01
1
0008-0106
●
●
●
44
BOLT; CLIP TO FRAME
M8X30 FLANGE
0-28680-830-0
01
1
0107-0512
●
●
44
BOLT; CLIP TO FRAME
M8X30 FLANGE
0-28650-830-0
01
1
0601-
●
●
11
11
18
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
11
CLIP; OIL PIPE
(A)
8-94222-044-2
04
1
0008-0106
●
●
●
11
CLIP; OIL PIPE
(A)
8-94222-044-2
04
1
0107-
●
●
11
CLIP; OIL PIPE
(B)
8-94435-553-0
01
1
0008-0106
●
●
●
11
CLIP; OIL PIPE
(B)
8-94435-553-0
01
1
0107-
●
●
11
CLIP; OIL PIPE
(C)
8-97102-873-0
02
1
0008-0106
●
●
●
11
CLIP; OIL PIPE
(C)
8-97102-873-0
02
1
0107-
●
●
18
CLIP; BRK PIPE
8-94338-104-0
01
1
0008-0106
●
●
●
18
CLIP; BRK PIPE
8-94338-104-0
01
1
0107-
●
●
