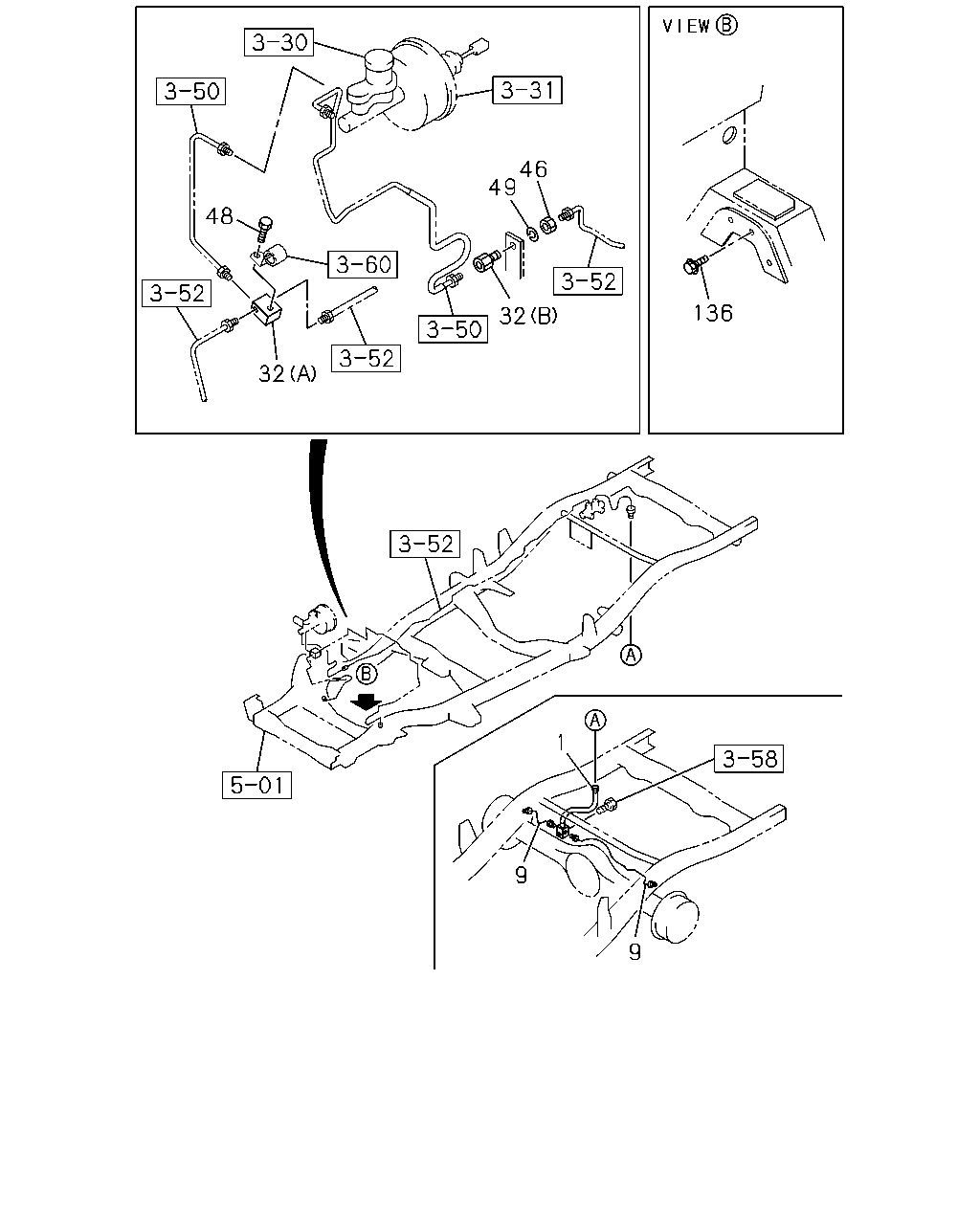

3-55 — BRAKE PIPING; OIL,REAR (#95330) — 24 parça

9 9 1 136 32 32 48 49 46

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	HOSE; FLEX,RR BRK	8-97251-612-0	01	1	0008-0106	●	●	●
1	HOSE; FLEX,RR BRK	8-97251-612-0	01	1	0107-		●	●
9	PIPE; BRK,RR AXLE IDN	8-97956-238-1	01	1	0008-0106	●	●	●
9	PIPE; BRK,RR AXLE IDN	8-97956-238-1	01	1	0107-		●	●
9	PIPE; BRK,RR AXLE IDN	8-97956-239-1	01	1	0008-0106	●	●	●
9	PIPE; BRK,RR AXLE IDN	8-97956-239-1	01	1	0107-		●	●
32	UNION; OIL PIPE (A)	8-94406-895-0	01	1	0008-0106	●	●	●
32	UNION; OIL PIPE (A)	8-94406-895-0	01	1	0107-0703		●	●
32	UNION; OIL PIPE (A)	8-98008-113-0	01	1	0704-		●	●
32	UNION; OIL PIPE (B) M10 STRAIGHT OUTER M16X21	9-09227-055-0	01	1	0008-0106	●	●	●
32	UNION; OIL PIPE (B) M10 STRAIGHT OUTER M16X21	9-09227-055-0	01	1	0107-0607		●	●
32	UNION; OIL PIPE (B) M10 STRAIGHT OUTER M16X21	0-92107-055-0	01	1	0608-		●	●
46	NUT; UNION,OIL PIPE M16	9-99111-416-0	01	1	0008-0106	●	●	●
46	NUT; UNION,OIL PIPE M16	9-99111-416-0	01	1	0107-0512		●	●
46	NUT; UNION,OIL PIPE M16 IDN	0-91111-516-0	01	1	0601-		●	●
48	BOLT; PIPE CONNECTOR M6X35 W/LK&PL WASHER	0-50140-635-0	01	1	0008-0106	●	●	●
48	BOLT; PIPE CONNECTOR M6X35 W/LK&PL WASHER	0-50140-635-0	01	1	0107-0512		●	●
48	BOLT; PIPE CONNECTOR M6X35 W/LK&PL WASHER	0-50640-635-0	01	1	0601-		●	●
49	WASHER; LK,UNION,OIL PIPE ID=16.2	9-09150-516-0	01	1	0008-0106	●	●	●
49	WASHER; LK,UNION,OIL PIPE ID=16.2	9-09150-516-0	01	1	0107-0603		●	●
49	WASHER; LK,UNION,OIL PIPE ID=16.2	0-91510-516-0	01	1	0604-		●	●
136	BOLT; GROMMET M6X10 FLANGE IDN	0-28080-610-0	01	1	0008-0106	●	●	●
136	BOLT; GROMMET M6X10 FLANGE IDN	0-28080-610-0	01	1	0107-0512		●	●
136	BOLT; GROMMET M6X10 FLANGE IDN	0-28050-610-0	01	1	0601-		●	●
