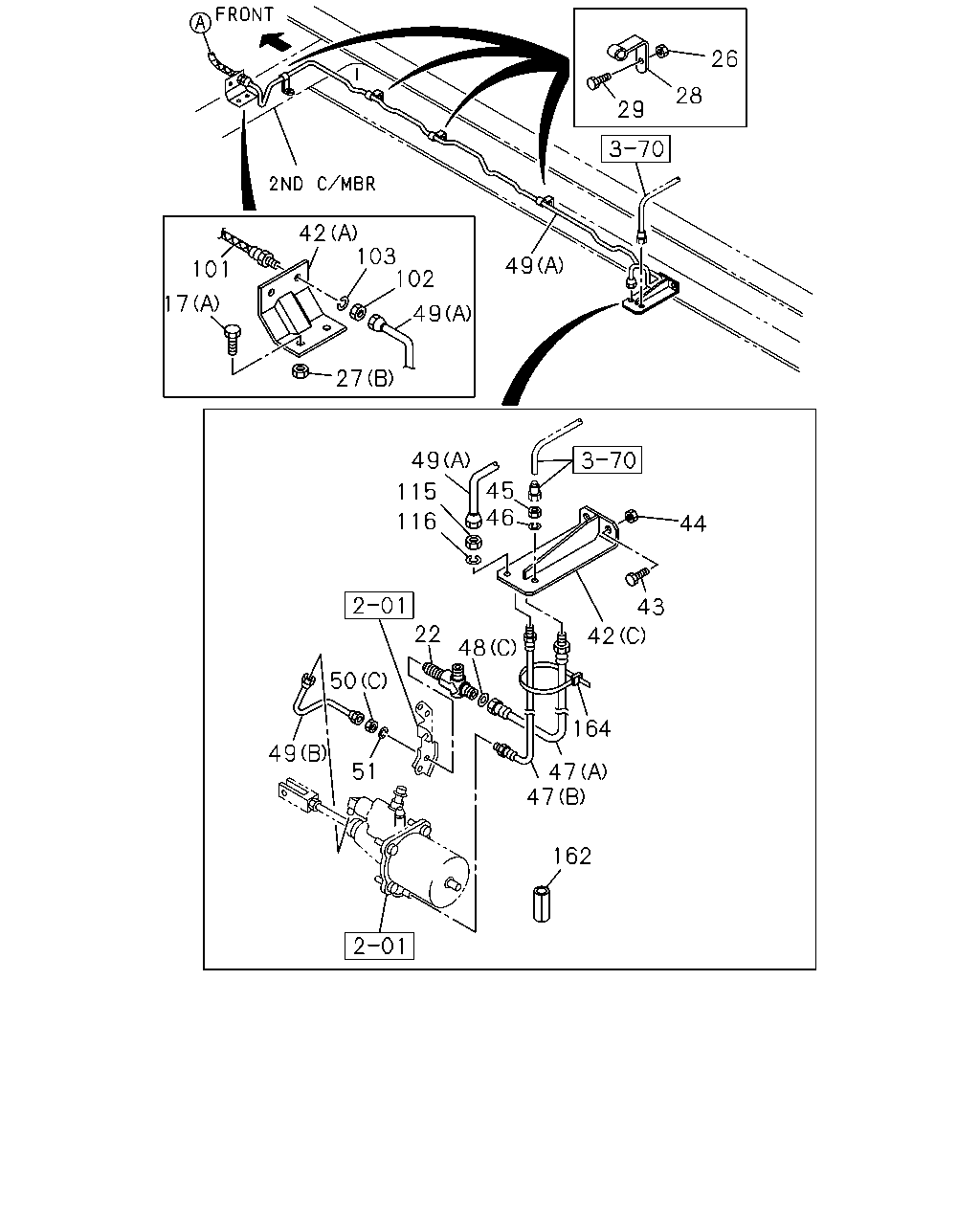

2-05 — CLUTCH PIPING (#9533) — 186 parça

26 28 29 42 103 102 49 101 17 49 27 49 45 46 115 116 44 43 22 42 48 50 164 49 51 47 47 162

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●
22	UNION; CLU PIPE M12 3WAY	9-09228-706-1	01	1	0005-0607	●
22	UNION; CLU PIPE M12 3WAY	0-92138-706-0	01	1	0608-	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0005-0210		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	06	1	0005-0602	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0603-	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0210	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0005-0210		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	0005-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0005-0210		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	05	1	0005-0512	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	05	1	0601-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	0005-0210		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0210	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0211-	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47476-912-1	01	1	0005-0210	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47476-912-1	01	1	0211-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0005-0210	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0211-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●
45	NUT; FLEX HOSE,CLU CONT M12	9-09840-280-0	01	1	0005-	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	9-09150-512-0	01	1	0005-0603	●
46	WASHER; LK,FLEX HOSE,CLU CONT ID=12.2	0-91510-512-0	01	1	0604-	●
47	HOSE; FLEX,CLU CONT (A) L=490	1-09363-632-0	01	1	0005-	●
47	HOSE; FLEX,CLU CONT (B) L=470	1-09364-692-0	01	1	0005-	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	0005-0210		●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=14.2	9-09851-004-0	01	1	0005-0210		●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0211-	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0210	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) SERVICED BY L=2700	1-47426-396-0	01	1	0005-0210		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) SERVICED BY L=3300	1-47426-398-0	01	1	0005-0210	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) SERVICED BY L=3300	1-47426-398-0	01	1	0211-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER STD CAB(FT*M) (B) L=204	1-49117-400-0	01	1	0005-0210	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0211-	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0210	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0211-	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0210	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0211-0512	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0005-	●
51	WASHER; LK ID=12.2	9-09150-512-0	01	1	0005-0603	●
51	WASHER; LK ID=12.2	0-91510-512-0	01	1	0604-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0210	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0211-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0210	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0512	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0603	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0210	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
162	COVER; RUBBER,FLEX HOSE ID=17 OD=21 L=40	1-09337-012-0	01	1	0005-	●
162	COVER; RUBBER,FLEX HOSE ID=9.5 OD=14.5 L=120	9-09913-202-1	01	1	0005-	●
164	CLIP; BAND,FLEX HOSE L=140	5-09707-031-1	01	1	0005-	●

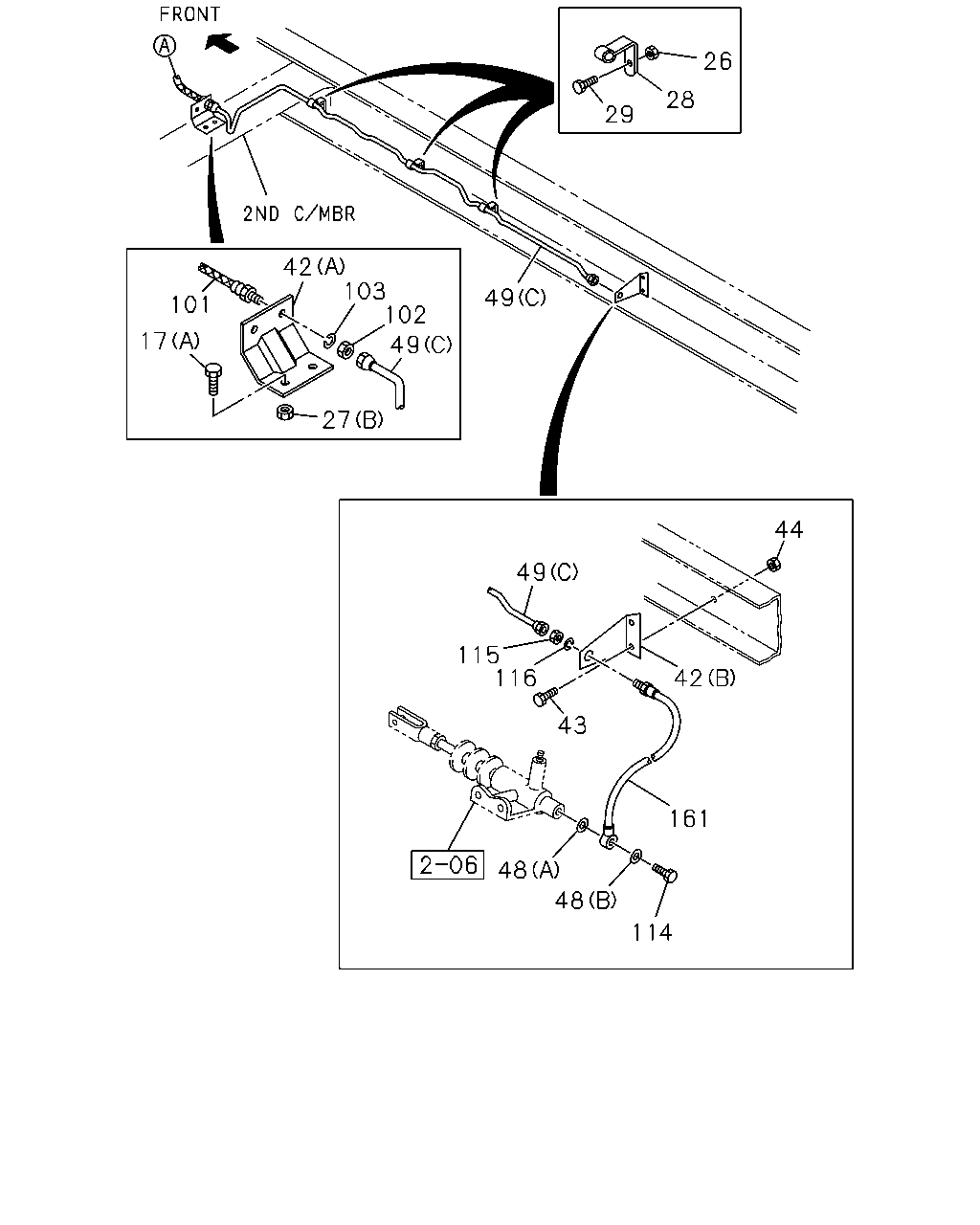

26 28 29 42 103 102 49 101 17 49 27 44 49 115 116 42 43 161 48 48 114

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	04	1	0005-0210		●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91150-108-0	06	1	0005-0602	●
26	NUT; CLIP,OIL PIPE M8 FLANGE	0-91180-108-0	06	1	0603-	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0210	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-	●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	04	1	0005-0210		●
28	CLIP; OIL PIPE ID=8 H=20 L=20	1-09700-604-0	06	1	0005-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	03	1	0005-0210		●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0005-0210	●	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28680-825-0	01	1	0211-0512	●
29	BOLT; CLIP,OIL PIPE M8X25 FLANGE	0-28650-825-0	01	1	0601-	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28680-830-0	05	1	0005-0512	●
29	BOLT; CLIP,OIL PIPE M8X30 FLANGE	0-28650-830-0	05	1	0601-	●
42	BRACKET; FLEX HOSE,CLU CONT (B)	1-47475-709-0	01	1	0005-0210		●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0005-0210	●	●
42	BRACKET; FLEX HOSE,CLU CONT (A)	1-47476-781-0	01	1	0211-	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47476-912-1	01	1	0005-0210	●
42	BRACKET; FLEX HOSE,CLU CONT (C)	1-47476-912-1	01	1	0211-		●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0005-0210	●	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28680-830-0	02	1	0211-0512	●
43	BOLT; BRKT,FLEX HOSE,CLU BOOSTER M8X30 FLANGE	0-28650-830-0	02	1	0601-	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
44	NUT; BRKT,FLEX HOSE,CLU BOOSTER M8 FLANGE	0-91180-108-0	02	1	0603-	●
48	GASKET; FLEX HOSE,CLU CONT (A) ID=10.5	1-09630-074-1	01	1	0005-0210		●
48	GASKET; FLEX HOSE,CLU CONT (B) ID=14.2	9-09851-004-0	01	1	0005-0210		●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0211-	●
48	GASKET; FLEX HOSE,CLU CONT (C) ID=10.2 OD=16.0	9-09571-410-0	01	1	0005-0210	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (C) SERVICED BY L=2700	1-47426-396-0	01	1	0005-0210		●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) SERVICED BY L=3300	1-47426-398-0	01	1	0005-0210	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (A) SERVICED BY L=3300	1-47426-398-0	01	1	0211-	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER STD CAB(FT*M) (B) L=204	1-49117-400-0	01	1	0005-0210	●
49	PIPE; AIR,FLEX HOSE TO CLU BOOSTER (B) L=204	1-49117-400-0	01	1	0211-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0210	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0211-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0210	●	●
102	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0512	●
102	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210	●	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0603	●
103	WASHER; LK,FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
114	BOLT; EYE,FLEX HOSE	1-09675-158-0	01	1	0005-0210	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0005-0210	●	●
115	NUT; FLEX HOSE,CLU CONT M14	9-99111-414-0	01	1	0211-0512	●
115	NUT; FLEX HOSE,CLU CONT M14	0-91111-514-0	01	1	0601-	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0005-0210	●	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	9-09150-514-0	01	1	0211-0603	●
116	WASHER; FLEX HOSE,CLU CONT ID=14.2	0-91510-514-0	01	1	0604-	●
161	HOSE; FLEX,SLAVE CYL L=400	1-09364-597-0	01	1	0005-0210		●

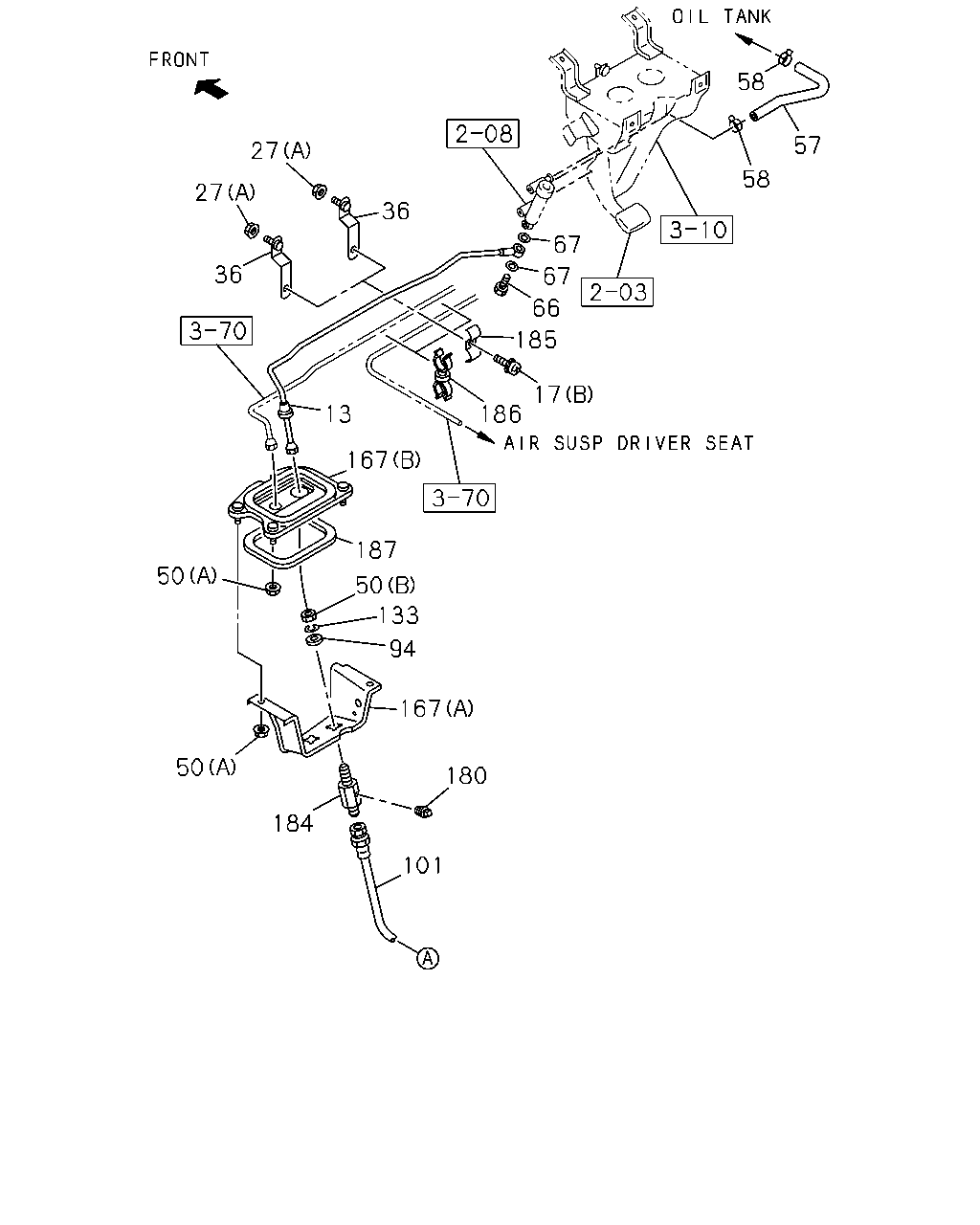

58 57 27 58 27 36 67 36 67 66 185 17 13 186 167 187 50 50 133 94 167 50 180 184 101

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0005-0210	●	●
13	PIPE; OIL,FLEX HOSE TO CLU M/CYL	1-47423-750-4	01	1	0211-	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0005-0210	●	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28680-820-0	02	1	0211-0512	●
17	BOLT; BRKT (A) M8X20 FLANGE	0-28650-820-0	02	1	0601-	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0005-0210	●	●
17	BOLT; BRKT (B) M6X19.5 W/LK&PL WASHER	8-94279-201-0	02	1	0211-	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0005-0210	●	●
27	NUT; BRKT (B) M8 FLANGE	0-91150-108-0	02	1	0211-0602	●
27	NUT; BRKT (B) M8 FLANGE	0-91180-108-0	02	1	0603-	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0005-0210	●	●
27	NUT; BRKT (A) M6 FLANGE W/RUBBER	1-09984-180-0	02	1	0211-	●
36	BRACKET; CLIP	1-79738-186-1	02	1	0005-0210	●	●
36	BRACKET; CLIP	1-79738-186-1	02	1	0211-	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0005-0210	●	●
50	NUT; UNION (A) M8 CUTTING NUT W/FLANGE	1-09985-340-0	03	1	0211-	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0005-0210	●	●
50	NUT; UNION (B) M14	9-99111-414-0	01	1	0211-0512	●
50	NUT; UNION (B) M14	0-91111-514-0	01	1	0601-	●
50	NUT; UNION (C) M12	9-09840-280-0	01	1	0005-	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0005-0210	●	●
57	HOSE; CLU M/CYL TO OIL TANK	1-47424-533-0	01	1	0211-	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0005-0210	●	●
58	CLIP; RUBBER HOSE TO M/CYL ID=14	8-94238-572-0	02	1	0211-	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0005-0210	●	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	1-09675-146-0	01	1	0211-0805	●
66	BOLT; EYE JOINT,CLU M/CYL M14X30 EYE-BOLT	8-98037-827-0	01	1	0806-	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0005-0210	●	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	1-09630-085-0	02	1	0211-1312	●
67	GASKET; EYE JOINT,CLU M/CYL ID=14.2 OD=19.2	8-98251-345-0	02	1	1401-	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0005-0210	●	●
94	WASHER; PL,UNION ID=15	9-09160-514-0	01	1	0211-0605	●
94	WASHER; PL,UNION ID=15	0-91610-514-0	01	1	0606-	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0005-0210	●	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	1-09364-859-1	01	1	0211-0703	●
101	HOSE; FLEX,OIL PIPE TO OIL PIPE L=430	8-98072-326-0	01	1	0704-	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0005-0210	●	●
133	WASHER; LK,UNION ID=14.2	9-09150-514-0	01	1	0211-0603	●
133	WASHER; LK,UNION ID=14.2	0-91510-514-0	01	1	0604-	●
167	BRACKET; UNION (A)	1-79738-193-6	01	1	0005-0210	●	●
167	BRACKET; UNION (A)	1-79738-847-2	01	1	0211-	●
167	BRACKET; UNION (B)	1-79738-845-0	01	1	0005-0210	●	●
167	BRACKET; UNION (B)	1-79738-845-1	01	1	0211-	●
180	PLUG; PIPE	9-09204-510-0	01	1	0005-0210	●	●
180	PLUG; PIPE	9-09204-510-0	01	1	0211-0804	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0005-0210	●	●
184	UNION; FLEX HOSE 3WAY	1-09656-679-0	01	1	0211-0804	●
184	UNION; FLEX HOSE STRAIGHT	1-09654-435-0	01	1	0805-	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0005-0210	●	●
185	CLIP; BRKT ID=5 & 8	5-09700-165-0	02	1	0211-	●
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	02	1	0005-0210	●	●
186	HOLDER; CLIP ID=6 & 4.8	8-94313-325-0	02	1	0211-	●
187	SEAL; BRKT	1-79738-190-0	01	1	0005-0210	●	●
187	SEAL; BRKT	1-79738-190-0	01	1	0211-	●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.

Isuzu EPC — test · veri: yerel (eski sürüm)
