◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-52 - BRAKE PIPING; OIL,FRONT ▶
3-52 — BRAKE PIPING; OIL,FRONT (#95329) — 27 parça

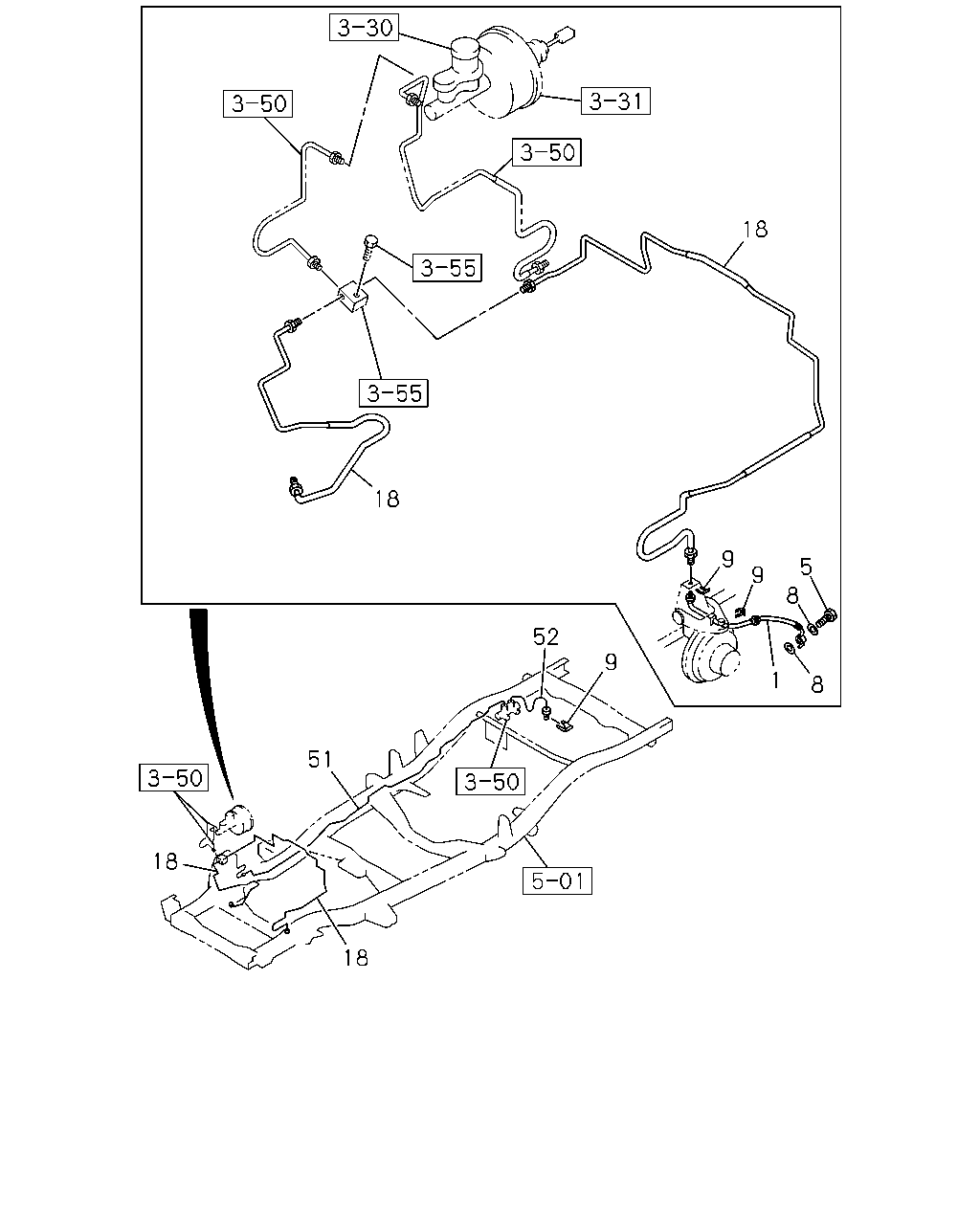

çizim 289137
18 18 51 52 9 1 8 5 8 9 9 18 18
BalonParca AdiParca NoAdetTipApplied Date A B C
1 HOSE; FLEX,FRT BRK 8-97175-367-1 02 1 0008-0106 ● ● ●
1 HOSE; FLEX,FRT BRK 8-97175-367-2 02 1 0107- ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		5-09675-017-0 02 1 0008-0106 ● ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		5-09675-017-0 02 1 0107-0410 ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-97381-454-0 02 1 0411-0905 ● ●
5 BOLT; EYE,FLEX HOSE,FRT BRK
M10X22 		8-98014-005-0 02 1 0906- ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 		9-09571-410-0 04 1 0008-0106 ● ● ●
8 GASKET; FLEX HOSE,FRT BRK
ID=10.2 OD=16.0 		9-09571-410-0 04 1 0107- ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 05 1 0008-0106 ● ● ●
9 CLIP; FLEX HOSE,FRT BRK 8-94137-662-0 05 1 0107- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
IDN 		8-97957-649-1 01 1 0008-0106 ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97957-649-1 01 1 0107-0209 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97957-649-2 01 1 0210-0405 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CAB UP<W60> IDN 		8-97957-649-2 01 1 0406- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
IDN 		8-97957-558-0 01 1 0008-0106 ● ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN 		8-97959-918-0 01 1 0107-0209 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN 		8-97959-918-0 01 1 0210-0405 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
EXC. CAB UP<W60> IDN 		8-97959-918-0 01 1 0406- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE TOURING(RBG) IDN 		8-97957-651-2 01 1 0107-0405 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
CAB UP<W60> IDN 		8-97957-651-2 01 1 0406- ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
GRADE TOURING(RBG) IDN 		8-97957-650-1 01 1 0107-0405 ● ●
18 PIPE; OIL,UNION TO FRT FLEX HOSE
CAB UP<W60> IDN 		8-97957-650-1 01 1 0406- ● ●
51 PIPE; BRK
IDN 		8-97957-560-0 01 1 0008-0106 ● ●
51 PIPE; BRK
IDN 		8-97957-560-0 01 1 0107- ●
51 PIPE; BRK
IDN 		8-97957-561-0 01 1 0008- ●
52 PIPE; BRK
IDN 		8-97957-562-1 01 1 0008-0106 ● ● ●
52 PIPE; BRK
IDN 		8-97957-562-1 01 1 0107- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
