3-30 — BRAKE MASTER CYLINDER (#95326) — 26 parça

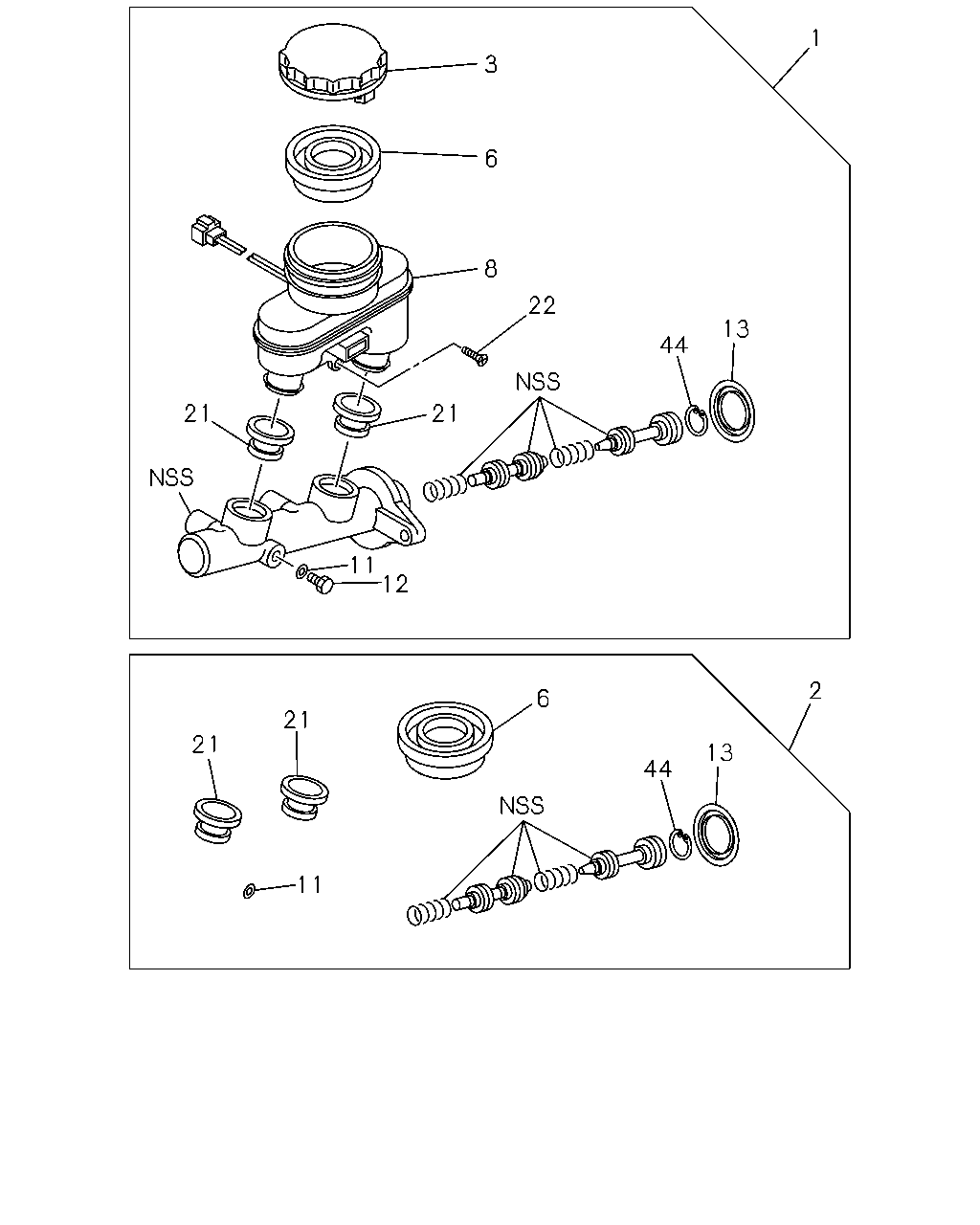

çizim 289096
1 3 6 8 22 44 13 21 21 11 12 21 21 11 6 44 13 2
BalonParca AdiParca NoAdetTipApplied Date A B C
1 CYLINDER ASM; BRK MASTER 8-94313-438-2 01 1 0008-0106 ● ● ●
1 CYLINDER ASM; BRK MASTER 8-94313-438-2 01 1 0107-0311 ● ●
1 CYLINDER ASM; BRK MASTER
THA 		8-97943-414-0 01 1 0312- ● ●
2 REPAIR KIT; BRK,M/CYL 8-94327-253-1 01 1 0008-0106 ● ● ●
2 REPAIR KIT; BRK,M/CYL 8-94327-253-1 01 1 0107-0311 ● ●
2 REPAIR KIT; BRK,M/CYL
THA 		8-97943-456-0 01 1 0312- ● ●
3 CAP; OIL TANK 8-94124-872-0 01 1 0008-0106 ● ● ●
3 CAP; OIL TANK 8-94124-872-0 01 1 0107- ● ●
6 DIAPHRAGM; BRK M/CYL 8-94124-873-0 01 1 0008-0106 ● ● ●
6 DIAPHRAGM; BRK M/CYL 8-94124-873-0 01 1 0107- ● ●
8 TANK; OIL,M/CYL 8-94478-836-1 01 1 0008-0106 ● ● ●
8 TANK; OIL,M/CYL 8-94478-836-1 01 1 0107- ● ●
11 GASKET; STOPPER BOLT TO BRK M/CYL BODY 8-94107-675-0 01 1 0008-0106 ● ● ●
11 GASKET; STOPPER BOLT TO BRK M/CYL BODY 8-94107-675-0 01 1 0107- ● ●
12 BOLT; STOPPER,BRK M/CYL
M6X13 		8-94107-674-0 01 1 0008-0106 ● ● ●
12 BOLT; STOPPER,BRK M/CYL
M6X13 		8-94107-674-0 01 1 0107- ● ●
13 SEAL; DUST,BRK M/CYL TO M/VAC 8-94132-833-0 01 1 0008-0106 ● ● ●
13 SEAL; DUST,BRK M/CYL TO M/VAC 8-94132-833-0 01 1 0107- ● ●
21 GROMMET; BRK M/CYL 8-94133-716-0 02 1 0008-0106 ● ● ●
21 GROMMET; BRK M/CYL 8-94133-716-0 02 1 0107-0311 ● ●
21 GROMMET; BRK M/CYL
THA 		8-97940-643-0 02 1 0312- ● ●
22 SCREW; OIL TANK 8-94230-600-1 01 1 0008-0106 ● ● ●
22 SCREW; OIL TANK 8-94230-600-1 01 1 0107- ● ●
44 RING; SNAP,M/CYL
OD=27.9 		9-09180-126-0 01 1 0008-0106 ● ● ●
44 RING; SNAP,M/CYL
OD=27.9 		9-09180-126-0 01 1 0107-0311 ● ●
44 RING; SNAP,M/CYL
THA 		8-97943-455-0 01 1 0312- ● ●
