◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-11 - PARKING BRAKE CONTROL ▶
3-11 — PARKING BRAKE CONTROL (#95325) — 194 parça

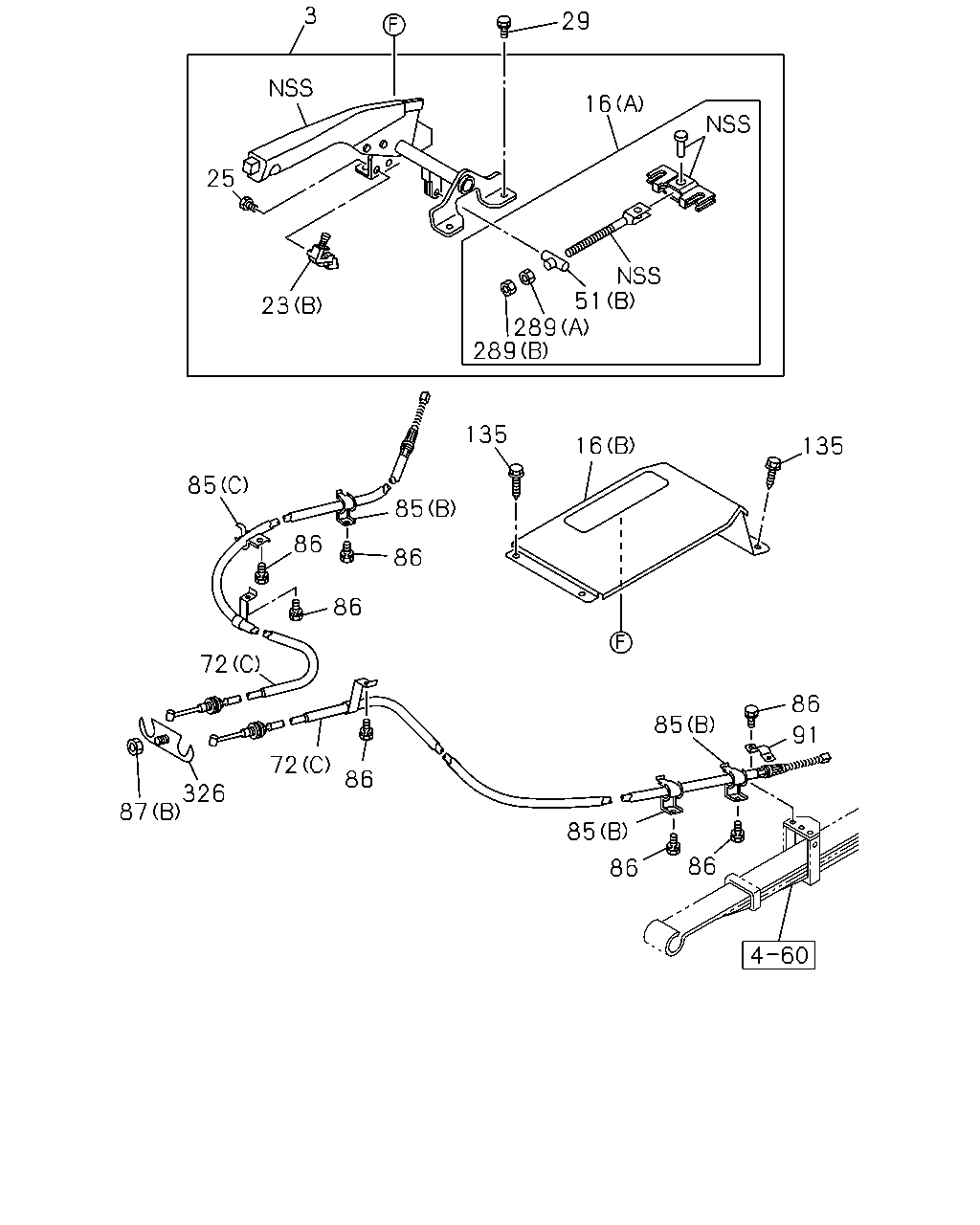

çizim 289029
3 29 25 23 16 51 289 289 85 135 16 135 85 86 86 86 72 87 326 72 86 85 86 91 85 86 86
BalonParca AdiParca NoAdetTipApplied Date A B
3 LEVER; PARKING BRK
WAGON(TB**V*) 		8-97177-851-0 01 1 0008-0106 ●
3 LEVER; PARKING BRK 8-97177-851-0 01 1 0008-0106 ●
3 LEVER; PARKING BRK 8-97177-851-0 01 1 0107- ● ●
16 BRACKET; PARKING BRK
WAGON(TB**V*) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) (B) IDN 		8-97957-529-1 01 1 0008-0209 ●
16 BRACKET; PARKING BRK
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) (B) IDN 		8-97957-529-1 01 1 0008-0209 ●
16 BRACKET; PARKING BRK
WAGON(TB**V*) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-97957-529-1 01 1 0210-0405 ●
16 BRACKET; PARKING BRK
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (B) IDN 		8-97957-529-1 01 1 0210-0405 ●
16 BRACKET; PARKING BRK
WAGON(TB**V*) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. CAB UP<W60> (B) IDN 		8-97957-529-1 01 1 0406- ●
16 BRACKET; PARKING BRK
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. CAB UP<W60> (B) IDN 		8-97957-529-1 01 1 0406- ●
16 BRACKET; PARKING BRK
WAGON(TB**V*) (A) 		8-97202-451-0 01 1 0008-0106 ●
16 BRACKET; PARKING BRK
(A) 		8-97202-451-0 01 1 0008-0106 ●
16 BRACKET; PARKING BRK
(A) 		8-97202-451-0 01 1 0107- ● ●
23 SWITCH; PARKING BRK
PICK UP(TB**S*) (A) 12V 		9-82750-367-0 01 1 0008-0106 ●
23 SWITCH; PARKING BRK
WAGON(TB**V*) (B) 		8-97179-739-0 01 1 0008-0106 ●
23 SWITCH; PARKING BRK
(B) 		8-97179-739-0 01 1 0008-0106 ●
23 SWITCH; PARKING BRK
(B) 		8-97179-739-0 01 1 0107- ● ●
25 SCREW; SW,PARKING BRK
WAGON(TB**V*) 		8-97179-727-0 01 1 0008-0106 ●
25 SCREW; SW,PARKING BRK 8-97179-727-0 01 1 0008-0106 ●
25 SCREW; SW,PARKING BRK 8-97179-727-0 01 1 0107- ● ●
29 BOLT; PARKING BRK LEVER TO BODY
WAGON(TB**V*) M8X20 FLANGE 		0-28480-820-0 04 1 0008-0106 ●
29 BOLT; PARKING BRK LEVER TO BODY
M8X20 FLANGE 		0-28480-820-0 04 1 0008-0106 ●
29 BOLT; PARKING BRK LEVER TO BODY
M8X20 FLANGE 		0-28480-820-0 04 1 0107-0512 ● ●
29 BOLT; PARKING BRK LEVER TO BODY
M8X20 FLANGE 		0-28450-820-0 04 1 0601- ● ●
51 PIN; JOINT,RELAY LEVER
PICK UP(TB**S*) (A) OD=8 L=20 		9-08233-820-0 02 1 0008-0106 ●
51 PIN; JOINT,RELAY LEVER
WAGON(TB**V*) (B) 		8-97202-452-0 01 1 0008-0106 ●
51 PIN; JOINT,RELAY LEVER
(B) 		8-97202-452-0 01 1 0008-0106 ●
51 PIN; JOINT,RELAY LEVER
(B) 		8-97202-452-0 01 1 0107- ● ●
72 CABLE; PARKING BRK
PICK UP(TB**S*) (B) IDN 		8-97956-579-0 01 1 0008-0106 ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE TOURING(RBG) (C) IDN 		8-97956-577-0 01 1 0107-0405 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) CAB UP<W60> (C) IDN 		8-97956-577-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
PICK UP(TB**S*) (A) IDN 		8-97956-181-3 01 1 0008-0106 ●
72 CABLE; PARKING BRK
SHORT(TB***C) GRADE TOURING(RBG) (C) IDN 		8-97956-576-0 01 1 0107-0405 ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) CAB UP<W60> (C) IDN 		8-97956-576-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
PICK UP(TB**S*) (A) IDN 		8-97956-180-1 01 1 0008-0106 ●
72 CABLE; PARKING BRK
SHORT(TB***C) GRADE TOURING(RBG) (C) IDN 		8-97956-575-0 01 1 0107-0405 ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) CAB UP<W60> (C) IDN 		8-97956-575-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) IDN 		8-97956-183-0 01 1 0008-0209 ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) IDN 		8-97956-183-0 01 1 0210-0405 ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) EXC. CAB UP<W60> (C) IDN 		8-97956-183-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) IDN 		8-97956-182-0 01 1 0008-0209 ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) IDN 		8-97956-182-0 01 1 0210-0405 ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) EXC. CAB UP<W60> (C) IDN 		8-97956-182-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) IDN 		8-97956-185-0 01 1 0008-0106 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) IDN 		8-97956-185-0 01 1 0107-0209 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) IDN 		8-97956-185-0 01 1 0210-0405 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) EXC. CAB UP<W60> (C) IDN 		8-97956-185-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) IDN 		8-97956-184-0 01 1 0008-0106 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) IDN 		8-97956-184-0 01 1 0107-0209 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) IDN 		8-97956-184-0 01 1 0210-0405 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) EXC. CAB UP<W60> (C) IDN 		8-97956-184-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE TOURING(RBG) (C) IDN 		8-97956-578-0 01 1 0107-0405 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) CAB UP<W60> (C) IDN 		8-97956-578-0 01 1 0406- ● ●
85 CLIP; BRKT
PICK UP(TB**S*) (A) 		5-09709-039-0 02 1 0008-0106 ●
85 CLIP; BRKT
PICK UP(TB**S*) (B) 		8-94146-602-0 01 1 0011-0106 ●
85 CLIP; BRKT
(B) 		8-94146-602-0 03 1 0008- ● ●
85 CLIP; BRKT
(C) ID=14 IDN 		9-09916-883-0 01 1 0008- ● ●
86 BOLT
PICK UP(TB**S*) M6X12 FLANGE 		0-28080-612-0 01 1 0011-0106 ●
86 BOLT
WAGON(TB**V*) M6X16 FLANGE 		0-28480-616-0 02 1 0008-0106 ●
86 BOLT
M6X16 FLANGE 		0-28480-616-0 02 1 0008-0106 ●
86 BOLT
M6X16 FLANGE 		0-28480-616-0 02 1 0107-0512 ● ●
86 BOLT
M6X16 FLANGE 		0-28450-616-0 02 1 0601- ● ●
86 BOLT
M6X12 FLANGE 		0-28080-612-0 08 1 0008-0512 ● ●
86 BOLT
M6X12 FLANGE 		0-28050-612-0 08 1 0601- ● ●
87 NUT
WAGON(TB**V*) (A) M6 FLANGE 		0-91150-106-0 04 1 0008-0010 ●
87 NUT
(A) M6 FLANGE 		0-91150-106-0 04 1 0008-0010 ●
87 NUT
WAGON(TB**V*) (B) M10 FLANGE 		0-91150-110-0 01 1 0008-0106 ●
87 NUT
(B) M10 FLANGE 		0-91150-110-0 01 1 0008-0106 ●
87 NUT
(B) M10 FLANGE 		0-91150-110-0 01 1 0107-0602 ● ●
87 NUT
(B) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
91 CLIP; PARKING BRK CABLE
IDN 		8-97045-075-0 01 1 0008- ● ●
91 CLIP; PARKING BRK CABLE
IDN 		8-97045-074-0 01 1 0008- ● ●
135 BOLT; PARKING BRK BRKT
WAGON(TB**V*) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) M6X16 FLANGE 		0-28480-616-0 04 1 0008-0209 ●
135 BOLT; PARKING BRK BRKT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. HI GRADE(6PQ) M6X16 FLANGE 		0-28480-616-0 04 1 0008-0209 ●
135 BOLT; PARKING BRK BRKT
WAGON(TB**V*) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) M6X16 FLANGE 		0-28480-616-0 04 1 0210-0405 ●
135 BOLT; PARKING BRK BRKT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) M6X16 FLANGE 		0-28480-616-0 04 1 0210-0405 ●
135 BOLT; PARKING BRK BRKT
WAGON(TB**V*) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. CAB UP<W60> M6X16 FLANGE 		0-28480-616-0 04 1 0406-0512 ●
135 BOLT; PARKING BRK BRKT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. CAB UP<W60> M6X16 FLANGE 		0-28480-616-0 04 1 0406-0512 ●
135 BOLT; PARKING BRK BRKT
WAGON(TB**V*) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. CAB UP<W60> M6X16 FLANGE 		0-28450-616-0 04 1 0601- ●
135 BOLT; PARKING BRK BRKT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) EXC. CAB UP<W60> M6X16 FLANGE 		0-28450-616-0 04 1 0601- ●
289 NUT; PARKING BRK
WAGON(TB**V*) (A) 		8-97202-449-0 01 1 0008-0106 ●
289 NUT; PARKING BRK
(A) 		8-97202-449-0 01 1 0008-0106 ●
289 NUT; PARKING BRK
(A) 		8-97202-449-0 01 1 0107- ● ●
289 NUT; PARKING BRK
WAGON(TB**V*) (B) 		8-97202-450-0 01 1 0008-0106 ●
289 NUT; PARKING BRK
(B) 		8-97202-450-0 01 1 0008-0106 ●
289 NUT; PARKING BRK
(B) 		8-97202-450-0 01 1 0107- ● ●
326 RETAINER; PARK CABLE
WAGON(TB**V*) 		8-97260-650-0 01 1 0008-0106 ●
326 RETAINER; PARK CABLE 8-97260-650-0 01 1 0008-0106 ●
326 RETAINER; PARK CABLE 8-97260-650-0 01 1 0107-0403 ● ●
326 RETAINER; PARK CABLE
IDN 		8-97562-256-0 01 1 0404- ● ●
çizim 289058
179 42 47 43 41 168 33 44 1 328 367 35 87
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEM ASM; PARKING BRK
PICK UP(TB**S*) 		8-97192-517-1 01 1 0008-0106 ●
33 WASHER; PL,HAND BRK LEVER
PICK UP(TB**S*) ID=6.4 		9-09160-506-0 04 1 0008-0106 ●
35 WASHER; PL,RELAY LEVER,PARK BRK
PICK UP(TB**S*) (A) ID=15.5 OD=24 		8-94222-473-0 01 1 0008-0106 ●
35 WASHER; PL,RELAY LEVER,PARK BRK
PICK UP(TB**S*) (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0008-0106 ●
35 WASHER; PL,RELAY LEVER,PARK BRK
WAGON(TB**V*) (C) ID=6.4 OD=22 		9-09164-806-0 04 1 0008-0010 ●
35 WASHER; PL,RELAY LEVER,PARK BRK
(C) ID=6.4 OD=22 		9-09164-806-0 04 1 0008-0010 ●
41 NUT; HAND BRK STEM
PICK UP(TB**S*) M6 		9-09110-406-0 04 1 0008-0106 ●
42 ROLLER; PARK BRK CABLE
PICK UP(TB**S*) 		8-94341-286-0 01 1 0008-0106 ●
43 BOLT; ROLLER,PARK BRK CABLE
PICK UP(TB**S*) M8X40 FLANGE 		0-28680-840-0 01 1 0008-0106 ●
44 CABLE; PARKING BRK,FRT
PICK UP(TB**S*) IDN 		8-94367-559-0 01 1 0008-0106 ●
47 COLLAR; ROLLER,PARK BRK CABLE
PICK UP(TB**S*) 		9-46129-013-1 01 1 0008-0106 ●
87 NUT
WAGON(TB**V*) (A) M6 FLANGE 		0-91150-106-0 04 1 0008-0010 ●
87 NUT
(A) M6 FLANGE 		0-91150-106-0 04 1 0008-0010 ●
87 NUT
WAGON(TB**V*) (B) M10 FLANGE 		0-91150-110-0 01 1 0008-0106 ●
87 NUT
(B) M10 FLANGE 		0-91150-110-0 01 1 0008-0106 ●
87 NUT
(B) M10 FLANGE 		0-91150-110-0 01 1 0107-0602 ● ●
87 NUT
(B) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
168 WASHER; LK,HAND BRK STEM
PICK UP(TB**S*) ID=6.1 IDN 		9-09150-506-0 04 1 0008-0106 ●
179 NUT; ROLLER,PARK BRK CABLE
PICK UP(TB**S*) M8 		9-09110-408-0 01 1 0008-0106 ●
328 PLATE; SEAL
WAGON(TB**V*) 		8-97166-162-1 01 1 0008-0010 ●
328 PLATE; SEAL 8-97166-162-1 01 1 0008-0010 ●
367 GASKET; PLATE,SEAL
WAGON(TB**V*) 		8-94334-899-0 04 1 0008-0010 ●
367 GASKET; PLATE,SEAL 8-94334-899-0 04 1 0008-0010 ●

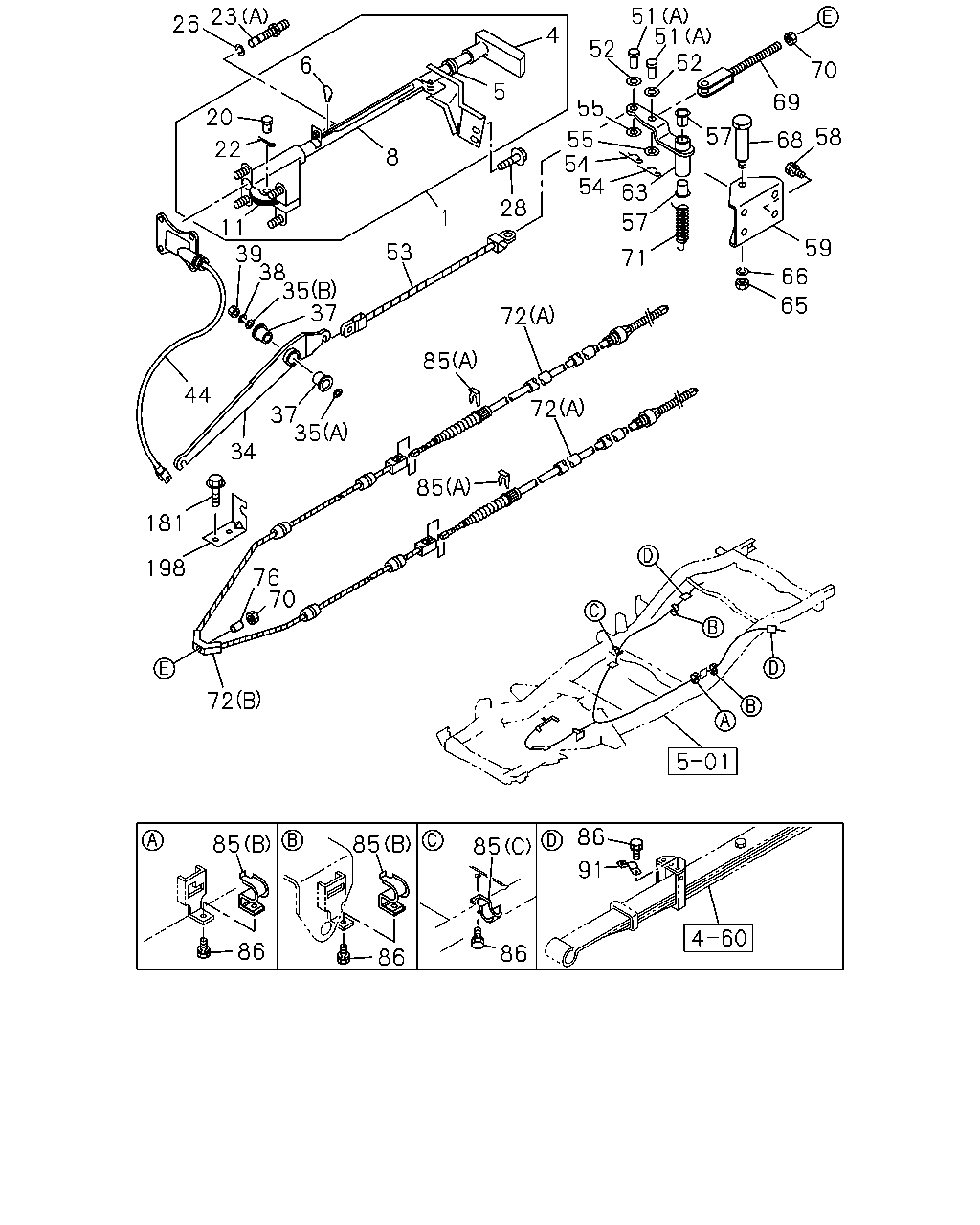

çizim 289859
70 69 68 58 59 66 65 71 57 63 54 54 55 55 52 51 51 52 57 4 5 8 6 23 26 20 22 11 39 38 35 37 53 1 28 72 85 72 85 35 37 44 34 181 198 76 70 72 86 91 85 85 85 86 86 86
BalonParca AdiParca NoAdetTipApplied Date A B
1 STEM ASM; PARKING BRK
PICK UP(TB**S*) 		8-97192-517-1 01 1 0008-0106 ●
4 STEM; PARKING BRK
PICK UP(TB**S*) 		8-97261-916-0 01 1 0008-0106 ●
5 BUSHING; PARKING BRK
PICK UP(TB**S*) 		8-97261-919-0 01 1 0008-0106 ●
6 PIN; STEM,PARK BRK
PICK UP(TB**S*) 		8-97162-045-0 01 1 0008-0106 ●
8 GUIDE; PARKING BRK
PICK UP(TB**S*) 		8-97261-917-0 01 1 0008-0106 ●
11 ROLLER; PARKING BRK
PICK UP(TB**S*) 		9-46125-071-0 01 1 0008-0106 ●
20 PIN; PARKING BRK
PICK UP(TB**S*) 		8-94171-208-0 01 1 0008-0106 ●
22 PIN; SHAFT,PARKING BRK
PICK UP(TB**S*) 		8-97187-717-0 01 1 0008-0106 ●
23 SWITCH; PARKING BRK
PICK UP(TB**S*) (A) 12V 		9-82750-367-0 01 1 0008-0106 ●
23 SWITCH; PARKING BRK
WAGON(TB**V*) (B) 		8-97179-739-0 01 1 0008-0106 ●
23 SWITCH; PARKING BRK
(B) 		8-97179-739-0 01 1 0008-0106 ●
23 SWITCH; PARKING BRK
(B) 		8-97179-739-0 01 1 0107- ● ●
26 WASHER; PARKING BRK SW
PICK UP(TB**S*) ID=8.2 		9-09150-508-0 01 1 0008-0106 ●
28 BOLT; HAND BRK LEVER
PICK UP(TB**S*) M6X20 FLANGE 		0-28680-620-0 02 1 0008-0106 ●
34 LEVER; PARK BRK CONT
PICK UP(TB**S*) 		8-94113-338-1 01 1 0008-0106 ●
35 WASHER; PL,RELAY LEVER,PARK BRK
PICK UP(TB**S*) (A) ID=15.5 OD=24 		8-94222-473-0 01 1 0008-0106 ●
35 WASHER; PL,RELAY LEVER,PARK BRK
PICK UP(TB**S*) (B) ID=10.5 OD=26 		9-09160-710-0 01 1 0008-0106 ●
35 WASHER; PL,RELAY LEVER,PARK BRK
WAGON(TB**V*) (C) ID=6.4 OD=22 		9-09164-806-0 04 1 0008-0010 ●
35 WASHER; PL,RELAY LEVER,PARK BRK
(C) ID=6.4 OD=22 		9-09164-806-0 04 1 0008-0010 ●
37 BUSHING; RELAY LEVER,PARK BRK
PICK UP(TB**S*) 		5-46149-012-0 02 1 0008-0106 ●
38 WASHER; LK,RELAY LEVER,PARK BRK
PICK UP(TB**S*) ID=10.2 		9-09150-510-0 01 1 0008-0106 ●
39 NUT; RELAY LEVER,PARK BRK
PICK UP(TB**S*) M10 		9-09110-410-0 01 1 0008-0106 ●
44 CABLE; PARKING BRK,FRT
PICK UP(TB**S*) IDN 		8-94367-559-0 01 1 0008-0106 ●
51 PIN; JOINT,RELAY LEVER
PICK UP(TB**S*) (A) OD=8 L=20 		9-08233-820-0 02 1 0008-0106 ●
51 PIN; JOINT,RELAY LEVER
WAGON(TB**V*) (B) 		8-97202-452-0 01 1 0008-0106 ●
51 PIN; JOINT,RELAY LEVER
(B) 		8-97202-452-0 01 1 0008-0106 ●
51 PIN; JOINT,RELAY LEVER
(B) 		8-97202-452-0 01 1 0107- ● ●
52 WASHER; CURVED RELAY LEVER
PICK UP(TB**S*) ID=8.5 T=0.3 		5-09509-001-0 02 1 0008-0106 ●
53 CABLE; PARK BRK,FRT LWR
PICK UP(TB**S*) 		8-94377-308-0 01 1 0008-0106 ●
54 PIN; SNAP,CABLE TO LEVER
PICK UP(TB**S*) OD=1.8 L=15 		9-08112-015-0 02 1 0008-0106 ●
55 WASHER; PL,PARK BRK CABLE
PICK UP(TB**S*) ID=8.4 		9-09160-508-0 02 1 0008-0106 ●
57 BUSHING; RELAY LEVER
PICK UP(TB**S*) 		5-33659-053-0 02 1 0008-0106 ●
58 BOLT; RELAY LEVER,PARK BRK
PICK UP(TB**S*) M8X20 FLANGE 		0-28680-820-0 04 1 0008-0106 ●
59 BRACKET; RELAY LEVER
PICK UP(TB**S*) 		8-94479-094-0 01 1 0008-0106 ●
63 LEVER; RELAY,HAND BRK
PICK UP(TB**S*) 		8-94377-307-0 01 1 0008-0106 ●
65 NUT; RELAY LEVER
PICK UP(TB**S*) M10 		9-09110-410-0 01 1 0008-0106 ●
66 WASHER; LK,RELAY LEVER
PICK UP(TB**S*) ID=10.2 		9-09150-510-0 01 1 0008-0106 ●
68 PIN; FULCRUM,RELAY LEVER,PARK BRK
PICK UP(TB**S*) 		8-94404-908-1 01 1 0008-0106 ●
69 ROD; RELAY LEVER
PICK UP(TB**S*) 		8-94314-430-0 01 1 0008-0106 ●
70 NUT; EQUALIZER TO FRT CABLE
PICK UP(TB**S*) M8 		9-09111-408-0 02 1 0008-0106 ●
71 SPRING; RETURN,PARKING BRK TO BODY
PICK UP(TB**S*) 		8-94479-600-2 01 1 0008-0106 ●
72 CABLE; PARKING BRK
PICK UP(TB**S*) (B) IDN 		8-97956-579-0 01 1 0008-0106 ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE TOURING(RBG) (C) IDN 		8-97956-577-0 01 1 0107-0405 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) CAB UP<W60> (C) IDN 		8-97956-577-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
PICK UP(TB**S*) (A) IDN 		8-97956-181-3 01 1 0008-0106 ●
72 CABLE; PARKING BRK
SHORT(TB***C) GRADE TOURING(RBG) (C) IDN 		8-97956-576-0 01 1 0107-0405 ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) CAB UP<W60> (C) IDN 		8-97956-576-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
PICK UP(TB**S*) (A) IDN 		8-97956-180-1 01 1 0008-0106 ●
72 CABLE; PARKING BRK
SHORT(TB***C) GRADE TOURING(RBG) (C) IDN 		8-97956-575-0 01 1 0107-0405 ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) CAB UP<W60> (C) IDN 		8-97956-575-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) IDN 		8-97956-183-0 01 1 0008-0209 ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) IDN 		8-97956-183-0 01 1 0210-0405 ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) EXC. CAB UP<W60> (C) IDN 		8-97956-183-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) IDN 		8-97956-182-0 01 1 0008-0209 ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) IDN 		8-97956-182-0 01 1 0210-0405 ● ●
72 CABLE; PARKING BRK
SHORT(TB***C) EXC. CAB UP<W60> (C) IDN 		8-97956-182-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) IDN 		8-97956-185-0 01 1 0008-0106 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) IDN 		8-97956-185-0 01 1 0107-0209 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) IDN 		8-97956-185-0 01 1 0210-0405 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) EXC. CAB UP<W60> (C) IDN 		8-97956-185-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) IDN 		8-97956-184-0 01 1 0008-0106 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (C) IDN 		8-97956-184-0 01 1 0107-0209 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (C) IDN 		8-97956-184-0 01 1 0210-0405 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) EXC. CAB UP<W60> (C) IDN 		8-97956-184-0 01 1 0406- ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) GRADE TOURING(RBG) (C) IDN 		8-97956-578-0 01 1 0107-0405 ● ●
72 CABLE; PARKING BRK
WAGON LONG(TB**VF) CAB UP<W60> (C) IDN 		8-97956-578-0 01 1 0406- ● ●
76 SLEEVE; CABLE GUIDE,PARKING BRK
PICK UP(TB**S*) 		8-11042-301-3 01 1 0008-0106 ●
85 CLIP; BRKT
PICK UP(TB**S*) (A) 		5-09709-039-0 02 1 0008-0106 ●
85 CLIP; BRKT
PICK UP(TB**S*) (B) 		8-94146-602-0 01 1 0011-0106 ●
85 CLIP; BRKT
(B) 		8-94146-602-0 03 1 0008- ● ●
85 CLIP; BRKT
(C) ID=14 IDN 		9-09916-883-0 01 1 0008- ● ●
86 BOLT
PICK UP(TB**S*) M6X12 FLANGE 		0-28080-612-0 01 1 0011-0106 ●
86 BOLT
WAGON(TB**V*) M6X16 FLANGE 		0-28480-616-0 02 1 0008-0106 ●
86 BOLT
M6X16 FLANGE 		0-28480-616-0 02 1 0008-0106 ●
86 BOLT
M6X16 FLANGE 		0-28480-616-0 02 1 0107-0512 ● ●
86 BOLT
M6X16 FLANGE 		0-28450-616-0 02 1 0601- ● ●
86 BOLT
M6X12 FLANGE 		0-28080-612-0 08 1 0008-0512 ● ●
86 BOLT
M6X12 FLANGE 		0-28050-612-0 08 1 0601- ● ●
91 CLIP; PARKING BRK CABLE
IDN 		8-97045-075-0 01 1 0008- ● ●
91 CLIP; PARKING BRK CABLE
IDN 		8-97045-074-0 01 1 0008- ● ●
181 BOLT; BRKT
PICK UP(TB**S*) M6X16 FLANGE 		0-28680-616-0 02 1 0008-0106 ●
198 BRACKET; CABLE
PICK UP(TB**S*) IDN 		8-97188-350-0 01 1 0008-0106 ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
