◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 3 - Brakes, Brake System ▶ 3-10 - BRAKE PEDAL AND CONTROL ▶
3-10 — BRAKE PEDAL AND CONTROL (#95324) — 46 parça

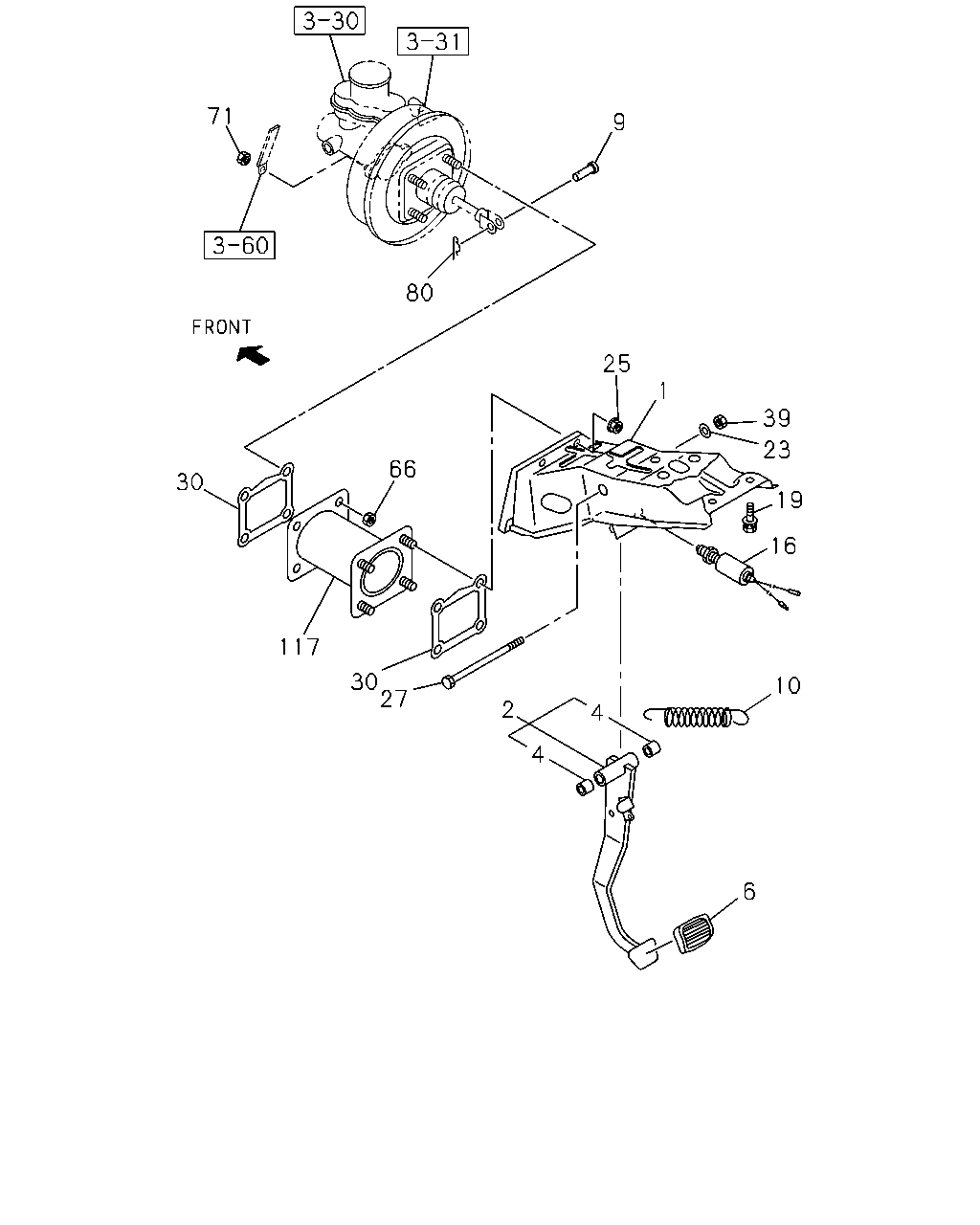

çizim 288993
39 23 19 16 1 25 9 80 71 30 66 117 30 27 2 4 4 10 6
BalonParca AdiParca NoAdetTipApplied Date A B C
1 BRACKET ASM; PEDAL 8-97040-569-1 01 1 0008-0106 ● ● ●
1 BRACKET ASM; PEDAL 8-97040-569-3 01 1 0107- ● ●
2 PEDAL; BRK 8-94329-611-1 01 1 0008-0106 ●
2 PEDAL; BRK
M/T MSG 5 SPEED(M75) 		8-94329-611-1 01 1 0008-0106 ● ●
2 PEDAL; BRK
M/T MSG 5 SPEED(M75) 		8-94329-611-1 01 1 0107- ● ●
2 PEDAL; BRK
A/T AISIN(RMD) 		8-94329-612-1 01 1 0008- ● ●
4 BUSHING; BRK PEDAL 8-94244-439-0 02 1 0008-0106 ● ● ●
4 BUSHING; BRK PEDAL 8-94244-439-0 02 1 0107- ● ●
6 COVER; BRK PEDAL 8-94222-524-1 01 1 0008-0106 ●
6 COVER; BRK PEDAL
M/T MSG 5 SPEED(M75) 		8-94222-524-1 01 1 0008-0106 ● ●
6 COVER; BRK PEDAL
M/T MSG 5 SPEED(M75) 		8-94222-524-1 01 1 0107- ● ●
6 COVER; BRK PEDAL
A/T AISIN(RMD) 		5-31413-004-0 01 1 0008- ● ●
9 PIN; JAW JOINT 8-94250-182-0 01 1 0008-0106 ● ● ●
9 PIN; JAW JOINT 8-94250-182-0 01 1 0107- ● ●
10 SPRING; RETURN,BRK PEDAL 8-94329-696-0 01 1 0008-0106 ● ● ●
10 SPRING; RETURN,BRK PEDAL 8-94329-696-0 01 1 0107- ● ●
16 SWITCH; STOP LAMP 8-94118-754-1 01 1 0008-0106 ● ● ●
16 SWITCH; STOP LAMP 8-94118-754-1 01 1 0107- ● ●
19 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 05 1 0008-0106 ● ● ●
19 BOLT; BRKT
M8X16 FLANGE 		0-28080-816-0 05 1 0107-0512 ● ●
19 BOLT; BRKT
M8X16 FLANGE 		0-28050-816-0 05 1 0601- ● ●
23 WASHER; LK,SHAFT
ID=10.2 		9-09150-510-0 01 1 0008-0106 ● ● ●
23 WASHER; LK,SHAFT
ID=10.2 		9-09150-510-0 01 1 0107-0603 ● ●
23 WASHER; LK,SHAFT
ID=10.2 		0-91510-510-0 01 1 0604- ● ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		5-09440-005-0 04 1 0008-0106 ● ● ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		5-09440-005-0 04 1 0107-0805 ● ●
25 NUT; FLANGE,MTG BRKT TO BODY
M8 FLANGE 		8-97581-233-0 04 1 0806- ● ●
27 SHAFT; BRK PEDAL 8-94480-803-0 01 1 0008-0106 ● ● ●
27 SHAFT; BRK PEDAL 8-94480-803-0 01 1 0107- ● ●
30 GASKET; M/VAC TO BODY 8-94111-590-0 02 1 0008-0106 ● ● ●
30 GASKET; M/VAC TO BODY 8-94111-590-0 02 1 0107-0311 ● ●
30 GASKET; M/VAC TO BODY
THA 		8-97943-457-0 02 1 0312- ● ●
39 NUT; STOPPER LK
M10 		9-09110-410-0 01 1 0008-0106 ● ● ●
39 NUT; STOPPER LK
M10 		9-09110-410-0 01 1 0107-0512 ● ●
39 NUT; STOPPER LK
M10 		0-91110-510-0 01 1 0601- ● ●
66 NUT; SERVO TO BRKT
M8 W/LK WASHER 		8-94279-050-0 04 1 0008-0106 ● ● ●
66 NUT; SERVO TO BRKT
M8 W/LK WASHER 		8-94279-050-0 04 1 0107-0311 ● ●
66 NUT; SERVO TO BRKT
THA 		8-97943-949-0 04 1 0312- ● ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0008-0106 ● ● ●
71 NUT; BRK M/CYL
M8 W/LK WASHER 		8-94279-050-0 02 1 0107-0311 ● ●
71 NUT; BRK M/CYL
THA 		8-97943-949-0 02 1 0312- ● ●
80 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 0008-0106 ● ● ●
80 PIN; SNAP,BRK PEDAL
L=27.7 		8-94157-841-0 01 1 0107- ● ●
117 SPACER; M/VAC TO BODY 8-97190-810-0 01 1 0008-0106 ● ● ●
117 SPACER; M/VAC TO BODY 8-97190-810-0 01 1 0107-0311 ● ●
117 SPACER; M/VAC TO BODY
THA 		8-97943-938-0 01 1 0312- ● ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
