3-05 — REAR WHEEL BRAKE (#95323) — 65 parça

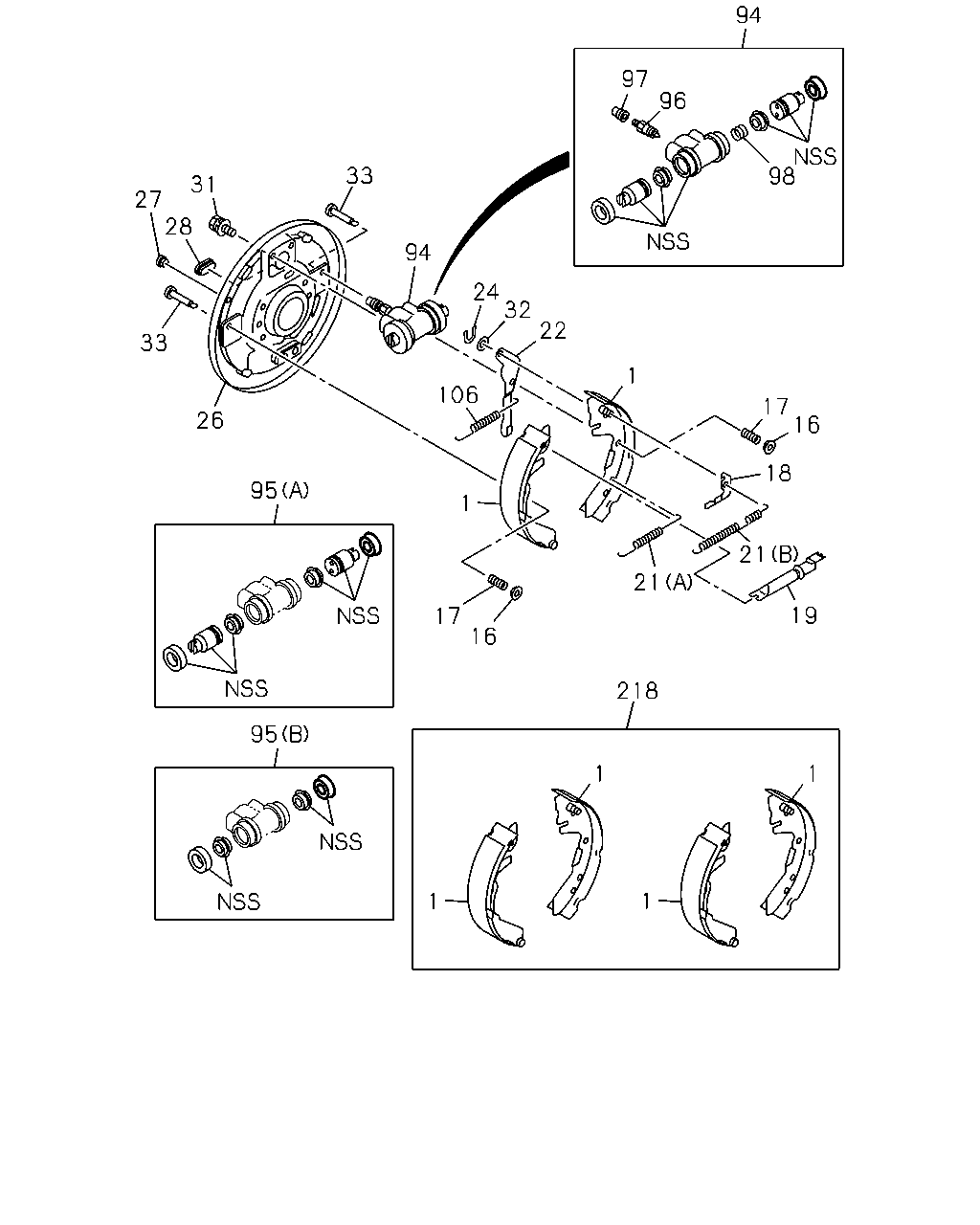

çizim 288920
19 21 21 18 16 17 1 22 32 24 94 33 31 28 27 33 26 95 95 17 16 1 106 218 1 1 1 1 98 96 97 94
BalonParca AdiParca NoAdetTipApplied Date A B C
1 SHOE; BRK,RR
LEADING IDN 		8-97147-565-0 02 1 0008-0106 ● ● ●
1 SHOE; BRK,RR
LEADING IDN 		8-97147-565-1 02 1 0107-0204 ● ●
1 SHOE; BRK,RR
LEADING IDN 		8-97956-911-0 02 1 0205- ● ●
1 SHOE; BRK,RR
TRAILING IDN 		8-97049-177-0 01 1 0008-0106 ● ● ●
1 SHOE; BRK,RR
TRAILING IDN 		8-97049-177-1 01 1 0107-0204 ● ●
1 SHOE; BRK,RR
TRAILING IDN 		8-97956-913-0 01 1 0205- ● ●
1 SHOE; BRK,RR
TRAILING IDN 		8-97049-176-0 01 1 0008-0106 ● ● ●
1 SHOE; BRK,RR
TRAILING IDN 		8-97049-176-1 01 1 0107-0204 ● ●
1 SHOE; BRK,RR
TRAILING IDN 		8-97956-912-0 01 1 0205- ● ●
16 CUP; SHOE HOLDING
IDN 		9-47162-033-0 04 1 0008-0106 ● ● ●
16 CUP; SHOE HOLDING
IDN 		9-47162-033-0 04 1 0107- ● ●
17 SPRING; SHOE HOLD DOWN
IDN 		8-94134-106-0 04 1 0008-0106 ● ● ●
17 SPRING; SHOE HOLD DOWN
IDN 		8-94134-106-0 04 1 0107- ● ●
18 LEVER; AUTO ADJ
IDN 		8-94124-866-1 01 1 0008-0106 ● ● ●
18 LEVER; AUTO ADJ
IDN 		8-94124-866-1 01 1 0107- ● ●
18 LEVER; AUTO ADJ
IDN 		8-94124-865-1 01 1 0008-0106 ● ● ●
18 LEVER; AUTO ADJ
IDN 		8-94124-865-1 01 1 0107- ● ●
19 ADJUSTER; RR BRK 8-94127-078-1 01 1 0008-0106 ● ● ●
19 ADJUSTER; RR BRK 8-94127-078-1 01 1 0107- ● ●
19 ADJUSTER; RR BRK 8-94127-077-1 01 1 0008-0106 ● ● ●
19 ADJUSTER; RR BRK 8-94127-077-1 01 1 0107- ● ●
21 SPRING; SHOE,RET
(A) LOWER IDN 		8-94127-066-0 02 1 0008-0106 ● ● ●
21 SPRING; SHOE,RET
(A) LOWER IDN 		8-94127-066-0 02 1 0107- ● ●
21 SPRING; SHOE,RET
(B) UPPER IDN 		8-94480-191-0 02 1 0008-0106 ● ● ●
21 SPRING; SHOE,RET
(B) UPPER IDN 		8-94480-191-0 02 1 0107- ● ●
22 LEVER; PARKING BRK,WHEEL BRK
IDN 		8-94124-868-2 01 1 0008-0106 ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK
IDN 		8-94124-868-2 01 1 0107- ● ●
22 LEVER; PARKING BRK,WHEEL BRK
IDN 		8-94124-867-2 01 1 0008-0106 ● ● ●
22 LEVER; PARKING BRK,WHEEL BRK
IDN 		8-94124-867-2 01 1 0107- ● ●
24 RETAINER; PARKING BRK
IDN 		9-46349-005-1 02 1 0008-0106 ● ● ●
24 RETAINER; PARKING BRK
IDN 		9-46349-005-1 02 1 0107- ● ●
26 PLATE; BACK,RR BRK
IDN 		8-97147-567-0 01 1 0008-0106 ● ● ●
26 PLATE; BACK,RR BRK
IDN 		8-97147-567-0 01 1 0107-0204 ● ●
26 PLATE; BACK,RR BRK
IDN 		8-97956-909-0 01 1 0205- ● ●
26 PLATE; BACK,RR BRK
IDN 		8-97147-566-0 01 1 0008-0106 ● ● ●
26 PLATE; BACK,RR BRK
IDN 		8-97147-566-0 01 1 0107-0204 ● ●
26 PLATE; BACK,RR BRK
IDN 		8-97956-908-0 01 1 0205- ● ●
27 COVER; CHECK HOLE,DRUM COVER
IDN 		8-97122-854-0 02 1 0008-0106 ● ● ●
27 COVER; CHECK HOLE,DRUM COVER
IDN 		8-97122-854-0 02 1 0107- ● ●
28 COVER; ADJ HOLE
IDN 		8-94111-509-0 02 1 0008-0106 ● ● ●
28 COVER; ADJ HOLE
IDN 		8-94111-509-0 02 1 0107- ● ●
31 BOLT; RR WHEEL CYL
M6X10 FLANGE IDN 		8-94134-103-0 04 1 0008-0106 ● ● ●
31 BOLT; RR WHEEL CYL
M6X10 FLANGE IDN 		8-94134-103-0 04 1 0107- ● ●
32 WASHER; LK
ID=9.5 IDN 		9-09850-529-0 02 1 0008-0106 ● ● ●
32 WASHER; LK
ID=9.5 IDN 		9-09850-529-0 02 1 0107- ● ●
33 PIN; SHOE HOLD DOWN 8-94201-061-0 04 1 0008-0106 ● ● ●
33 PIN; SHOE HOLD DOWN 8-94201-061-0 04 1 0107- ● ●
94 CYLINDER; WHEEL,RR BRK
IDN 		8-97230-425-0 02 1 0008-0106 ● ● ●
94 CYLINDER; WHEEL,RR BRK
IDN 		8-97230-425-0 02 1 0107- ● ●
95 CUP SET; RR WHEEL CYL
(B) 		5-87832-248-0 01 1 0210- ● ●
95 CUP SET; RR WHEEL CYL
(A) 		5-87831-828-0 01 1 0008-0106 ● ● ●
95 CUP SET; RR WHEEL CYL
(A) 		5-87831-828-0 01 1 0107- ● ●
96 SCREW; BLEEDER,RR BRK
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) IDN 		8-98050-476-0 02 1 1109- ● ●
96 SCREW; BLEEDER,RR BRK
IDN 		9-47615-027-0 02 1 0008-0106 ● ● ●
96 SCREW; BLEEDER,RR BRK
IDN 		9-47615-027-0 02 1 0107-1108 ● ●
96 SCREW; BLEEDER,RR BRK
FINAL GEAR RATIO 43/9(S2J) IDN 		9-47615-027-0 02 1 1109- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR RATIO 41/10(GT5),FINAL GEAR RATIO 41/8(RU1),FINAL GEAR RATIO 43/10(S7C) IDN 		8-98050-479-0 02 1 1109- ● ●
97 CAP; BLEEDER,RR WHEEL CYL
IDN 		1-47619-009-0 02 1 0008-0106 ● ● ●
97 CAP; BLEEDER,RR WHEEL CYL
IDN 		1-47619-009-0 02 1 0107-1108 ● ●
97 CAP; BLEEDER,RR WHEEL CYL
FINAL GEAR RATIO 43/9(S2J) IDN 		1-47619-009-0 02 1 1109- ● ●
98 SPRING; RR WHEEL CYL
IDN 		8-94230-597-2 02 1 0008-0106 ● ● ●
98 SPRING; RR WHEEL CYL
IDN 		8-94230-597-2 02 1 0107- ● ●
106 SPRING; ADJ LEVER
IDN 		8-94480-190-0 02 1 0008-0106 ● ● ●
106 SPRING; ADJ LEVER
IDN 		8-94480-190-0 02 1 0107- ● ●
218 SHOE KIT; BRK,RR
IDN 		5-87832-092-0 01 1 0205- ● ●
