Isuzu WW
▶
AUV
▶
TBR
▶
50823 - TBR(INDONESIA)
▶
2 - Clutch, Transmission, Trans Axle
▶

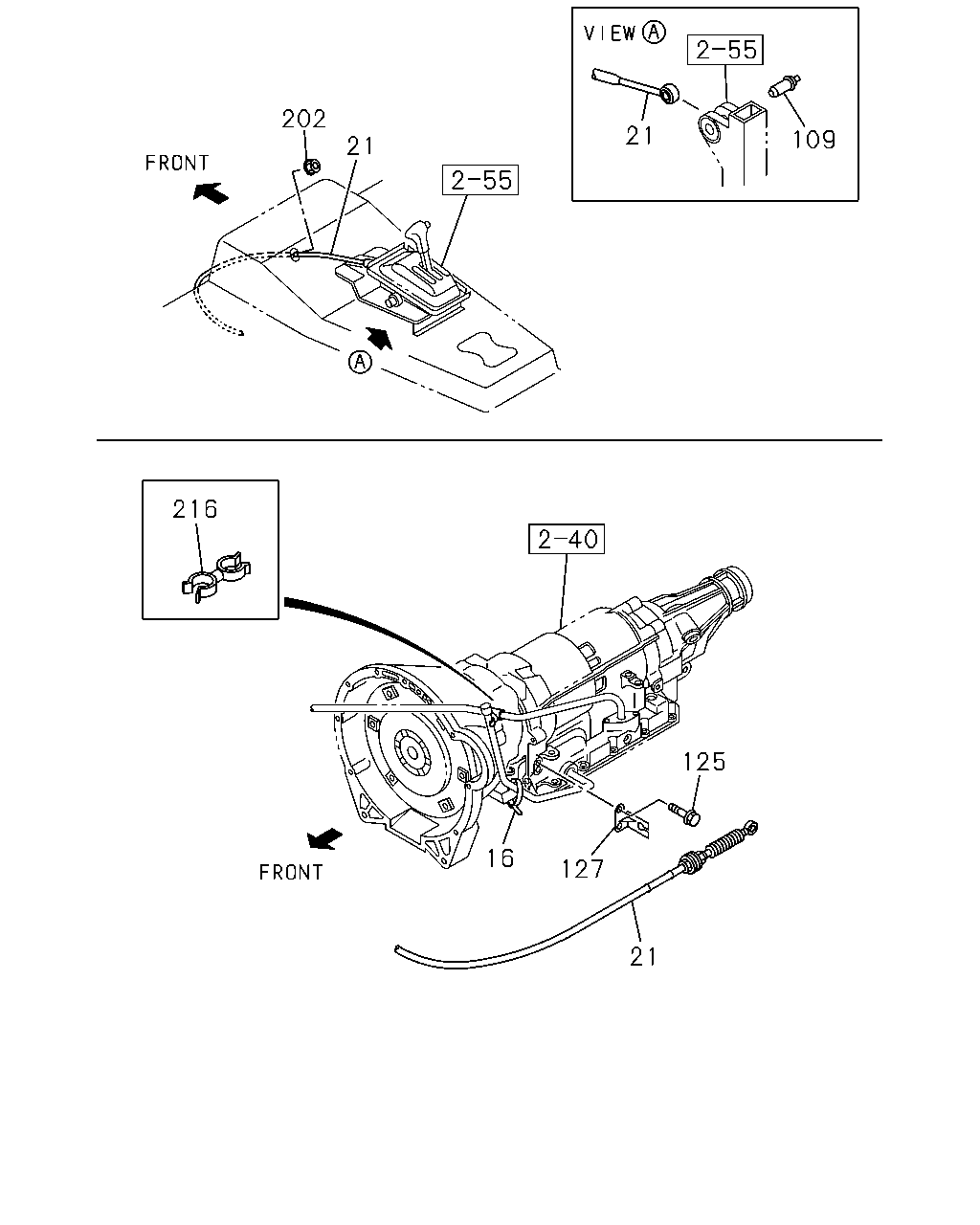

2-56 - AUTO TRANS CONTROL LINK
▶
2-56 — AUTO TRANS CONTROL LINK
(#95321) — 13 parça
109
21
21
202
216
125
127
16
21
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
16
CLIP; TV CABLE
L=140 IDN
5-09707-031-1
01
1
0008-0008
21
CABLE; A/T
IDN
8-97175-733-1
01
1
0008-0106
21
CABLE; A/T
GRADE TOURING(RBG) IDN
8-97560-491-0
01
1
0107-0405
21
CABLE; A/T
CAB UP<W60> IDN
8-97560-491-0
01
1
0406-
21
CABLE; A/T
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN
8-97175-733-1
01
1
0107-0209
21
CABLE; A/T
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN
8-97175-733-1
01
1
0210-0405
21
CABLE; A/T
EXC. CAB UP<W60> IDN
8-97175-733-1
01
1
0406-
109
PIN; CONT CABLE
8-97956-747-0
01
1
0008-
125
BOLT; BRKT
M8X20 FLANGE
0-28680-820-0
02
1
0008-0512
125
BOLT; BRKT
M8X20 FLANGE IDN
0-28650-820-0
02
1
0601-
127
BRACKET; A/T CONT CABLE
8-97175-735-0
01
1
0008-
202
NUT; GROMMET
M6 FLANGE
8-97063-399-0
02
1
0008-
216
CLIP; CABLE
ID=13 & 12
8-94178-797-0
01
1
0008-0204
