◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-50 - AUTO TRANS BRAKE AND DISC CLUTCH ▶
2-50 — AUTO TRANS BRAKE AND DISC CLUTCH (#95317) — 16 parça

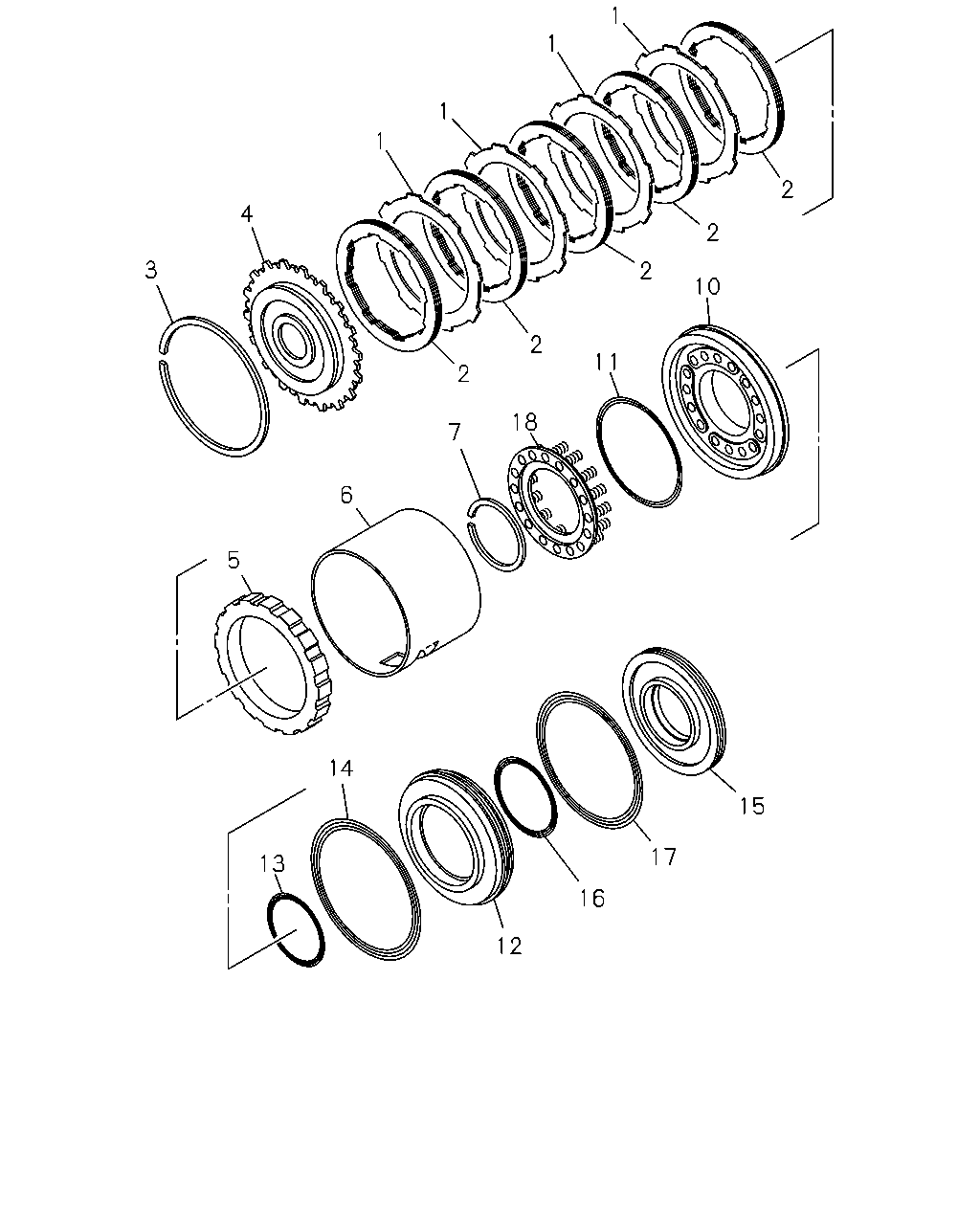

çizim 289272
15 17 16 12 14 13 5 6 7 18 11 10 2 2 2 2 2 1 1 1 1 4 3
BalonParca AdiParca NoAdetTipApplied Date
1 DISC; CLU,BRK,A/T 8-94324-521-0 04 1 0008-
2 DISC ASM; CLU & FACING,A/T 8-94324-791-0 05 1 0008-
3 RING; RET,DISC CLU,A/T 5-34318-001-0 01 1 0008-
4 PLATE ASM; INNER RACE,DISC CLU,A/T 8-94405-310-0 01 1 0008-
5 PLATE; CLU BACKING,A/T 5-34256-003-0 01 1 0008-
6 TUBE; BRK APPLY,DISC CLU,A/T 8-94239-559-0 01 1 0008-
7 RING; SNAP,DISC CLU,A/T 5-34268-006-0 01 1 0008-
10 PISTON; DISC CLU,A/T 5-34261-009-0 01 1 0008-
11 GASKET; PISTON,DISC CLU,A/T 8-97264-817-0 01 1 0008-
12 SLEEVE; REACTION,DISC CLU,A/T 5-34261-008-0 01 1 0008-
13 GASKET; INNER,DISC CLU,A/T 8-97184-352-0 01 1 0008-
14 GASKET; OUTER,DISC CLU,A/T 8-97264-822-0 01 1 0008-
15 PISTON; DISC CLU,A/T 5-34261-007-0 01 1 0008-
16 GASKET; INNER,DISC CLU,A/T 8-97184-348-0 01 1 0008-
17 GASKET; OUTER,DISC CLU,A/T 8-97184-353-0 01 1 0008-
18 SPRING ASM; BRK RETURN,DISC CLU 8-97065-701-0 01 1 0008-
