◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-49 - AUTO TRANS INHIBITOR SWITCH ▶
2-49 — AUTO TRANS INHIBITOR SWITCH (#95316) — 34 parça

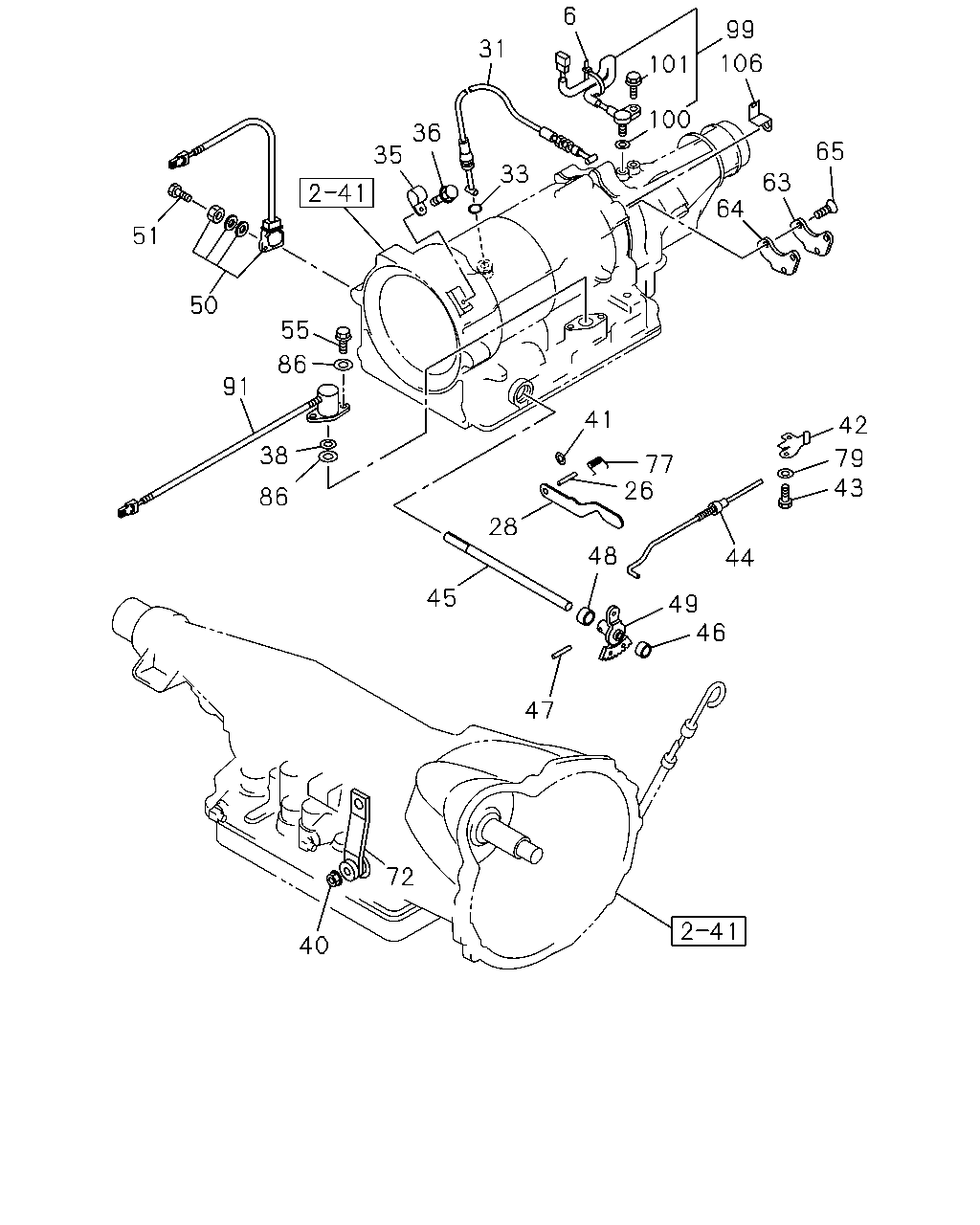

çizim 289853
42 79 43 44 46 49 48 26 77 41 28 45 47 86 38 91 86 55 50 51 35 36 31 6 101 100 33 106 99 65 63 64 72 40
BalonParca AdiParca NoAdetTipApplied Date
6 CLAMP; WIRING HARNESS,A/T 8-94473-565-0 01 1 0008-
26 SHAFT; PARKING PAWL,A/T 8-94473-587-0 01 1 0008-
28 PAWL; PARKING,A/T 8-97200-273-0 01 1 0008-
31 CABLE; THROTTLE,A/T 8-97264-784-1 01 1 0008-
33 GASKET; THROTTLE CABLE 8-94364-922-0 01 1 0008-
35 CLAMP; THROTTLE CABLE 8-97264-785-0 01 1 0008-
36 BOLT; CLAMP,THROTTLE CABLE
M6X10 		8-94252-680-0 01 1 0008-
38 GASKET; SOLENOID INNER 8-94479-719-0 01 1 0008-
40 NUT; LEVER TO SHAFT
M8 FLANGE 		0-91150-108-0 01 1 0008-0602
40 NUT; LEVER TO SHAFT
M8 FLANGE 		0-91180-108-0 01 1 0603-
41 RETAINER; SPR,SHAFT 5-34488-002-0 01 1 0008-
42 BRACKET; PARKING LOCK 8-94323-522-0 01 1 0008-
43 BOLT; BRKT 8-94323-523-0 02 1 0008-
44 ROD ASM; PARKING PAWL 8-94473-589-0 01 1 0008-
45 SHAFT; VALVE LEVER 8-97264-788-0 01 1 0008-
46 SEAL; OIL 8-97065-695-0 02 1 0008-
47 PIN; ROLL SHAFT
D=4 		8-94257-081-0 01 1 0008-
48 COVER; SLEEVE 5-34125-002-0 01 1 0008-
49 LEVER ASM; CAM 8-97209-029-0 01 1 0008-
50 SWITCH; NEUTRAL,A/T 8-97209-145-0 01 1 0008-
51 SCREW; NEUTRAL SW,A/T 8-97200-272-0 01 1 0008-
55 BOLT; SOLENOID TO HSG,A/T
M8X14 W/WASHER 		8-94480-043-0 01 1 0008-
63 COVER; OIL GALLERY 5-34125-001-0 01 1 0008-
64 GASKET; OIL GALLERY COVER 8-97032-926-0 01 1 0008-
65 SCREW; COVER TO CASE 5-34128-001-0 03 1 0008-
72 LEVER; SELECT CONT 8-97174-097-0 01 1 0008-
77 SPRING; TORSION,PARKING BRK LK,A/T 8-94473-588-0 01 1 0008-
79 WASHER; PARKING BRK LK,A/T 5-34169-002-0 02 1 0008-
86 PLATE; SAFETY DEVICE 8-94479-720-0 01 1 0008-
91 HARNESS ASM; CABLE,A/T CONT 8-97264-787-0 01 1 0008-
99 SENSOR; SPD 8-97184-423-0 01 1 0008-
100 GASKET; SPD SENSOR 8-97184-424-0 01 1 0008-
101 BOLT; SPD SENSOR 8-94244-565-0 01 1 0008-
106 BRACKET; HARNESS 8-97264-786-0 01 1 0008-
