Sayfa 2-42 - Isuzu EPC

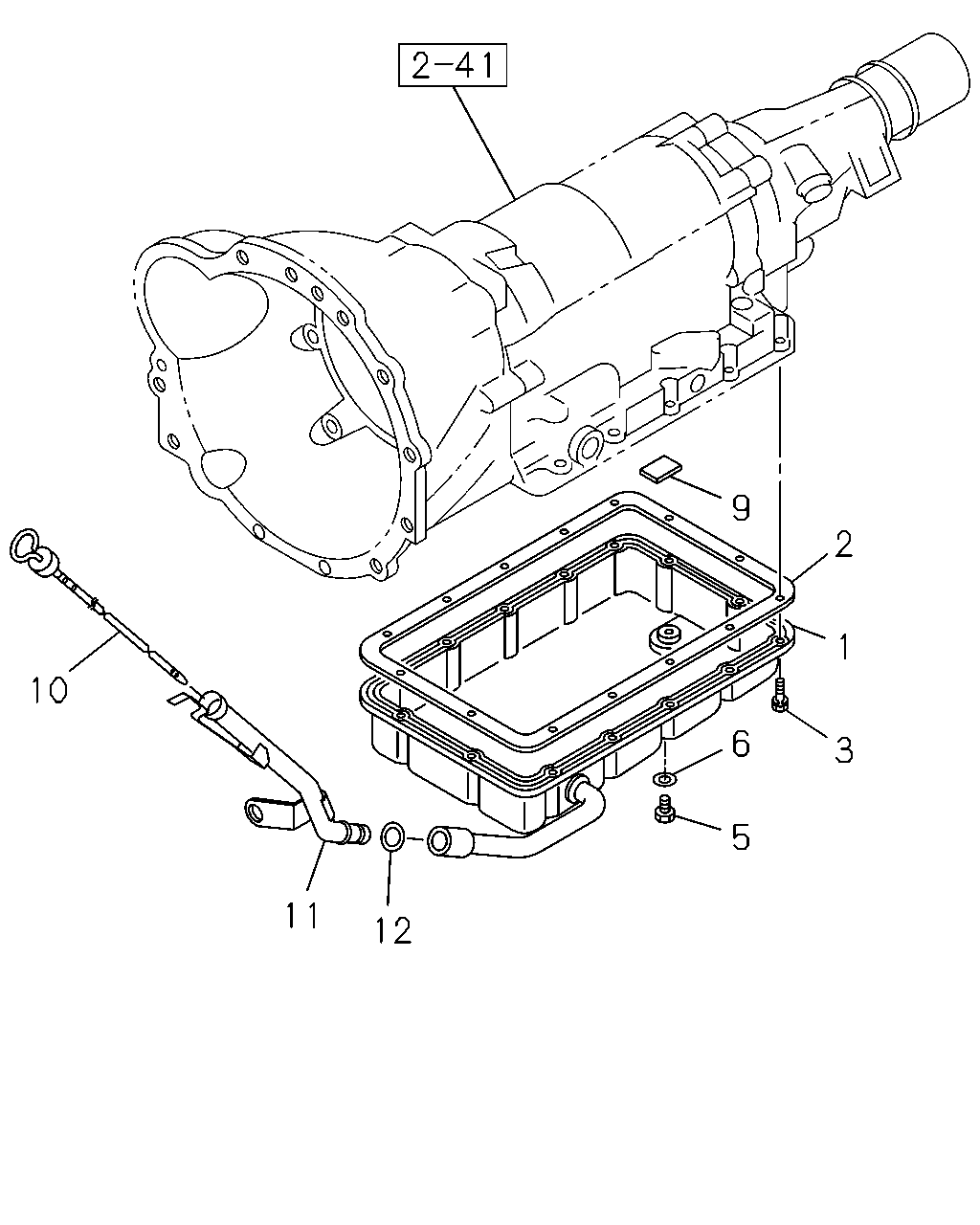

2-42 — AUTO TRANS OIL PAN AND OIL CONTROL (#95311) — 9 parça

3 1 2 9 5 6 12 11 10

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	PAN ASM; OIL,A/T	8-94323-524-0	01	1	0008-
2	GASKET; OIL PAN,A/T	5-34132-001-0	01	1	0008-
3	BOLT; OIL PAN TO CASE M6	5-34139-001-0	14	1	0008-
5	PLUG; OIL PAN	5-34132-003-0	01	1	0008-
6	GASKET; OIL PAN TO PLUG ID=12	5-34132-002-0	01	1	0008-
9	MAGNET; OIL PAN	5-34138-004-0	02	1	0008-
10	GAUGE; OIL LEVEL	8-97257-587-1	01	1	0008-
11	TUBE; OIL FILLER	8-97247-688-2	01	1	0008-
12	GASKET; OIL FILLER TUBE TO A/T ID=9.8	9-09561-110-0	01	1	0008-
