50823 - TBR(INDONESIA)
▶
2 - Clutch, Transmission, Trans Axle
▶

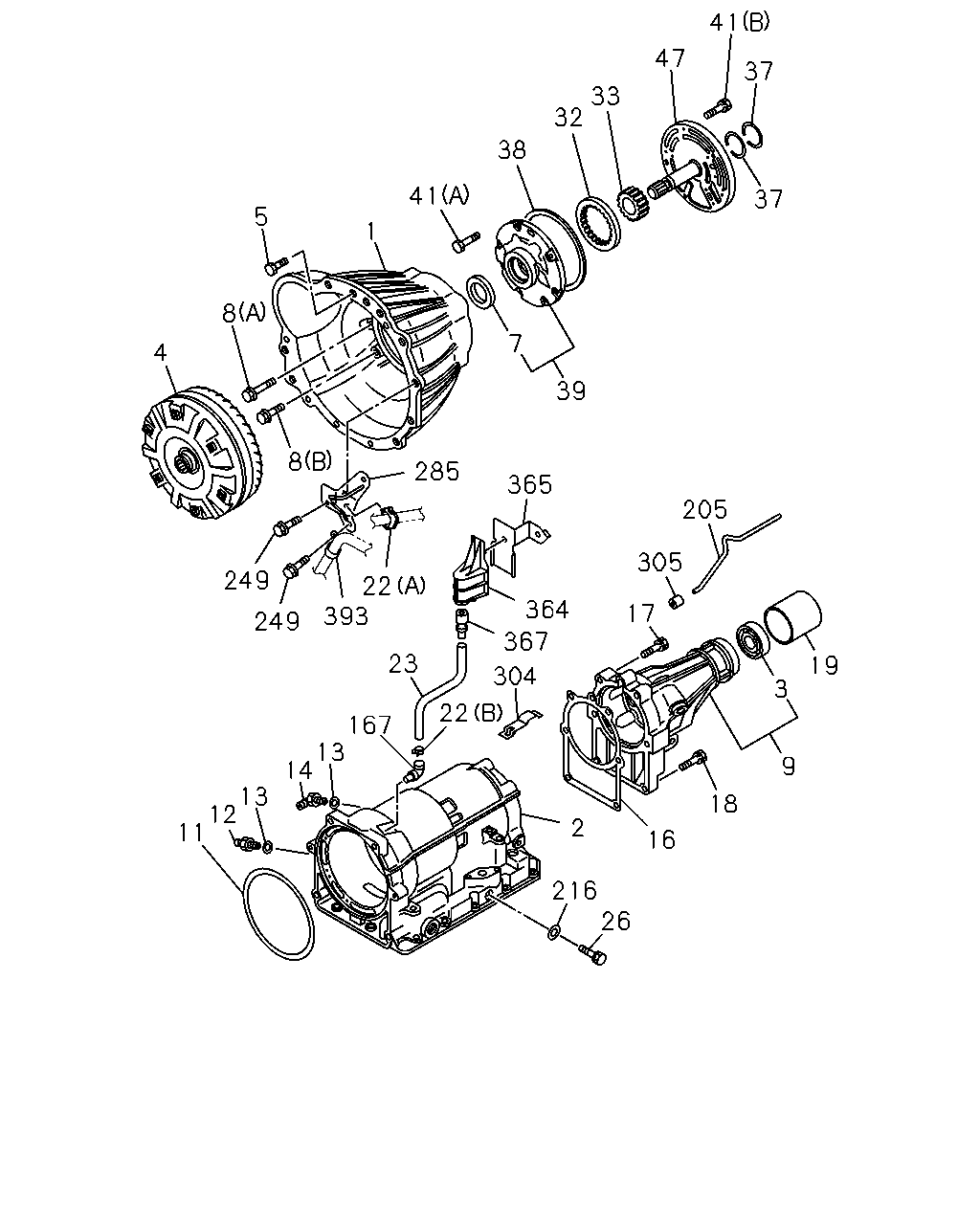

2-41 - AUTO TRANS CASE,CONVERTER AND OIL PUMP
▶
2-41 — AUTO TRANS CASE,CONVERTER AND OIL PUMP
(#95310) — 42 parça
37
37
41
47
33
32
38
41
1
5
8
4
7
39
285
8
22
393
249
249
23
365
364
367
304
22
167
13
14
13
12
11
2
17
305
205
19
3
9
18
16
26
216
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
HOUSING; CONV,A/T
8-97264-783-0
01
1
0008-
2
CASE ASM; A/T
8-97264-793-0
01
1
0008-
3
SEAL; OIL,RR COVER,A/T
8-94473-633-0
01
1
0008-
4
CONVERTER ASM; TORQUE,A/T
8-94364-918-0
01
1
0008-
5
BOLT; RR PLATE TO TORQUE CONV
M8X10
8-94460-742-0
06
1
0008-
7
SEAL; OIL,LIP,A/T
8-97264-795-0
01
1
0008-
8
BOLT; HSG TO CASE
(A) M10X118
8-94473-572-0
04
1
0008-
8
BOLT; HSG TO CASE
(B) M12X97
8-94473-573-0
02
1
0008-
9
COVER ASM; RR,A/T
8-97264-851-0
01
1
0008-
11
RING; SEALING,TRANS CASE
8-97250-604-0
01
1
0008-
12
CONNECTOR; OIL COOLER OUTLET PIPE
8-94473-570-0
01
1
0008-
13
GASKET; OIL COOLER PIPE
5-34588-001-0
02
1
0008-
14
UNION; OIL COOLER RETURN PIPE
8-94479-970-0
01
1
0008-
16
GASKET; EXT HSG
8-97032-928-0
01
1
0008-
17
BOLT; REAR COVER TO CASE
M10X45
8-94473-632-0
04
1
0008-
18
BOLT; RR CVR TO CASE,LWR,A/T
M10X35
8-94479-951-0
02
1
0008-
19
COVER; DUST,REAR COVER
5-33138-007-0
01
1
0008-
22
CLIP; BREATHER HOSE,A/T
(A) ID=16 IDN
8-94413-325-0
01
1
0008-
22
CLIP; BREATHER HOSE,A/T
(B)
8-94479-730-0
01
1
0008-
23
HOSE; BREATHER,A/T
8-97264-789-0
01
1
0008-
26
PLUG; TRANS CASE
5-34119-002-0
02
1
0008-
32
GEAR; OUTER,OIL PUMP,A/T
8-97100-794-0
01
1
0008-
33
GEAR; INNER,OIL PUMP,A/T
8-97176-139-0
01
1
0008-
37
RING; SEAL,OIL PUMP,A/T
8-97128-812-0
02
1
0008-
38
GASKET; OIL PUMP,A/T
5-34165-003-0
01
1
0008-
39
BODY SUB ASM; FRT,OIL PUMP,A/T
8-94405-299-0
01
1
0008-
41
BOLT; OIL PUMP HSG,A/T
(A) M8X135
8-94473-574-0
07
1
0008-
41
BOLT; OIL PUMP HSG,A/T
(B) M6X15.5
8-97019-532-0
06
1
0008-
47
SHAFT; OIL PUMP,A/T
8-94405-302-0
01
1
0008-
167
CONNECTOR; CASE,A/T
8-94479-727-0
01
1
0008-
205
TUBE; EXT HSG
8-97264-853-0
01
1
0008-
216
GASKET; SOLENOID OUTER
ID=6
5-34119-001-0
02
1
0008-
249
BOLT; BRKT
M6X10 FLANGE IDN
0-28080-610-0
02
1
0008-0512
249
BOLT; BRKT
M6X10 FLANGE IDN
0-28050-610-0
02
1
0601-
285
BRACKET; HARNESS
8-97261-998-0
01
1
0008-
304
SPRING; LEAF,A/T
8-97200-141-0
01
1
0008-
305
GASKET; TUBE,EXT HSG
8-97027-228-0
01
1
0008-
364
COVER; AIR BREATHER,A/T
8-97228-324-0
01
1
0008-
365
BRACKET; BREATHER HOSE,A/T
8-97257-258-2
01
1
0008-
367
BREATHER; AIR,MISSION
8-97164-362-0
01
1
0008-
393
CLIP; CABLE
ID=9 H=20 L=20
9-09527-008-0
01
1
0008-0008
393
CLIP; CABLE
ID=11 L=20
9-09525-032-0
01
1
0009-0011
