2-01 — CLUTCH (#9531) — 226 parça

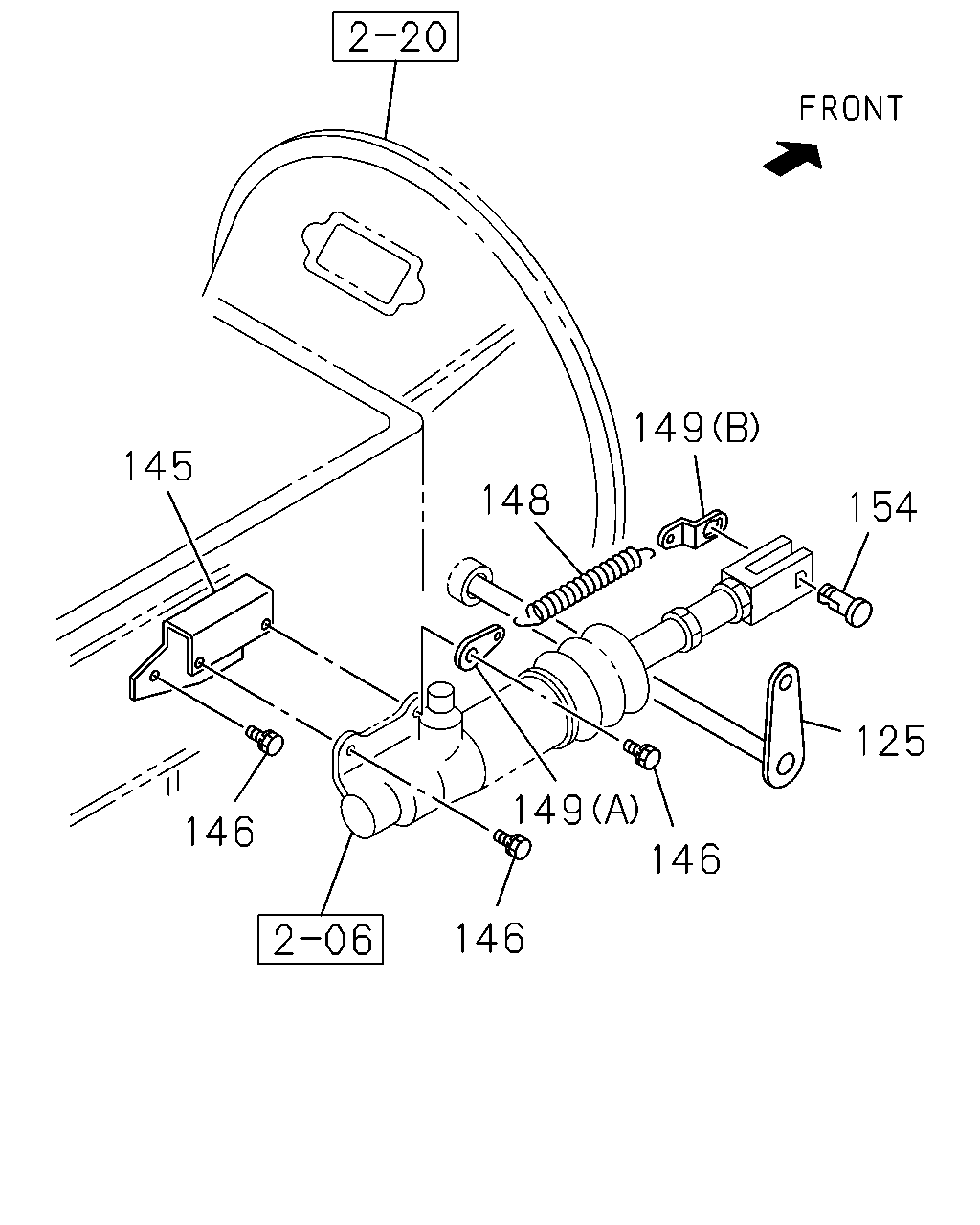

çizim 40314
149 145 148 154 125 149 146 146 146
BalonParca AdiParca NoAdetTipApplied Date A B
125 SHAFT; CLU 1-31342-298-1 01 1 0005-0210 ●
125 SHAFT; CLU 1-31342-169-1 01 1 0005- ●
145 BRACKET; SLAVE CYL,OIL CLU 1-47579-058-0 01 1 0005-0210 ●
146 BOLT; SLAVE CYL TO TRANS CASE
M10X25 FLANGE 		0-28181-025-0 04 1 0005-0210 ●
148 SPRING; CLU RETURN 1-09583-249-0 01 1 0005-0210 ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0005- ●
149 EYE; SPRING,RETURN SPRING
(B) 		1-31426-019-1 01 1 0005-0210 ●
149 EYE; SPRING,RETURN SPRING
(A) T=2.3 		1-47324-005-1 01 1 0005-0210 ●
154 PIN; JAW JOINT 1-31424-009-0 01 1 0005-0210 ●

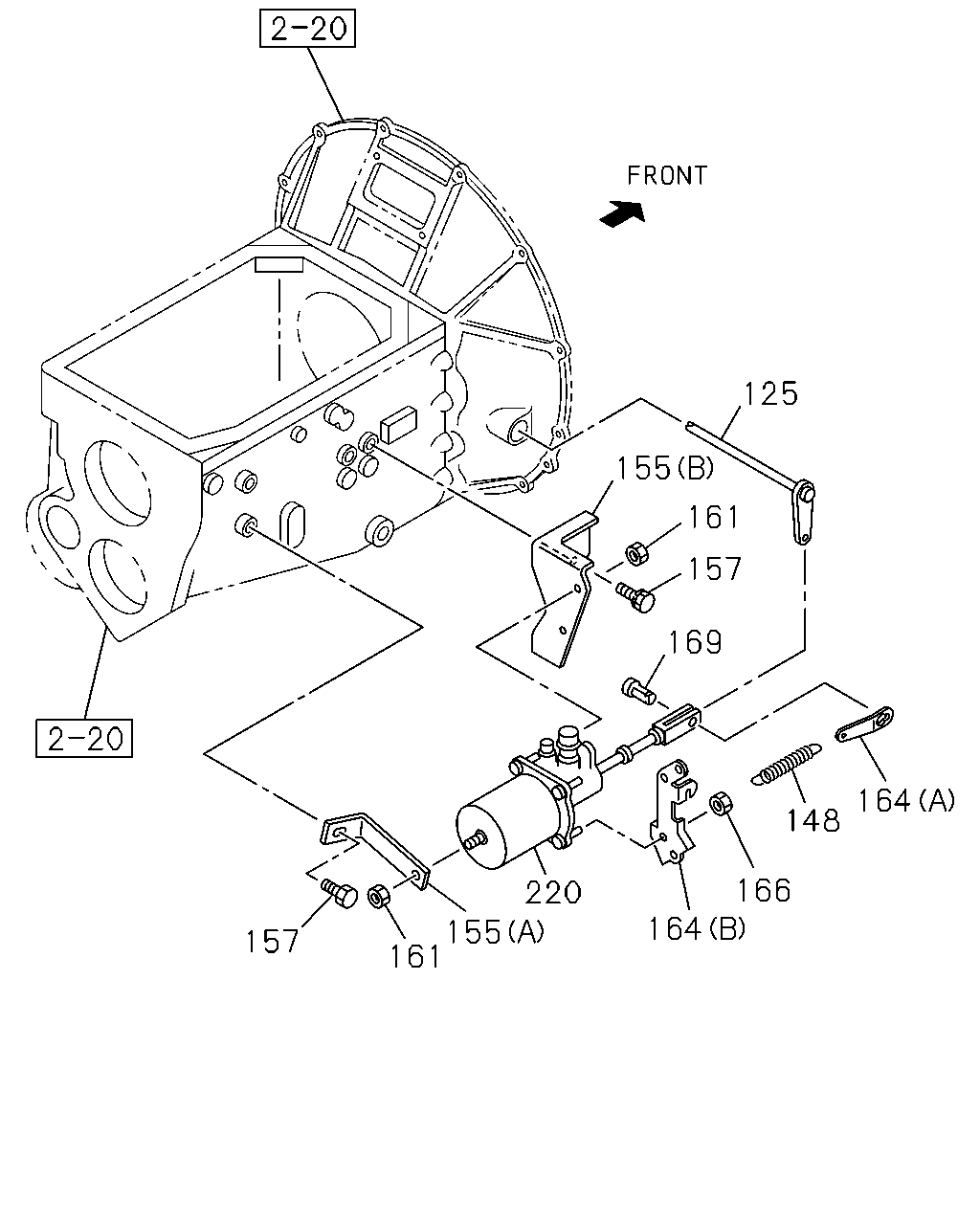

çizim 40348
125 155 161 157 169 164 148 166 164 220 155 161 157
BalonParca AdiParca NoAdetTipApplied Date A B
125 SHAFT; CLU 1-31342-298-1 01 1 0005-0210 ●
125 SHAFT; CLU 1-31342-169-1 01 1 0005- ●
148 SPRING; CLU RETURN 1-09583-249-0 01 1 0005-0210 ●
148 SPRING; CLU RETURN
L=135 		1-09583-305-0 01 1 0005- ●
155 BRACKET; MINIPACK
(B) 		1-31429-175-2 01 1 0005- ●
155 BRACKET; MINIPACK
(A) 		1-31429-176-0 01 1 0005- ●
157 BOLT; BRKT
M10X18 FLANGE 		0-28181-018-0 03 1 0005- ●
161 NUT; BRKT
M8 FLANGE 		0-91150-208-0 03 1 0005-0602 ●
161 NUT; BRKT
M8 FLANGE 		0-91180-208-0 03 1 0603- ●
164 EYE; SPRING
(A) 		1-31426-041-0 01 1 0005- ●
164 EYE; SPRING
(B) 		1-47477-789-0 01 1 0005- ●
166 NUT; SPRING EYE
M8 FLANGE 		0-91150-208-0 02 1 0005-0602 ●
166 NUT; SPRING EYE
M8 FLANGE 		0-91180-208-0 02 1 0603- ●
169 PIN; JOINT,MINIPACK 1-31424-009-0 01 1 0005- ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-383-1 01 1 0005-0210 ●
220 BOOSTER ASM; CLU
SEE FIG-NO 2-07 FOR COMPONENT. 		1-31800-388-3 01 1 0211- ●

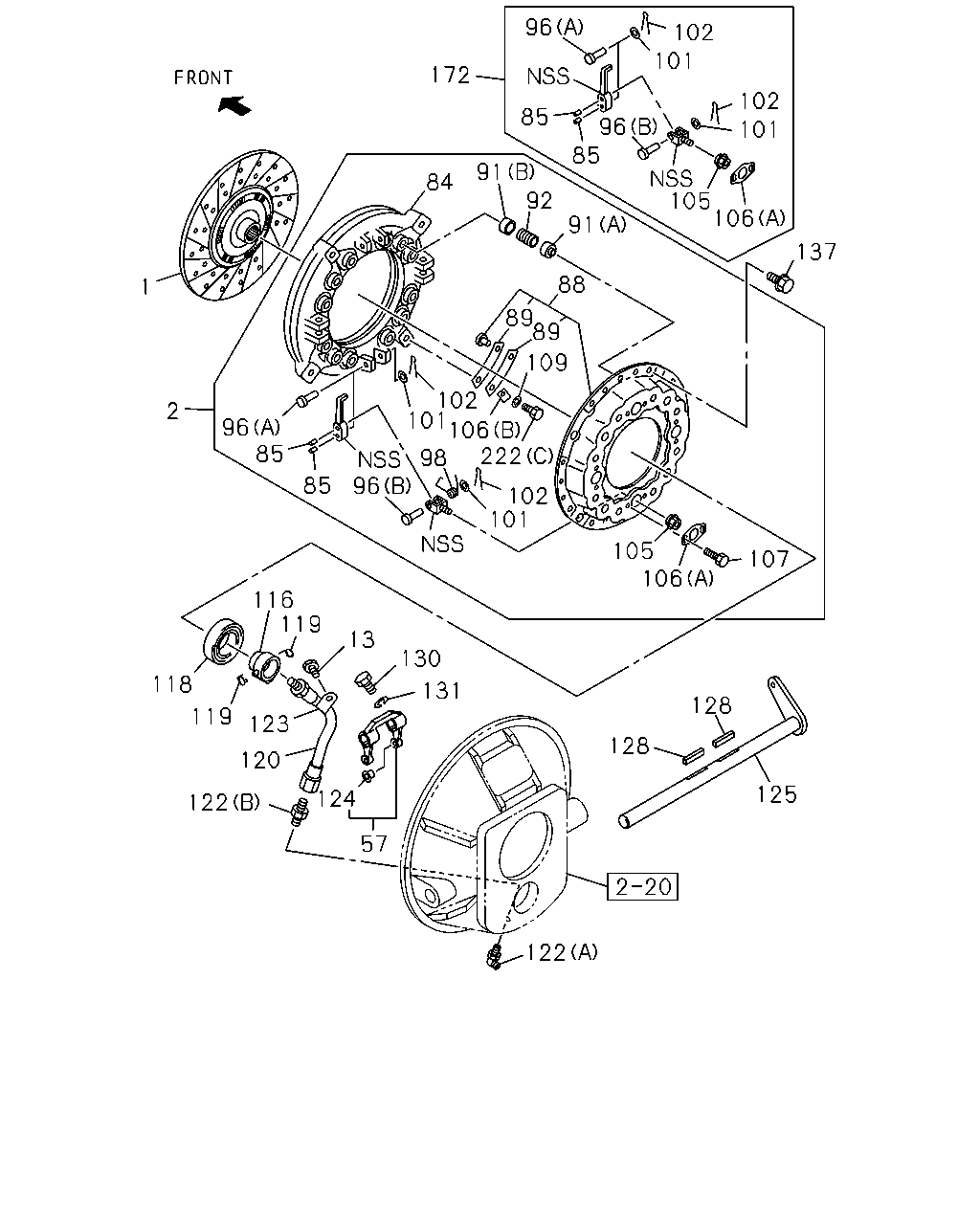

çizim 99922
96 102 101 172 96 85 102 101 85 91 92 105 106 84 91 137 88 1 89 89 109 102 101 106 96 2 96 85 85 102 101 105 106 107 116 119 13 130 118 131 128 119 123 124 128 120 125 122 57 122 98 222
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
14" 		1-31240-671-0 01 1 0005-0105 ●
1 DISC; CLUTCH
14" 		1-31240-901-0 01 1 0106-0210 ●
1 DISC; CLUTCH
15" 		1-31240-676-0 01 1 0005-0105 ●
1 DISC; CLUTCH
15" 		1-31240-902-0 01 1 0106-0210 ●
1 DISC; CLUTCH
15" 		1-31240-889-0 01 1 0211- ●
2 PLATE ASM; PRESSURE,CLU 1-31220-291-0 01 1 0005-0109 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-364-0 01 1 0110-0210 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-374-2 01 1 0211- ●
2 PLATE ASM; PRESSURE,CLU 1-31220-305-1 01 1 0005-0109 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-373-0 01 1 0110-0210 ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0211-0512 ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
57 FORK; SHIFT,CLU 1-31340-056-0 01 1 0005-0210 ● ●
57 FORK; SHIFT,CLU 1-31340-060-0 01 1 0211-1306 ●
57 FORK; SHIFT,CLU 1-31340-077-0 01 1 1307- ●
84 PLATE; PRESSURE
14" 		1-31221-082-0 01 1 0005-0210 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0005- ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0005-0210 ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0211- ●
88 COVER SUB ASM; CLU 1-31211-036-0 01 1 0005-0210 ●
89 PLATE; STRAP 1-31229-001-0 08 1 0005-0210 ●
89 PLATE; STRAP 1-31229-050-0 16 1 0005- ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0005-0210 ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0211- ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0005-0210 ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0211- ●
92 SPRING; CLU 1-09580-234-0 12 1 0005-0210 ●
92 SPRING; CLU 1-31214-019-0 12 1 0211-0308 ●
92 SPRING; CLU 1-31214-086-0 12 1 0309- ●
92 SPRING; CLU 1-31214-039-0 12 1 0005-0109 ●
92 SPRING; CLU 1-31214-065-0 12 1 0110-0210 ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0005-0210 ● ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0211- ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0005-0210 ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0211- ●
98 SPRING; RETURN 1-31233-003-0 04 1 0005-0210 ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 0211- ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 0005-0109 ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 0110-0210 ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0110- ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08113-022-0 08 1 0005-0210 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0005- ●
105 NUT; SUPPORT 9-31235-061-0 04 1 0005-0109 ● ●
105 NUT; SUPPORT 1-31235-012-0 04 1 0110-0210 ● ●
105 NUT; SUPPORT 1-31235-012-0 04 1 0211-0308 ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0309- ●
106 PLATE; LK,LEVER SUPPORT
(B) 		1-31235-008-0 08 1 0005-0109 ●
106 PLATE; LK,LEVER SUPPORT
(B) 		1-31235-008-0 04 1 0110-0210 ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0005-0210 ● ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0211- ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0005-0210 ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0211-0308 ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0309- ●
109 WASHER; LK,STRAP
ID=10.2 		9-09150-510-0 04 1 0005-0210 ●
116 BLOCK; SHIFT,CLU 1-31321-052-2 01 1 0005-0210 ● ●
116 BLOCK; SHIFT,CLU 1-31321-075-1 01 1 0211-1204 ●
116 BLOCK; SHIFT,CLU 1-31321-113-0 01 1 1205-1306 ●
116 BLOCK; SHIFT,CLU 1-31321-114-0 01 1 1307- ●
118 BEARING; CLU RELEASE 1-09820-008-0 01 1 0005-0111 ● ●
118 BEARING; CLU RELEASE 1-09820-114-0 01 1 0112-0210 ● ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0211- ●
119 SPRING; SHIFT FORK 1-09585-054-0 01 1 0005-0210 ● ●
119 SPRING; SHIFT FORK 1-09585-054-1 01 1 0211- ●
119 SPRING; SHIFT FORK 1-09585-053-0 01 1 0005-0210 ● ●
119 SPRING; SHIFT FORK 1-09585-053-1 01 1 0211- ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 0005-0210 ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 0211- ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0005-0210 ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0211- ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		9-09524-835-0 01 1 0005-0210 ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		9-09524-835-0 01 1 0211-0606 ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		0-95234-835-0 01 1 0607- ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 0005-0210 ● ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 0211- ●
125 SHAFT; CLU 1-31342-298-1 01 1 0005-0210 ●
125 SHAFT; CLU 1-31342-169-1 01 1 0005- ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0005-0210 ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0211- ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 0005-0210 ● ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 0211-0512 ●
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 0601- ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 0005-0210 ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 0211-0603 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0604- ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 0005-0512 ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0601- ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-620-1 01 1 0005-0109 ●
172 LEVER KIT; RELEASE,CLU 1-87830-620-2 01 1 0110-0210 ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-760-3 01 1 0211-0307 ●
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0308- ●
172 LEVER KIT; RELEASE,CLU 1-87830-808-0 01 1 0005-0109 ●
222 BOLT; STRAP
(C) M10X26 HEX SOKET 		1-09040-101-0 04 1 0005-0109 ●
222 BOLT; STRAP
(C) 		1-31239-059-0 04 1 0110-0210 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0005- ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0005- ●

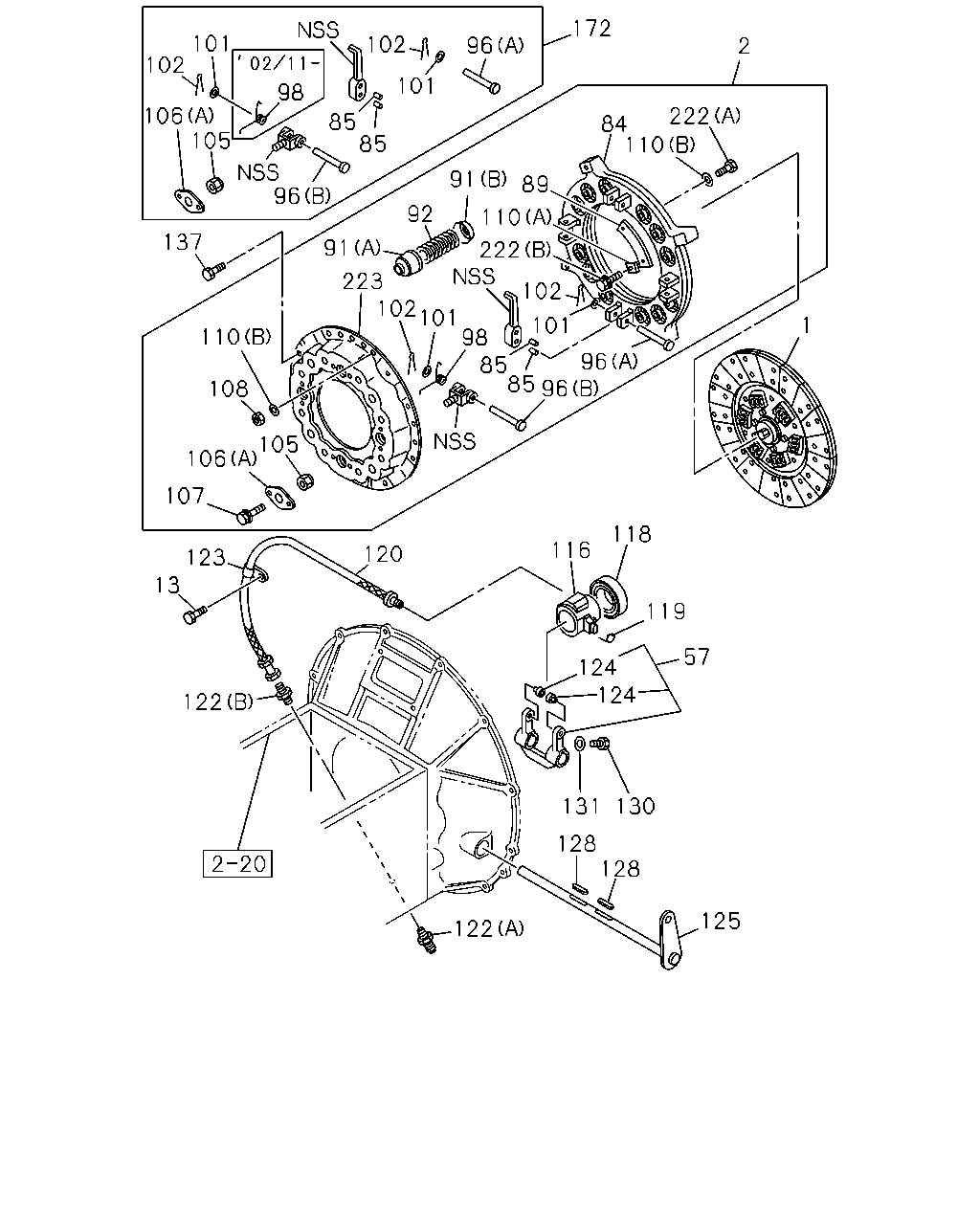

çizim 99923
172 101 102 102 96 2 101 98 222 106 105 85 85 84 110 96 91 89 92 110 137 91 222 223 102 101 101 98 85 96 85 96 102 1 110 108 105 106 107 118 116 120 123 13 119 57 124 124 122 131 130 128 128 125 122
BalonParca AdiParca NoAdetTipApplied Date A B
1 DISC; CLUTCH
14" 		1-31240-671-0 01 1 0005-0105 ●
1 DISC; CLUTCH
14" 		1-31240-901-0 01 1 0106-0210 ●
1 DISC; CLUTCH
15" 		1-31240-676-0 01 1 0005-0105 ●
1 DISC; CLUTCH
15" 		1-31240-902-0 01 1 0106-0210 ●
1 DISC; CLUTCH
15" 		1-31240-889-0 01 1 0211- ●
2 PLATE ASM; PRESSURE,CLU 1-31220-291-0 01 1 0005-0109 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-364-0 01 1 0110-0210 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-374-2 01 1 0211- ●
2 PLATE ASM; PRESSURE,CLU 1-31220-305-1 01 1 0005-0109 ●
2 PLATE ASM; PRESSURE,CLU 1-31220-373-0 01 1 0110-0210 ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0005-0210 ● ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0211-0512 ●
13 BOLT; CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ●
57 FORK; SHIFT,CLU 1-31340-056-0 01 1 0005-0210 ● ●
57 FORK; SHIFT,CLU 1-31340-060-0 01 1 0211-1306 ●
57 FORK; SHIFT,CLU 1-31340-077-0 01 1 1307- ●
84 PLATE; PRESSURE
14" 		1-31221-082-0 01 1 0005-0210 ●
84 PLATE; PRESSURE
15" 		1-31221-100-0 01 1 0005- ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0005-0210 ● ●
85 BUSHING; RELEASE LEVER 9-31239-116-0 08 1 0211- ●
89 PLATE; STRAP 1-31229-001-0 08 1 0005-0210 ●
89 PLATE; STRAP 1-31229-050-0 16 1 0005- ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0005-0210 ● ●
91 SEAT; SPR
(A) ID=37 H=25 		1-31219-012-0 12 1 0211- ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0005-0210 ● ●
91 SEAT; SPR
(B) ID=37 H=15 		1-31219-013-0 12 1 0211- ●
92 SPRING; CLU 1-09580-234-0 12 1 0005-0210 ●
92 SPRING; CLU 1-31214-019-0 12 1 0211-0308 ●
92 SPRING; CLU 1-31214-086-0 12 1 0309- ●
92 SPRING; CLU 1-31214-039-0 12 1 0005-0109 ●
92 SPRING; CLU 1-31214-065-0 12 1 0110-0210 ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0005-0210 ● ●
96 PIN; RELEASE LEVER
(B) L=49.0 		1-31232-005-0 04 1 0211- ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0005-0210 ● ●
96 PIN; RELEASE LEVER
(A) L=57.0 		1-31232-014-0 04 1 0211- ●
98 SPRING; RETURN 1-31233-003-0 04 1 0005-0210 ● ●
98 SPRING; RETURN 1-31233-003-0 04 1 0211- ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 0005-0109 ● ●
101 WASHER; RELEASE LEVER 9-31239-039-0 08 1 0110-0210 ●
101 WASHER; RELEASE LEVER 1-31239-058-0 08 1 0110- ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08113-022-0 08 1 0005-0210 ●
102 PIN; SPLIT,RELEASE LEVER
OD=2.7 L=22 		9-08103-022-0 08 1 0005- ●
105 NUT; SUPPORT 9-31235-061-0 04 1 0005-0109 ● ●
105 NUT; SUPPORT 1-31235-012-0 04 1 0110-0210 ● ●
105 NUT; SUPPORT 1-31235-012-0 04 1 0211-0308 ●
105 NUT; SUPPORT 1-31235-014-0 04 1 0309- ●
106 PLATE; LK,LEVER SUPPORT
(B) 		1-31235-008-0 08 1 0005-0109 ●
106 PLATE; LK,LEVER SUPPORT
(B) 		1-31235-008-0 04 1 0110-0210 ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0005-0210 ● ●
106 PLATE; LK,LEVER SUPPORT
(A) 		1-31239-019-0 04 1 0211- ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0005-0210 ● ●
107 BOLT; LK PLATE
M8X12.7 W/LK&PL WASHER 		1-31239-020-0 08 1 0211-0308 ●
107 BOLT; LK PLATE 1-31239-061-0 08 1 0309- ●
108 NUT; STRAP 1-09449-036-0 04 1 0005- ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		1-09503-095-0 08 1 0005-0403 ●
110 WASHER; SPECIAL,STRAP
(B) T=3.2 		8-97374-512-0 08 1 0404- ●
110 WASHER; SPECIAL,STRAP
(A) T=1.2 		1-31229-009-0 04 1 0005- ●
116 BLOCK; SHIFT,CLU 1-31321-052-2 01 1 0005-0210 ● ●
116 BLOCK; SHIFT,CLU 1-31321-075-1 01 1 0211-1204 ●
116 BLOCK; SHIFT,CLU 1-31321-113-0 01 1 1205-1306 ●
116 BLOCK; SHIFT,CLU 1-31321-114-0 01 1 1307- ●
118 BEARING; CLU RELEASE 1-09820-008-0 01 1 0005-0111 ● ●
118 BEARING; CLU RELEASE 1-09820-114-0 01 1 0112-0210 ● ●
118 BEARING; CLU RELEASE 1-09820-117-0 01 1 0211- ●
119 SPRING; SHIFT FORK 1-09585-054-0 01 1 0005-0210 ● ●
119 SPRING; SHIFT FORK 1-09585-054-1 01 1 0211- ●
119 SPRING; SHIFT FORK 1-09585-053-0 01 1 0005-0210 ● ●
119 SPRING; SHIFT FORK 1-09585-053-1 01 1 0211- ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 0005-0210 ● ●
120 HOSE; FLEX,SHIFT BLOCK,CLU
L=390 		1-09365-143-0 01 1 0211- ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0005-0210 ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(B) PT1/8 & M10 		1-09660-710-0 01 1 0211- ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0005-0210 ● ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		9-09031-010-0 01 1 0211-0512 ●
122 NIPPLE; GREASE,FLEX HOSE,SHIFT BLOCK
(A) PT1/8 STRAIGHT 		0-90301-410-0 01 1 0601- ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		9-09524-835-0 01 1 0005-0210 ● ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		9-09524-835-0 01 1 0211-0606 ●
123 CLIP; FLEX HOSE,SHIFT BLOCK
ID=9 L=20 		0-95234-835-0 01 1 0607- ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 0005-0210 ● ●
124 BEARING; CAM,SHIFT FORK 1-31349-004-1 02 1 0211- ●
125 SHAFT; CLU 1-31342-298-1 01 1 0005-0210 ●
125 SHAFT; CLU 1-31342-169-1 01 1 0005- ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0005-0210 ● ●
128 KEY; FEATHER,CLU SHAFT 9-09867-008-0 02 1 0211- ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 0005-0210 ● ●
130 SCREW; SHIFT FORK
M8X14 		9-06120-814-0 01 1 0211-0512 ●
130 SCREW; SHIFT FORK
M8X14 		0-61200-814-0 01 1 0601- ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 0005-0210 ● ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		9-09150-508-0 01 1 0211-0603 ●
131 WASHER; LK,SHIFT FORK
ID=8.2 		0-91510-508-0 01 1 0604- ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28181-020-0 12 1 0005-0512 ● ●
137 BOLT; CLU COVER
M10X20 FLANGE 		0-28151-020-0 12 1 0601- ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-620-1 01 1 0005-0109 ●
172 LEVER KIT; RELEASE,CLU 1-87830-620-2 01 1 0110-0210 ● ●
172 LEVER KIT; RELEASE,CLU 1-87830-760-3 01 1 0211-0307 ●
172 LEVER KIT; RELEASE,CLU 1-87831-170-1 01 1 0308- ●
172 LEVER KIT; RELEASE,CLU 1-87830-808-0 01 1 0005-0109 ●
222 BOLT; STRAP
(C) M10X26 HEX SOKET 		1-09040-101-0 04 1 0005-0109 ●
222 BOLT; STRAP
(C) 		1-31239-059-0 04 1 0110-0210 ●
222 BOLT; STRAP
(B) M10X23.2 		1-09040-042-0 04 1 0005- ●
222 BOLT; STRAP
(A) M10X26 HEX SOCKET 		1-09040-043-0 04 1 0005- ●
223 COVER; CLU 1-31211-019-1 01 1 0005- ●
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
