2-35 — MANUAL TRANSMISSION SHIFT CONTROL LEVER (#95308) — 56 parça
çizim 289026
1 1 8 17 19 24 399 9
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
SHIFT KNOB DELUXE<S2Y> THA 		8-97917-469-0 01 1 0008- ●
1 KNOB; CHANGE LEVER
EXC. SHIFT KNOB DELUXE<S2Y> 		8-94473-778-0 01 1 0008-0309 ●
1 KNOB; CHANGE LEVER
EXC. SHIFT KNOB DELUXE<S2Y> 		8-97371-734-0 01 1 0310- ●
8 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97288-154-0 01 1 0008-0008 ●
8 LEVER; CHANGE
GRADE ROYAL(RBB) FLOOR REMOTE SHIFT<M11> HI GRADE(6PQ) 		8-97288-154-1 01 1 0009-0209 ●
8 LEVER; CHANGE
GRADE LS(RBD) FLOOR REMOTE SHIFT<M11> 		8-97288-154-1 01 1 0009-0209 ●
8 LEVER; CHANGE
GRADE LS(RBD) FLOOR REMOTE SHIFT<M11> 		8-97288-154-2 01 1 0210-0405 ●
8 LEVER; CHANGE
GRADE LS(RBD) FLOOR REMOTE SHIFT<M11> EXC. CAB UP<W60> 		8-97288-154-2 01 1 0406- ●
8 LEVER; CHANGE
EXC. FLOOR REMOTE SHIFT<M11> 		8-94368-829-1 01 1 0008- ●
8 LEVER; CHANGE
GRADE NEW SUPER(RBA) FLOOR REMOTE SHIFT<M11> 		8-97289-846-1 01 1 0009-0209 ●
8 LEVER; CHANGE
GRADE ROYAL(RBB) FLOOR REMOTE SHIFT<M11> EXC. HI GRADE(6PQ) 		8-97289-846-1 01 1 0009-0209 ●
8 LEVER; CHANGE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) FLOOR REMOTE SHIFT<M11> 		8-97289-846-2 01 1 0210-0405 ●
8 LEVER; CHANGE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) FLOOR REMOTE SHIFT<M11> EXC. CAB UP<W60> 		8-97289-846-2 01 1 0406- ●
8 LEVER; CHANGE
GRADE TOURING(RBG) FLOOR REMOTE SHIFT<M11> 		8-97264-986-2 01 1 0107-0405 ●
8 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> CAB UP<W60> 		8-97264-986-2 01 1 0406- ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE 		0-28680-820-0 03 1 0008-0512 ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE IDN 		0-28650-820-0 03 1 0601- ●
17 GROMMET; TRANS SHIFT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97179-142-0 01 1 0008-0106 ●
17 GROMMET; TRANS SHIFT LEVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) FLOOR REMOTE SHIFT<M11> 		8-97179-142-0 01 1 0107-0209 ●
17 GROMMET; TRANS SHIFT LEVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) FLOOR REMOTE SHIFT<M11> 		8-97179-142-0 01 1 0210-0405 ●
17 GROMMET; TRANS SHIFT LEVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) FLOOR REMOTE SHIFT<M11> EXC. CAB UP<W60> 		8-97179-142-0 01 1 0406- ●
17 GROMMET; TRANS SHIFT LEVER
EXC. FLOOR REMOTE SHIFT<M11> 		5-33619-045-1 01 1 0008- ●
17 GROMMET; TRANS SHIFT LEVER
GRADE TOURING(RBG) FLOOR REMOTE SHIFT<M11> 		8-97261-780-0 01 1 0107-0405 ●
17 GROMMET; TRANS SHIFT LEVER
FLOOR REMOTE SHIFT<M11> CAB UP<W60> 		8-97261-780-0 01 1 0406- ●
19 COVER; CHANGE LEVER
GRADE NEW SUPER(RBA) FLOOR REMOTE SHIFT<M11> 		8-97289-845-0 01 1 0009-0209 ●
19 COVER; CHANGE LEVER
GRADE ROYAL(RBB) FLOOR REMOTE SHIFT<M11> EXC. HI GRADE(6PQ) 		8-97289-845-0 01 1 0009-0209 ●
19 COVER; CHANGE LEVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) FLOOR REMOTE SHIFT<M11> 		8-97289-845-0 01 1 0210-0405 ●
19 COVER; CHANGE LEVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) FLOOR REMOTE SHIFT<M11> EXC. CAB UP<W60> 		8-97289-845-0 01 1 0406- ●
24 BUSHING; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97161-606-0 01 1 0008- ●
399 GASKET; CHANGE LEVER
FLOOR REMOTE SHIFT<M11> 		8-97161-605-0 01 1 0008- ●

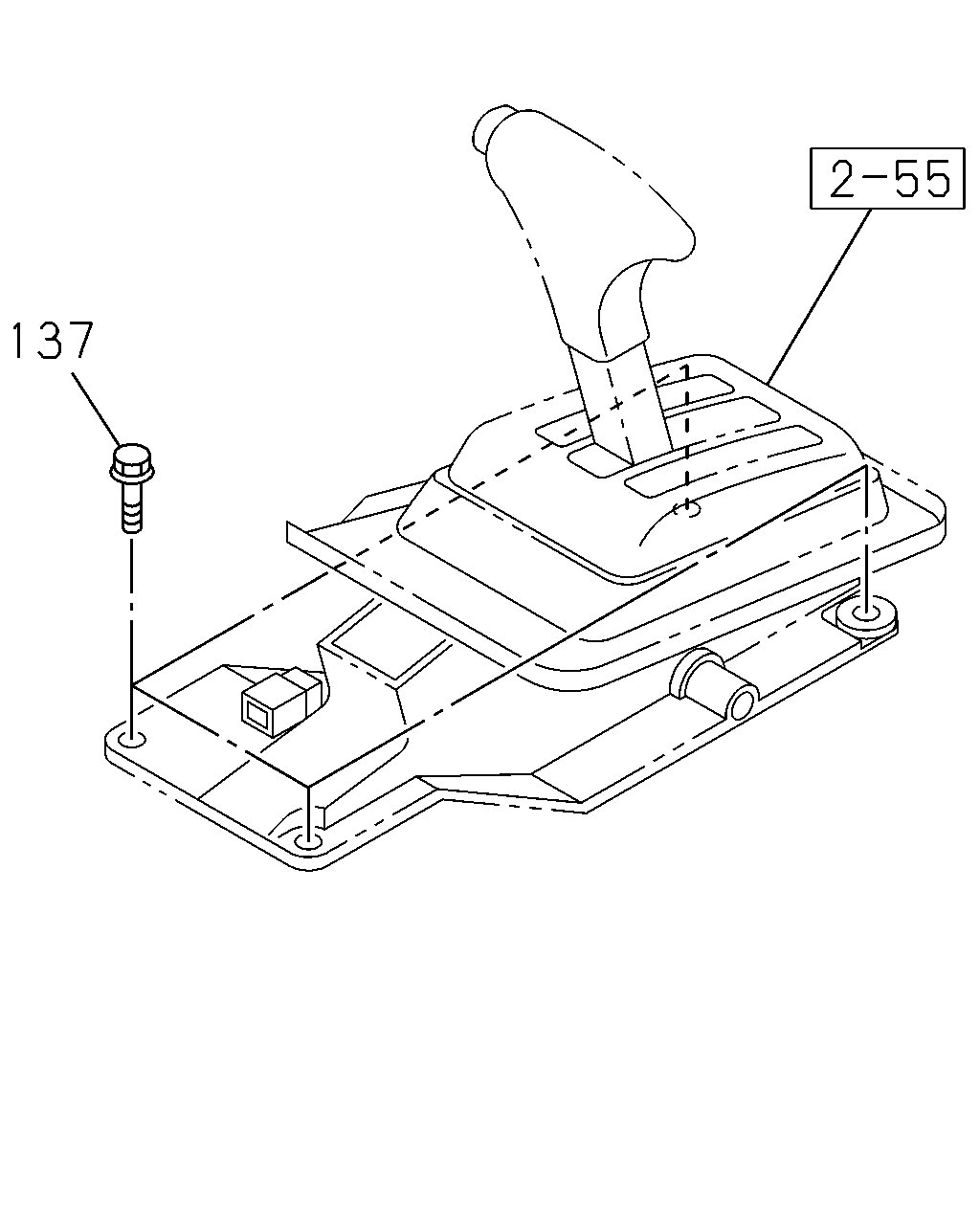

çizim 289844
137
BalonParca AdiParca NoAdetTipApplied Date A B
137 BOLT; GEAR CONT BRKT
M6X18 FLANGE 		0-28080-618-0 04 1 0008- ●
çizim 289845
1 1 8 17 9 145
BalonParca AdiParca NoAdetTipApplied Date A B
1 KNOB; CHANGE LEVER
SHIFT KNOB DELUXE<S2Y> THA 		8-97917-469-0 01 1 0008- ●
1 KNOB; CHANGE LEVER
EXC. SHIFT KNOB DELUXE<S2Y> 		8-94473-778-0 01 1 0008-0309 ●
1 KNOB; CHANGE LEVER
EXC. SHIFT KNOB DELUXE<S2Y> 		8-97371-734-0 01 1 0310- ●
8 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> 		8-97288-154-0 01 1 0008-0008 ●
8 LEVER; CHANGE
GRADE ROYAL(RBB) FLOOR REMOTE SHIFT<M11> HI GRADE(6PQ) 		8-97288-154-1 01 1 0009-0209 ●
8 LEVER; CHANGE
GRADE LS(RBD) FLOOR REMOTE SHIFT<M11> 		8-97288-154-1 01 1 0009-0209 ●
8 LEVER; CHANGE
GRADE LS(RBD) FLOOR REMOTE SHIFT<M11> 		8-97288-154-2 01 1 0210-0405 ●
8 LEVER; CHANGE
GRADE LS(RBD) FLOOR REMOTE SHIFT<M11> EXC. CAB UP<W60> 		8-97288-154-2 01 1 0406- ●
8 LEVER; CHANGE
EXC. FLOOR REMOTE SHIFT<M11> 		8-94368-829-1 01 1 0008- ●
8 LEVER; CHANGE
GRADE NEW SUPER(RBA) FLOOR REMOTE SHIFT<M11> 		8-97289-846-1 01 1 0009-0209 ●
8 LEVER; CHANGE
GRADE ROYAL(RBB) FLOOR REMOTE SHIFT<M11> EXC. HI GRADE(6PQ) 		8-97289-846-1 01 1 0009-0209 ●
8 LEVER; CHANGE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) FLOOR REMOTE SHIFT<M11> 		8-97289-846-2 01 1 0210-0405 ●
8 LEVER; CHANGE
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) FLOOR REMOTE SHIFT<M11> EXC. CAB UP<W60> 		8-97289-846-2 01 1 0406- ●
8 LEVER; CHANGE
GRADE TOURING(RBG) FLOOR REMOTE SHIFT<M11> 		8-97264-986-2 01 1 0107-0405 ●
8 LEVER; CHANGE
FLOOR REMOTE SHIFT<M11> CAB UP<W60> 		8-97264-986-2 01 1 0406- ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE 		0-28680-820-0 03 1 0008-0512 ●
9 BOLT; CHANGE LEVER
M8X20 FLANGE IDN 		0-28650-820-0 03 1 0601- ●
17 GROMMET; TRANS SHIFT LEVER
FLOOR REMOTE SHIFT<M11> 		8-97179-142-0 01 1 0008-0106 ●
17 GROMMET; TRANS SHIFT LEVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) FLOOR REMOTE SHIFT<M11> 		8-97179-142-0 01 1 0107-0209 ●
17 GROMMET; TRANS SHIFT LEVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) FLOOR REMOTE SHIFT<M11> 		8-97179-142-0 01 1 0210-0405 ●
17 GROMMET; TRANS SHIFT LEVER
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) FLOOR REMOTE SHIFT<M11> EXC. CAB UP<W60> 		8-97179-142-0 01 1 0406- ●
17 GROMMET; TRANS SHIFT LEVER
EXC. FLOOR REMOTE SHIFT<M11> 		5-33619-045-1 01 1 0008- ●
17 GROMMET; TRANS SHIFT LEVER
GRADE TOURING(RBG) FLOOR REMOTE SHIFT<M11> 		8-97261-780-0 01 1 0107-0405 ●
17 GROMMET; TRANS SHIFT LEVER
FLOOR REMOTE SHIFT<M11> CAB UP<W60> 		8-97261-780-0 01 1 0406- ●
145 GASKET; CHANGE LEVER TO TRANS
EXC. FLOOR REMOTE SHIFT<M11> 		8-94212-785-2 01 1 0008- ●
