◀ 🏠 ▶ Isuzu WW ▶ AUV ▶ TBR ▶ 50823 - TBR(INDONESIA) ▶ 2 - Clutch, Transmission, Trans Axle ▶ 2-30 - GEAR SHIFTER AND QUADRANT BOX ▶
2-30 — GEAR SHIFTER AND QUADRANT BOX (#95307) — 66 parça

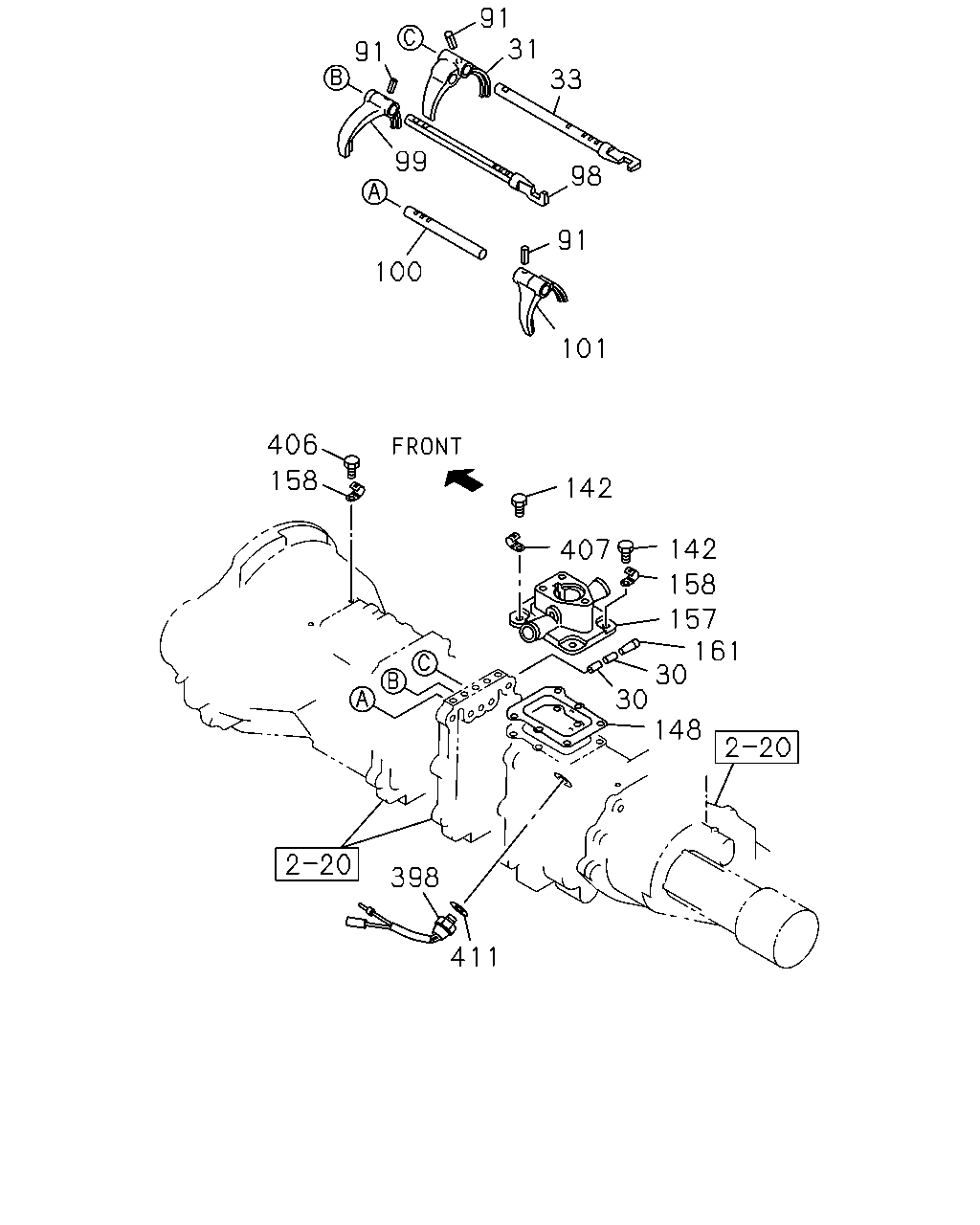

çizim 288954
91 91 31 33 98 99 100 91 101 142 407 142 158 157 161 30 30 148 398 411 406 158
BalonParca AdiParca NoAdetTipApplied Date
30 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 0008-
31 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 0008-
33 ROD; SHIFT,LOW & 2ND
FLOOR REMOTE SHIFT<M11> IDN 		8-97248-600-0 01 1 0008-
33 ROD; SHIFT,LOW & 2ND
FRT&RR 165R14-8 5JX14(ATC) EXC. FLOOR REMOTE SHIFT<M11> IDN 		8-97248-599-0 01 1 0008-
91 PIN; SPR,SHIFT ARM
D=4.2 L=25 		8-94171-541-0 03 1 0008-
98 ROD; SHIFT,TOP & 3RD
FLOOR REMOTE SHIFT<M11> IDN 		8-97248-598-0 01 1 0008-
98 ROD; SHIFT,TOP & 3RD
FRT&RR 165R14-8 5JX14(ATC) EXC. FLOOR REMOTE SHIFT<M11> IDN 		8-97248-597-0 01 1 0008-
99 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 0008-
100 ROD; SHIFT,REV & 5TH
IDN 		8-97248-601-0 01 1 0008-
101 ARM; SHIFT,REV & 5TH
FLOOR REMOTE SHIFT<M11> 		8-94455-851-3 01 1 0008-
101 ARM; SHIFT,REV & 5TH
FRT&RR 165R14-8 5JX14(ATC) EXC. FLOOR REMOTE SHIFT<M11> 		8-94440-061-3 01 1 0008-
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-94448-815-3 04 1 0008-0604
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 0605-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 0008-
157 BOX; QUAD,TRANS
FRT&RR 165R14-8 5JX14(ATC) EXC. FLOOR REMOTE SHIFT<M11> 		8-94161-146-4 01 1 0008-
158 CLIP; HARNESS
ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 02 1 0008-0604
158 CLIP; HARNESS
ID=12 IDN 		8-97367-984-1 02 1 0605-
161 PLUG; INTER LK HOLE 8-94239-543-1 01 1 0008-
398 SWITCH; REV LAMP 8-94411-366-1 01 1 0008-0602
398 SWITCH; REV LAMP 8-98042-851-0 01 1 0603-
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0008-0512
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
407 CLIP; SWITCH HARNESS
ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 01 1 0008-0708
407 CLIP; SWITCH HARNESS
ID=12 IDN 		8-97367-984-1 01 1 0709-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0008-

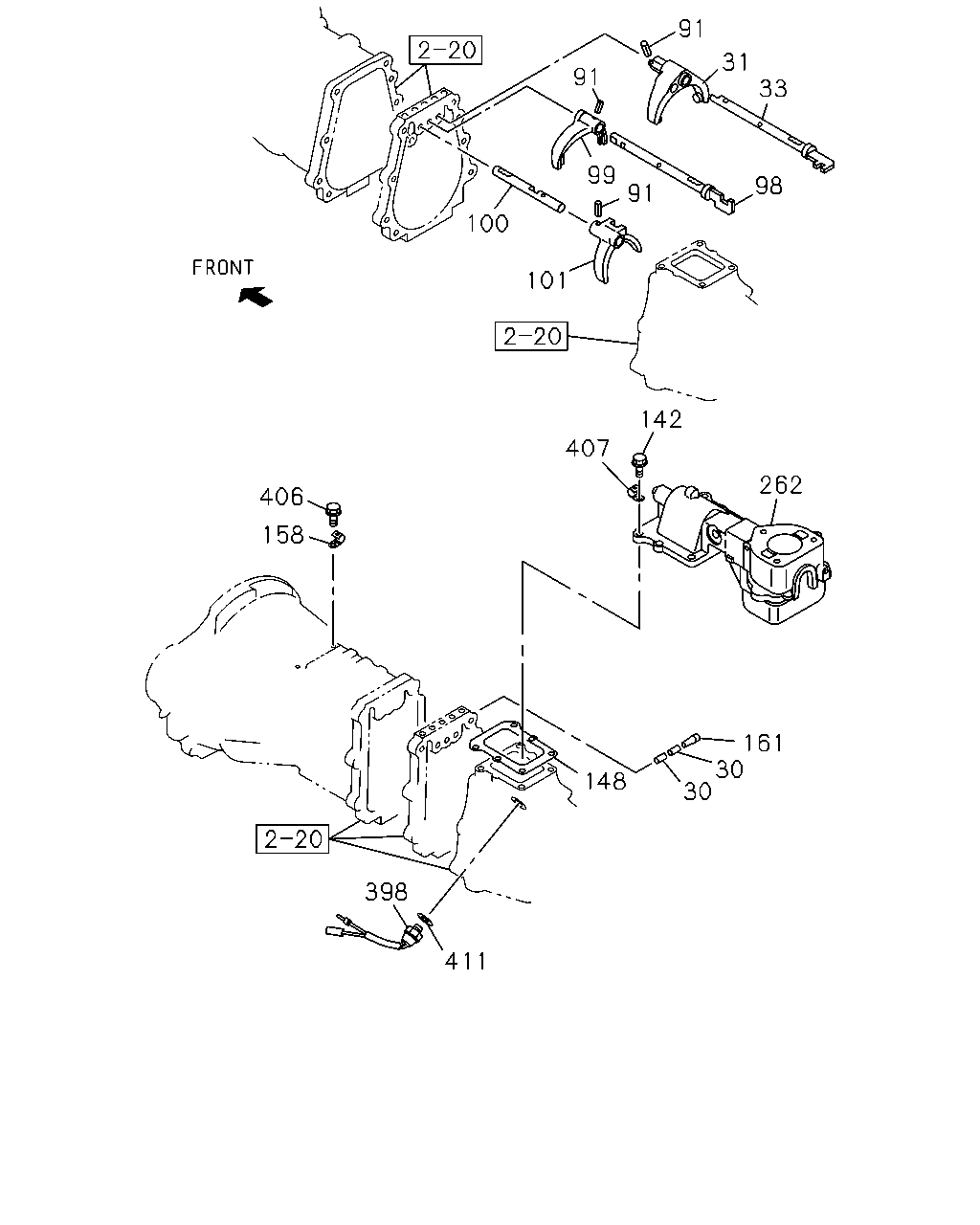

çizim 288992
91 99 91 91 31 33 98 100 101 142 407 262 161 30 30 148 411 398 406 158
BalonParca AdiParca NoAdetTipApplied Date
30 PIN; INTER LK
OD=5.5 L=10 		5-33534-002-1 02 1 0008-
31 ARM; SHIFT,LOW & 2ND 8-97024-503-1 01 1 0008-
33 ROD; SHIFT,LOW & 2ND
FLOOR REMOTE SHIFT<M11> IDN 		8-97248-600-0 01 1 0008-
33 ROD; SHIFT,LOW & 2ND
FRT&RR 165R14-8 5JX14(ATC) EXC. FLOOR REMOTE SHIFT<M11> IDN 		8-97248-599-0 01 1 0008-
91 PIN; SPR,SHIFT ARM
D=4.2 L=25 		8-94171-541-0 03 1 0008-
98 ROD; SHIFT,TOP & 3RD
FLOOR REMOTE SHIFT<M11> IDN 		8-97248-598-0 01 1 0008-
98 ROD; SHIFT,TOP & 3RD
FRT&RR 165R14-8 5JX14(ATC) EXC. FLOOR REMOTE SHIFT<M11> IDN 		8-97248-597-0 01 1 0008-
99 ARM; SHIFT,4TH & 3RD 8-94435-153-1 01 1 0008-
100 ROD; SHIFT,REV & 5TH
IDN 		8-97248-601-0 01 1 0008-
101 ARM; SHIFT,REV & 5TH
FLOOR REMOTE SHIFT<M11> 		8-94455-851-3 01 1 0008-
101 ARM; SHIFT,REV & 5TH
FRT&RR 165R14-8 5JX14(ATC) EXC. FLOOR REMOTE SHIFT<M11> 		8-94440-061-3 01 1 0008-
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-94448-815-3 04 1 0008-0604
142 BOLT; QUAD BOX
M8X22 FLANGE 		8-97365-376-0 04 1 0605-
148 GASKET; QUAD BOX
ALSO INCLUDED IN GASKET SET(M/T). 		8-97184-922-0 01 1 0008-
158 CLIP; HARNESS
ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 02 1 0008-0604
158 CLIP; HARNESS
ID=12 IDN 		8-97367-984-1 02 1 0605-
161 PLUG; INTER LK HOLE 8-94239-543-1 01 1 0008-
262 BOX ASM; SHIFT CONT
FLOOR REMOTE SHIFT<M11> IDN 		8-97201-493-1 01 1 0008-0603
262 BOX ASM; SHIFT CONT
FLOOR REMOTE SHIFT<M11> 		8-98017-735-0 01 1 0604-
398 SWITCH; REV LAMP 8-94411-366-1 01 1 0008-0602
398 SWITCH; REV LAMP 8-98042-851-0 01 1 0603-
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28080-816-0 01 1 0008-0512
406 BOLT; HARNESS CLIP
M8X16 FLANGE 		0-28050-816-0 01 1 0601-
407 CLIP; SWITCH HARNESS
ID=12 B=14 ID=8.5 IDN 		5-09700-350-0 01 1 0008-0708
407 CLIP; SWITCH HARNESS
ID=12 IDN 		8-97367-984-1 01 1 0709-
411 GASKET; REV LAMP SW
ALSO INCLUDED IN GASKET SET(M/T). ID=14.2 		8-94462-114-0 01 1 0008-
çizim 289024
262 271 271 289 261 268 459 174 22 288 22 132 248 274
BalonParca AdiParca NoAdetTipApplied Date
22 CAP; RETURN SPR,SHIFT BLOCK
FLOOR REMOTE SHIFT<M11> IDN 		8-97181-326-0 02 1 0008-
132 SPRING; SELECT STOP
FLOOR REMOTE SHIFT<M11> IDN 		8-97181-395-0 01 1 0008-
174 SPRING; REV
FLOOR REMOTE SHIFT<M11> IDN 		8-97181-394-0 01 1 0008-
248 RETAINER; CONT BOX
FLOOR REMOTE SHIFT<M11> IDN 		8-97181-325-0 02 1 0008-
261 ROD; GEAR CONT
FLOOR REMOTE SHIFT<M11> IDN 		8-97257-825-0 01 1 0008-
262 BOX ASM; SHIFT CONT
FLOOR REMOTE SHIFT<M11> IDN 		8-97201-493-1 01 1 0008-0603
262 BOX ASM; SHIFT CONT
FLOOR REMOTE SHIFT<M11> 		8-98017-735-0 01 1 0604-
268 LEVER; CONT,INTERNAL
FLOOR REMOTE SHIFT<M11> IDN 		8-97184-894-0 01 1 0008-
271 BUSHING; QUAD BOX
FLOOR REMOTE SHIFT<M11> ID=14 L=12 IDN 		8-97203-909-0 02 1 0008-0603
271 BUSHING; QUAD BOX
FLOOR REMOTE SHIFT<M11> ID=14 L=12 		8-98017-908-0 02 1 0604-
274 COVER; SHAFT,QUAD BOX
FLOOR REMOTE SHIFT<M11> IDN 		8-97181-324-1 01 1 0008-
288 PLUG; AIR BREATHER
FLOOR REMOTE SHIFT<M11> IDN 		9-00097-517-0 01 1 0008-
289 SEAL; OIL,CONT SHAFT,QUAD BOX
FLOOR REMOTE SHIFT<M11> IDN 		8-97181-327-0 01 1 0008-0603
289 SEAL; OIL,CONT SHAFT,QUAD BOX
FLOOR REMOTE SHIFT<M11> 		8-98017-744-0 01 1 0604-
459 PIN; SPR,ROD TO ARM
FLOOR REMOTE SHIFT<M11> OD=5 IDN 		8-97184-905-0 01 1 0008-
