2-25 — SPEEDOMETER DRIVEN GEAR (#95305) — 81 parça

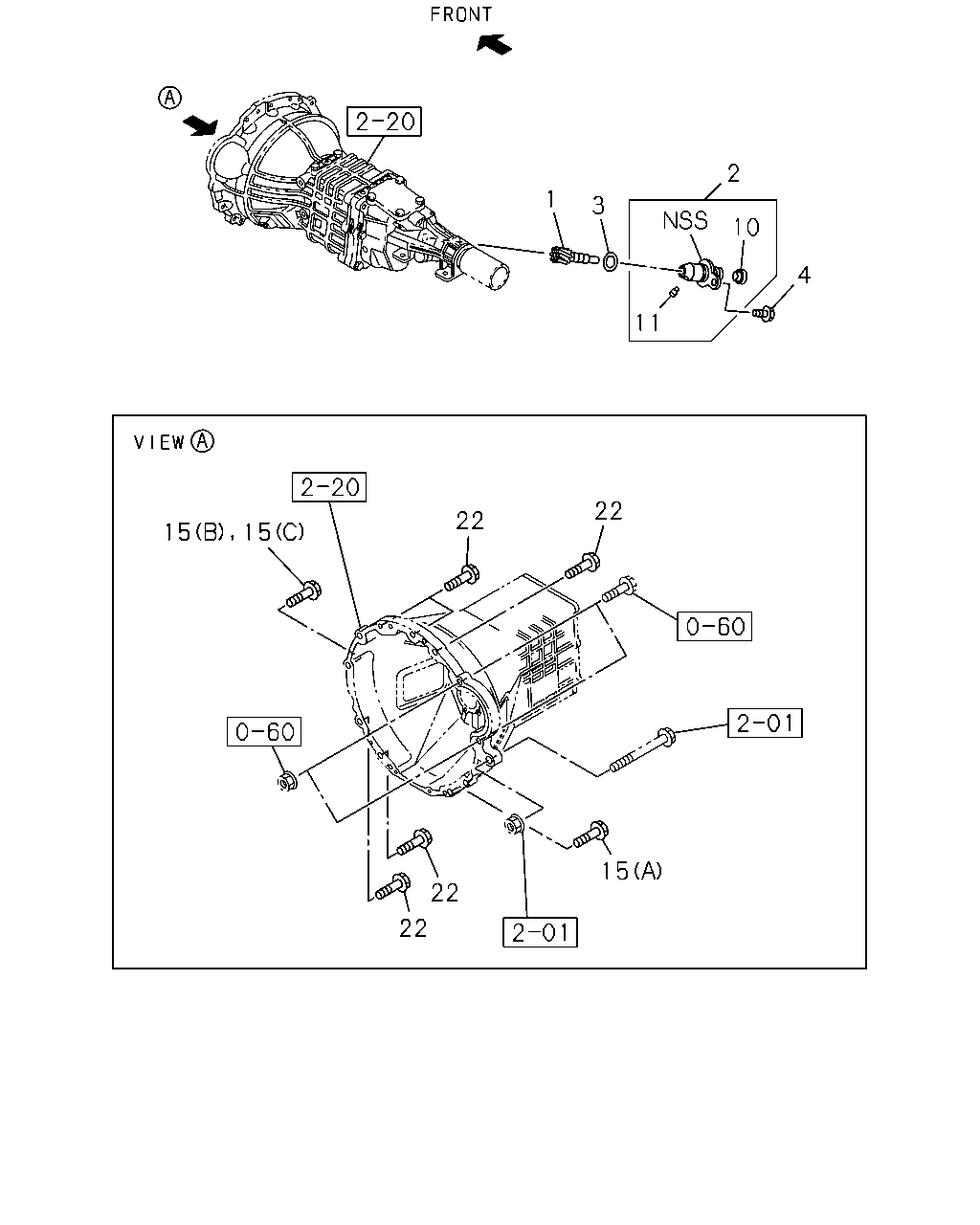

çizim 289376
1 3 2 10 11 4 22 22 15 22 22 15 15
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
Z=16 		8-94473-308-1 01 1 0008-0106 ●
1 GEAR; DRIVEN,SPD
FRT&RR 165R14-8 5JX14(ATC) Z=16 		8-94473-308-2 01 1 0107- ●
1 GEAR; DRIVEN,SPD
FRT&RR 185R14-6 5.5JJX14(ATD),FRT&RR 205/65R15 6JJX15 ALUMI(ATE) FLOOR REMOTE SHIFT<M11> Z=16 		8-94473-308-2 01 1 0107- ●
1 GEAR; DRIVEN,SPD
FRT&RR 235/70R15 6JJ ALUMI(AXA) FLOOR REMOTE SHIFT<M11> Z=18 		8-94473-304-2 01 1 0107- ●
1 GEAR; DRIVEN,SPD
Z=15 		8-94473-312-2 01 1 0008- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-4 01 1 0008- ● ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 		9-09921-100-0 01 1 0008- ● ●
4 BOLT; RET,DRIVEN GEAR
M8X16 FLANGE 		0-28080-816-0 01 1 0008-0512 ● ●
4 BOLT; RET,DRIVEN GEAR
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
10 SEAL; OIL,DRIVE GEAR
NOK 		8-97131-328-1 01 1 0008- ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 8-94446-571-1 01 1 0008- ● ●
15 BOLT; UNDER COVER TO TRANS
(A) M10X35 FLANGE 		0-28081-035-0 01 1 0008-0512 ●
15 BOLT; UNDER COVER TO TRANS
(A) M10X35 FLANGE 		0-28051-035-0 01 1 0601- ●
15 BOLT; UNDER COVER TO TRANS
TURBOCHARGER<K51> (C) M10X40 FLANGE 		0-28081-040-0 01 1 0008-0512 ●
15 BOLT; UNDER COVER TO TRANS
TURBOCHARGER<K51> (C) M10X40 FLANGE 		0-28051-040-0 01 1 0601- ●
15 BOLT; UNDER COVER TO TRANS
EXC. TURBOCHARGER<K51> (B) M10X30 FLANGE 		0-28081-030-0 01 1 0008-0512 ●
15 BOLT; UNDER COVER TO TRANS
EXC. TURBOCHARGER<K51> (B) M10X30 FLANGE 		0-28051-030-0 01 1 0601- ●
15 BOLT; UNDER COVER TO TRANS
(D) M6X12 FLANGE 		0-28080-612-0 04 1 0008-0512 ●
15 BOLT; UNDER COVER TO TRANS
(D) M6X12 FLANGE 		0-28050-612-0 04 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28081-035-0 01 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28051-035-0 01 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M10X40 FLANGE 		0-28081-040-0 02 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M10X40 FLANGE 		0-28051-040-0 02 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M12X35 FLANGE 		0-28081-235-0 01 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M12X35 FLANGE 		0-28051-235-0 01 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M12X90 		0-28081-290-0 01 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M12X90 FLANGE 		0-28051-290-0 01 1 0601- ●
22 BOLT; TRANS CASE TO ENG
TURBOCHARGER<K51> M10X45 FLANGE 		0-28081-045-0 01 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
TURBOCHARGER<K51> M10X45 FLANGE 		0-28051-045-0 01 1 0601- ●
22 BOLT; TRANS CASE TO ENG
EXC. TURBOCHARGER<K51> M10X55 FLANGE 		8-94473-959-1 01 1 0008-0708 ●
22 BOLT; TRANS CASE TO ENG
EXC. TURBOCHARGER<K51> M10X55 FLANGE 		8-98035-672-0 01 1 0709- ●
22 BOLT; TRANS CASE TO ENG
M12X45 FLANGE 		0-28081-245-0 02 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M12X45 FLANGE 		0-28051-245-0 02 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M12X70 FLANGE 		0-28081-270-0 02 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M12X70 FLANGE 		0-28051-270-0 02 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M10X45 FLANGE 		0-28091-045-0 03 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M10X45 FLANGE 		0-28061-045-0 03 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M10X60 		0-28091-060-0 01 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M10X60 FLANGE 		0-28061-060-0 01 1 0601- ●

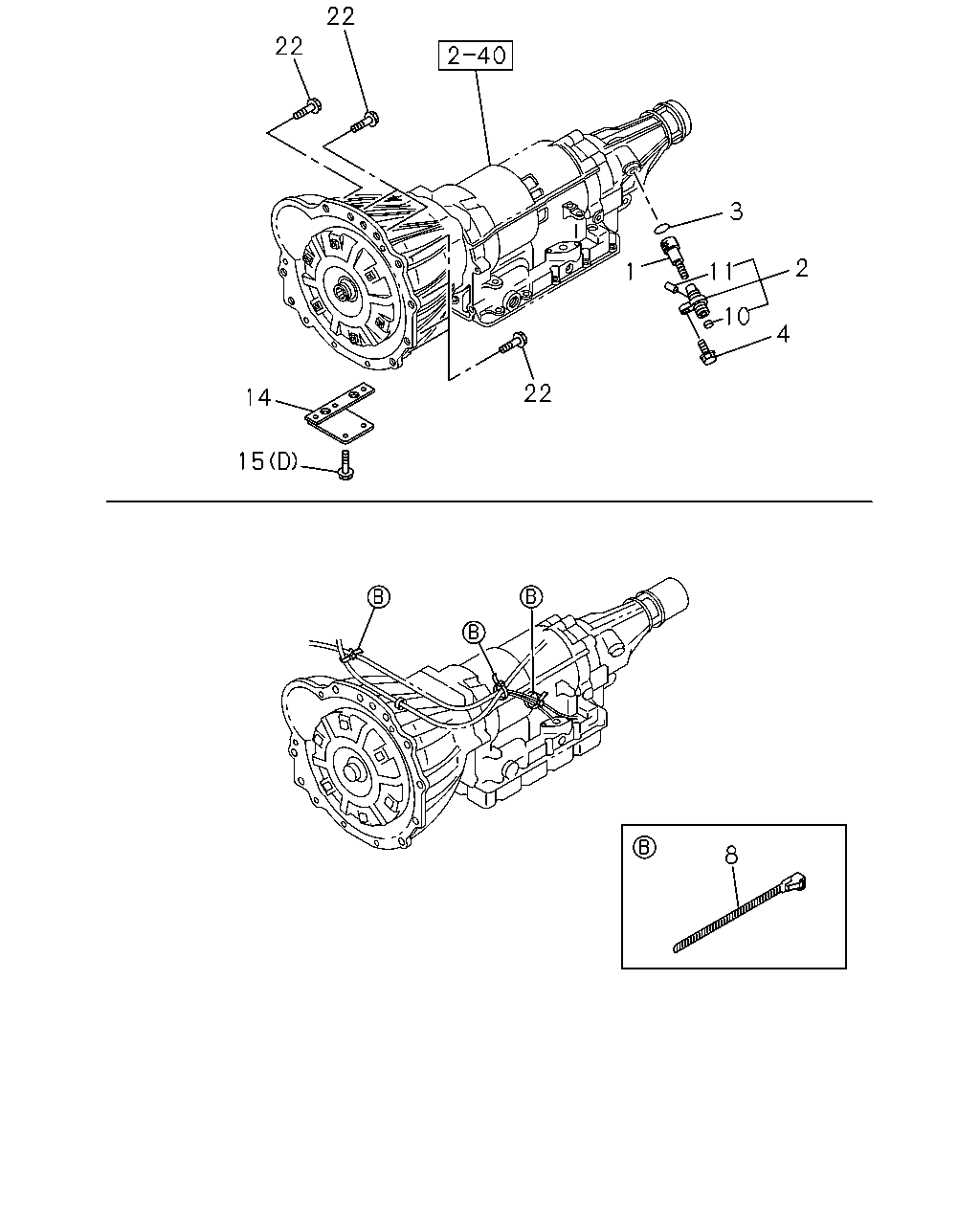

çizim 289377
22 22 3 2 11 1 10 4 22 14 15 8
BalonParca AdiParca NoAdetTipApplied Date A B
1 GEAR; DRIVEN,SPD
Z=16 		8-94473-308-1 01 1 0008-0106 ●
1 GEAR; DRIVEN,SPD
FRT&RR 165R14-8 5JX14(ATC) Z=16 		8-94473-308-2 01 1 0107- ●
1 GEAR; DRIVEN,SPD
FRT&RR 185R14-6 5.5JJX14(ATD),FRT&RR 205/65R15 6JJX15 ALUMI(ATE) FLOOR REMOTE SHIFT<M11> Z=16 		8-94473-308-2 01 1 0107- ●
1 GEAR; DRIVEN,SPD
FRT&RR 235/70R15 6JJ ALUMI(AXA) FLOOR REMOTE SHIFT<M11> Z=18 		8-94473-304-2 01 1 0107- ●
1 GEAR; DRIVEN,SPD
Z=15 		8-94473-312-2 01 1 0008- ●
2 BUSHING; DRIVEN GEAR,SPEEDOMETER 8-94463-608-4 01 1 0008- ● ●
3 GASKET; BUSHING
ID=21.7 OD=28.7 		9-09921-100-0 01 1 0008- ● ●
4 BOLT; RET,DRIVEN GEAR
M8X16 FLANGE 		0-28080-816-0 01 1 0008-0512 ● ●
4 BOLT; RET,DRIVEN GEAR
M8X16 FLANGE 		0-28050-816-0 01 1 0601- ● ●
8 CLIP
L=140 IDN 		5-09707-031-1 02 1 0008-0011 ●
8 CLIP
L=140 IDN 		5-09707-031-1 03 1 0012- ●
10 SEAL; OIL,DRIVE GEAR
NOK 		8-97131-328-1 01 1 0008- ● ●
11 FILTER; BUSHING,SPEEDOMETER DRIVEN GEA 8-94446-571-1 01 1 0008- ● ●
14 COVER; UNDER,TRANS 8-97061-582-0 01 1 0008- ●
15 BOLT; UNDER COVER TO TRANS
(A) M10X35 FLANGE 		0-28081-035-0 01 1 0008-0512 ●
15 BOLT; UNDER COVER TO TRANS
(A) M10X35 FLANGE 		0-28051-035-0 01 1 0601- ●
15 BOLT; UNDER COVER TO TRANS
TURBOCHARGER<K51> (C) M10X40 FLANGE 		0-28081-040-0 01 1 0008-0512 ●
15 BOLT; UNDER COVER TO TRANS
TURBOCHARGER<K51> (C) M10X40 FLANGE 		0-28051-040-0 01 1 0601- ●
15 BOLT; UNDER COVER TO TRANS
EXC. TURBOCHARGER<K51> (B) M10X30 FLANGE 		0-28081-030-0 01 1 0008-0512 ●
15 BOLT; UNDER COVER TO TRANS
EXC. TURBOCHARGER<K51> (B) M10X30 FLANGE 		0-28051-030-0 01 1 0601- ●
15 BOLT; UNDER COVER TO TRANS
(D) M6X12 FLANGE 		0-28080-612-0 04 1 0008-0512 ●
15 BOLT; UNDER COVER TO TRANS
(D) M6X12 FLANGE 		0-28050-612-0 04 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28081-035-0 01 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M10X35 FLANGE 		0-28051-035-0 01 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M10X40 FLANGE 		0-28081-040-0 02 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M10X40 FLANGE 		0-28051-040-0 02 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M12X35 FLANGE 		0-28081-235-0 01 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M12X35 FLANGE 		0-28051-235-0 01 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M12X90 		0-28081-290-0 01 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M12X90 FLANGE 		0-28051-290-0 01 1 0601- ●
22 BOLT; TRANS CASE TO ENG
TURBOCHARGER<K51> M10X45 FLANGE 		0-28081-045-0 01 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
TURBOCHARGER<K51> M10X45 FLANGE 		0-28051-045-0 01 1 0601- ●
22 BOLT; TRANS CASE TO ENG
EXC. TURBOCHARGER<K51> M10X55 FLANGE 		8-94473-959-1 01 1 0008-0708 ●
22 BOLT; TRANS CASE TO ENG
EXC. TURBOCHARGER<K51> M10X55 FLANGE 		8-98035-672-0 01 1 0709- ●
22 BOLT; TRANS CASE TO ENG
M12X45 FLANGE 		0-28081-245-0 02 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M12X45 FLANGE 		0-28051-245-0 02 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M12X70 FLANGE 		0-28081-270-0 02 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M12X70 FLANGE 		0-28051-270-0 02 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M10X45 FLANGE 		0-28091-045-0 03 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M10X45 FLANGE 		0-28061-045-0 03 1 0601- ●
22 BOLT; TRANS CASE TO ENG
M10X60 		0-28091-060-0 01 1 0008-0512 ●
22 BOLT; TRANS CASE TO ENG
M10X60 FLANGE 		0-28061-060-0 01 1 0601- ●
