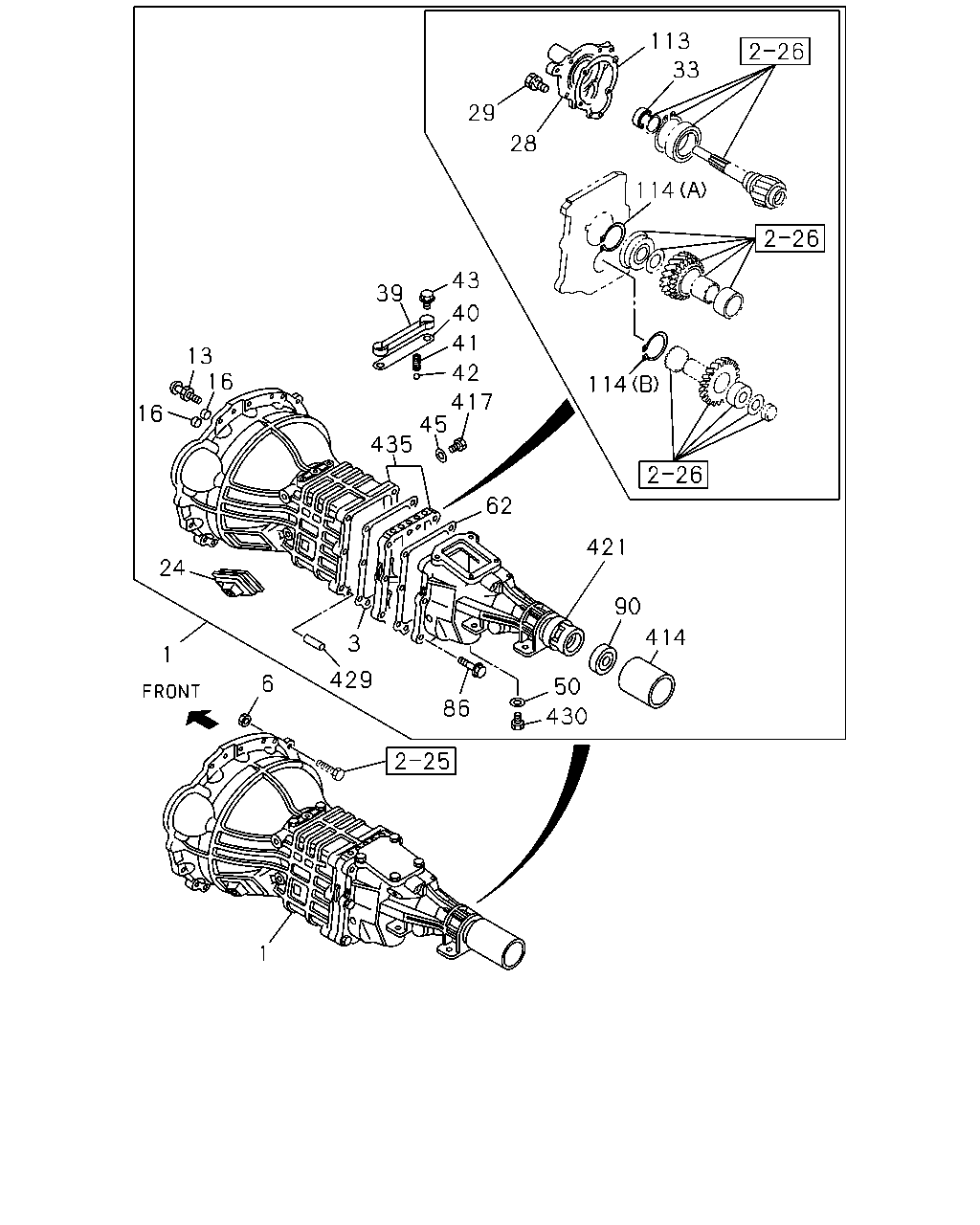

2-20 — MANUAL TRANSMISSION ASM AND CASE (#95304) — 54 parça

113 33 282 29 114 114 39 43 40 41 42 417 13 16 16 24 1 6 3 429 86 62 421 90 414 50 430 1 45 435

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
1	TRANSMISSION ASM; MANUAL FLOOR REMOTE SHIFT<M11> IDN	8-97221-453-0	01	1	0008-0106	●
1	TRANSMISSION ASM; MANUAL FRT&RR 165R14-8 5JX14(ATC),FRT&RR 185R14-6 5.5JJX14(ATD),FRT&RR 205/65R15 6JJX15 ALUMI(ATE) FLOOR REMOTE SHIFT<M11> IDN	8-97221-453-0	01	1	0107-	●
1	TRANSMISSION ASM; MANUAL FRT&RR 165R14-8 5JX14(ATC) EXC. FLOOR REMOTE SHIFT<M11> IDN	8-97221-454-0	01	1	0008-	●
1	TRANSMISSION ASM; MANUAL FRT&RR 235/70R15 6JJ ALUMI(AXA) FLOOR REMOTE SHIFT<M11> IDN	8-97221-452-0	01	1	0107-	●
3	GASKET; CASE TO RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-94482-496-0	01	1	0008-	●
6	NUT; CASE,TRANS M10 FLANGE	0-91150-110-0	02	1	0008-0602	●
6	NUT; CASE,TRANS TURBOCHARGER<K51> M10 FLANGE	0-91150-110-0	02	1	0008-0602		●
6	NUT; CASE,TRANS M10 FLANGE	0-91180-110-0	02	1	0603-	●
6	NUT; CASE,TRANS TURBOCHARGER<K51> M10 FLANGE	0-91180-110-0	02	1	0603-		●
13	SUPPORT; SHIFT FORK L=47.5	8-97072-827-0	01	1	0008-	●
16	PLUG; SHIFT ROD OD=14	5-09609-004-0	02	1	0008-0604	●
16	PLUG; SHIFT ROD OD=14	8-97358-601-0	02	1	0605-	●
24	COVER; CHECK HOLE,DUST	8-94156-700-0	01	1	0008-	●
28	COVER; FRT,TRANS CASE	8-97116-796-0	01	1	0008-	●
29	BOLT; FRT COVER M8X22 FLANGE	8-94448-815-3	06	1	0008-0604	●
29	BOLT; FRT COVER M8X22 FLANGE	8-97365-376-0	06	1	0605-	●
33	SEAL; OIL,FRT COVER,T/M ALSO INCLUDED IN GASKET SET(M/T). NOK	8-94326-441-0	01	1	0008-	●
39	PLATE; DETENT SPR	8-94373-864-1	01	1	0008-0604	●
39	PLATE; DETENT SPR	8-98035-571-0	01	1	0605-	●
40	GASKET; DETENT SPR PLATE ALSO INCLUDED IN GASKET SET(M/T).	8-94473-947-0	01	1	0008-	●
41	SPRING; DETENT BALL L=25.6	8-94435-336-0	03	1	0008-	●
42	BALL; DETENT,GEAR SHIFT	8-94435-335-0	03	1	0008-	●
43	BOLT; PLATE TO PLATE M8X16 FLANGE	0-28080-816-0	02	1	0008-0106	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-94448-815-3	02	1	0107-0604	●
43	BOLT; PLATE TO PLATE M8X22 FLANGE	8-97365-376-0	02	1	0605-	●
45	GASKET; FILLER PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0008-	●
50	GASKET; DRAIN PLUG ALSO INCLUDED IN GASKET SET(M/T). ID=17	8-97115-712-0	01	1	0008-	●
62	GASKET; RR COVER ALSO INCLUDED IN GASKET SET(M/T).	8-94482-496-0	01	1	0008-	●
86	BOLT; RR COVER M10X55 FLANGE	8-94473-959-1	08	1	0008-0604	●
86	BOLT; RR COVER M10X55 FLANGE	8-98035-672-0	08	1	0605-	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-94422-387-0	01	1	0008-0403	●
90	SEAL; OIL,RR COVER ALSO INCLUDED IN GASKET SET(M/T). NOK	8-97046-705-3	01	1	0404-	●
113	GASKET; FRT COVER TO TRANS CASE ALSO INCLUDED IN GASKET SET(M/T).	8-97113-190-0	01	1	0008-	●
114	RING; SNAP,BALL BRG (A) ID=49.6	5-09589-004-0	01	1	0008-	●
114	RING; SNAP,BALL BRG (B) ID=71.7	5-09589-005-0	01	1	0008-	●
414	COVER; DUST,RR COVER	8-94310-493-0	01	1	0008-0604	●
414	COVER; DUST,RR COVER	8-98027-802-0	01	1	0605-	●
417	PLUG; OIL FILLER,TRANS	8-94310-917-0	01	1	0008-0604	●
417	PLUG; OIL FILLER,TRANS	8-97365-373-0	01	1	0605-	●
421	COVER; RR,TRANS	8-97112-207-3	01	1	0008-0504	●
421	COVER; RR,TRANS	8-98014-389-0	01	1	0505-0604	●
421	COVER; RR,TRANS	8-98036-019-0	01	1	0605-1105	●
421	COVER; RR,TRANS	8-98193-595-0	01	1	1106-	●
429	PIN; STRAIGHT OD=10 L=40	5-09740-018-1	02	1	0008-	●
430	PLUG; OIL DRAIN	9-09662-004-0	01	1	0008-0604	●
430	PLUG; OIL DRAIN	8-97365-374-0	01	1	0605-	●
435	CASE; TRANS IDN	8-97211-484-0	01	1	0008-0210	●
435	CASE; TRANS	8-97330-878-0	01	1	0211-0604	●
435	CASE; TRANS IDN	8-98035-893-0	01	1	0605-	●

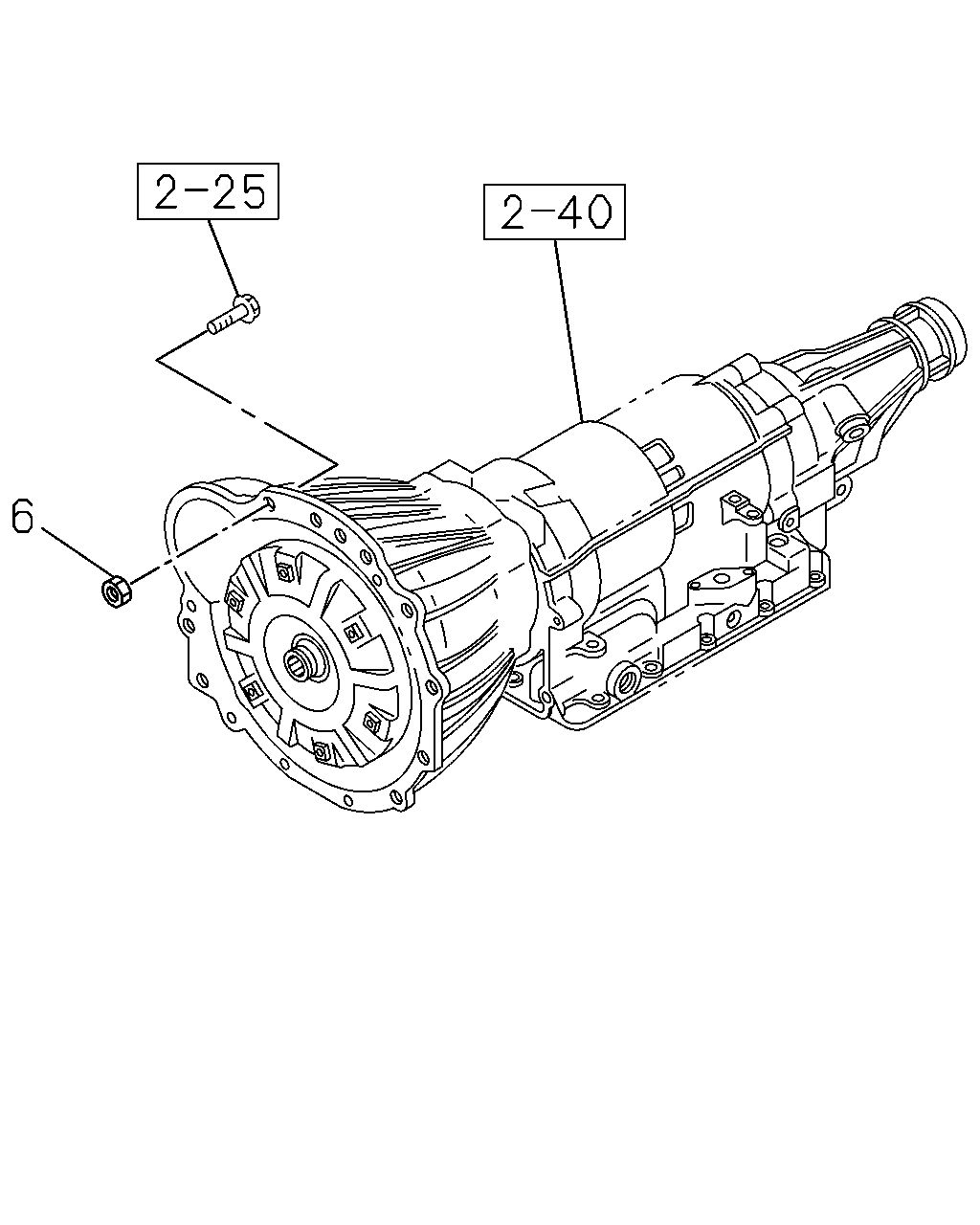

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B
6	NUT; CASE,TRANS M10 FLANGE	0-91150-110-0	02	1	0008-0602	●
6	NUT; CASE,TRANS TURBOCHARGER<K51> M10 FLANGE	0-91150-110-0	02	1	0008-0602		●
6	NUT; CASE,TRANS M10 FLANGE	0-91180-110-0	02	1	0603-	●
6	NUT; CASE,TRANS TURBOCHARGER<K51> M10 FLANGE	0-91180-110-0	02	1	0603-		●
28	COVER; FRT,TRANS CASE	8-97116-796-0	01	1	0008-	●
