Isuzu WW
▶
TRUCKS
▶
FTR
▶
10827 - FTR(AUSTRALIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-56 - EXHAUST BRAKE SYSTEM
▶

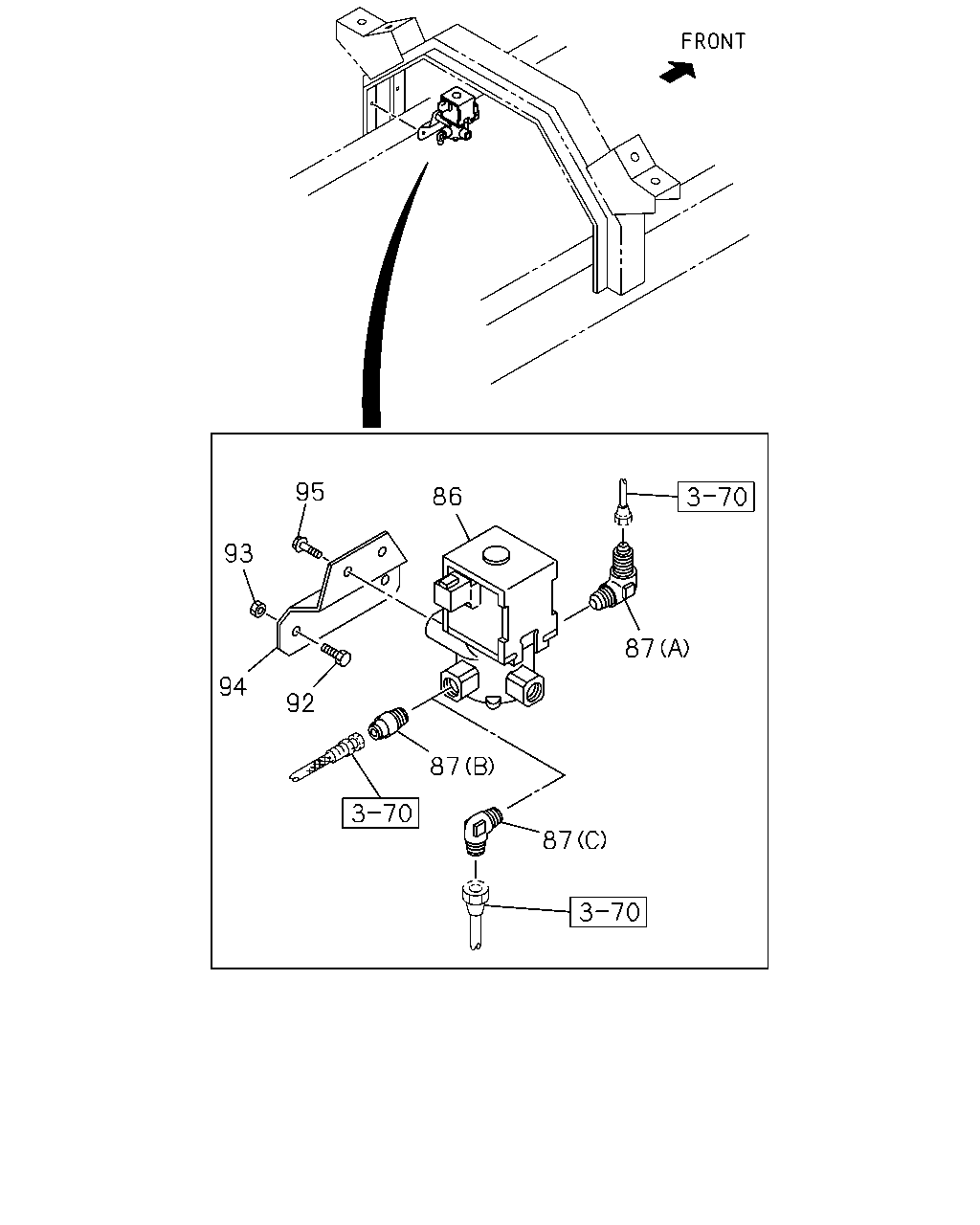

1-56 — EXHAUST BRAKE SYSTEM
(#9530) — 20 parça
Tümü
A - 6HE1 TC ENG
B - 6HH1 STD ENG
C - 6HK1 TCC ENG
95
86
93
87
94
92
87
87
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
C
86
VALVE; MAG,EXH BRK
1-82563-602-5
01
1
0005-0210
●
●
86
VALVE; MAG,EXH BRK
1-82563-602-6
01
1
0211-
●
87
CONNECTOR
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0005-0210
●
●
87
CONNECTOR
(A) M12 & PT1/4 ELBOW
1-09650-430-0
01
1
0211-
●
87
CONNECTOR
(B) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0005-0210
●
●
87
CONNECTOR
DOUBLE CAB(FT**W*) (B) DIN8 R1/4 STRAIGHT
1-09660-963-0
01
1
0211-
●
87
CONNECTOR
STD CAB(FT**M*) (C) DIN8 & R1/4 ELBOW
1-09660-956-0
01
1
0211-
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28680-820-0
02
1
0005-0210
●
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28680-820-0
02
1
0211-0512
●
92
BOLT; MAG VLV
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
92
BOLT; MAG VLV
M8X25 FLANGE
0-28680-825-0
02
1
0005-0210
●
93
NUT; MAG VLV
M8 FLANGE
0-91150-108-0
02
1
0005-0210
●
●
93
NUT; MAG VLV
M8 FLANGE
0-91150-108-0
02
1
0211-0602
●
93
NUT; MAG VLV
M8 FLANGE
0-91180-108-0
02
1
0603-
●
94
BRACKET; MAG VLV,EXH BRAKE
1-47477-266-0
01
1
0005-0210
●
●
94
BRACKET; MAG VLV,EXH BRAKE
1-47477-266-0
01
1
0211-
●
94
BRACKET; MAG VLV,EXH BRAKE
1-47478-968-0
01
1
0005-0210
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
0-28680-820-0
02
1
0005-0210
●
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
0-28680-820-0
02
1
0211-0512
●
95
BOLT; BRKT,MAG VLV,EXH BRAKE
M8X20 FLANGE
0-28650-820-0
02
1
0601-
●
