5-01 — FRAME AND OTHER PARTS (#953) — 97 parça

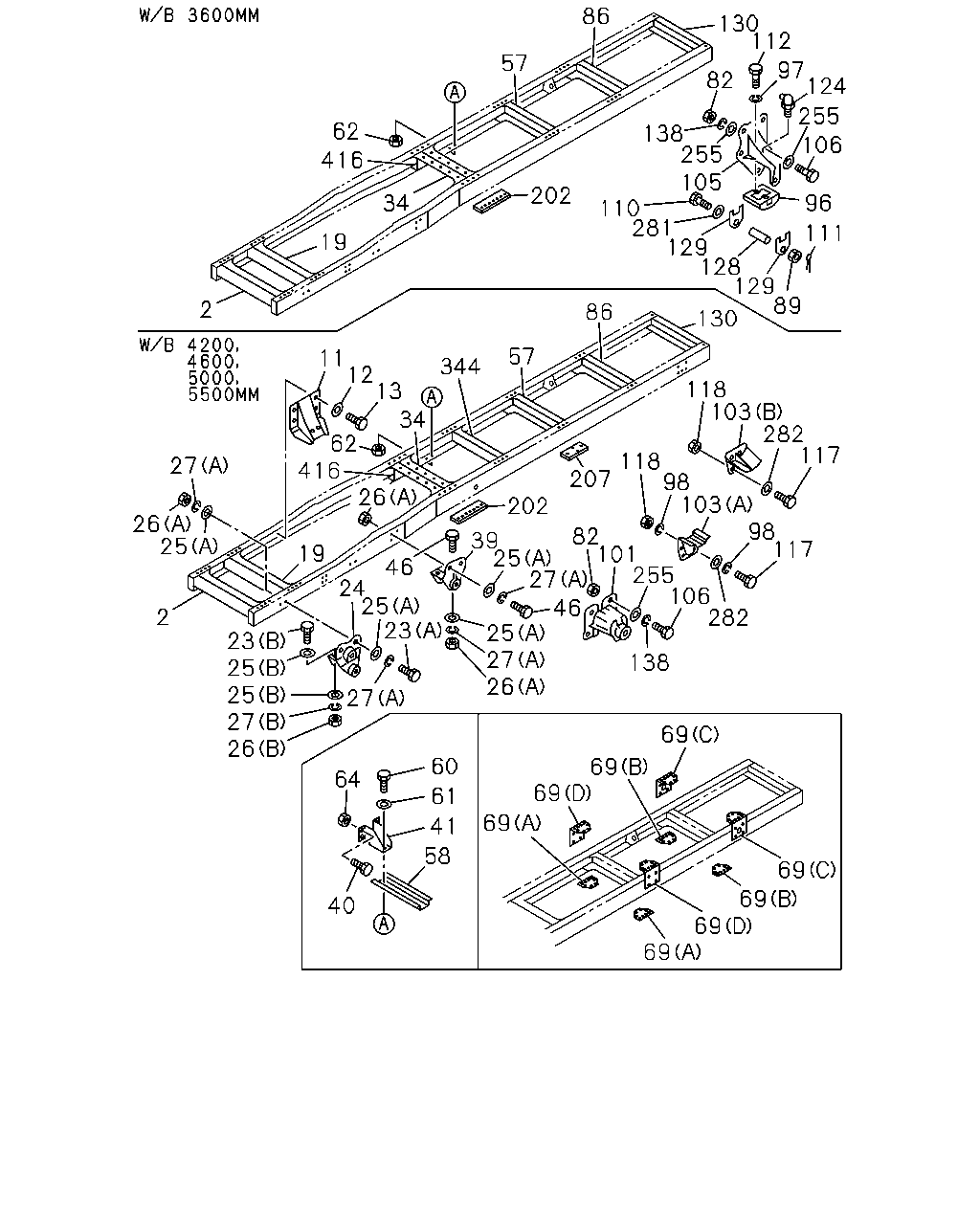

çizim 27886
86 130 112 57 97 124 82 255 62 138 255 105 106 416 202 96 34 110 281 129 128 129 89 111 19 2 86 130 57 11 12 13 344 118 103 282 117 34 62 416 118 98 103 27 207 26 98 117 26 25 202 82 101 255 106 282 39 25 27 19 46 24 25 23 46 2 25 27 26 23 25 25 27 26 138 27 69 60 69 69 64 61 69 41 58 69 69 69 40 69
BalonParca AdiParca NoAdetTipApplied Date A B C D E
2 MEMBER; CROSS,1ST 1-53181-419-3 01 1 9202- ● ● ● ● ●
11 BRACKET; ENG MTG 1-53211-185-0 02 1 9202- ● ● ● ● ●
12 WASHER; PL,BRKT,ENG MTG
ID=12.5 		1-09503-171-0 08 1 9202- ● ● ● ● ●
13 BOLT; BRKT,ENG MTG
M12X28 		9-92061-228-0 08 1 9202- ● ● ● ● ●
19 MEMBER; CROSS,2ND 1-53181-430-3 01 1 9202- ● ● ● ● ●
23 BOLT; BRKT,SPR
(A) M14X50 		9-92061-450-0 06 1 9202- ● ● ● ● ●
23 BOLT; BRKT,SPR
(B) M16X50 		9-92061-650-0 04 1 9202- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-149-3 01 1 9202- ● ● ● ● ●
24 BRACKET; FRT SPR,FRT 1-53351-148-3 01 1 9202- ● ● ● ● ●
25 WASHER; PL,BRKT
(B) ID=16.2 		1-09503-223-0 08 1 9202- ● ● ● ● ●
25 WASHER; PL,BRKT
(A) ID=15 		9-09651-069-0 24 1 9202- ● ● ● ● ●
26 NUT; BRKT,SPR
(A) M14 		9-99110-514-0 12 1 9202- ● ● ● ● ●
26 NUT; BRKT,SPR
(B) M16 		9-99110-516-0 04 1 9202- ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
(A) ID=14.2 		9-09150-614-0 12 1 9202- ● ● ● ● ●
27 WASHER; LK,BRKT,FRT SPR
(B) ID=16.2 		9-09150-616-0 04 1 9202- ● ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-155-0 01 1 9202-9404 ● ● ● ●
34 MEMBER; CROSS,3RD 1-53174-231-1 01 1 9405- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-125-2 01 1 9202- ● ● ● ● ●
39 BRACKET; FRT SPR,RR 1-53352-124-2 01 1 9202- ● ● ● ● ●
40 BOLT; BRKT TO FRAME
M10X30 W/LK WASHER 		0-50041-030-0 08 1 9202- ● ●
41 BRACKET; CENTER BRG,FRAME SIDE 1-37515-085-0 02 1 9202- ● ●
46 BOLT; BRKT FIX
M14X40 		9-92061-440-0 06 1 9202-9206 ● ● ● ●
46 BOLT; BRKT FIX
M14X50 		9-92061-450-0 06 1 9207- ● ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-279-2 01 1 9202-9404 ● ● ● ●
57 MEMBER; CROSS,RR SUSP FRT 1-53181-691-0 01 1 9405- ● ● ● ● ●
58 MEMBER; CENTER BRG
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-37529-063-1 01 1 9202- ● ●
58 MEMBER; CENTER BRG
HEAVY DUTY PACKAGE TRUCK<RD2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) EXC. FIRE TRUCK<RA9> 		1-37529-052-2 01 1 9206-9210 ●
58 MEMBER; CENTER BRG
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FIRE TRUCK<RA9> 		1-37529-052-2 01 1 9211- ●
60 BOLT; MBR
M10X25 W/LK WASHER 		0-50041-025-0 08 1 9202- ● ●
61 WASHER; PL,MBR
ID=10.5 OD=22 		9-09164-610-0 08 1 9202- ● ●
62 NUT; MBR
M10 		9-09110-410-0 08 1 9202- ● ●
64 NUT; BRKT TO FRAME
M10 		9-09110-410-0 08 1 9202- ● ●
69 GUSSET; RR SUSP,UPR
(D) 		1-53167-284-0 01 1 9204-9501 ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) 		1-53167-309-0 01 1 9502- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(B) 		1-53167-099-4 02 1 9202- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
(A) 		1-53167-100-3 02 1 9202- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) 		1-53167-142-1 01 1 9202-9501 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) 		1-53167-310-0 01 1 9502- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) 		1-53167-248-1 01 1 9202- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (D) 		1-53167-141-1 01 1 9202-9501 ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (C) 		1-53167-247-1 01 1 9202- ● ● ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (D) 21-HOLE 		1-53167-095-4 01 1 9202- ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (C) 17-HOLE 		1-53167-098-5 01 1 9202- ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (D) 21-HOLE 		1-53167-096-4 01 1 9202- ● ● ●
69 GUSSET; RR SUSP,UPR
HEAVY DUTY PACKAGE TRUCK<RD2> (C) 17-HOLE 		1-53167-097-5 01 1 9202- ● ● ●
82 NUT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 20 1 9202- ● ● ● ● ●
82 NUT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14 		9-99110-514-0 24 1 9202- ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-279-2 01 1 9202-9404 ● ● ● ●
86 MEMBER; CROSS,RR SUSP RR 1-53181-691-0 01 1 9405- ● ● ● ● ●
89 NUT; LEAF SPR STOPPER
SUSPENSION HEAVY DUTY VAR2(F41) M14 		9-99116-414-0 02 1 9202- ● ● ● ●
96 PAD; RR SPR
SUSPENSION HEAVY DUTY VAR2(F41) 		1-53359-047-0 02 1 9202- ● ● ● ●
97 WASHER; LK,PAD
SUSPENSION HEAVY DUTY VAR2(F41) ID=14.2 		9-09150-514-0 04 1 9202- ● ● ● ●
98 WASHER; LK,STOPPER
ID=14.2 		9-09150-614-0 16 1 9202- ● ● ● ● ●
101 BRACKET; RR SPR,FRT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 9202- ● ● ● ● ●
101 BRACKET; RR SPR,FRT
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-078-1 02 1 9202- ● ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (A) 		1-53356-038-1 02 1 9202- ● ● ● ● ●
103 STOPPER; SUB SPR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> (B) 		1-53357-029-1 02 1 9202- ● ● ● ● ●
103 STOPPER; SUB SPR
HEAVY DUTY PACKAGE TRUCK<RD2> (A),(B) 		1-53356-057-0 04 1 9202- ● ● ●
105 BRACKET; RR SPR,RR
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53353-072-1 02 1 9202- ● ● ● ● ●
105 BRACKET; RR SPR,RR
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53354-064-1 02 1 9202- ● ● ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X40 		0-20801-440-0 20 1 9202-9207 ● ● ● ●
106 BOLT; BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-20801-450-0 20 1 9208- ● ● ● ● ●
106 BOLT; BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 24 1 9202- ● ● ●
110 BOLT; LEAF SPR STOPPER
SUSPENSION HEAVY DUTY VAR2(F41) 		1-09000-007-0 02 1 9202- ● ● ● ●
111 PIN; SPLIT,LEAF SPR STOPPER
SUSPENSION HEAVY DUTY VAR2(F41) OD=2.8 L=28 		9-08113-028-0 02 1 9202- ● ● ● ●
112 BOLT; PAD
SUSPENSION HEAVY DUTY VAR2(F41) M14X35 		0-20801-435-0 04 1 9202- ● ● ● ●
117 BOLT; STOPPER
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		0-20801-450-0 16 1 9202- ● ● ● ● ●
117 BOLT; STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> M14X50 		9-92061-450-0 16 1 9202- ● ● ●
118 NUT; STOPPER
M14 		9-99110-514-0 16 1 9202- ● ● ● ● ●
124 NIPPLE; GREASE
SUSPENSION HEAVY DUTY VAR2(F41) PT1/8 ELBOW 		9-09031-210-0 02 1 9202- ● ● ● ●
128 COLLAR; RUBBER
SUSPENSION HEAVY DUTY VAR2(F41) 		1-53359-058-0 02 1 9202-9209 ● ● ●
128 COLLAR; RUBBER
SUSPENSION HEAVY DUTY VAR2(F41) 		1-53359-004-0 02 1 9210- ● ● ● ●
129 SHIM; SIDE
SUSPENSION HEAVY DUTY VAR2(F41) T=4.5 		1-53359-061-1 02 1 9202- ● ● ● ●
129 SHIM; SIDE
SUSPENSION HEAVY DUTY VAR2(F41) T=3.2 		1-53359-062-1 02 1 9202- ● ● ● ●
130 MEMBER; CROSS,END 1-53171-948-2 01 1 9202-9211 ● ● ● ●
130 MEMBER; CROSS,END 1-53181-151-1 01 1 9212- ● ● ● ● ●
138 WASHER; LK,BRKT
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 20 1 9202- ● ● ● ● ●
138 WASHER; LK,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=14.2 		9-09150-614-0 24 1 9202- ● ● ●
202 SPACER; 3RD C/MBR 1-53168-101-0 02 1 9202-9404 ● ● ● ●
202 SPACER; 3RD C/MBR 1-53168-351-1 02 1 9405- ● ● ● ● ●
207 SPACER; 4TH C/MBR
EXC. FIRE TRUCK<RA9> 		1-53168-163-1 02 1 9407- ●
207 SPACER; 4TH C/MBR 1-53168-162-2 02 1 9202- ● ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 48 1 9202- ● ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> CHINA-SOUTHERN ECONOMIC ZONE EQUIPMENT(TAB) EXC. FIRE TRUCK<RA9> ID=15 		9-09651-069-0 64 1 9206-9210 ●
255 WASHER; PL,BRKT
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FIRE TRUCK<RA9> ID=15 		9-09651-069-0 64 1 9211- ●
281 WASHER; LEAF SPR STOPPER
SUSPENSION HEAVY DUTY VAR2(F41) ID=15 OD=30 		9-09160-614-0 04 1 9202- ● ● ● ●
282 WASHER; PL,STOPPER
HEAVY DUTY PACKAGE TRUCK<RD2> ID=15 		9-09651-069-0 32 1 9202- ● ●
344 MEMBER; CROSS,4TH 1-53171-947-3 01 1 9202-9307 ● ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-947-3 01 1 9308-9404 ● ● ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK<RD2> EXC. FIRE TRUCK<RA9> 		1-53171-947-3 01 1 9308-9404 ●
344 MEMBER; CROSS,4TH 1-53181-580-1 01 1 9405- ● ● ●
344 MEMBER; CROSS,4TH
EXC. HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53181-580-1 01 1 9405- ●
344 MEMBER; CROSS,4TH
HEAVY DUTY PACKAGE TRUCK<RD2> 		1-53171-972-3 01 1 9308- ●
416 GUSSET; 3RD C/MBR 1-53164-182-0 01 1 9202-9404 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-213-0 01 1 9405- ● ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-151-1 01 1 9202-9404 ● ● ● ●
416 GUSSET; 3RD C/MBR 1-53164-214-0 01 1 9405- ● ● ● ● ●
