2-03 — CLUTCH PEDAL AND CONTROL (#95299) — 54 parça

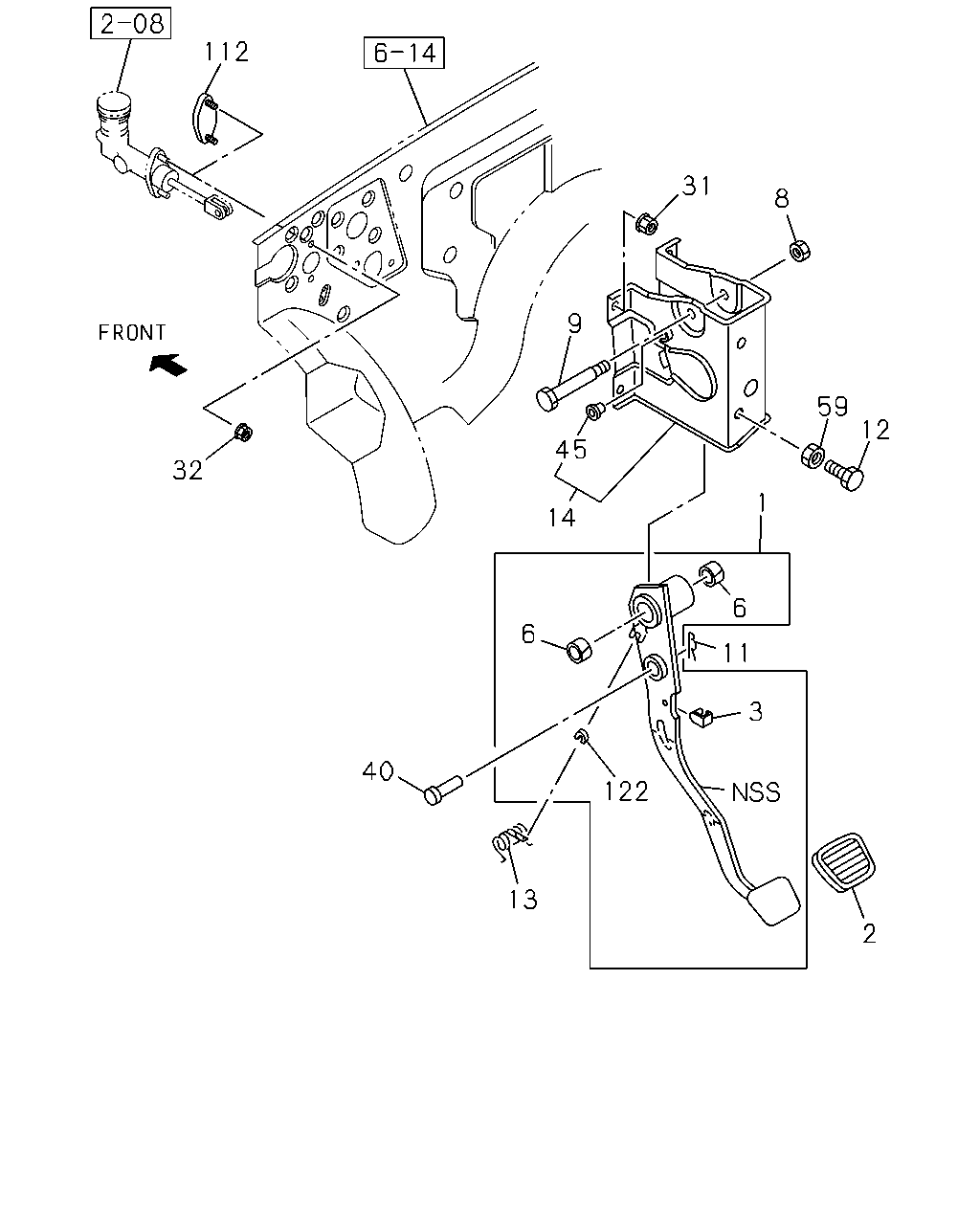

çizim 289168
112 32 31 8 9 59 45 1 6 11 3 2 122 13 40 6 14 12
BalonParca AdiParca NoAdetTipApplied Date A B C
1 PEDAL; CLU 8-97135-073-0 01 1 0008-0106 ●
1 PEDAL; CLU
M/T MSG 5 SPEED(M75) 		8-97135-073-0 01 1 0008-0106 ● ●
1 PEDAL; CLU
M/T MSG 5 SPEED(M75) 		8-97135-073-0 01 1 0107- ● ●
2 COVER; CLU PEDAL 8-94222-524-1 01 1 0008-0106 ●
2 COVER; CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94222-524-1 01 1 0008-0106 ● ●
2 COVER; CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94222-524-1 01 1 0107- ● ●
3 RUBBER; STOPPER,CLU PEDAL 8-94463-258-0 01 1 0008-0106 ●
3 RUBBER; STOPPER,CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94463-258-0 01 1 0008-0106 ● ●
3 RUBBER; STOPPER,CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94463-258-0 01 1 0107- ● ●
6 BUSHING; CLU PEDAL 8-94244-439-0 02 1 0008-0106 ●
6 BUSHING; CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94244-439-0 02 1 0008-0106 ● ●
6 BUSHING; CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94244-439-0 02 1 0107- ● ●
8 NUT; PIN TO PEDAL
M10 FLANGE 		0-91150-110-0 01 1 0008-0106 ●
8 NUT; PIN TO PEDAL
M/T MSG 5 SPEED(M75) M10 FLANGE 		0-91150-110-0 01 1 0008-0106 ● ●
8 NUT; PIN TO PEDAL
M/T MSG 5 SPEED(M75) M10 FLANGE 		0-91150-110-0 01 1 0107-0602 ● ●
8 NUT; PIN TO PEDAL
M/T MSG 5 SPEED(M75) M10 FLANGE 		0-91180-110-0 01 1 0603- ● ●
9 PIN; CLU PEDAL 8-94455-308-0 01 1 0008-0106 ●
9 PIN; CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94455-308-0 01 1 0008-0106 ● ●
9 PIN; CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94455-308-0 01 1 0107- ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL
L=27.7 		1-09747-005-0 01 1 0008-0106 ●
11 PIN; SNAP,PUSH ROD TO PEDAL
M/T MSG 5 SPEED(M75) L=27.7 		1-09747-005-0 01 1 0008-0106 ● ●
11 PIN; SNAP,PUSH ROD TO PEDAL
M/T MSG 5 SPEED(M75) L=27.7 		1-09747-005-0 01 1 0107- ● ●
12 BOLT; CLU PEDAL ADJ
M10X35 		0-20801-035-0 01 1 0008-0106 ●
12 BOLT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75) M10X35 		0-20801-035-0 01 1 0008-0106 ● ●
12 BOLT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75) M10X35 		0-20801-035-0 01 1 0107-0512 ● ●
12 BOLT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75) M10X35 		0-20851-035-0 01 1 0601- ● ●
13 SPRING; ASSIST,CLU PEDAL 8-97036-041-0 01 1 0008-0106 ●
13 SPRING; ASSIST,CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-97036-041-0 01 1 0008-0106 ● ●
13 SPRING; ASSIST,CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-97036-041-0 01 1 0107-0109 ● ●
13 SPRING; ASSIST,CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-97312-882-0 01 1 0110- ● ●
14 BRACKET ASM; CLU PEDAL MTG 8-94329-888-1 01 1 0008-0106 ●
14 BRACKET ASM; CLU PEDAL MTG
M/T MSG 5 SPEED(M75) 		8-94329-888-1 01 1 0008-0106 ● ●
14 BRACKET ASM; CLU PEDAL MTG
M/T MSG 5 SPEED(M75) 		8-94329-888-1 01 1 0107- ● ●
31 NUT; MTG BRKT TO BODY
M8 FLANGE 		5-09440-005-0 04 1 0008-0106 ●
31 NUT; MTG BRKT TO BODY
M/T MSG 5 SPEED(M75) M8 FLANGE 		5-09440-005-0 04 1 0008-0106 ● ●
31 NUT; MTG BRKT TO BODY
M/T MSG 5 SPEED(M75) M8 FLANGE 		5-09440-005-0 04 1 0107-0805 ● ●
31 NUT; MTG BRKT TO BODY
M/T MSG 5 SPEED(M75) M8 FLANGE 		8-97581-233-0 04 1 0806- ● ●
32 NUT; BRKT TO CLU M/CYL
M8 FLANGE 		0-91150-108-0 02 1 0008-0106 ● ● ●
32 NUT; BRKT TO CLU M/CYL
M8 FLANGE 		0-91150-108-0 02 1 0107-0602 ● ●
32 NUT; BRKT TO CLU M/CYL
M8 FLANGE 		0-91180-108-0 02 1 0603- ● ●
40 PIN; JOINT,CLU DAMPER 8-94432-133-1 01 1 0008-0106 ●
40 PIN; JOINT,CLU DAMPER
M/T MSG 5 SPEED(M75) 		8-94432-133-1 01 1 0008-0106 ● ●
40 PIN; JOINT,CLU DAMPER
M/T MSG 5 SPEED(M75) 		8-94432-133-1 01 1 0107- ● ●
45 BUSHING; ASSIST SPRING,CLU PEDAL 8-94175-433-0 02 1 0008-0106 ●
45 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94175-433-0 02 1 0008-0106 ● ●
45 BUSHING; ASSIST SPRING,CLU PEDAL
M/T MSG 5 SPEED(M75) 		8-94175-433-0 02 1 0107- ● ●
59 NUT; CLU PEDAL ADJ
M10 		9-09110-410-0 01 1 0008-0106 ●
59 NUT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75) M10 		9-09110-410-0 01 1 0008-0106 ● ●
59 NUT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75) M10 		9-09110-410-0 01 1 0107-0512 ● ●
59 NUT; CLU PEDAL ADJ
M/T MSG 5 SPEED(M75) M10 		0-91110-510-0 01 1 0601- ● ●
112 PLUG; METAL,M/CYL
A/T AISIN(RMD) 		8-97259-210-0 01 1 0008- ● ●
122 BUSHING; ASSIST PEDAL,CLU 8-94175-434-0 01 1 0008-0106 ●
122 BUSHING; ASSIST PEDAL,CLU
M/T MSG 5 SPEED(M75) 		8-94175-434-0 01 1 0008-0106 ● ●
122 BUSHING; ASSIST PEDAL,CLU
M/T MSG 5 SPEED(M75) 		8-94175-434-0 01 1 0107- ● ●
