Isuzu WW
▶
AUV
▶
TBR
▶
50823 - TBR(INDONESIA)
▶
2 - Clutch, Transmission, Trans Axle
▶
2-01 - CLUTCH
▶

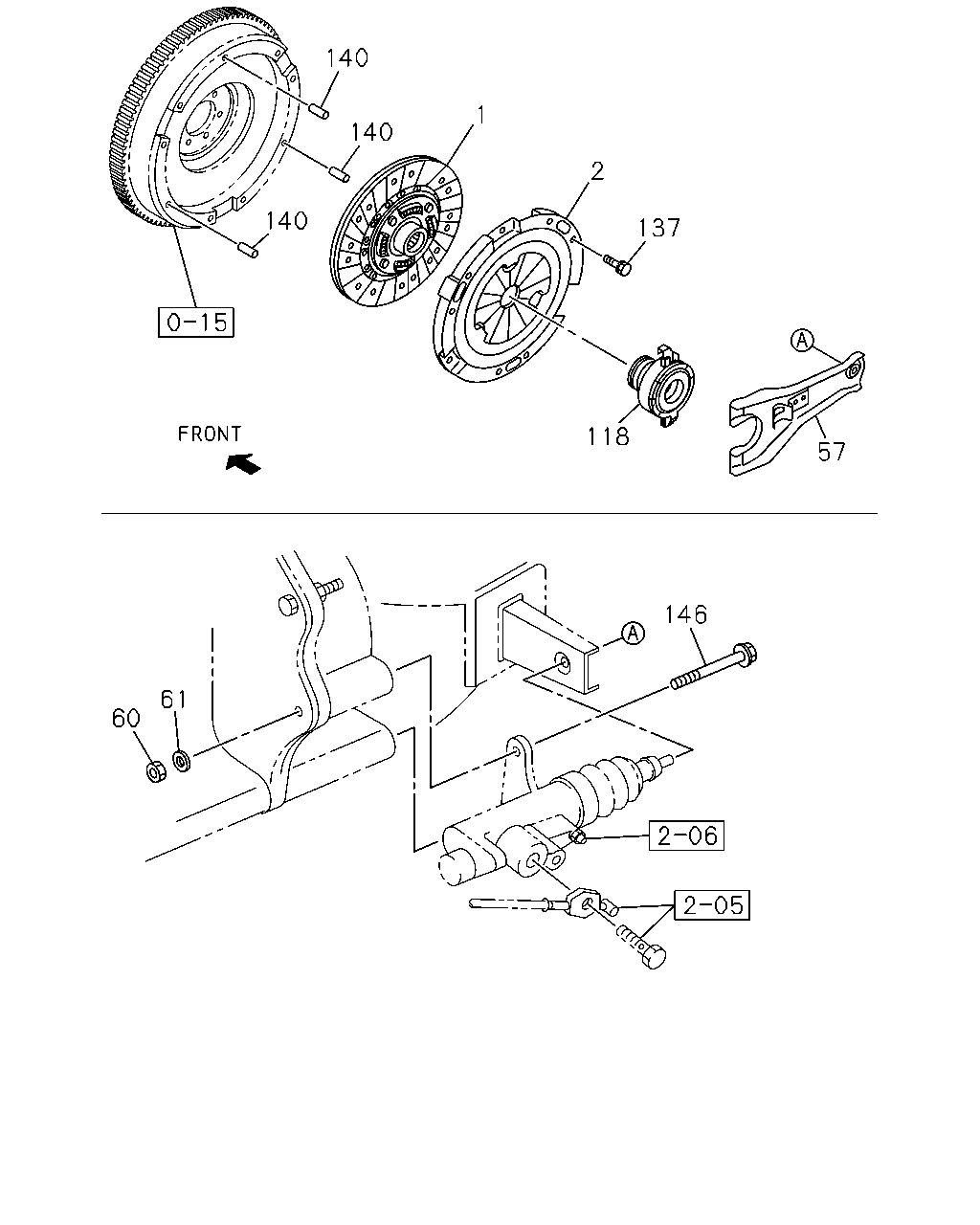

2-01 — CLUTCH
(#95298) — 16 parça
140
140
1
2
137
118
57
140
146
61
60
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
DISC; CLUTCH
M/T MSG 5 SPEED(M75) IDN
8-97143-203-0
01
1
0008-0206
1
DISC; CLUTCH
M/T MSG 5 SPEED(M75) IDN
8-97562-133-0
01
1
0207-0210
1
DISC; CLUTCH
M/T MSG 5 SPEED(M75) IDN
8-97562-183-0
01
1
0211-
2
PLATE ASM; PRESSURE,CLU
M/T MSG 5 SPEED(M75) IDN
8-94435-011-1
01
1
0008-0206
2
PLATE ASM; PRESSURE,CLU
M/T MSG 5 SPEED(M75) IDN
8-97562-132-0
01
1
0207-
57
FORK; SHIFT,CLU
M/T MSG 5 SPEED(M75)
8-94167-751-0
01
1
0008-
60
NUT; SLAVE CYL
M/T MSG 5 SPEED(M75) M12
9-99110-412-0
01
1
0008-0512
60
NUT; SLAVE CYL
M/T MSG 5 SPEED(M75) M12
0-91110-512-0
01
1
0601-
61
WASHER; PL,SLAVE CYL,CLU
M/T MSG 5 SPEED(M75) ID=12.5
9-09160-512-0
01
1
0008-0302
61
WASHER; PL,SLAVE CYL,CLU
M/T MSG 5 SPEED(M75) ID=12.5
9-09164-512-0
01
1
0303-
118
BEARING; CLU RELEASE
M/T MSG 5 SPEED(M75) NSK ID=56 OD=71.7
8-97209-197-0
01
1
0008-
137
BOLT; CLU COVER
M/T MSG 5 SPEED(M75) M8X16 FLANGE
0-28080-816-0
06
1
0008-0512
137
BOLT; CLU COVER
M/T MSG 5 SPEED(M75) M8X16 FLANGE
0-28050-816-0
06
1
0601-
140
PIN; STRAIGHT
M/T MSG 5 SPEED(M75) OD=6 L=24
9-09878-532-0
03
1
0008-
146
BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75) M12X90
0-28081-290-0
01
1
0008-0512
146
BOLT; SLAVE CYL TO TRANS CASE
M/T MSG 5 SPEED(M75) M12X90 FLANGE
0-28051-290-0
01
1
0601-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
