Isuzu WW
▶
AUV
▶
TBR
▶
50823 - TBR(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-41 - FUEL PIPING; CHASSIS
▶
1-41 — FUEL PIPING; CHASSIS
(#95295) — 33 parça
◀

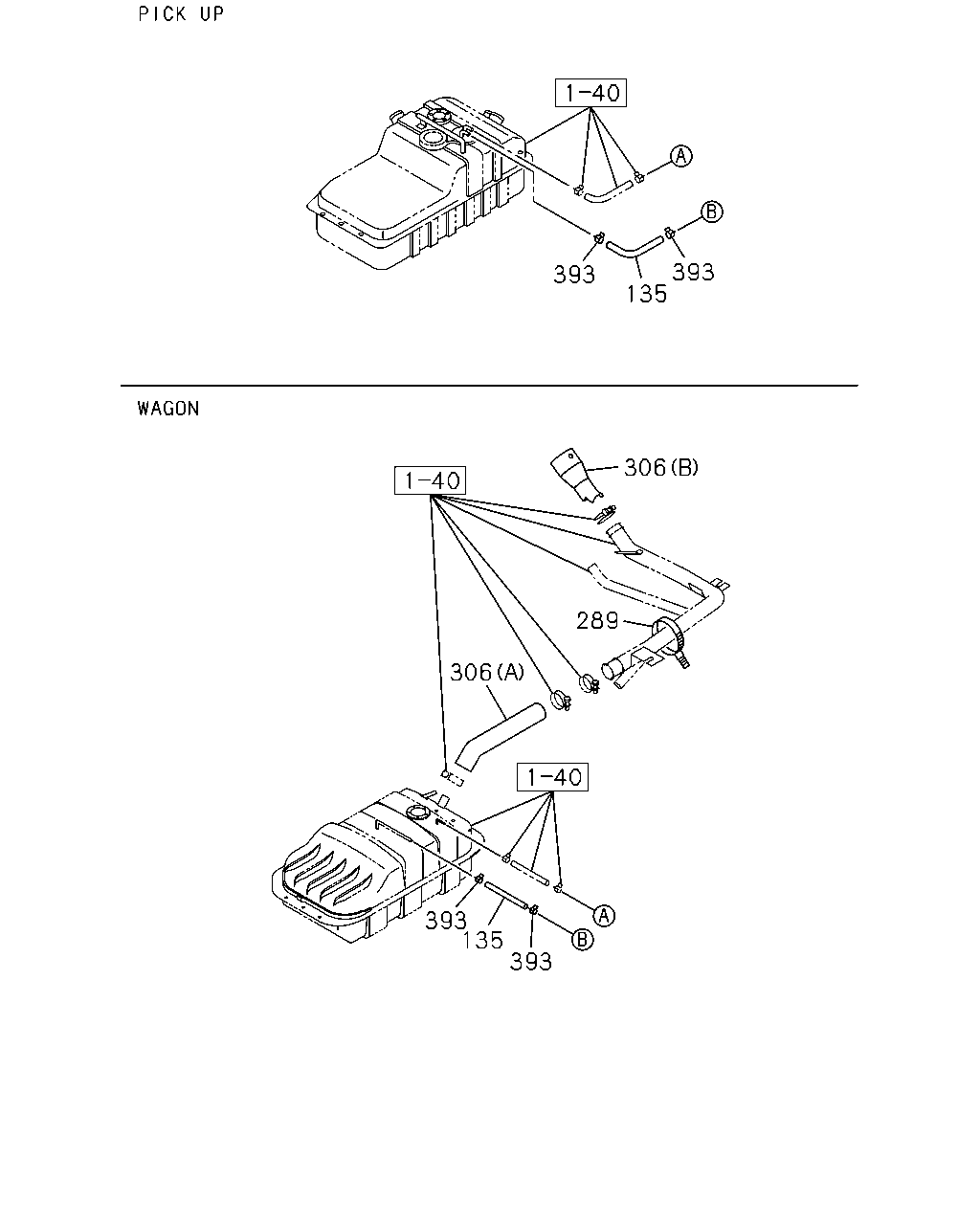

[141A] NO.1 (15 parça)
[141A] NO.2 (18 parça)
▶
393
393
135
306
289
306
393
135
393
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
135
HOSE; FUEL TANK TO FUEL PIPE
L=270 SERVICED BY L=3000
0-01258-300-0
01
1
0008-
289
CLIP; BAND,HOSE
L=250 IDN
5-09707-030-1
02
1
0008-0406
289
CLIP; BAND,HOSE
WAGON(TB**V*) L=250 IDN
5-09707-030-1
01
1
0407-
289
CLIP; BAND,HOSE
WAGON(TB**V*) L=250 IDN
5-09707-030-1
01
1
0008-0406
289
CLIP; BAND,HOSE
L=250 IDN
5-09707-030-1
02
1
0407-
306
HOSE; FUEL,FILTER
WAGON(TB**V*) (A) IDN
8-97017-382-0
01
1
0008-0106
306
HOSE; FUEL,FILTER
WAGON(TB**V*) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN
8-97017-382-0
01
1
0107-0110
306
HOSE; FUEL,FILTER
WAGON(TB**V*) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) IDN
8-97560-958-0
01
1
0111-0209
306
HOSE; FUEL,FILTER
WAGON(TB**V*) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) IDN
8-97560-958-0
01
1
0210-0405
306
HOSE; FUEL,FILTER
WAGON(TB**V*) EXC. CAB UP<W60> (A) IDN
8-97560-958-0
01
1
0406-
306
HOSE; FUEL,FILTER
GRADE TOURING(RBG) (A) IDN
8-97957-730-0
01
1
0107-0110
306
HOSE; FUEL,FILTER
GRADE TOURING(RBG) (A) IDN
8-97560-959-0
01
1
0111-0405
306
HOSE; FUEL,FILTER
CAB UP<W60> (A) IDN
8-97560-959-0
01
1
0406-
306
HOSE; FUEL,FILTER
WAGON(TB**V*) (B) IDN
8-97957-514-1
01
1
0008-
393
CLIP; HOSE,DELIVERY
ID=14
8-94238-572-0
02
1
0008-
47
147
45
210
15
24
148
82
82
82
15
82
147
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
15
CLIP; FUEL PIPE
(A) BLACK
8-94222-876-0
02
1
0008-
15
CLIP; FUEL PIPE
(B) ID=14.5 & 6
8-94312-791-0
01
1
0008-
24
CLIP; FUEL HOSE
ID=13.2 & 14.5
8-94475-649-0
02
1
0008-
45
PIPE; FUEL,DELIVERY
SHORT(TB***C) IDN
8-97957-565-0
01
1
0008-0009
45
PIPE; FUEL,DELIVERY
SHORT(TB***C) IDN
8-97959-152-0
01
1
0010-
45
PIPE; FUEL,DELIVERY
LONG(TB***F) IDN
8-97957-566-0
01
1
0008-0009
45
PIPE; FUEL,DELIVERY
LONG(TB***F) IDN
8-97959-153-0
01
1
0010-
47
PIPE; FUEL,RETURN
SHORT(TB***C) IDN
8-97957-567-2
01
1
0008-0009
47
PIPE; FUEL,RETURN
SHORT(TB***C) IDN
8-97959-154-0
01
1
0010-
47
PIPE; FUEL,RETURN
LONG(TB***F) IDN
8-97957-568-2
01
1
0008-0009
47
PIPE; FUEL,RETURN
LONG(TB***F) IDN
8-97959-155-0
01
1
0010-
82
CLIP; FUEL HOSE
ID=14
8-94238-572-0
04
1
0008-
147
CLIP; FUEL PIPE TO HOSE
A/T AISIN(RMD) ID=10 & 12
8-94155-296-0
01
1
0008-
147
CLIP; FUEL PIPE TO HOSE
M/T MSG 5 SPEED(M75) ID=10 & 12
8-94155-296-0
02
1
0008-0106
147
CLIP; FUEL PIPE TO HOSE
M/T MSG 5 SPEED(M75) ID=10 & 12
8-94155-296-0
02
1
0107-
148
CLIP; HOSE,FUEL
ID=14.5 & 6
8-94312-791-0
01
1
0008-
210
CLIP; FEED PIPE
SHORT(TB***C)
8-97146-096-0
11
1
0008-
210
CLIP; FEED PIPE
LONG(TB***F)
8-97146-096-0
13
1
0008-
