1-40 — FUEL TANK (#95294) — 135 parça

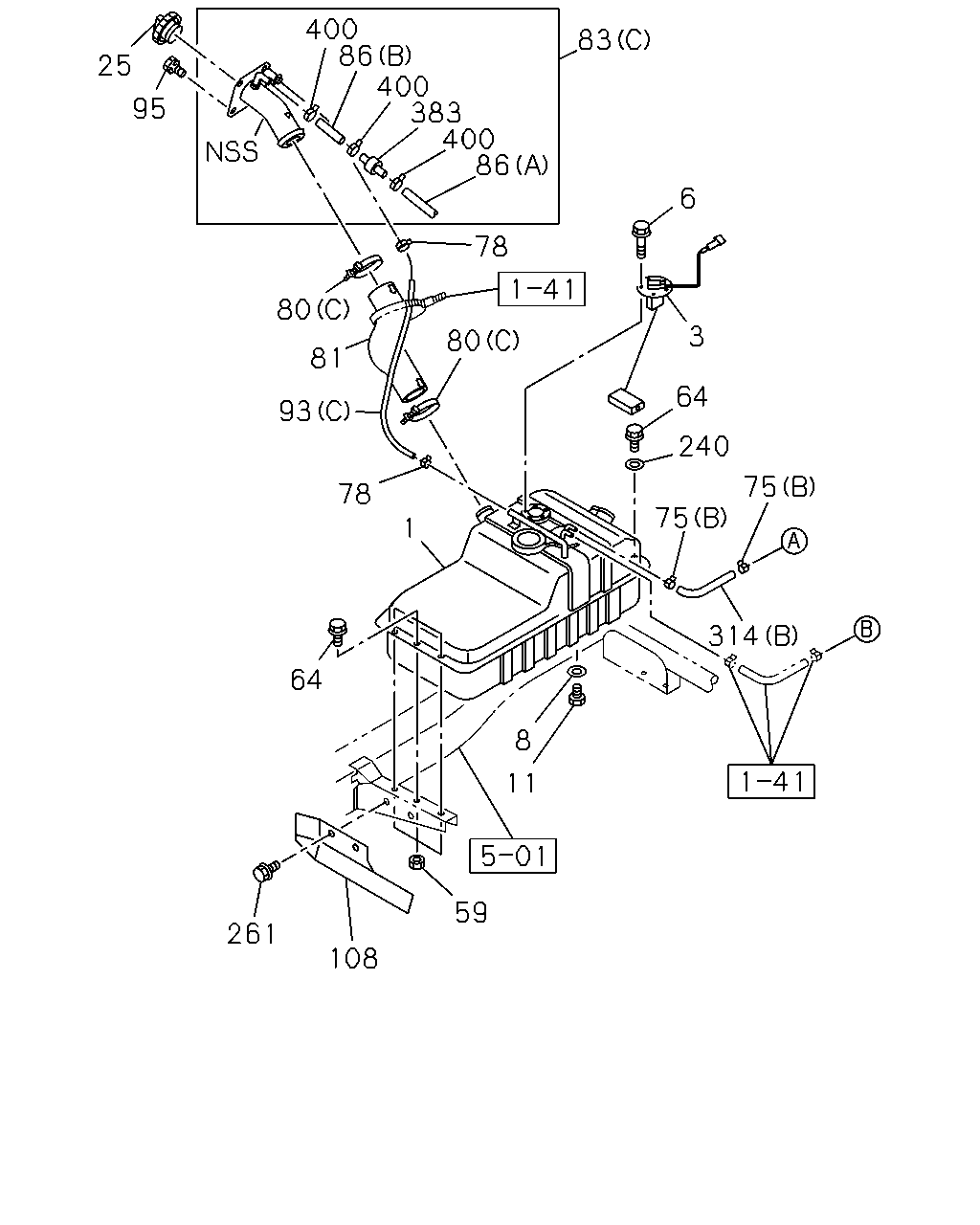

400 86 400 383 400 86 83 95 25 6 78 80 81 93 78 1 80 3 64 240 75 75 314 8 11 64 261 108 59

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL SHORT(TB***C) IDN	8-97957-581-0	01	1	0008-
1	TANK; FUEL PICK UP(TB*S) IDN	8-97956-250-1	01	1	0008-0106
1	TANK; FUEL WAGON LONG(TB**VF) IDN	8-97956-297-1	01	1	0008-
3	UNIT; FUEL TANK,SUB SHORT(TB***C) IDN	8-97957-611-1	01	1	0008-
3	UNIT; FUEL TANK,SUB LONG(TB***F)	8-97956-834-2	01	1	0008-0106
3	UNIT; FUEL TANK,SUB WAGON LONG(TB**VF)	8-97956-834-2	01	1	0107-
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	9-03910-510-0	05	1	0008-0604
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-
8	GASKET; DRAIN PLUG,FUEL TANK PICK UP(TB*S) IDN	9-09920-624-0	01	1	0008-0106
11	PLUG; DRAIN,FUEL TANK PICK UP(TB*S) M14X14 IDN	8-94152-613-0	01	1	0008-0106
25	CAP; FILLER,FUEL TANK	8-94450-279-1	01	1	0008-0202
25	CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	0203-
59	NUT; FUEL TANK M8 FLANGE	8-94328-243-1	06	1	0008-
64	BOLT; FUEL TANK M8X24	8-97034-130-1	06	1	0008-
75	CLIP; RUB HOSE (B) ID=11	8-94238-570-0	02	1	0008-
75	CLIP; RUB HOSE SHORT(TB***C) (B) ID=11	8-94238-570-0	02	1	0008-
75	CLIP; RUB HOSE (C) ID=14	8-94238-572-0	02	1	0008-
75	CLIP; RUB HOSE (A) ID=8 & 4.8	8-94430-297-0	01	1	0008-
75	CLIP; RUB HOSE LONG(TB***F) (B) ID=11	8-94238-570-0	01	1	0008-
75	CLIP; RUB HOSE LONG(TB***F) (B) ID=13 IDN	8-94238-571-0	01	1	0008-
78	CLIP; BREATHER HOSE PICK UP(TB*S) ID=16 IDN	8-94238-568-0	02	1	0008-0106
78	CLIP; BREATHER HOSE WAGON(TB*V) ID=16 IDN	8-94238-568-0	04	1	0008-
80	CLIP; FILLER HOSE PICK UP(TB*S) (C) ID=60 IDN	9-09915-265-1	02	1	0008-0106
80	CLIP; FILLER HOSE WAGON(TB*V) (A) ID=42 IDN	9-09915-042-1	03	1	0008-
80	CLIP; FILLER HOSE WAGON(TB*V) (B) ID=60 IDN	9-09915-265-1	01	1	0008-
81	HOSE; FUEL FILLER PICK UP(TB*S) IDN	8-97956-339-0	01	1	0008-0106
83	NECK; FUEL FILLER PICK UP(TB*S) (C)	8-97254-802-0	01	1	0008-0106
83	NECK; FUEL FILLER WAGON(TB*V) (A)	8-97254-803-0	01	1	0008-
83	NECK; FUEL FILLER WAGON(TB*V) (B) IDN	8-97956-838-2	01	1	0008-
86	HOSE; EVAP (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0008-0106
86	HOSE; EVAP WAGON(TB*V) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0107-
86	HOSE; EVAP (B) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	0008-0106
86	HOSE; EVAP WAGON(TB*V) (B) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	0107-
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) (A) L=320 SERVICED BY L=3000	0-01259-300-0	01	1	0008-0106
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) L=320 SERVICED BY L=3000	0-01259-300-0	01	1	0107-0209
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) L=320 SERVICED BY L=3000	0-01259-300-0	01	1	0210-0405
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) EXC. CAB UP<W60> (A) L=320 SERVICED BY L=3000	0-01259-300-0	01	1	0406-
93	HOSE; BREATHER,FUEL TANK PICK UP(TB*S) (C) L=460 SERVICED BY L=3000	0-01259-300-0	01	1	0008-0106
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) GRADE TOURING(RBG) (A) L=340	8-97314-006-0	01	1	0107-0405
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) CAB UP<W60> (A) L=340	8-97314-006-0	01	1	0406-
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) (B) L=680 SERVICED BY L=3000	0-01259-300-0	01	1	0008-
95	SCREW; FILLER NECK M6X16	8-94381-646-0	03	1	0008-0703
95	SCREW; FILLER NECK M6X16	8-98022-271-0	03	1	0704-
108	PROTECTOR; FUEL TANK IDN	8-97956-729-2	01	1	0008-
240	WASHER; PL,FUEL TANK ID=8.4 OD=22	9-09164-708-0	03	1	0008-0605
240	WASHER; PL,FUEL TANK ID=8.4 OD=22	0-91614-708-0	03	1	0606-
261	BOLT; PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	0008-0512
261	BOLT; PROTECTOR M8X20 FLANGE IDN	0-28650-820-0	02	1	0601-
314	HOSE; RUBBER,FUEL RETURN (A) L=440	8-97260-487-2	01	1	0008-
314	HOSE; RUBBER,FUEL RETURN SHORT(TB***C) (B) L=180 SERVICED BY L=3000	0-01254-300-0	01	1	0008-
314	HOSE; RUBBER,FUEL RETURN LONG(TB***F) (B) L=230	8-94363-222-1	01	1	0008-
383	VALVE; 2 WAY	8-97178-373-0	01	1	0008-0106
383	VALVE; 2 WAY WAGON(TB*V)	8-97178-373-0	01	1	0107-
400	CLIP; HOSE,EVAP ID=8.5	8-94166-071-0	03	1	0008-0105
400	CLIP; HOSE,EVAP ID=8.5	8-94166-071-0	02	1	0106-0106
400	CLIP; HOSE,EVAP WAGON(TB*V) ID=8.5	8-94166-071-0	02	1	0107-

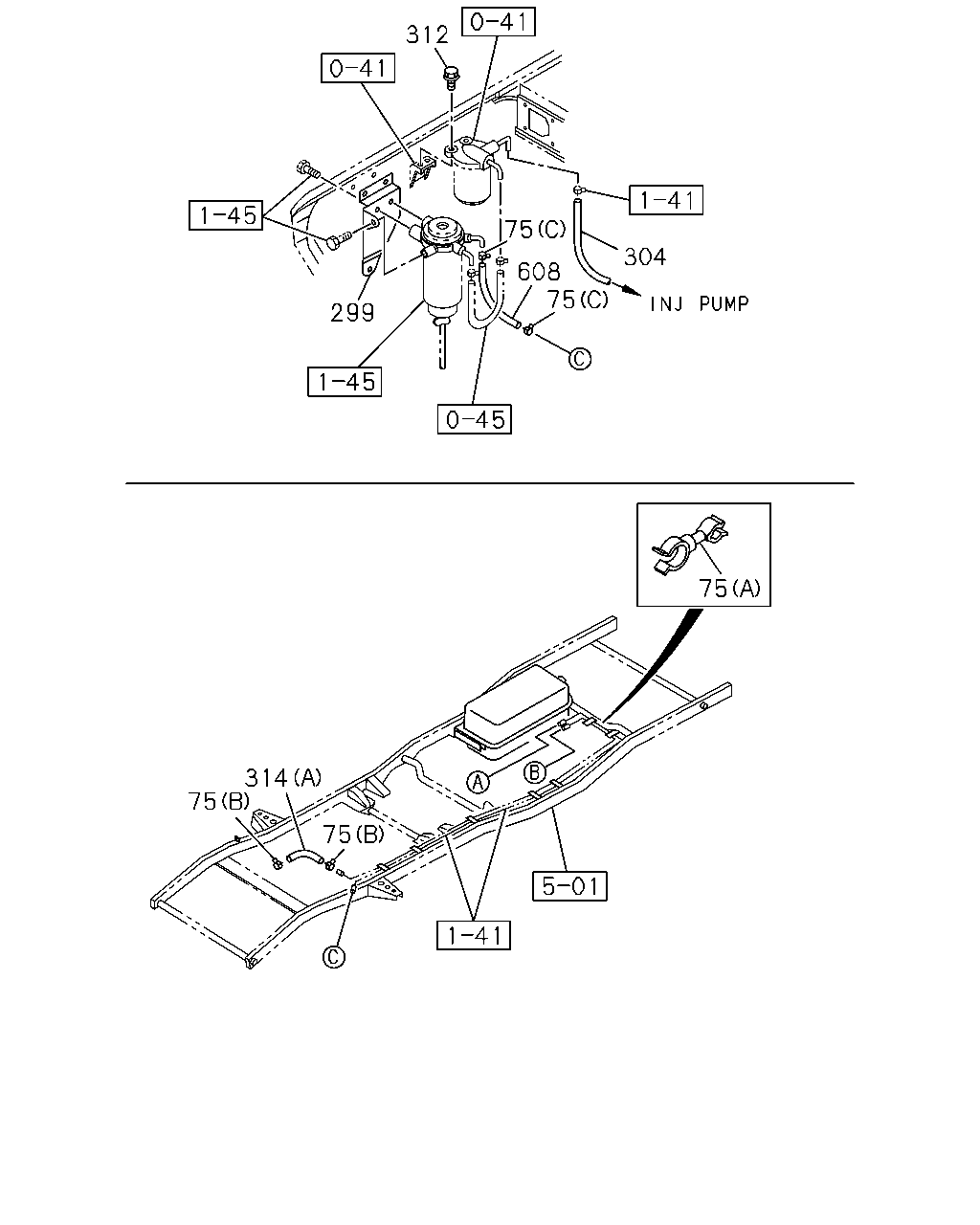

304 608 75 299 75 312 75 75 314 75

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
75	CLIP; RUB HOSE (B) ID=11	8-94238-570-0	02	1	0008-
75	CLIP; RUB HOSE SHORT(TB***C) (B) ID=11	8-94238-570-0	02	1	0008-
75	CLIP; RUB HOSE (C) ID=14	8-94238-572-0	02	1	0008-
75	CLIP; RUB HOSE (A) ID=8 & 4.8	8-94430-297-0	01	1	0008-
75	CLIP; RUB HOSE LONG(TB***F) (B) ID=11	8-94238-570-0	01	1	0008-
75	CLIP; RUB HOSE LONG(TB***F) (B) ID=13 IDN	8-94238-571-0	01	1	0008-
299	BRACKET; FUEL FILTER IDN	8-97956-644-0	01	1	0008-
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP	8-97254-197-0	01	1	0008-0106
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP GRADE NEW SUPER(RBA),GRADE ROYAL(RBB)	8-97254-197-0	01	1	0107-0209
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD)	8-97254-197-0	01	1	0210-0405
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP EXC. CAB UP<W60>	8-97254-197-0	01	1	0406-
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP GRADE TOURING(RBG)	8-97313-109-1	01	1	0107-0405
304	HOSE; RUBBER,FUEL FILTER TO INJ PUMP CAB UP<W60>	8-97313-109-1	01	1	0406-
312	BOLT; FUEL FILTER CLAMP M10X35 FLANGE IDN	0-28681-035-0	02	1	0008-0512
312	BOLT; FUEL FILTER CLAMP M10X35 FLANGE IDN	0-28651-035-0	02	1	0601-
314	HOSE; RUBBER,FUEL RETURN (A) L=440	8-97260-487-2	01	1	0008-
314	HOSE; RUBBER,FUEL RETURN SHORT(TB***C) (B) L=180 SERVICED BY L=3000	0-01254-300-0	01	1	0008-
314	HOSE; RUBBER,FUEL RETURN LONG(TB***F) (B) L=230	8-94363-222-1	01	1	0008-
608	HOSE; RUBBER,PIPE TO FUEL FILTER L=600 SERVICED BY L=3000	0-01258-300-0	01	1	0008-0106
608	HOSE; RUBBER,PIPE TO FUEL FILTER GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) L=600 SERVICED BY L=3000	0-01258-300-0	01	1	0107-0209
608	HOSE; RUBBER,PIPE TO FUEL FILTER GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) L=600 SERVICED BY L=3000	0-01258-300-0	01	1	0210-0405
608	HOSE; RUBBER,PIPE TO FUEL FILTER EXC. CAB UP<W60> L=600 SERVICED BY L=3000	0-01258-300-0	01	1	0406-
608	HOSE; RUBBER,PIPE TO FUEL FILTER GRADE TOURING(RBG) L=640 SERVICED BY L=3000	0-01258-300-0	01	1	0107-0405
608	HOSE; RUBBER,PIPE TO FUEL FILTER CAB UP<W60> L=640 SERVICED BY L=3000	0-01258-300-0	01	1	0406-

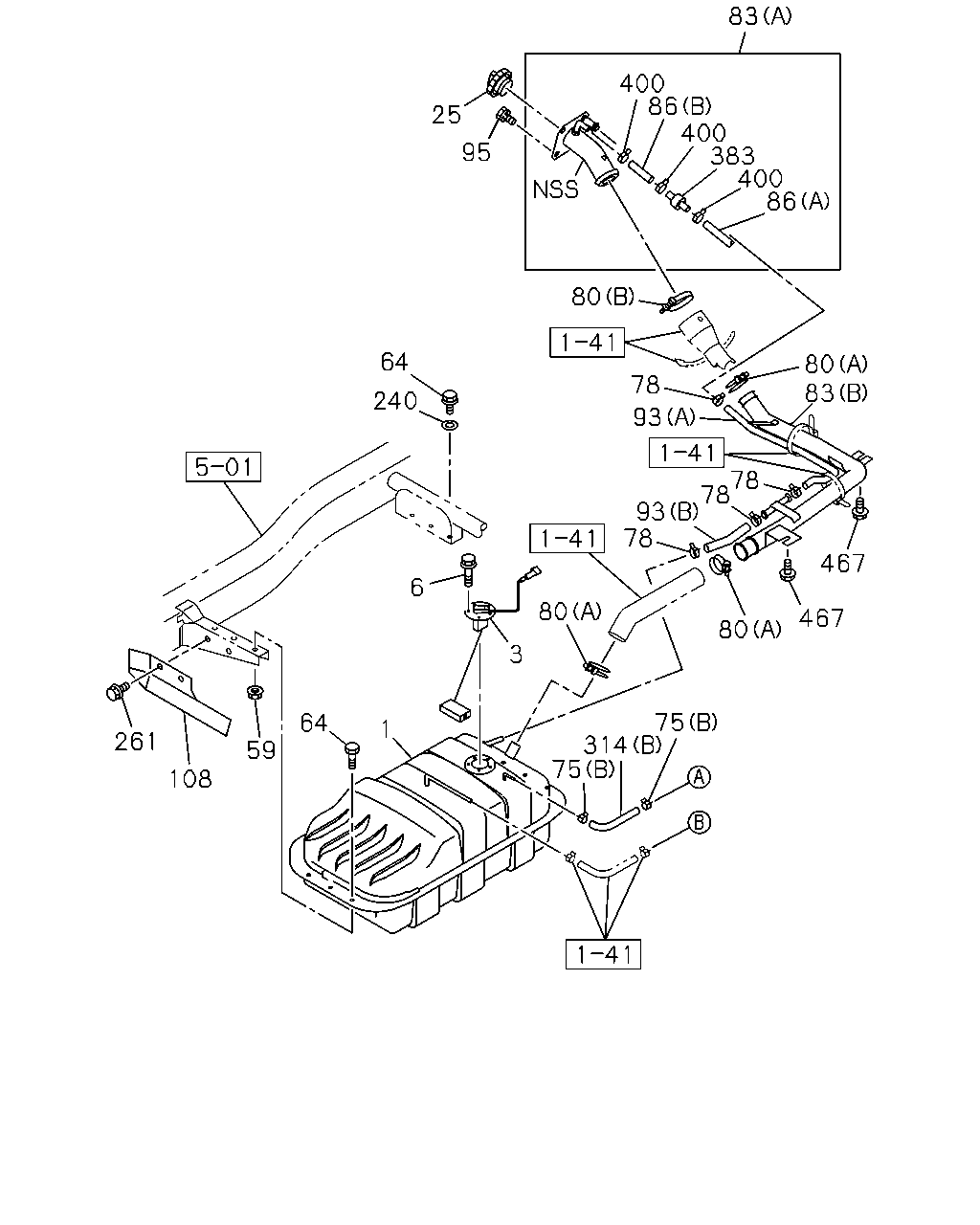

25 95 64 240 6 3 80 75 314 75 1 64 59 108 261 80 467 467 78 93 78 78 93 78 80 80 83 86 400 383 400 86 400 83

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
1	TANK; FUEL SHORT(TB***C) IDN	8-97957-581-0	01	1	0008-
1	TANK; FUEL PICK UP(TB*S) IDN	8-97956-250-1	01	1	0008-0106
1	TANK; FUEL WAGON LONG(TB**VF) IDN	8-97956-297-1	01	1	0008-
3	UNIT; FUEL TANK,SUB SHORT(TB***C) IDN	8-97957-611-1	01	1	0008-
3	UNIT; FUEL TANK,SUB LONG(TB***F)	8-97956-834-2	01	1	0008-0106
3	UNIT; FUEL TANK,SUB WAGON LONG(TB**VF)	8-97956-834-2	01	1	0107-
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	9-03910-510-0	05	1	0008-0604
6	SCREW; TANK UNIT TO SUB FUEL TANK M5X10 W/LK WASHER	0-36220-510-0	05	1	0605-
25	CAP; FILLER,FUEL TANK	8-94450-279-1	01	1	0008-0202
25	CAP; FILLER,FUEL TANK	8-94310-199-4	01	1	0203-
59	NUT; FUEL TANK M8 FLANGE	8-94328-243-1	06	1	0008-
64	BOLT; FUEL TANK M8X24	8-97034-130-1	06	1	0008-
75	CLIP; RUB HOSE (B) ID=11	8-94238-570-0	02	1	0008-
75	CLIP; RUB HOSE SHORT(TB***C) (B) ID=11	8-94238-570-0	02	1	0008-
75	CLIP; RUB HOSE (C) ID=14	8-94238-572-0	02	1	0008-
75	CLIP; RUB HOSE (A) ID=8 & 4.8	8-94430-297-0	01	1	0008-
75	CLIP; RUB HOSE LONG(TB***F) (B) ID=11	8-94238-570-0	01	1	0008-
75	CLIP; RUB HOSE LONG(TB***F) (B) ID=13 IDN	8-94238-571-0	01	1	0008-
78	CLIP; BREATHER HOSE PICK UP(TB*S) ID=16 IDN	8-94238-568-0	02	1	0008-0106
78	CLIP; BREATHER HOSE WAGON(TB*V) ID=16 IDN	8-94238-568-0	04	1	0008-
80	CLIP; FILLER HOSE PICK UP(TB*S) (C) ID=60 IDN	9-09915-265-1	02	1	0008-0106
80	CLIP; FILLER HOSE WAGON(TB*V) (A) ID=42 IDN	9-09915-042-1	03	1	0008-
80	CLIP; FILLER HOSE WAGON(TB*V) (B) ID=60 IDN	9-09915-265-1	01	1	0008-
83	NECK; FUEL FILLER PICK UP(TB*S) (C)	8-97254-802-0	01	1	0008-0106
83	NECK; FUEL FILLER WAGON(TB*V) (A)	8-97254-803-0	01	1	0008-
83	NECK; FUEL FILLER WAGON(TB*V) (B) IDN	8-97956-838-2	01	1	0008-
86	HOSE; EVAP (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0008-0106
86	HOSE; EVAP WAGON(TB*V) (A) L=300 SERVICED BY L=3000	8-94128-826-0	01	1	0107-
86	HOSE; EVAP (B) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	0008-0106
86	HOSE; EVAP WAGON(TB*V) (B) L=60 SERVICED BY L=3000	8-94128-826-0	01	1	0107-
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) (A) L=320 SERVICED BY L=3000	0-01259-300-0	01	1	0008-0106
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) (A) L=320 SERVICED BY L=3000	0-01259-300-0	01	1	0107-0209
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) (A) L=320 SERVICED BY L=3000	0-01259-300-0	01	1	0210-0405
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) EXC. CAB UP<W60> (A) L=320 SERVICED BY L=3000	0-01259-300-0	01	1	0406-
93	HOSE; BREATHER,FUEL TANK PICK UP(TB*S) (C) L=460 SERVICED BY L=3000	0-01259-300-0	01	1	0008-0106
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) GRADE TOURING(RBG) (A) L=340	8-97314-006-0	01	1	0107-0405
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) CAB UP<W60> (A) L=340	8-97314-006-0	01	1	0406-
93	HOSE; BREATHER,FUEL TANK WAGON(TB*V) (B) L=680 SERVICED BY L=3000	0-01259-300-0	01	1	0008-
95	SCREW; FILLER NECK M6X16	8-94381-646-0	03	1	0008-0703
95	SCREW; FILLER NECK M6X16	8-98022-271-0	03	1	0704-
108	PROTECTOR; FUEL TANK IDN	8-97956-729-2	01	1	0008-
240	WASHER; PL,FUEL TANK ID=8.4 OD=22	9-09164-708-0	03	1	0008-0605
240	WASHER; PL,FUEL TANK ID=8.4 OD=22	0-91614-708-0	03	1	0606-
261	BOLT; PROTECTOR M8X20 FLANGE	0-28680-820-0	02	1	0008-0512
261	BOLT; PROTECTOR M8X20 FLANGE IDN	0-28650-820-0	02	1	0601-
314	HOSE; RUBBER,FUEL RETURN (A) L=440	8-97260-487-2	01	1	0008-
314	HOSE; RUBBER,FUEL RETURN SHORT(TB***C) (B) L=180 SERVICED BY L=3000	0-01254-300-0	01	1	0008-
314	HOSE; RUBBER,FUEL RETURN LONG(TB***F) (B) L=230	8-94363-222-1	01	1	0008-
383	VALVE; 2 WAY	8-97178-373-0	01	1	0008-0106
383	VALVE; 2 WAY WAGON(TB*V)	8-97178-373-0	01	1	0107-
400	CLIP; HOSE,EVAP ID=8.5	8-94166-071-0	03	1	0008-0105
400	CLIP; HOSE,EVAP ID=8.5	8-94166-071-0	02	1	0106-0106
400	CLIP; HOSE,EVAP WAGON(TB*V) ID=8.5	8-94166-071-0	02	1	0107-
467	BOLT WAGON(TB*V) M8X25	8-97091-076-0	02	1	0008-0203
467	BOLT WAGON(TB*V) M8X25	8-97327-634-0	02	1	0204-
