Isuzu WW
▶
AUV
▶
TBR
▶
50823 - TBR(INDONESIA)
▶
1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-30 - AIR CLEANER
▶

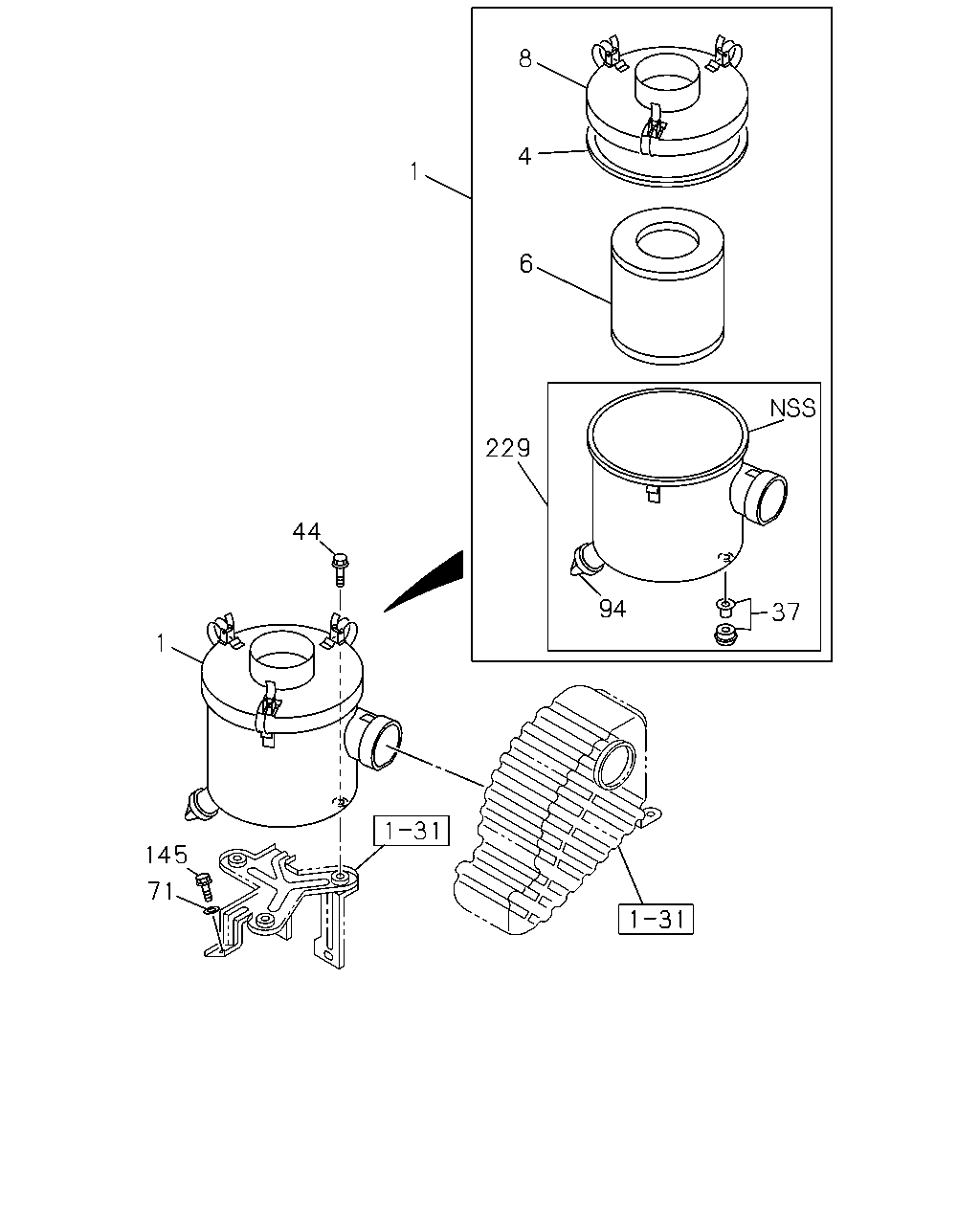

1-30 — AIR CLEANER
(#95292) — 25 parça
◀
[130A] -'02/2 (13 parça)

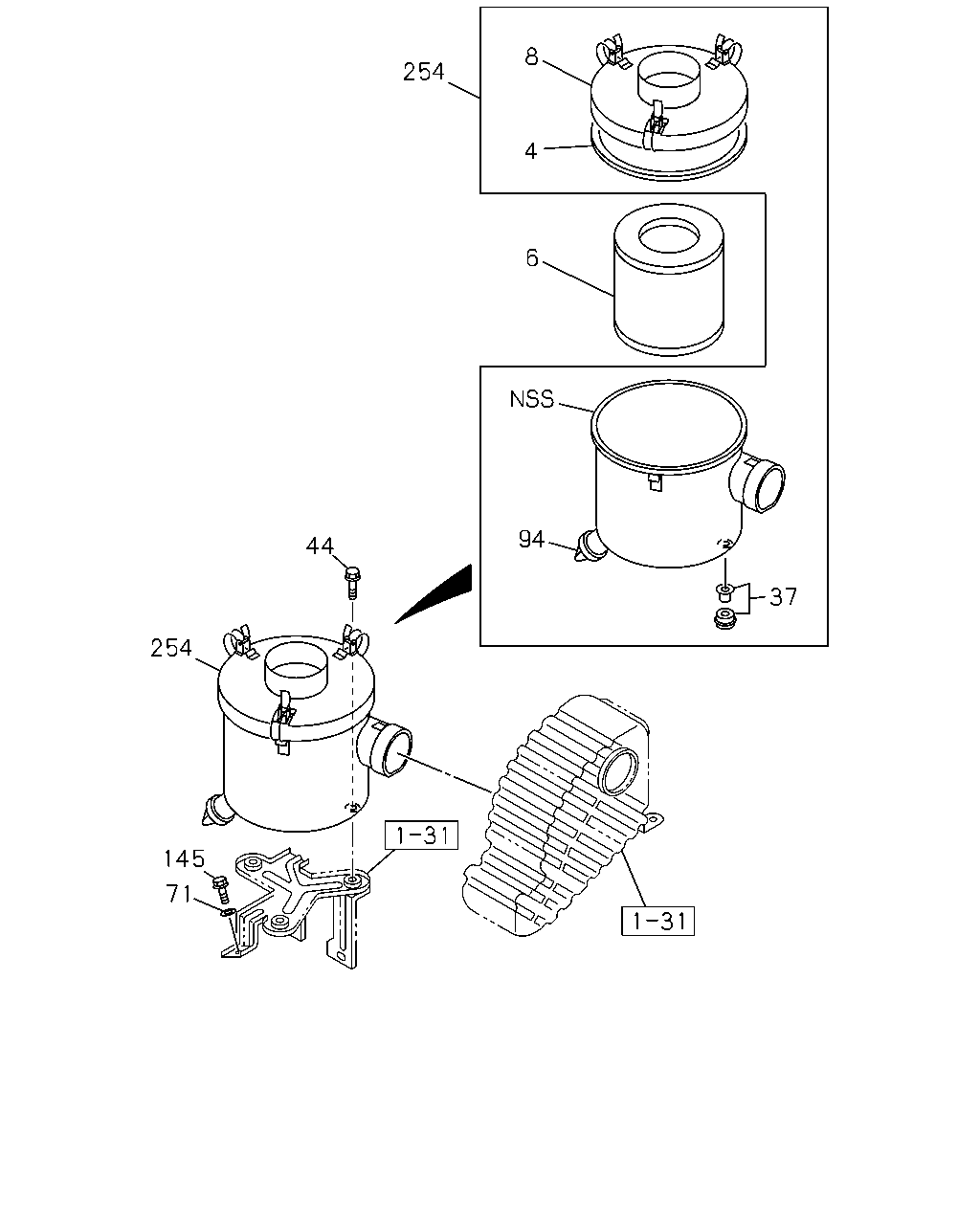

[130A] '02/3- (12 parça)
▶
229
94
37
6
4
8
1
44
1
145
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
CLEANER ASM; AIR
IDN
8-97180-526-0
01
1
0008-0202
4
GASKET; COVER TO BODY
IDN
8-94334-908-0
01
1
0008-
6
FILTER; ACL
IDN
8-94334-906-0
01
1
0008-0202
6
FILTER; ACL
IDN
8-97560-627-0
01
1
0203-
8
COVER ASM; ACL
8-97222-771-0
01
1
0008-
37
RUBBER; MTG,ACL
8-97146-135-0
03
1
0008-
44
BOLT; ACL
M6X30
8-97032-128-0
03
1
0008-
71
WASHER; PL,BRKT
ID=8.4 OD=18
9-09160-608-0
03
1
0008-0605
71
WASHER; PL,BRKT
ID=8.4 OD=18
0-91610-608-0
03
1
0606-
94
VALVE; VACUATOR
8-94447-157-0
01
1
0008-
145
BOLT; BRKT TO FRAME
M8X16 FLANGE
0-28080-816-0
03
1
0008-0512
145
BOLT; BRKT TO FRAME
M8X16 FLANGE
0-28050-816-0
03
1
0601-
229
BODY ASM; ACL
5-87411-915-0
01
1
0008-0202
254
8
4
6
94
37
44
254
145
71
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
4
GASKET; COVER TO BODY
IDN
8-94334-908-0
01
1
0008-
6
FILTER; ACL
IDN
8-94334-906-0
01
1
0008-0202
6
FILTER; ACL
IDN
8-97560-627-0
01
1
0203-
8
COVER ASM; ACL
8-97222-771-0
01
1
0008-
37
RUBBER; MTG,ACL
8-97146-135-0
03
1
0008-
44
BOLT; ACL
M6X30
8-97032-128-0
03
1
0008-
71
WASHER; PL,BRKT
ID=8.4 OD=18
9-09160-608-0
03
1
0008-0605
71
WASHER; PL,BRKT
ID=8.4 OD=18
0-91610-608-0
03
1
0606-
94
VALVE; VACUATOR
8-94447-157-0
01
1
0008-
145
BOLT; BRKT TO FRAME
M8X16 FLANGE
0-28080-816-0
03
1
0008-0512
145
BOLT; BRKT TO FRAME
M8X16 FLANGE
0-28050-816-0
03
1
0601-
254
CLEANER ASM; AIR,W/O FILTER
8-97247-124-0
01
1
0203-
