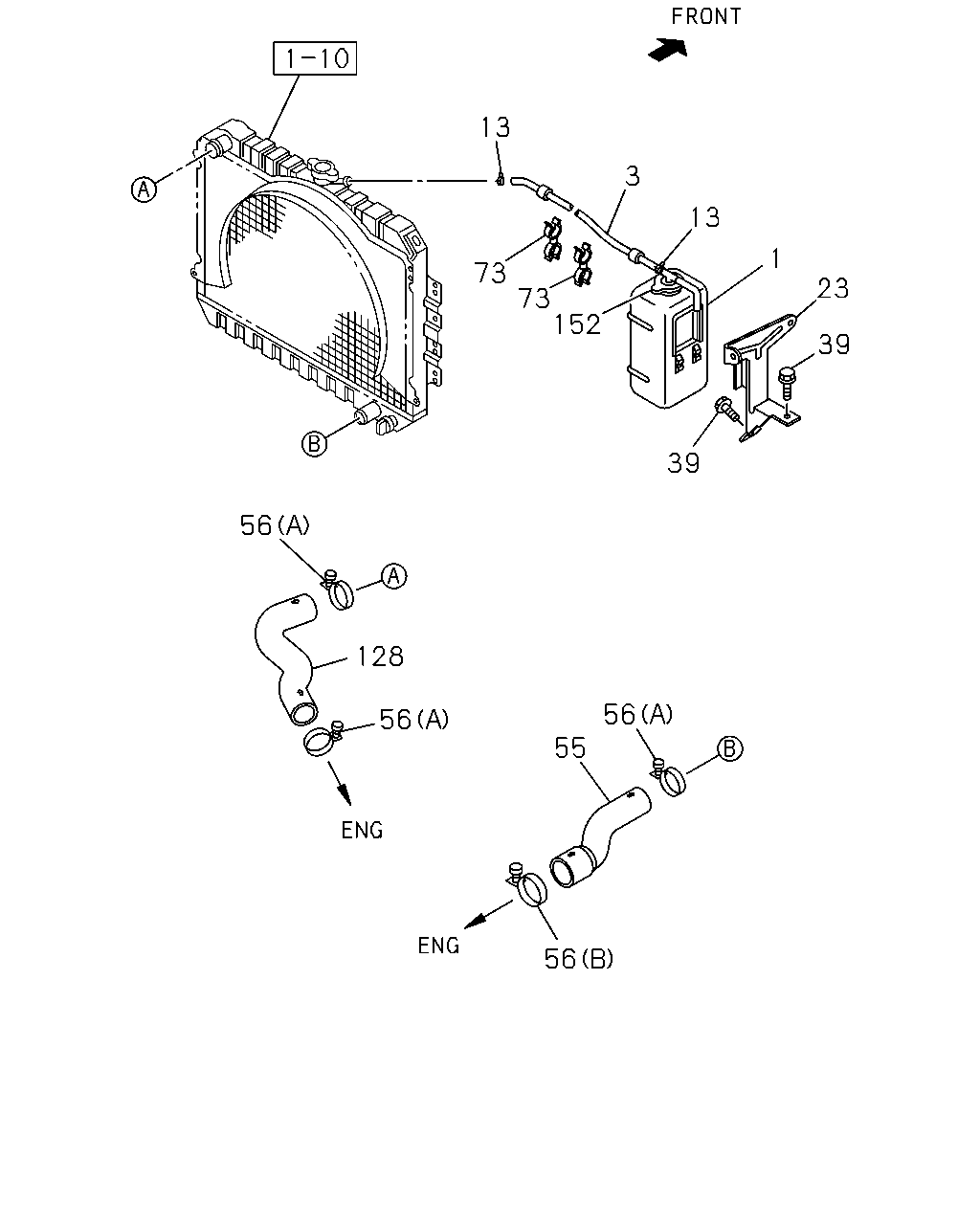

1 |
TANK; SURGE,RAD
IDN
|
8-97956-340-4 |
01 |
1 |
0008- |
| |
3 |
HOSE; SURGE TANK
IDN
|
8-97957-604-2 |
01 |
1 |
0008- |
| |
13 |
CLIP; HOSE,SURGE TANK
IDN
|
8-97957-610-0 |
02 |
1 |
0008- |
| |
23 |
BRACKET; RESERVE TANK
IDN
|
8-97956-341-3 |
01 |
1 |
0008- |
| |
39 |
BOLT; BRKT FIX
M8X16 FLANGE
|
0-28480-816-0 |
02 |
1 |
0008-0512 |
| |
39 |
BOLT; BRKT FIX
M8X16 FLANGE
|
0-28450-816-0 |
02 |
1 |
0601- |
| |
55 |
HOSE; WATER,RAD OUTLET
IDN
|
8-97177-161-0 |
01 |
1 |
0008-0106 |
| |
55 |
HOSE; WATER,RAD OUTLET
M/T MSG 5 SPEED(M75)
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB)
IDN
|
8-97177-161-0 |
01 |
1 |
0107-0209 |
| |
55 |
HOSE; WATER,RAD OUTLET
A/T AISIN(RMD)
IDN
|
8-97177-161-0 |
01 |
1 |
0107-0209 |
| |
55 |
HOSE; WATER,RAD OUTLET
M/T MSG 5 SPEED(M75)
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD)
IDN
|
8-97177-161-0 |
01 |
1 |
0210-0405 |
| |
55 |
HOSE; WATER,RAD OUTLET
A/T AISIN(RMD)
IDN
|
8-97177-161-0 |
01 |
1 |
0210-0405 |
| |
55 |
HOSE; WATER,RAD OUTLET
M/T MSG 5 SPEED(M75)
EXC. CAB UP<W60>
IDN
|
8-97177-161-0 |
01 |
1 |
0406- |
| |
55 |
HOSE; WATER,RAD OUTLET
A/T AISIN(RMD)
IDN
|
8-97177-161-0 |
01 |
1 |
0406- |
| |
55 |
HOSE; WATER,RAD OUTLET
M/T MSG 5 SPEED(M75)
GRADE TOURING(RBG)
IDN
|
8-97302-169-1 |
01 |
1 |
0107-0405 |
| |
55 |
HOSE; WATER,RAD OUTLET
M/T MSG 5 SPEED(M75)
CAB UP<W60>
IDN
|
8-97302-169-1 |
01 |
1 |
0406- |
| |
56 |
CLIP; WATER HOSE,RAD
(A)
ID=42
IDN
|
8-97209-203-0 |
03 |
1 |
0008- |
| |
56 |
CLIP; WATER HOSE,RAD
(B)
ID=48
IDN
|
9-09915-512-1 |
01 |
1 |
0008- |
| |
73 |
CLIP; RUBBER HOSE
ID=12 & 16.5
|
8-94400-865-0 |
02 |
1 |
0008-0112 |
| |
73 |
CLIP; RUBBER HOSE
ID=12 & 16.5
|
8-94400-865-0 |
01 |
1 |
0201- |
| |
128 |
HOSE; WATER,RAD INL
IDN
|
8-97177-160-0 |
01 |
1 |
0008-0008 |
| |
128 |
HOSE; WATER,RAD INL
EXC. TURBOCHARGER<K51>
IDN
|
8-97177-160-0 |
01 |
1 |
0009-0101 |
| |
128 |
HOSE; WATER,RAD INL
IDN
|
8-97177-160-0 |
01 |
1 |
0102-0106 |
| |
128 |
HOSE; WATER,RAD INL
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB)
IDN
|
8-97177-160-0 |
01 |
1 |
0107-0109 |
| |
128 |
HOSE; WATER,RAD INL
GRADE NEW SUPER(RBA)
IDN
|
8-97177-160-1 |
01 |
1 |
0110-0209 |
| |
128 |
HOSE; WATER,RAD INL
GRADE ROYAL(RBB)
EXC. TURBOCHARGER<K51>
IDN
|
8-97177-160-1 |
01 |
1 |
0110-0209 |
| |
128 |
HOSE; WATER,RAD INL
GRADE NEW SUPER(RBA)
IDN
|
8-97177-160-1 |
01 |
1 |
0210-0405 |
| |
128 |
HOSE; WATER,RAD INL
GRADE ROYAL(RBB),GRADE LS(RBD)
EXC. TURBOCHARGER<K51>
IDN
|
8-97177-160-1 |
01 |
1 |
0210-0405 |
| |
128 |
HOSE; WATER,RAD INL
EXC. TURBOCHARGER<K51>,CAB UP<W60>
IDN
|
8-97177-160-1 |
01 |
1 |
0406- |
| |
128 |
HOSE; WATER,RAD INL
GRADE ROYAL(RBB)
TURBOCHARGER<K51>
IDN
|
8-97560-714-0 |
01 |
1 |
0110-0209 |
| |
128 |
HOSE; WATER,RAD INL
GRADE ROYAL(RBB),GRADE LS(RBD)
TURBOCHARGER<K51>
IDN
|
8-97560-714-0 |
01 |
1 |
0210-0405 |
| |
128 |
HOSE; WATER,RAD INL
TURBOCHARGER<K51>
EXC. CAB UP<W60>
IDN
|
8-97560-714-0 |
01 |
1 |
0406- |
| |
128 |
HOSE; WATER,RAD INL
GRADE TOURING(RBG)
IDN
|
8-97188-604-2 |
01 |
1 |
0107-0405 |
| |
128 |
HOSE; WATER,RAD INL
CAB UP<W60>
IDN
|
8-97188-604-2 |
01 |
1 |
0406- |
| |
128 |
HOSE; WATER,RAD INL
TURBOCHARGER<K51>
IDN
|
8-97959-010-0 |
01 |
1 |
0009-0101 |
| |
152 |
CAP ASM; SURGE TANK
IDN
|
8-97957-609-0 |
01 |
1 |
0008- |
