1 - Fuel Tank, Cooling, Air Intake, Exhaust System
▶
1-01 - ACCELERATOR PEDAL AND CONTROL
▶

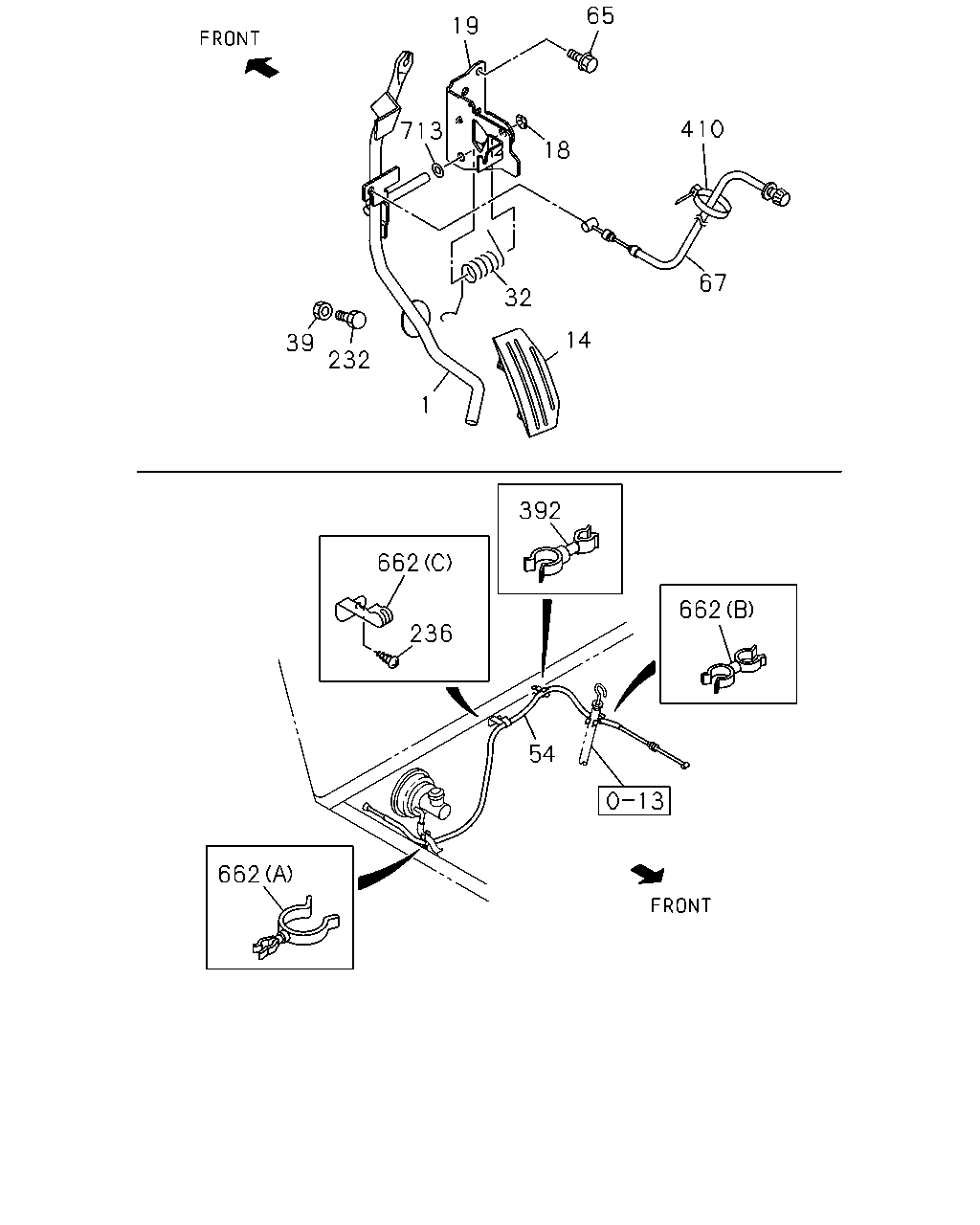

1-01 — ACCELERATOR PEDAL AND CONTROL
(#95289) — 29 parça
65
19
18
713
410
67
14
32
1
232
39
392
662
236
662
54
662
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
LEVER; PEDAL SIDE
8-97027-101-1
01
1
0008-
14
PAD; PEDAL,ACCEL
8-94473-376-1
01
1
0008-
18
NUT; JOINT LK
D=17.5
8-94368-617-0
01
1
0008-
19
BRACKET; ACCEL PEDAL
8-97201-295-0
01
1
0008-
32
SPRING; RETURN,ACCEL PEDAL
A/T AISIN(RMD)
8-97019-283-0
01
1
0008-
32
SPRING; RETURN,ACCEL PEDAL
M/T MSG 5 SPEED(M75)
8-97201-307-0
01
1
0008-
39
NUT; ACCEL PEDAL STOPPER
M6
9-09110-406-0
01
1
0008-0512
39
NUT; ACCEL PEDAL STOPPER
M6
0-91110-506-0
01
1
0601-
54
CABLE; ENG CONT
IDN
8-97188-541-3
01
1
0008-0106
54
CABLE; ENG CONT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB) IDN
8-97188-541-3
01
1
0107-0209
54
CABLE; ENG CONT
GRADE NEW SUPER(RBA),GRADE ROYAL(RBB),GRADE LS(RBD) IDN
8-97188-541-3
01
1
0210-0405
54
CABLE; ENG CONT
EXC. CAB UP<W60> IDN
8-97188-541-3
01
1
0406-
54
CABLE; ENG CONT
GRADE TOURING(RBG) IDN
8-97959-931-0
01
1
0107-0405
54
CABLE; ENG CONT
CAB UP<W60> IDN
8-97959-931-0
01
1
0406-
65
BOLT
M6X10 FLANGE IDN
0-28080-610-0
02
1
0008-0512
65
BOLT
M6X10 FLANGE IDN
0-28050-610-0
02
1
0601-
67
CABLE ASM; IDLE CONT
IDN
8-97102-189-2
01
1
0008-0008
67
CABLE ASM; IDLE CONT
IDN
8-97957-906-0
01
1
0009-
232
BOLT; STOPPER,ACCEL PEDAL
M6X25
0-20800-625-0
01
1
0008-0107
232
BOLT; STOPPER,ACCEL PEDAL
M6X40
0-20800-640-0
01
1
0108-
236
SCREW; TAP,PEDAL TO BRKT
M6X16 TAPPING W/PL WASHER
0-74300-616-0
01
1
0008-0604
236
SCREW; TAP,PEDAL TO BRKT
M6X16 TAPPING W/PL WASHER
0-74360-616-0
01
1
0605-
392
CLIP; ACCEL CONT CABLE
ID=6 & 10
8-94154-844-0
01
1
0008-
410
CLIP; BAND
L=250 IDN
5-09707-030-1
01
1
0008-0402
662
CLIP; ACCEL CONT CABLE
(A) ID=6 & 16.5
8-94165-402-0
01
1
0008-
662
CLIP; ACCEL CONT CABLE
(B) ID=10 & 11
8-94438-996-0
01
1
0008-
662
CLIP; ACCEL CONT CABLE
(C)
8-97188-542-0
01
1
0008-
713
WASHER; PL
ID=8.4
9-09160-508-0
01
1
0008-0605
713
WASHER; PL
ID=8.4 OD=16
0-91610-508-0
01
1
0606-
