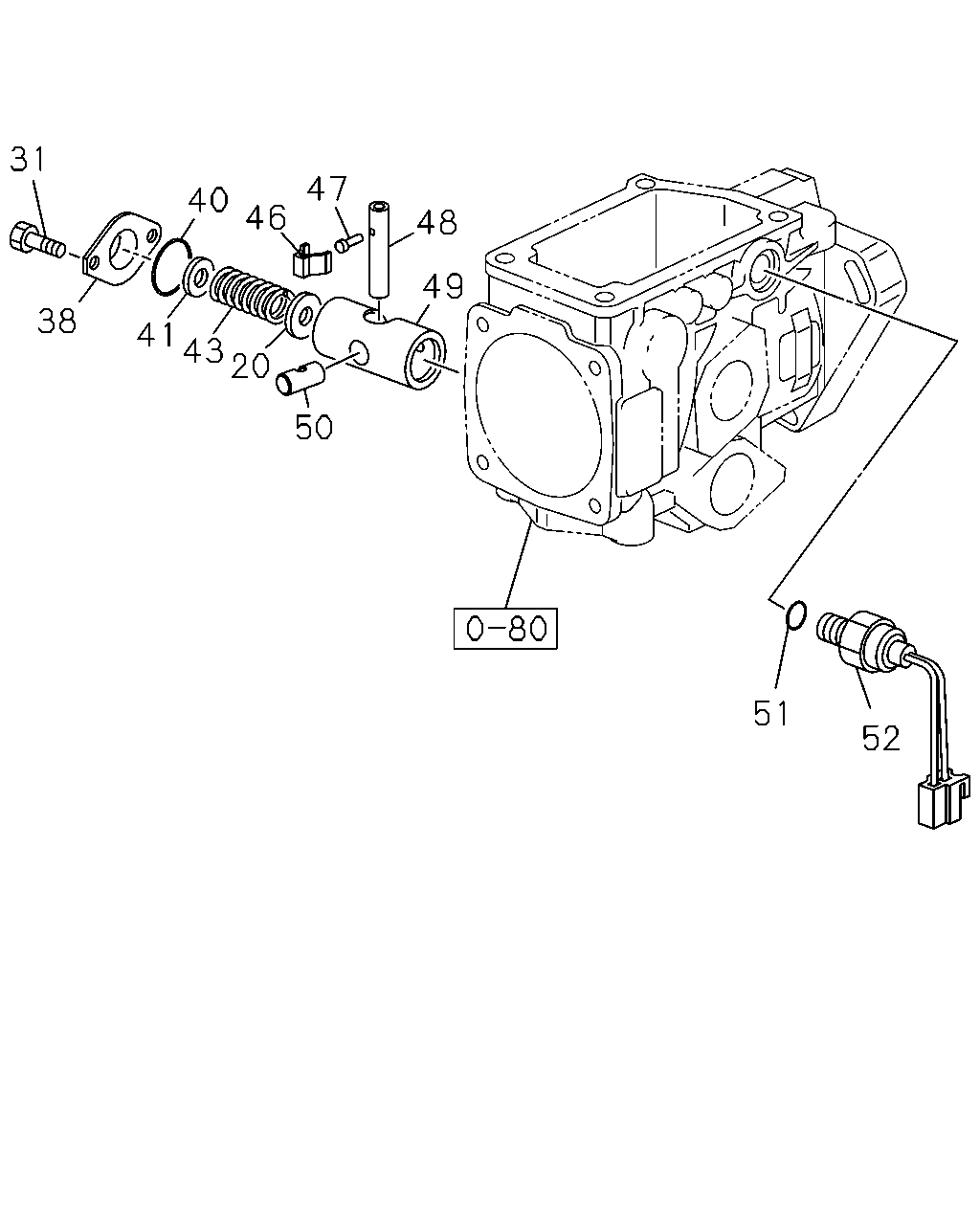

0-85 — AUTO TIMER; INJECTION PUMP (#95287) — 22 parça

52 51 49 48 47 46 40 31 50 20 43 41 38

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
20	SHIM; INNER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94227-495-0	01	1	-
31	SCREW; TIMER COVER,INJ PUMP ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94313-276-0	02	1	-
38	COVER; TIMER,INJ PUMP ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94473-120-0	01	1	-
40	GASKET; TIMER COVER,INJ PUMP ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94227-491-0	01	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=2.40 ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94121-620-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.60 ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94227-495-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.70 ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94227-496-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=0.90 ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94227-497-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.00 ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94227-498-0	AR	1	-
41	SHIM; OUTER SPRING,TIMER,INJ PUMP T=1.20 ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94227-499-0	AR	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=35.7 EFFECT TURN=5.1 ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94313-200-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=35.5 EFFECT TURN=4.9 ASM PART: D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0	8-94313-227-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=35.6 EFFECT TURN=5.4 ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94313-241-0	01	1	-
43	SPRING; PISTON,TIMER,INJ PUMP L=35.8 EFFECT TURN=5.7 ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94386-591-0	01	1	-
46	CLIP; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94227-488-0	01	1	-
47	PIN; HOLDER PIN,TIMER,INJ PUMP ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94227-487-0	01	1	-
48	PIN; ROLLER HOLDER,TIMER,INJ PUMP ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94227-486-0	01	1	-
49	PISTON; TIMER,INJ PUMP ASM PART: D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0	8-97119-169-0	01	1	-
49	PISTON; TIMER,INJ PUMP ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-97144-351-0	01	1	-
50	SLIDER; TIMER PISTON,INJ PUMP ASM PART: A = 8-97191-854-2, B = 8-97191-856-2, C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, F = 8-97300-205-0, G = 8-97300-207-0, H = 8-97300-208-0, I = 8-97379-582-1, J = 8-97379-584-1, K = 8-97379-585-1, L = 8-97379-586-0, M = 8-97959-006-0, N = 8-97959-008-0, O = 8-97959-009-0	8-94227-493-0	01	1	-
51	GASKET; TIMING SENSOR,INJ PUMP ASM PART: C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, H = 8-97300-208-0, K = 8-97379-585-1, L = 8-97379-586-0, O = 8-97959-009-0	8-94227-671-0	01	1	-
52	SENSOR; TIMING,TACHOMETER,INJ PUMP ASM PART: C = 8-97191-858-2, D = 8-97191-860-2, E = 8-97259-883-2, H = 8-97300-208-0, K = 8-97379-585-1, L = 8-97379-586-0, O = 8-97959-009-0	8-94403-289-1	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
