Sayfa 0-82 - Isuzu EPC

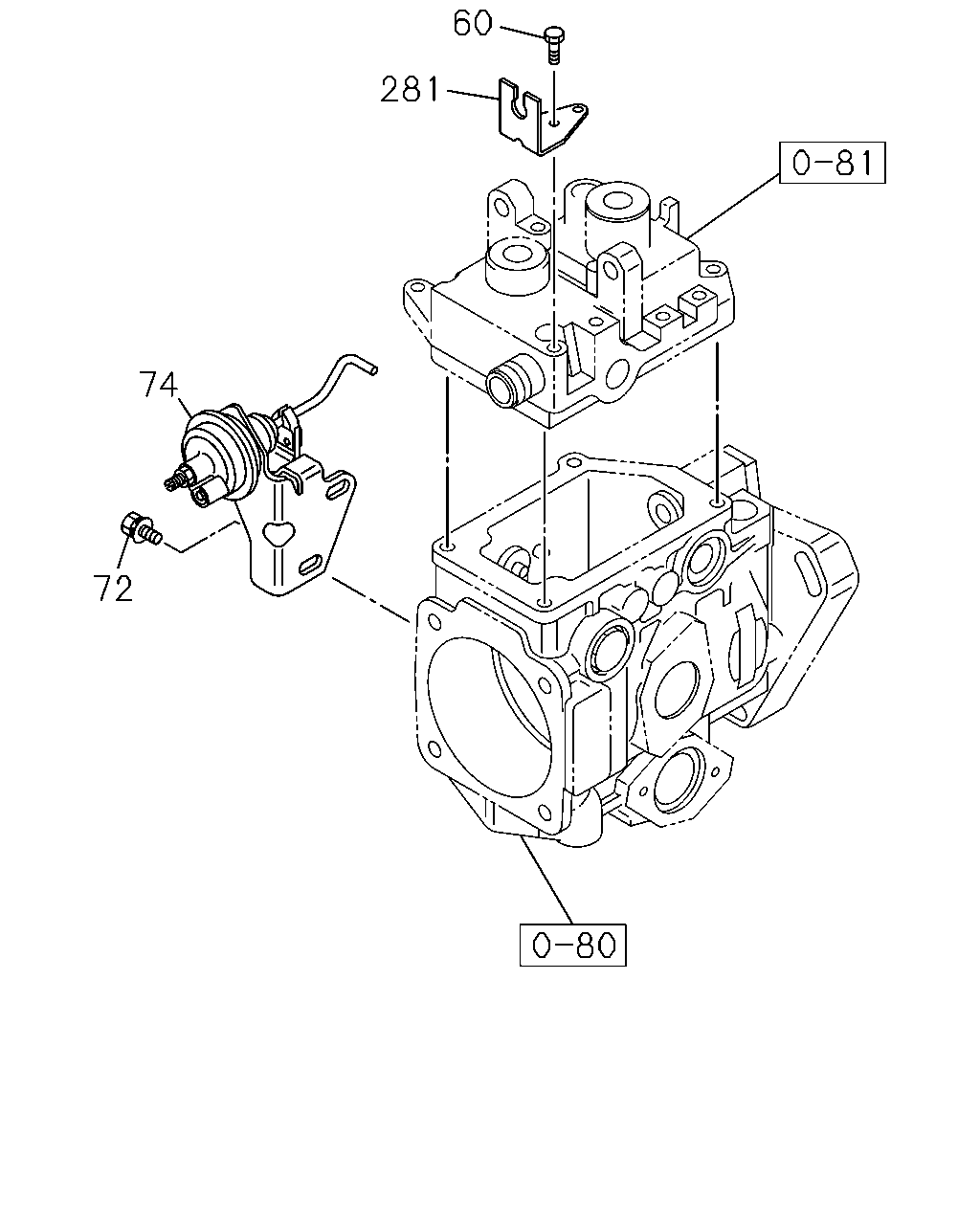

0-82 — BOOST COMPENSATOR; INJECTION GOVERNOR (#95285) — 4 parça

60 281 74 72

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
60	BOLT; BRKT M6X12 ASM PART: D = 8-97259-883-2, I = 8-97379-586-0	8-94313-267-0	02	1	-
72	BOLT; BRKT FIX,INJ PUMP ASM PART: A = 8-97191-856-2, B = 8-97191-858-2, C = 8-97191-860-2, D = 8-97259-883-2, E = 8-97300-207-0, F = 8-97300-208-0, G = 8-97379-584-1, H = 8-97379-585-1, I = 8-97379-586-0, J = 8-97959-008-0, K = 8-97959-009-0	8-97071-946-0	02	1	-
74	ACTUATOR ASM; FAST IDLE,A/C,INJ PUMP ASM PART: A = 8-97191-856-2, B = 8-97191-858-2, C = 8-97191-860-2, D = 8-97259-883-2, E = 8-97300-207-0, F = 8-97300-208-0, G = 8-97379-584-1, H = 8-97379-585-1, I = 8-97379-586-0, J = 8-97959-008-0, K = 8-97959-009-0	8-94367-344-0	01	1	-
281	BRACKET; CONNECTOR ASM PART: D = 8-97259-883-2, I = 8-97379-586-0	8-97139-483-0	01	1	-

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
