Sayfa 1-50 - Isuzu EPC

1-50 — EXHAUST PIPE AND SILENCER (#9528) — 566 parça

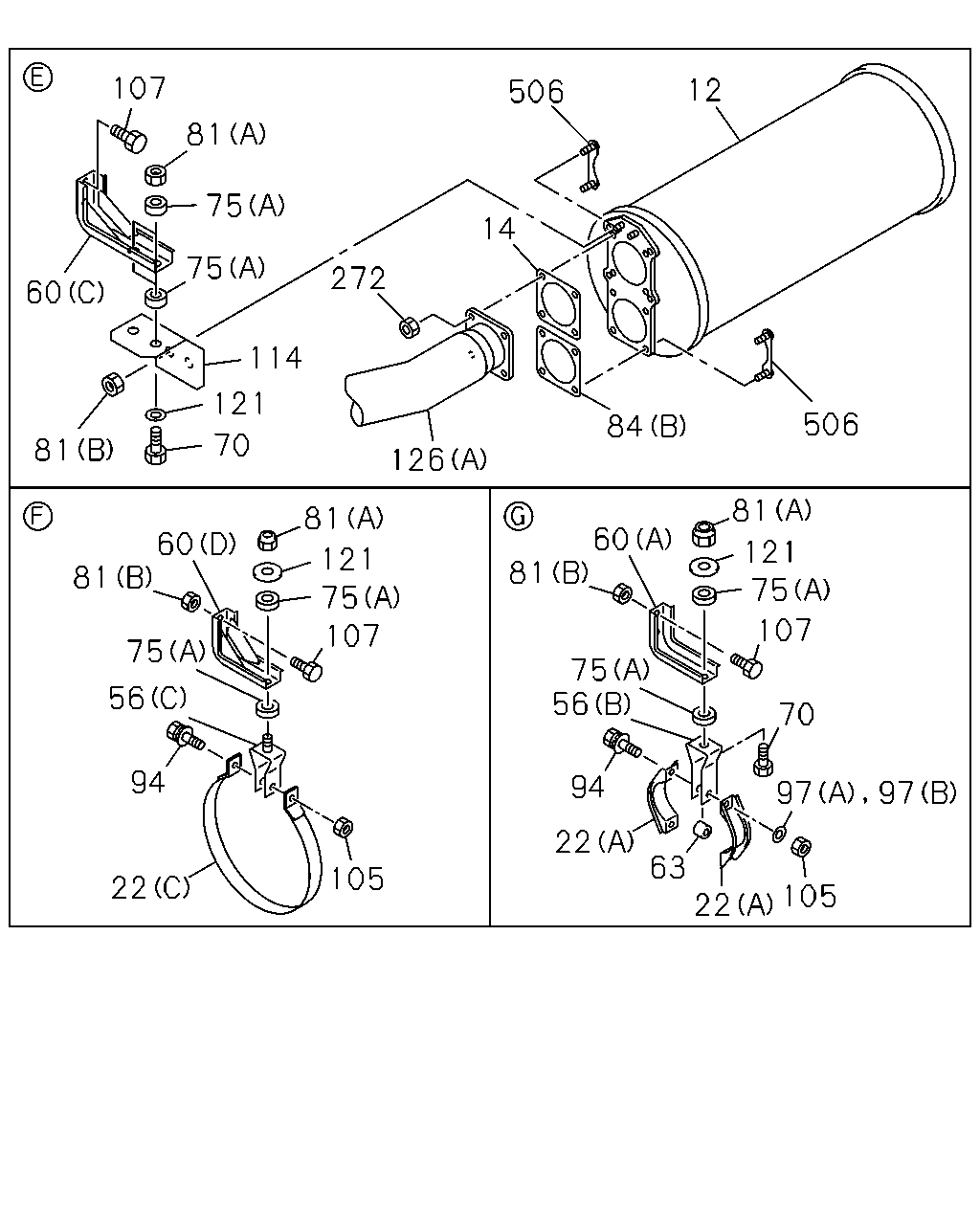

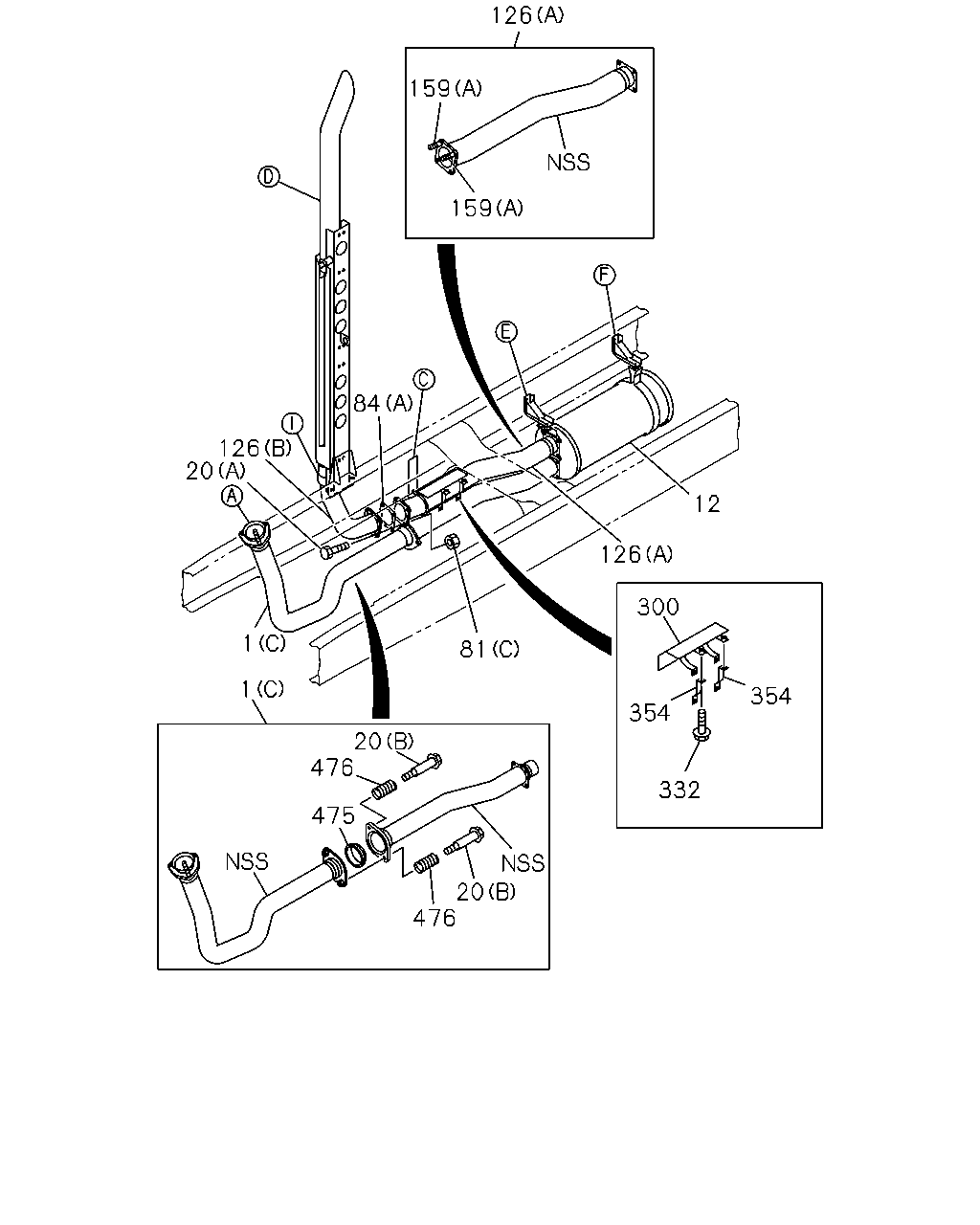

126 159 159 84 126 20 12 126 300 1 81 1 354 354 20 476 332 475 20 476

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH (C)	1-22123-319-1	01	1	0005-0005	●
1	PIPE; EXH (C)	1-22123-419-0	01	1	0005-0210	●
1	PIPE; EXH STD CAB(FT*M) (C)	1-22123-652-2	01	1	0211-		●
1	PIPE; EXH (A)	1-22122-772-1	01	1	0005-0210			●
1	PIPE; EXH DOUBLE CAB(FT*W) (A)	1-22123-594-3	01	1	0211-		●
1	PIPE; EXH (B)	1-22122-773-0	01	1	0005-0210			●
1	PIPE; EXH DOUBLE CAB(FT*W) (B)	1-22123-642-0	01	1	0211-0302		●
1	PIPE; EXH DOUBLE CAB(FT*W) (B)	1-22123-690-0	01	1	0303-		●
12	SILENCER ASM; EXH	1-22140-943-0	01	1	0005-0210	●
12	SILENCER ASM; EXH STD CAB(FT*M)	1-22140-943-0	01	1	0211-		●
12	SILENCER ASM; EXH	1-22140-873-0	01	1	0005-0205			●
12	SILENCER ASM; EXH	1-22140-880-0	01	1	0206-0210			●
12	SILENCER ASM; EXH DOUBLE CAB(FT*W)	1-22140-723-2	01	1	0211-		●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0306-0412		●
20	BOLT; FLANGE,EXH PIPE (B) M10X49.8	8-97039-586-0	02	1	0501-		●
20	BOLT; FLANGE,EXH PIPE (A) M12X35 FLANGE	0-28681-235-0	02	1	0005-0210	●
20	BOLT; FLANGE,EXH PIPE STD CAB(FT*M) (A) M12X35 FLANGE	0-28681-235-0	02	1	0211-0512		●
20	BOLT; FLANGE,EXH PIPE STD CAB(FT*M) (A) M12X35 FLANGE	0-28651-235-0	02	1	0601-		●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0005-0210	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0211-0305		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0211-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0211-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0211-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	NUT; BRKT (C) M12 FLANGE	0-91150-212-0	04	1	0005-0210	●
81	NUT; BRKT STD CAB(FT*M) (C) M12 FLANGE	0-91150-212-0	04	1	0211-0602		●
81	NUT; BRKT STD CAB(FT*M) (C) M12 FLANGE	0-91180-212-0	04	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	04	1	0005-0210	●		●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	03	1	0211-0603		●
81	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	03	1	0604-		●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	03	1	0005-0008	●		●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	03	1	0009-0210	●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	01	1	0005-0008			●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	04	1	0009-0210			●
81	NUT; BRKT DOUBLE CAB(FT*W) (A) M10 LOCK NUT	9-09131-510-0	01	1	0211-0603		●
81	NUT; BRKT DOUBLE CAB(FT*W) (A) M10 LOCK NUT	0-91370-010-0	01	1	0604-		●
84	GASKET; EXH PIPE (A)	1-14145-157-0	01	1	0005-0210	●
84	GASKET; EXH PIPE STD CAB(FT*M) (A)	1-14145-157-0	01	1	0211-		●
84	GASKET; EXH PIPE (B)	8-94394-391-0	01	1	0005-0210	●
84	GASKET; EXH PIPE STD CAB(FT*M) (B)	8-94394-391-0	01	1	0211-		●
126	PIPE; EXH,RR (A)	1-22123-324-2	01	1	0005-0210	●
126	PIPE; EXH,RR STD CAB(FT*M) (A)	1-22123-324-2	01	1	0211-		●
126	PIPE; EXH,RR (B)	1-22123-325-1	01	1	0005-0210	●
126	PIPE; EXH,RR STD CAB(FT*M) (B)	1-22123-325-1	01	1	0211-		●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28681-235-0	02	1	0005-0210	●
159	BOLT; HEAT PROTECTOR STD CAB(FT*M) (A) M12X35 FLANGE	0-28681-235-0	02	1	0211-0512		●
159	BOLT; HEAT PROTECTOR STD CAB(FT*M) (A) M12X35 FLANGE	0-28651-235-0	02	1	0601-		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0005-0210	●		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0211-0512		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28050-820-0	10	1	0601-		●
300	PROTECTOR; HEAT,EXH PIPE	1-22119-460-1	01	1	0005-0210	●
300	PROTECTOR; HEAT,EXH PIPE STD CAB(FT*M)	1-22119-460-1	01	1	0211-		●
332	BOLT; HEAT PROTECTOR M8X25 FLANGE	0-28680-825-0	04	1	0005-0210	●
332	BOLT; HEAT PROTECTOR STD CAB(FT*M) M8X25 FLANGE	0-28680-825-0	04	1	0211-0512		●
332	BOLT; HEAT PROTECTOR STD CAB(FT*M) M8X25 FLANGE	0-28650-825-0	04	1	0601-		●
354	CLAMP; HEAT PROTECTOR	1-22119-300-0	02	1	0005-0210	●
354	CLAMP; HEAT PROTECTOR STD CAB(FT*M)	1-22119-300-0	02	1	0211-		●
354	CLAMP; HEAT PROTECTOR DOUBLE CAB(FT*W)	1-22119-387-0	02	1	0211-		●
475	BEARING; SEAL,VIBNON,EXH PIPE	1-22119-277-0	02	1	0209-0210			●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0005-0210	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0211-0305		●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-1	01	1	0306-		●
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	02	1	0209-0210			●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0005-0210	●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0211-0305		●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0306-		●

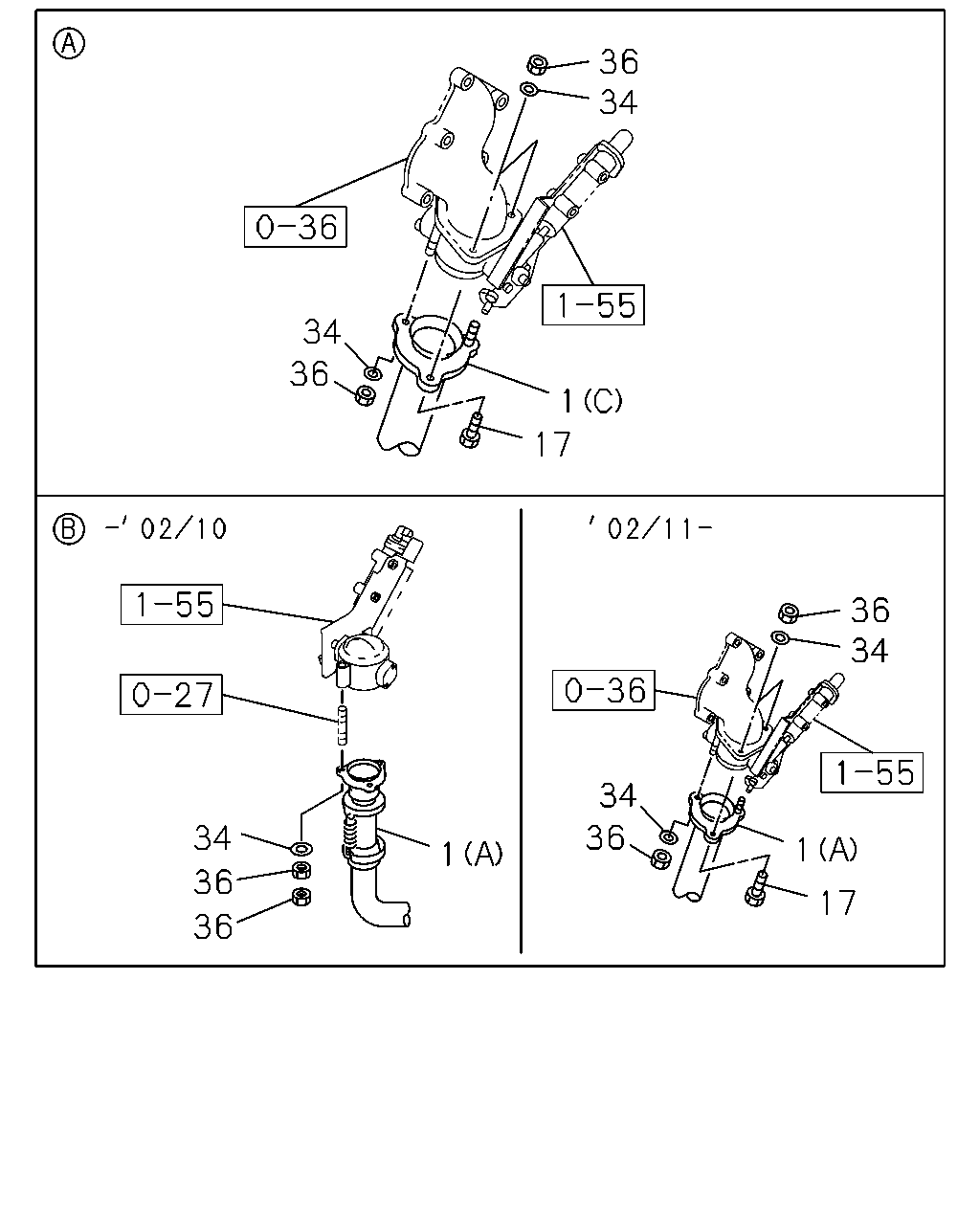

36 34 34 36 1 17 36 34 34 36 34 1 1 36 17 36

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH (C)	1-22123-319-1	01	1	0005-0005	●
1	PIPE; EXH (C)	1-22123-419-0	01	1	0005-0210	●
1	PIPE; EXH STD CAB(FT*M) (C)	1-22123-652-2	01	1	0211-		●
1	PIPE; EXH (A)	1-22122-772-1	01	1	0005-0210			●
1	PIPE; EXH DOUBLE CAB(FT*W) (A)	1-22123-594-3	01	1	0211-		●
1	PIPE; EXH (B)	1-22122-773-0	01	1	0005-0210			●
1	PIPE; EXH DOUBLE CAB(FT*W) (B)	1-22123-642-0	01	1	0211-0302		●
1	PIPE; EXH DOUBLE CAB(FT*W) (B)	1-22123-690-0	01	1	0303-		●
17	BOLT; EXH PIPE M12X110	1-09000-290-0	01	1	0005-0210	●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0005-0210	●		●
34	WASHER; EXH PIPE ID=13 OD=26 DISH	1-09556-002-0	03	1	0211-0410		●
34	WASHER; EXH PIPE ID=13 OD=24 DISH	1-09500-030-0	03	1	0411-		●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0005-0210	●
36	NUT; EXH PIPE M12	1-09400-010-0	06	1	0005-0210			●
36	NUT; EXH PIPE M12	1-09400-010-0	03	1	0211-		●

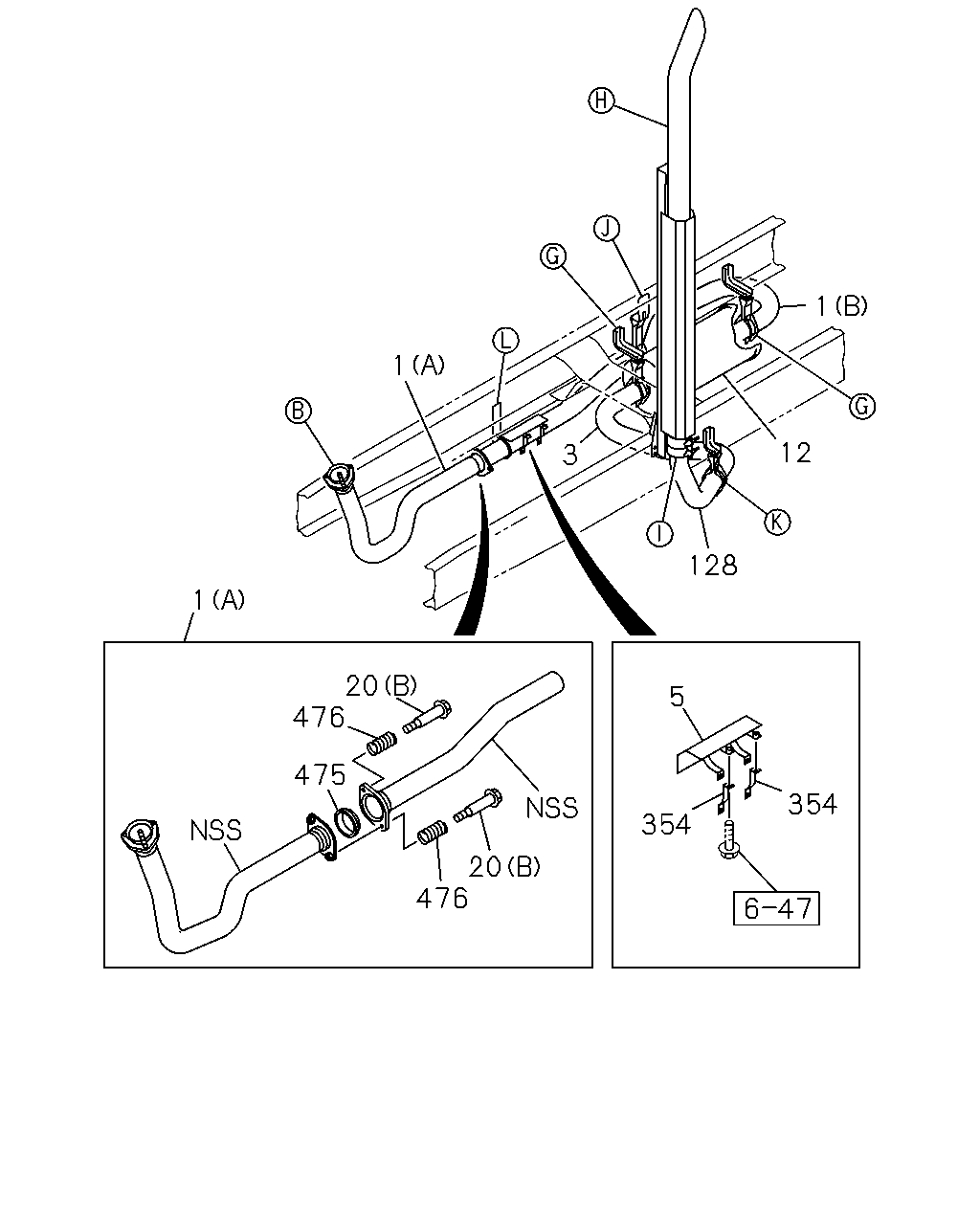

1 1 12 3 128 1 20 476 5 475 354 354 20 476

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
1	PIPE; EXH (C)	1-22123-319-1	01	1	0005-0005	●
1	PIPE; EXH (C)	1-22123-419-0	01	1	0005-0210	●
1	PIPE; EXH STD CAB(FT*M) (C)	1-22123-652-2	01	1	0211-		●
1	PIPE; EXH (A)	1-22122-772-1	01	1	0005-0210			●
1	PIPE; EXH DOUBLE CAB(FT*W) (A)	1-22123-594-3	01	1	0211-		●
1	PIPE; EXH (B)	1-22122-773-0	01	1	0005-0210			●
1	PIPE; EXH DOUBLE CAB(FT*W) (B)	1-22123-642-0	01	1	0211-0302		●
1	PIPE; EXH DOUBLE CAB(FT*W) (B)	1-22123-690-0	01	1	0303-		●
3	PIPE; EXH,CENTER	1-22122-797-1	01	1	0005-0210			●
3	PIPE; EXH,CENTER DOUBLE CAB(FT*W)	1-22123-597-0	01	1	0211-		●
5	PROTECTOR; HEAT DOUBLE CAB(FT*W)	1-22119-438-0	01	1	0211-		●
12	SILENCER ASM; EXH	1-22140-943-0	01	1	0005-0210	●
12	SILENCER ASM; EXH STD CAB(FT*M)	1-22140-943-0	01	1	0211-		●
12	SILENCER ASM; EXH	1-22140-873-0	01	1	0005-0205			●
12	SILENCER ASM; EXH	1-22140-880-0	01	1	0206-0210			●
12	SILENCER ASM; EXH DOUBLE CAB(FT*W)	1-22140-723-2	01	1	0211-		●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0306-0412		●
20	BOLT; FLANGE,EXH PIPE (B) M10X49.8	8-97039-586-0	02	1	0501-		●
20	BOLT; FLANGE,EXH PIPE (A) M12X35 FLANGE	0-28681-235-0	02	1	0005-0210	●
20	BOLT; FLANGE,EXH PIPE STD CAB(FT*M) (A) M12X35 FLANGE	0-28681-235-0	02	1	0211-0512		●
20	BOLT; FLANGE,EXH PIPE STD CAB(FT*M) (A) M12X35 FLANGE	0-28651-235-0	02	1	0601-		●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0005-0210	●
20	BOLT; FLANGE,EXH PIPE (B) M10X51.4	8-94436-943-0	02	1	0211-0305		●
128	PIPE; EXH,RR	1-22126-240-0	01	1	0005-0210			●
128	PIPE; EXH,RR DOUBLE CAB(FT*W)	1-22126-407-0	01	1	0211-		●
354	CLAMP; HEAT PROTECTOR	1-22119-300-0	02	1	0005-0210	●
354	CLAMP; HEAT PROTECTOR STD CAB(FT*M)	1-22119-300-0	02	1	0211-		●
354	CLAMP; HEAT PROTECTOR DOUBLE CAB(FT*W)	1-22119-387-0	02	1	0211-		●
475	BEARING; SEAL,VIBNON,EXH PIPE	1-22119-277-0	02	1	0209-0210			●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0005-0210	●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-0	01	1	0211-0305		●
475	BEARING; SEAL,VIBNON,EXH PIPE OD=112	1-22119-294-1	01	1	0306-		●
476	SPRING; VIBNON,EXH PIPE	1-09583-298-0	02	1	0209-0210			●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0005-0210	●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0211-0305		●
476	SPRING; VIBNON,EXH PIPE	8-94141-851-0	02	1	0306-		●

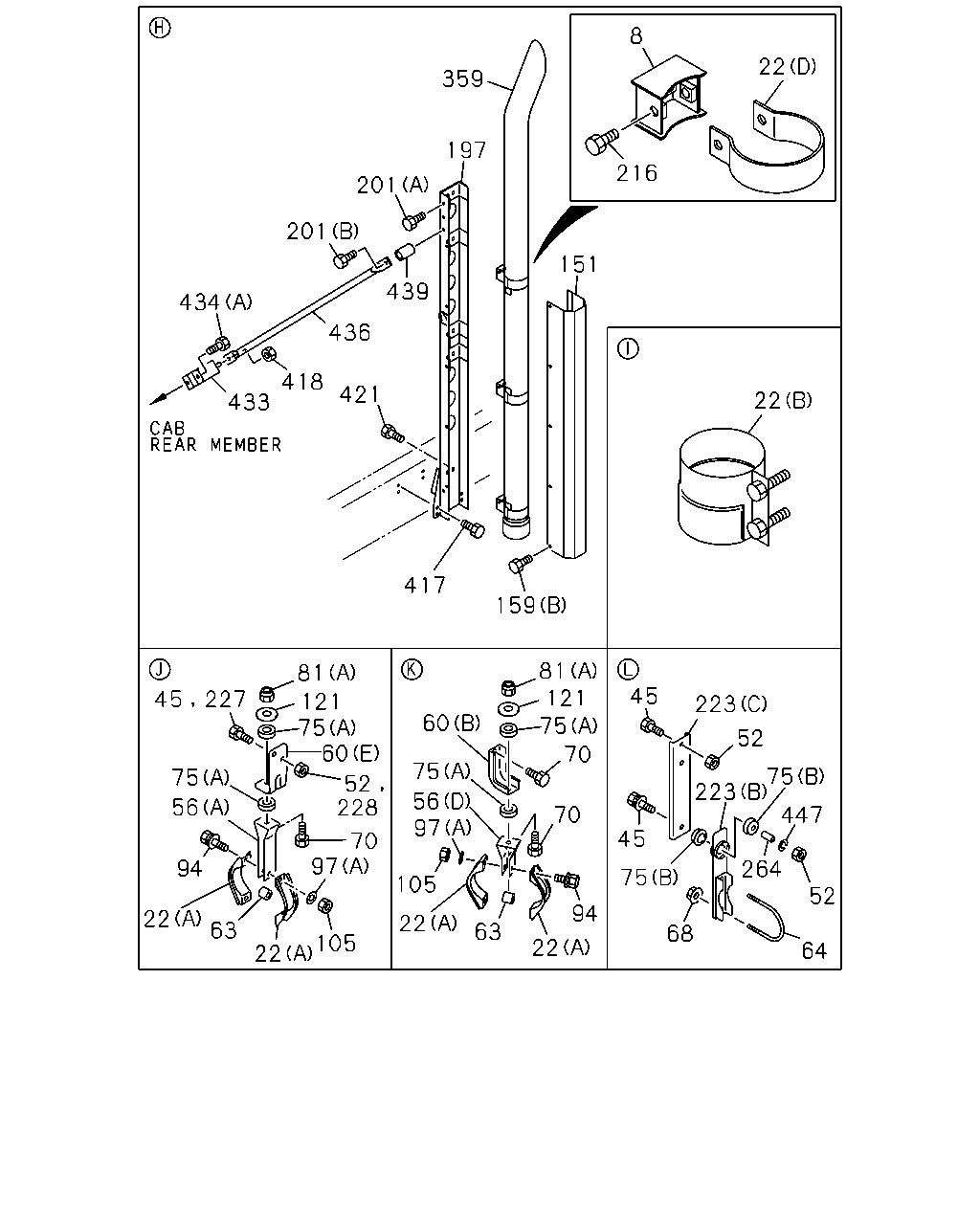

52 264 75 75 45 68 223 64 8 359 22 216 201 151 197 439 201 436 421 159 434 418 434 433

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
8	BRACKET; EXH PIPE	1-22131-885-0	03	1	0112-0210	●		●
8	BRACKET; EXH PIPE	1-22131-885-0	03	1	0211-		●
22	CLAMP; EXH PIPE DOUBLE CAB(FT*W) (A) ID=80-84	1-22133-233-0	04	1	0211-		●
22	CLAMP; EXH PIPE (C)	1-22133-277-1	01	1	0005-0210	●
22	CLAMP; EXH PIPE STD CAB(FT*M) (C)	1-22133-277-1	01	1	0211-		●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0005-0210	●		●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0211-		●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0112-0210	●		●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0211-		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0005-0008			●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	08	1	0009-0210			●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	06	1	0005-0008			●
22	CLAMP; EXH PIPE DOUBLE CAB(FT*W) (A) REAR ID=94-98	1-22133-237-0	02	1	0211-		●
22	CLAMP; EXH PIPE DOUBLE CAB(FT*W) (A) REAR ID=94-98	1-22133-237-0	02	1	0211-		●
45	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	0005-0210	●
45	BOLT; BRKT STD CAB(FT*M) M10X50 FLANGE	0-28081-050-0	02	1	0211-0512		●
45	BOLT; BRKT STD CAB(FT*M) M10X50 FLANGE	0-28051-050-0	02	1	0601-		●
45	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	02	1	0005-0210			●
45	BOLT; BRKT DOUBLE CAB(FT*W) M10X35 FLANGE	0-28681-035-0	02	1	0211-0512		●
45	BOLT; BRKT DOUBLE CAB(FT*W) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
45	BOLT; BRKT DOUBLE CAB(FT*W) M10X50 FLANGE	0-28081-050-0	01	1	0211-0512		●
45	BOLT; BRKT DOUBLE CAB(FT*W) M10X50 FLANGE	0-28051-050-0	01	1	0601-		●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0210	●		●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0211-0306		●
52	NUT; BRKT STD CAB(FT*M) M10 FLANGE	0-91150-210-0	02	1	0307-0602		●
52	NUT; BRKT STD CAB(FT*M) M10 FLANGE	0-91180-210-0	02	1	0603-		●
52	NUT; BRKT DOUBLE CAB(FT*W) M10 FLANGE	0-91150-210-0	01	1	0211-0306		●
52	NUT; BRKT DOUBLE CAB(FT*W) M10 FLANGE	0-91150-210-0	03	1	0307-0602		●
52	NUT; BRKT DOUBLE CAB(FT*W) M10 FLANGE	0-91180-210-0	03	1	0603-		●
64	U-BOLT; EXH PIPE,RR	1-22113-009-0	01	1	0005-0210	●
64	U-BOLT; EXH PIPE,RR STD CAB(FT*M)	1-22113-009-0	01	1	0211-		●
64	U-BOLT; EXH PIPE,RR DOUBLE CAB(FT*W)	1-22139-033-1	01	1	0211-1105		●
64	U-BOLT; EXH PIPE,RR DOUBLE CAB(FT*W)	1-22113-101-0	01	1	1106-		●
68	NUT; U BOLT M8 FLANGE	0-91150-208-0	02	1	0005-0210	●
68	NUT; U BOLT M8 FLANGE	0-91150-208-0	02	1	0211-0602		●
68	NUT; U BOLT M8 FLANGE	0-91180-208-0	02	1	0603-		●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-094-0	04	1	0005-0210	●
75	RUBBER; SUPPORT,BRKT STD CAB(FT*M) (B) OD=40	1-22159-094-0	04	1	0211-		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	06	1	0005-0008	●		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	06	1	0009-0210	●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	06	1	0211-		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	0005-0008			●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	08	1	0009-0210			●
75	RUBBER; SUPPORT,BRKT DOUBLE CAB(FT*W) (A) OD=30	1-22159-106-1	02	1	0211-		●
75	RUBBER; SUPPORT,BRKT DOUBLE CAB(FT*W) (B) OD=40	1-22159-094-0	02	1	0211-		●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-240-1	01	1	0005-0210	●		●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-240-1	01	1	0211-		●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28681-235-0	02	1	0005-0210	●
159	BOLT; HEAT PROTECTOR STD CAB(FT*M) (A) M12X35 FLANGE	0-28681-235-0	02	1	0211-0512		●
159	BOLT; HEAT PROTECTOR STD CAB(FT*M) (A) M12X35 FLANGE	0-28651-235-0	02	1	0601-		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0005-0210	●		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0211-0512		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28050-820-0	10	1	0601-		●
197	BRACKET; EXH PIPE,VERTICAL	1-22131-796-0	01	1	0005-0210	●		●
197	BRACKET; EXH PIPE,VERTICAL	1-22131-796-1	01	1	0211-		●
201	BOLT; STAY (A) M10X25 FLANGE	0-28081-025-0	01	1	0005-0210	●		●
201	BOLT; STAY (A) M10X25 FLANGE	0-28081-025-0	01	1	0211-0512		●
201	BOLT; STAY (A) M10X25 FLANGE	0-28051-025-0	01	1	0601-		●
201	BOLT; STAY (B) M10X50 FLANGE	0-28081-050-0	02	1	0005-0210	●		●
201	BOLT; STAY (B) M10X50 FLANGE	0-28081-050-0	02	1	0211-0512		●
201	BOLT; STAY (B) M10X50 FLANGE	0-28051-050-0	02	1	0601-		●
216	BOLT; CLAMP M10X20 FLANGE	0-28081-020-0	06	1	0112-0210	●		●
216	BOLT; CLAMP M10X20 FLANGE	0-28081-020-0	06	1	0211-0512		●
216	BOLT; CLAMP M10X20 FLANGE	0-28051-020-0	06	1	0601-		●
223	BRACKET; EXH PIPE (A)	1-22131-842-1	01	1	0005-0210	●
223	BRACKET; EXH PIPE STD CAB(FT*M) (A)	1-22131-842-1	01	1	0211-		●
223	BRACKET; EXH PIPE DOUBLE CAB(FT*W) (B)	1-22131-750-0	01	1	0211-		●
223	BRACKET; EXH PIPE DOUBLE CAB(FT*W) (C)	1-22131-920-0	01	1	0211-		●
264	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0005-0210	●
264	TUBE; DIST,SUPPORT RUBBER STD CAB(FT*M) L=22	9-22159-024-0	02	1	0211-		●
264	TUBE; DIST,SUPPORT RUBBER DOUBLE CAB(FT*W) L=22	9-22159-024-0	01	1	0211-		●
359	PIPE; EXH,VERTICAL	1-22123-331-0	01	1	0005-0210	●
359	PIPE; EXH,VERTICAL STD CAB(FT*M)	1-22123-331-0	01	1	0211-		●
359	PIPE; EXH,VERTICAL	1-22123-348-0	01	1	0005-0210			●
359	PIPE; EXH,VERTICAL DOUBLE CAB(FT*W)	1-22123-348-0	01	1	0211-		●
418	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0005-0210	●		●
418	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0211-0602		●
418	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0603-		●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28081-025-0	06	1	0005-0210	●		●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28081-025-0	06	1	0211-0512		●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28051-025-0	06	1	0601-		●
433	BRACKET; STAY,EXH PIPE	1-22131-783-1	01	1	0005-0210	●
433	BRACKET; STAY,EXH PIPE STD CAB(FT*M)	1-22131-783-1	01	1	0211-		●
433	BRACKET; STAY,EXH PIPE	1-22131-790-1	01	1	0005-0210			●
433	BRACKET; STAY,EXH PIPE DOUBLE CAB(FT*W)	1-22131-790-1	01	1	0211-		●
434	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	06	1	0005-0210	●
434	BOLT; BRKT STD CAB(FT*M) (B) M10X30 FLANGE	0-28681-030-0	06	1	0211-0512		●
434	BOLT; BRKT STD CAB(FT*M) (B) M10X30 FLANGE	0-28651-030-0	06	1	0601-		●
434	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●		●
434	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
434	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
436	STAY; SUPPORT,EXH	1-22131-698-2	01	1	0005-0210	●		●
436	STAY; SUPPORT,EXH	1-22131-698-2	01	1	0211-		●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0005-0210	●		●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0211-		●

107 12 506 81 75 14 272 75 60 114 121 506 84 70 81 126 81 81 60 81 60 81 121 75 121 75 107 107 75 75 56 56 70 94 94 97 97 22 63 22 105 22 105

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
12	SILENCER ASM; EXH	1-22140-943-0	01	1	0005-0210	●
12	SILENCER ASM; EXH STD CAB(FT*M)	1-22140-943-0	01	1	0211-		●
12	SILENCER ASM; EXH	1-22140-873-0	01	1	0005-0205			●
12	SILENCER ASM; EXH	1-22140-880-0	01	1	0206-0210			●
12	SILENCER ASM; EXH DOUBLE CAB(FT*W)	1-22140-723-2	01	1	0211-		●
14	GASKET; SILENCER TO EXH PIPE	8-94394-391-0	01	1	0005-0210	●
14	GASKET; SILENCER TO EXH PIPE STD CAB(FT*M)	8-94394-391-0	01	1	0211-		●
22	CLAMP; EXH PIPE DOUBLE CAB(FT*W) (A) ID=80-84	1-22133-233-0	04	1	0211-		●
22	CLAMP; EXH PIPE (C)	1-22133-277-1	01	1	0005-0210	●
22	CLAMP; EXH PIPE STD CAB(FT*M) (C)	1-22133-277-1	01	1	0211-		●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0005-0210	●		●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0211-		●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0112-0210	●		●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0211-		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0005-0008			●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	08	1	0009-0210			●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	06	1	0005-0008			●
22	CLAMP; EXH PIPE DOUBLE CAB(FT*W) (A) REAR ID=94-98	1-22133-237-0	02	1	0211-		●
22	CLAMP; EXH PIPE DOUBLE CAB(FT*W) (A) REAR ID=94-98	1-22133-237-0	02	1	0211-		●
56	BRACKET; CLAMP,EXH PIPE DOUBLE CAB(FT*W) (B) REAR H=119	1-22139-060-0	01	1	0211-		●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22139-143-0	01	1	0005-0210	●
56	BRACKET; CLAMP,EXH PIPE STD CAB(FT*M) (C)	1-22139-143-0	01	1	0211-		●
56	BRACKET; CLAMP,EXH PIPE (B) FRONT H=112	1-22139-043-0	01	1	0005-0210			●
56	BRACKET; CLAMP,EXH PIPE DOUBLE CAB(FT*W) (B) FRONT H=112	1-22139-043-0	01	1	0211-		●
56	BRACKET; CLAMP,EXH PIPE (D) H=89	1-22139-046-0	01	1	0005-0210			●
56	BRACKET; CLAMP,EXH PIPE DOUBLE CAB(FT*W) (D) H=89	1-22139-046-0	01	1	0211-		●
56	BRACKET; CLAMP,EXH PIPE (B) REAR H=119	1-22139-060-0	01	1	0005-0210			●
56	BRACKET; CLAMP,EXH PIPE (A)	8-94301-523-0	01	1	0005-0210			●
56	BRACKET; CLAMP,EXH PIPE DOUBLE CAB(FT*W) (A)	8-94301-523-0	01	1	0211-		●
60	BRACKET; FRAME TO BRKT (C)	1-22151-843-0	01	1	0005-0210	●
60	BRACKET; FRAME TO BRKT STD CAB(FT*M) (C)	1-22151-843-0	01	1	0211-		●
60	BRACKET; FRAME TO BRKT (D)	1-22151-844-0	01	1	0005-0210	●
60	BRACKET; FRAME TO BRKT STD CAB(FT*M) (D)	1-22151-844-0	01	1	0211-		●
60	BRACKET; FRAME TO BRKT (E)	1-22131-433-1	01	1	0005-0210			●
60	BRACKET; FRAME TO BRKT DOUBLE CAB(FT*W) (E)	1-22131-433-1	01	1	0211-		●
60	BRACKET; FRAME TO BRKT (B)	1-22151-433-1	01	1	0005-0210			●
60	BRACKET; FRAME TO BRKT DOUBLE CAB(FT*W) (B)	1-22151-433-1	01	1	0211-		●
60	BRACKET; FRAME TO BRKT (A)	1-22151-512-2	01	1	0005-0008			●
60	BRACKET; FRAME TO BRKT (A)	1-22151-512-2	01	1	0005-0008			●
60	BRACKET; FRAME TO BRKT (A)	1-22151-512-2	02	1	0009-0210			●
60	BRACKET; FRAME TO BRKT DOUBLE CAB(FT*W) (A)	1-22151-512-3	02	1	0211-		●
63	TUBE; DIST,BRKT DOUBLE CAB(FT*W) L=11	1-22139-026-0	02	1	0211-		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	0005-0008			●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	03	1	0009-0210			●
63	TUBE; DIST,BRKT DOUBLE CAB(FT*W) L=11	1-22139-026-0	01	1	0211-		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	0005-0008			●
63	TUBE; DIST,BRKT L=8.5	1-22139-057-0	01	1	0005-0204			●
63	TUBE; DIST,BRKT L=12.5	1-22139-022-0	01	1	0205-0210			●
63	TUBE; DIST,BRKT DOUBLE CAB(FT*W) L=12.5	1-22139-022-0	01	1	0211-		●
70	BOLT; BRKT M10X50	0-10806-050-0	02	1	0005-0210	●
70	BOLT; BRKT STD CAB(FT*M) M10X50	0-10806-050-0	02	1	0211-0512		●
70	BOLT; BRKT STD CAB(FT*M) M10X50	0-10856-050-0	02	1	0601-		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0005-0008			●
70	BOLT; BRKT M10X50	0-10806-050-0	04	1	0009-0210			●
70	BOLT; BRKT DOUBLE CAB(FT*W) M10X50	0-10806-050-0	01	1	0211-0512		●
70	BOLT; BRKT DOUBLE CAB(FT*W) M10X50	0-10856-050-0	01	1	0601-		●
70	BOLT; BRKT M10X50	0-10806-050-0	03	1	0005-0008			●
70	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	02	1	0005-0210			●
70	BOLT; BRKT DOUBLE CAB(FT*W) M10X35 FLANGE	0-28681-035-0	02	1	0211-0512		●
70	BOLT; BRKT DOUBLE CAB(FT*W) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
70	BOLT; BRKT DOUBLE CAB(FT*W) M10X50	0-10806-050-0	03	1	0211-0512		●
70	BOLT; BRKT DOUBLE CAB(FT*W) M10X50	0-10856-050-0	03	1	0601-		●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-094-0	04	1	0005-0210	●
75	RUBBER; SUPPORT,BRKT STD CAB(FT*M) (B) OD=40	1-22159-094-0	04	1	0211-		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	06	1	0005-0008	●		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	06	1	0009-0210	●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	06	1	0211-		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	0005-0008			●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	08	1	0009-0210			●
75	RUBBER; SUPPORT,BRKT DOUBLE CAB(FT*W) (A) OD=30	1-22159-106-1	02	1	0211-		●
75	RUBBER; SUPPORT,BRKT DOUBLE CAB(FT*W) (B) OD=40	1-22159-094-0	02	1	0211-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0211-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0211-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0211-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	NUT; BRKT (C) M12 FLANGE	0-91150-212-0	04	1	0005-0210	●
81	NUT; BRKT STD CAB(FT*M) (C) M12 FLANGE	0-91150-212-0	04	1	0211-0602		●
81	NUT; BRKT STD CAB(FT*M) (C) M12 FLANGE	0-91180-212-0	04	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	04	1	0005-0210	●		●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	03	1	0211-0603		●
81	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	03	1	0604-		●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	03	1	0005-0008	●		●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	03	1	0009-0210	●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	01	1	0005-0008			●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	04	1	0009-0210			●
81	NUT; BRKT DOUBLE CAB(FT*W) (A) M10 LOCK NUT	9-09131-510-0	01	1	0211-0603		●
81	NUT; BRKT DOUBLE CAB(FT*W) (A) M10 LOCK NUT	0-91370-010-0	01	1	0604-		●
84	GASKET; EXH PIPE (A)	1-14145-157-0	01	1	0005-0210	●
84	GASKET; EXH PIPE STD CAB(FT*M) (A)	1-14145-157-0	01	1	0211-		●
84	GASKET; EXH PIPE (B)	8-94394-391-0	01	1	0005-0210	●
84	GASKET; EXH PIPE STD CAB(FT*M) (B)	8-94394-391-0	01	1	0211-		●
94	BOLT; CLAMP M10X50 FLANGE	0-28081-050-0	01	1	0005-0210	●
94	BOLT; CLAMP STD CAB(FT*M) M10X50 FLANGE	0-28081-050-0	01	1	0211-0512		●
94	BOLT; CLAMP STD CAB(FT*M) M10X50 FLANGE	0-28051-050-0	01	1	0601-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0005-0008			●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	08	1	0009-0210			●
94	BOLT; CLAMP DOUBLE CAB(FT*W) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0211-0805		●
94	BOLT; CLAMP DOUBLE CAB(FT*W) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	0005-0008			●
94	BOLT; CLAMP DOUBLE CAB(FT*W) M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	0211-0805		●
94	BOLT; CLAMP DOUBLE CAB(FT*W) M10X45 W/LK&PL WASHER	8-98055-085-0	06	1	0806-		●
97	WASHER; PL,CLAMP DOUBLE CAB(FT*W) (B) ID=10.5	0-91614-510-0	02	1	0901-0907		●
97	WASHER; PL,CLAMP (A) ID=10.5	9-09164-510-0	02	1	0005-0008			●
97	WASHER; PL,CLAMP (A) ID=10.5	9-09164-510-0	08	1	0009-0210			●
97	WASHER; PL,CLAMP DOUBLE CAB(FT*W) (A) ID=10.5	9-09164-510-0	02	1	0211-		●
97	WASHER; PL,CLAMP (A) ID=10.5	9-09164-510-0	06	1	0005-0008			●
97	WASHER; PL,CLAMP DOUBLE CAB(FT*W) (A) ID=10.5	9-09164-510-0	06	1	0211-0812		●
97	WASHER; PL,CLAMP DOUBLE CAB(FT*W) (A) ID=10.5	9-09164-510-0	04	1	0901-0907		●
97	WASHER; PL,CLAMP DOUBLE CAB(FT*W) (A) ID=10.5	9-09164-510-0	06	1	0908-		●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	01	1	0005-0210	●
105	NUT; CLAMP STD CAB(FT*M) M10 FLANGE	0-91150-210-0	01	1	0211-0602		●
105	NUT; CLAMP STD CAB(FT*M) M10 FLANGE	0-91180-210-0	01	1	0603-		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0005-0008			●
105	NUT; CLAMP M10	9-09110-510-0	08	1	0009-0210			●
105	NUT; CLAMP DOUBLE CAB(FT*W) M10	9-09110-510-0	02	1	0211-0512		●
105	NUT; CLAMP DOUBLE CAB(FT*W) M10	0-91110-510-0	02	1	0601-		●
105	NUT; CLAMP M10	9-09110-510-0	06	1	0005-0008			●
105	NUT; CLAMP DOUBLE CAB(FT*W) M10	9-09110-510-0	06	1	0211-0512		●
105	NUT; CLAMP DOUBLE CAB(FT*W) M10	0-91110-510-0	06	1	0601-		●
107	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	04	1	0005-0210	●
107	BOLT; BRKT STD CAB(FT*M) M10X30 FLANGE	0-28681-030-0	04	1	0211-0512		●
107	BOLT; BRKT STD CAB(FT*M) M10X30 FLANGE	0-28651-030-0	04	1	0601-		●
107	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	04	1	0005-0210			●
107	BOLT; BRKT DOUBLE CAB(FT*W) M10X35 FLANGE	0-28681-035-0	04	1	0211-0512		●
107	BOLT; BRKT DOUBLE CAB(FT*W) M10X35 FLANGE	0-28651-035-0	04	1	0601-		●
114	BRACKET; EXH SILENCER	1-22139-136-2	01	1	0005-0210	●
114	BRACKET; EXH SILENCER STD CAB(FT*M)	1-22139-136-2	01	1	0211-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	03	1	0005-0008	●		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	03	1	0009-0210	●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	03	1	0211-0605		●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	03	1	0606-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0005-0008			●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	04	1	0009-0210			●
121	WASHER; PL,BRKT DOUBLE CAB(FT*W) ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605		●
121	WASHER; PL,BRKT DOUBLE CAB(FT*W) ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●
126	PIPE; EXH,RR (A)	1-22123-324-2	01	1	0005-0210	●
126	PIPE; EXH,RR STD CAB(FT*M) (A)	1-22123-324-2	01	1	0211-		●
126	PIPE; EXH,RR (B)	1-22123-325-1	01	1	0005-0210	●
126	PIPE; EXH,RR STD CAB(FT*M) (B)	1-22123-325-1	01	1	0211-		●
272	NUT; FLANGE M12 FLANGE	0-91150-212-0	08	1	0005-0210	●
272	NUT; FLANGE STD CAB(FT*M) M12 FLANGE	0-91150-212-0	08	1	0211-0602		●
272	NUT; FLANGE STD CAB(FT*M) M12 FLANGE	0-91180-212-0	08	1	0603-		●
506	BRACKET; STUD	1-22131-788-0	04	1	0005-0206	●
506	BRACKET; STUD M12X35	1-22131-963-0	04	1	0207-0210	●
506	BRACKET; STUD STD CAB(FT*M) M12X35	1-22131-963-0	04	1	0211-		●

8 22 359 197 216 201 201 151 439 434 436 418 421 22 433 417 159 81 121 75 81 45 121 75 60 223 60 52 70 75 75 223 75 5 228 56 97 56 70 447 45 70 97 94 264 75 105 52 94 22 63 22 63 68 105 22 64 22 45 227

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
5	PROTECTOR; HEAT DOUBLE CAB(FT*W)	1-22119-438-0	01	1	0211-		●
8	BRACKET; EXH PIPE	1-22131-885-0	03	1	0112-0210	●		●
8	BRACKET; EXH PIPE	1-22131-885-0	03	1	0211-		●
22	CLAMP; EXH PIPE DOUBLE CAB(FT*W) (A) ID=80-84	1-22133-233-0	04	1	0211-		●
22	CLAMP; EXH PIPE (C)	1-22133-277-1	01	1	0005-0210	●
22	CLAMP; EXH PIPE STD CAB(FT*M) (C)	1-22133-277-1	01	1	0211-		●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0005-0210	●		●
22	CLAMP; EXH PIPE (B)	1-22133-284-0	01	1	0211-		●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0112-0210	●		●
22	CLAMP; EXH PIPE (D)	1-22133-291-0	03	1	0211-		●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	02	1	0005-0008			●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	08	1	0009-0210			●
22	CLAMP; EXH PIPE (A) ID=80-84	1-22133-233-0	06	1	0005-0008			●
22	CLAMP; EXH PIPE DOUBLE CAB(FT*W) (A) REAR ID=94-98	1-22133-237-0	02	1	0211-		●
22	CLAMP; EXH PIPE DOUBLE CAB(FT*W) (A) REAR ID=94-98	1-22133-237-0	02	1	0211-		●
45	BOLT; BRKT M10X50 FLANGE	0-28081-050-0	02	1	0005-0210	●
45	BOLT; BRKT STD CAB(FT*M) M10X50 FLANGE	0-28081-050-0	02	1	0211-0512		●
45	BOLT; BRKT STD CAB(FT*M) M10X50 FLANGE	0-28051-050-0	02	1	0601-		●
45	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	02	1	0005-0210			●
45	BOLT; BRKT DOUBLE CAB(FT*W) M10X35 FLANGE	0-28681-035-0	02	1	0211-0512		●
45	BOLT; BRKT DOUBLE CAB(FT*W) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
45	BOLT; BRKT DOUBLE CAB(FT*W) M10X50 FLANGE	0-28081-050-0	01	1	0211-0512		●
45	BOLT; BRKT DOUBLE CAB(FT*W) M10X50 FLANGE	0-28051-050-0	01	1	0601-		●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0005-0210	●		●
52	NUT; BRKT M10 FLANGE	0-91150-210-0	02	1	0211-0306		●
52	NUT; BRKT STD CAB(FT*M) M10 FLANGE	0-91150-210-0	02	1	0307-0602		●
52	NUT; BRKT STD CAB(FT*M) M10 FLANGE	0-91180-210-0	02	1	0603-		●
52	NUT; BRKT DOUBLE CAB(FT*W) M10 FLANGE	0-91150-210-0	01	1	0211-0306		●
52	NUT; BRKT DOUBLE CAB(FT*W) M10 FLANGE	0-91150-210-0	03	1	0307-0602		●
52	NUT; BRKT DOUBLE CAB(FT*W) M10 FLANGE	0-91180-210-0	03	1	0603-		●
56	BRACKET; CLAMP,EXH PIPE DOUBLE CAB(FT*W) (B) REAR H=119	1-22139-060-0	01	1	0211-		●
56	BRACKET; CLAMP,EXH PIPE (C)	1-22139-143-0	01	1	0005-0210	●
56	BRACKET; CLAMP,EXH PIPE STD CAB(FT*M) (C)	1-22139-143-0	01	1	0211-		●
56	BRACKET; CLAMP,EXH PIPE (B) FRONT H=112	1-22139-043-0	01	1	0005-0210			●
56	BRACKET; CLAMP,EXH PIPE DOUBLE CAB(FT*W) (B) FRONT H=112	1-22139-043-0	01	1	0211-		●
56	BRACKET; CLAMP,EXH PIPE (D) H=89	1-22139-046-0	01	1	0005-0210			●
56	BRACKET; CLAMP,EXH PIPE DOUBLE CAB(FT*W) (D) H=89	1-22139-046-0	01	1	0211-		●
56	BRACKET; CLAMP,EXH PIPE (B) REAR H=119	1-22139-060-0	01	1	0005-0210			●
56	BRACKET; CLAMP,EXH PIPE (A)	8-94301-523-0	01	1	0005-0210			●
56	BRACKET; CLAMP,EXH PIPE DOUBLE CAB(FT*W) (A)	8-94301-523-0	01	1	0211-		●
60	BRACKET; FRAME TO BRKT (C)	1-22151-843-0	01	1	0005-0210	●
60	BRACKET; FRAME TO BRKT STD CAB(FT*M) (C)	1-22151-843-0	01	1	0211-		●
60	BRACKET; FRAME TO BRKT (D)	1-22151-844-0	01	1	0005-0210	●
60	BRACKET; FRAME TO BRKT STD CAB(FT*M) (D)	1-22151-844-0	01	1	0211-		●
60	BRACKET; FRAME TO BRKT (E)	1-22131-433-1	01	1	0005-0210			●
60	BRACKET; FRAME TO BRKT DOUBLE CAB(FT*W) (E)	1-22131-433-1	01	1	0211-		●
60	BRACKET; FRAME TO BRKT (B)	1-22151-433-1	01	1	0005-0210			●
60	BRACKET; FRAME TO BRKT DOUBLE CAB(FT*W) (B)	1-22151-433-1	01	1	0211-		●
60	BRACKET; FRAME TO BRKT (A)	1-22151-512-2	01	1	0005-0008			●
60	BRACKET; FRAME TO BRKT (A)	1-22151-512-2	01	1	0005-0008			●
60	BRACKET; FRAME TO BRKT (A)	1-22151-512-2	02	1	0009-0210			●
60	BRACKET; FRAME TO BRKT DOUBLE CAB(FT*W) (A)	1-22151-512-3	02	1	0211-		●
63	TUBE; DIST,BRKT DOUBLE CAB(FT*W) L=11	1-22139-026-0	02	1	0211-		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	01	1	0005-0008			●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	03	1	0009-0210			●
63	TUBE; DIST,BRKT DOUBLE CAB(FT*W) L=11	1-22139-026-0	01	1	0211-		●
63	TUBE; DIST,BRKT L=11	1-22139-026-0	02	1	0005-0008			●
63	TUBE; DIST,BRKT L=8.5	1-22139-057-0	01	1	0005-0204			●
63	TUBE; DIST,BRKT L=12.5	1-22139-022-0	01	1	0205-0210			●
63	TUBE; DIST,BRKT DOUBLE CAB(FT*W) L=12.5	1-22139-022-0	01	1	0211-		●
64	U-BOLT; EXH PIPE,RR	1-22113-009-0	01	1	0005-0210	●
64	U-BOLT; EXH PIPE,RR STD CAB(FT*M)	1-22113-009-0	01	1	0211-		●
64	U-BOLT; EXH PIPE,RR DOUBLE CAB(FT*W)	1-22139-033-1	01	1	0211-1105		●
64	U-BOLT; EXH PIPE,RR DOUBLE CAB(FT*W)	1-22113-101-0	01	1	1106-		●
68	NUT; U BOLT M8 FLANGE	0-91150-208-0	02	1	0005-0210	●
68	NUT; U BOLT M8 FLANGE	0-91150-208-0	02	1	0211-0602		●
68	NUT; U BOLT M8 FLANGE	0-91180-208-0	02	1	0603-		●
70	BOLT; BRKT M10X50	0-10806-050-0	02	1	0005-0210	●
70	BOLT; BRKT STD CAB(FT*M) M10X50	0-10806-050-0	02	1	0211-0512		●
70	BOLT; BRKT STD CAB(FT*M) M10X50	0-10856-050-0	02	1	0601-		●
70	BOLT; BRKT M10X50	0-10806-050-0	01	1	0005-0008			●
70	BOLT; BRKT M10X50	0-10806-050-0	04	1	0009-0210			●
70	BOLT; BRKT DOUBLE CAB(FT*W) M10X50	0-10806-050-0	01	1	0211-0512		●
70	BOLT; BRKT DOUBLE CAB(FT*W) M10X50	0-10856-050-0	01	1	0601-		●
70	BOLT; BRKT M10X50	0-10806-050-0	03	1	0005-0008			●
70	BOLT; BRKT M10X35 FLANGE	0-28681-035-0	02	1	0005-0210			●
70	BOLT; BRKT DOUBLE CAB(FT*W) M10X35 FLANGE	0-28681-035-0	02	1	0211-0512		●
70	BOLT; BRKT DOUBLE CAB(FT*W) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
70	BOLT; BRKT DOUBLE CAB(FT*W) M10X50	0-10806-050-0	03	1	0211-0512		●
70	BOLT; BRKT DOUBLE CAB(FT*W) M10X50	0-10856-050-0	03	1	0601-		●
75	RUBBER; SUPPORT,BRKT (B) OD=40	1-22159-094-0	04	1	0005-0210	●
75	RUBBER; SUPPORT,BRKT STD CAB(FT*M) (B) OD=40	1-22159-094-0	04	1	0211-		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	06	1	0005-0008	●		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	06	1	0009-0210	●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	06	1	0211-		●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	02	1	0005-0008			●
75	RUBBER; SUPPORT,BRKT (A) OD=30	1-22159-106-1	08	1	0009-0210			●
75	RUBBER; SUPPORT,BRKT DOUBLE CAB(FT*W) (A) OD=30	1-22159-106-1	02	1	0211-		●
75	RUBBER; SUPPORT,BRKT DOUBLE CAB(FT*W) (B) OD=40	1-22159-094-0	02	1	0211-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0005-0210	●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0211-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0211-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	02	1	0211-0602		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91180-210-0	02	1	0603-		●
81	NUT; BRKT (C) M12 FLANGE	0-91150-212-0	04	1	0005-0210	●
81	NUT; BRKT STD CAB(FT*M) (C) M12 FLANGE	0-91150-212-0	04	1	0211-0602		●
81	NUT; BRKT STD CAB(FT*M) (C) M12 FLANGE	0-91180-212-0	04	1	0603-		●
81	NUT; BRKT (B) M10 FLANGE	0-91150-210-0	04	1	0005-0210	●		●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	03	1	0211-0603		●
81	NUT; BRKT (A) M10 LOCK NUT	0-91370-010-0	03	1	0604-		●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	03	1	0005-0008	●		●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	03	1	0009-0210	●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	01	1	0005-0008			●
81	NUT; BRKT (A) M10 LOCK NUT	9-09131-510-0	04	1	0009-0210			●
81	NUT; BRKT DOUBLE CAB(FT*W) (A) M10 LOCK NUT	9-09131-510-0	01	1	0211-0603		●
81	NUT; BRKT DOUBLE CAB(FT*W) (A) M10 LOCK NUT	0-91370-010-0	01	1	0604-		●
94	BOLT; CLAMP M10X50 FLANGE	0-28081-050-0	01	1	0005-0210	●
94	BOLT; CLAMP STD CAB(FT*M) M10X50 FLANGE	0-28081-050-0	01	1	0211-0512		●
94	BOLT; CLAMP STD CAB(FT*M) M10X50 FLANGE	0-28051-050-0	01	1	0601-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0005-0008			●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	08	1	0009-0210			●
94	BOLT; CLAMP DOUBLE CAB(FT*W) M10X45 W/LK&PL WASHER	0-50141-045-0	02	1	0211-0805		●
94	BOLT; CLAMP DOUBLE CAB(FT*W) M10X45 W/LK&PL WASHER	8-98055-085-0	02	1	0806-		●
94	BOLT; CLAMP M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	0005-0008			●
94	BOLT; CLAMP DOUBLE CAB(FT*W) M10X45 W/LK&PL WASHER	0-50141-045-0	06	1	0211-0805		●
94	BOLT; CLAMP DOUBLE CAB(FT*W) M10X45 W/LK&PL WASHER	8-98055-085-0	06	1	0806-		●
97	WASHER; PL,CLAMP DOUBLE CAB(FT*W) (B) ID=10.5	0-91614-510-0	02	1	0901-0907		●
97	WASHER; PL,CLAMP (A) ID=10.5	9-09164-510-0	02	1	0005-0008			●
97	WASHER; PL,CLAMP (A) ID=10.5	9-09164-510-0	08	1	0009-0210			●
97	WASHER; PL,CLAMP DOUBLE CAB(FT*W) (A) ID=10.5	9-09164-510-0	02	1	0211-		●
97	WASHER; PL,CLAMP (A) ID=10.5	9-09164-510-0	06	1	0005-0008			●
97	WASHER; PL,CLAMP DOUBLE CAB(FT*W) (A) ID=10.5	9-09164-510-0	06	1	0211-0812		●
97	WASHER; PL,CLAMP DOUBLE CAB(FT*W) (A) ID=10.5	9-09164-510-0	04	1	0901-0907		●
97	WASHER; PL,CLAMP DOUBLE CAB(FT*W) (A) ID=10.5	9-09164-510-0	06	1	0908-		●
105	NUT; CLAMP M10 FLANGE	0-91150-210-0	01	1	0005-0210	●
105	NUT; CLAMP STD CAB(FT*M) M10 FLANGE	0-91150-210-0	01	1	0211-0602		●
105	NUT; CLAMP STD CAB(FT*M) M10 FLANGE	0-91180-210-0	01	1	0603-		●
105	NUT; CLAMP M10	9-09110-510-0	02	1	0005-0008			●
105	NUT; CLAMP M10	9-09110-510-0	08	1	0009-0210			●
105	NUT; CLAMP DOUBLE CAB(FT*W) M10	9-09110-510-0	02	1	0211-0512		●
105	NUT; CLAMP DOUBLE CAB(FT*W) M10	0-91110-510-0	02	1	0601-		●
105	NUT; CLAMP M10	9-09110-510-0	06	1	0005-0008			●
105	NUT; CLAMP DOUBLE CAB(FT*W) M10	9-09110-510-0	06	1	0211-0512		●
105	NUT; CLAMP DOUBLE CAB(FT*W) M10	0-91110-510-0	06	1	0601-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	03	1	0005-0008	●		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	03	1	0009-0210	●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	03	1	0211-0605		●
121	WASHER; PL,BRKT ID=10.5 OD=32	0-91614-810-0	03	1	0606-		●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	01	1	0005-0008			●
121	WASHER; PL,BRKT ID=10.5 OD=32	9-09164-810-0	04	1	0009-0210			●
121	WASHER; PL,BRKT DOUBLE CAB(FT*W) ID=10.5 OD=32	9-09164-810-0	01	1	0211-0605		●
121	WASHER; PL,BRKT DOUBLE CAB(FT*W) ID=10.5 OD=32	0-91614-810-0	01	1	0606-		●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-240-1	01	1	0005-0210	●		●
151	PROTECTOR; HEAT,EXH PIPE	1-22159-240-1	01	1	0211-		●
159	BOLT; HEAT PROTECTOR (A) M12X35 FLANGE	0-28681-235-0	02	1	0005-0210	●
159	BOLT; HEAT PROTECTOR STD CAB(FT*M) (A) M12X35 FLANGE	0-28681-235-0	02	1	0211-0512		●
159	BOLT; HEAT PROTECTOR STD CAB(FT*M) (A) M12X35 FLANGE	0-28651-235-0	02	1	0601-		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0005-0210	●		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28080-820-0	10	1	0211-0512		●
159	BOLT; HEAT PROTECTOR (B) M8X20 FLANGE	0-28050-820-0	10	1	0601-		●
197	BRACKET; EXH PIPE,VERTICAL	1-22131-796-0	01	1	0005-0210	●		●
197	BRACKET; EXH PIPE,VERTICAL	1-22131-796-1	01	1	0211-		●
201	BOLT; STAY (A) M10X25 FLANGE	0-28081-025-0	01	1	0005-0210	●		●
201	BOLT; STAY (A) M10X25 FLANGE	0-28081-025-0	01	1	0211-0512		●
201	BOLT; STAY (A) M10X25 FLANGE	0-28051-025-0	01	1	0601-		●
201	BOLT; STAY (B) M10X50 FLANGE	0-28081-050-0	02	1	0005-0210	●		●
201	BOLT; STAY (B) M10X50 FLANGE	0-28081-050-0	02	1	0211-0512		●
201	BOLT; STAY (B) M10X50 FLANGE	0-28051-050-0	02	1	0601-		●
216	BOLT; CLAMP M10X20 FLANGE	0-28081-020-0	06	1	0112-0210	●		●
216	BOLT; CLAMP M10X20 FLANGE	0-28081-020-0	06	1	0211-0512		●
216	BOLT; CLAMP M10X20 FLANGE	0-28051-020-0	06	1	0601-		●
223	BRACKET; EXH PIPE (A)	1-22131-842-1	01	1	0005-0210	●
223	BRACKET; EXH PIPE STD CAB(FT*M) (A)	1-22131-842-1	01	1	0211-		●
223	BRACKET; EXH PIPE DOUBLE CAB(FT*W) (B)	1-22131-750-0	01	1	0211-		●
223	BRACKET; EXH PIPE DOUBLE CAB(FT*W) (C)	1-22131-920-0	01	1	0211-		●
227	BOLT; BRKT DOUBLE CAB(FT*W) M10X35 FLANGE	0-28681-035-0	02	1	0307-0512		●
227	BOLT; BRKT DOUBLE CAB(FT*W) M10X35 FLANGE	0-28651-035-0	02	1	0601-		●
228	NUT; BRKT DOUBLE CAB(FT*W) M10 FLANGE	0-91150-210-0	02	1	0307-0602		●
228	NUT; BRKT DOUBLE CAB(FT*W) M10 FLANGE	0-91180-210-0	02	1	0603-		●
264	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0005-0210	●
264	TUBE; DIST,SUPPORT RUBBER STD CAB(FT*M) L=22	9-22159-024-0	02	1	0211-		●
264	TUBE; DIST,SUPPORT RUBBER DOUBLE CAB(FT*W) L=22	9-22159-024-0	01	1	0211-		●
359	PIPE; EXH,VERTICAL	1-22123-331-0	01	1	0005-0210	●
359	PIPE; EXH,VERTICAL STD CAB(FT*M)	1-22123-331-0	01	1	0211-		●
359	PIPE; EXH,VERTICAL	1-22123-348-0	01	1	0005-0210			●
359	PIPE; EXH,VERTICAL DOUBLE CAB(FT*W)	1-22123-348-0	01	1	0211-		●
417	BOLT; BRKT M10X30 FLANGE	0-28681-030-0	06	1	0005-0210			●
417	BOLT; BRKT DOUBLE CAB(FT*W) M10X30 FLANGE	0-28681-030-0	06	1	0211-0512		●
417	BOLT; BRKT DOUBLE CAB(FT*W) M10X30 FLANGE	0-28651-030-0	06	1	0601-		●
418	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0005-0210	●		●
418	NUT; BRKT M10 FLANGE	0-91150-210-0	01	1	0211-0602		●
418	NUT; BRKT M10 FLANGE	0-91180-210-0	01	1	0603-		●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28081-025-0	06	1	0005-0210	●		●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28081-025-0	06	1	0211-0512		●
421	BOLT; PIPE BRKT M10X25 FLANGE	0-28051-025-0	06	1	0601-		●
433	BRACKET; STAY,EXH PIPE	1-22131-783-1	01	1	0005-0210	●
433	BRACKET; STAY,EXH PIPE STD CAB(FT*M)	1-22131-783-1	01	1	0211-		●
433	BRACKET; STAY,EXH PIPE	1-22131-790-1	01	1	0005-0210			●
433	BRACKET; STAY,EXH PIPE DOUBLE CAB(FT*W)	1-22131-790-1	01	1	0211-		●
434	BOLT; BRKT (B) M10X30 FLANGE	0-28681-030-0	06	1	0005-0210	●
434	BOLT; BRKT STD CAB(FT*M) (B) M10X30 FLANGE	0-28681-030-0	06	1	0211-0512		●
434	BOLT; BRKT STD CAB(FT*M) (B) M10X30 FLANGE	0-28651-030-0	06	1	0601-		●
434	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0005-0210	●		●
434	BOLT; BRKT (A) M8X25 FLANGE	0-28680-825-0	02	1	0211-0512		●
434	BOLT; BRKT (A) M8X25 FLANGE	0-28650-825-0	02	1	0601-		●
436	STAY; SUPPORT,EXH	1-22131-698-2	01	1	0005-0210	●		●
436	STAY; SUPPORT,EXH	1-22131-698-2	01	1	0211-		●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0005-0210	●		●
439	TUBE; DIST,SUPPORT RUBBER L=22	9-22159-024-0	02	1	0211-		●
447	WASHER; LK,BRKT DOUBLE CAB(FT*W) ID=10.2	9-09150-510-0	02	1	0211-0603		●
447	WASHER; LK,BRKT DOUBLE CAB(FT*W) ID=10.2	0-91510-510-0	02	1	0604-		●

İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
