8-65 — CONTROL LEVER; HEATER AND AIR CON (#95277) — 17 parça

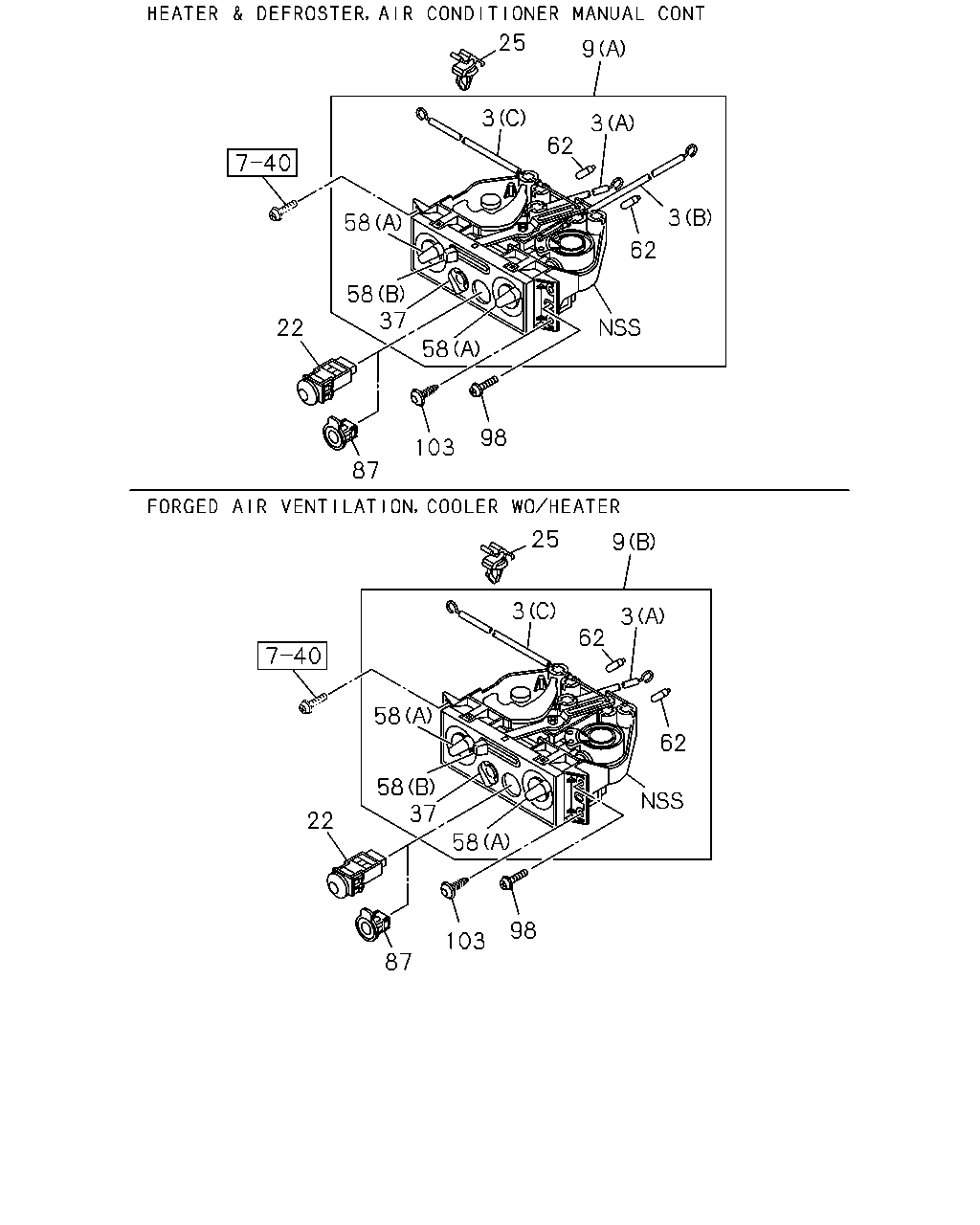

çizim 288863
87 98 103 58 37 58 58 62 62 3 3 9 25 22 98 103 87 22 58 37 58 58 62 3 3 62 3 9 25
BalonParca AdiParca NoAdetTipApplied Date
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) MODE 		8-98039-250-0 01 1 1208-
3 09.787 CABLE; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (C) FRESH 		8-98039-253-2 01 1 1208-
3 09.787 CABLE; HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) MIX 		8-98039-251-0 01 1 1208-
9 08.852 LEVER ASM; HTR & A/C CONT
FORGED AIR VENTILATION(C39) (B) 		8-98066-001-1 01 1 1208-
9 08.852 LEVER ASM; HTR & A/C CONT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98037-363-2 01 1 1208-
9 08.852 LEVER ASM; HTR & A/C CONT
COOLER WO/HEATER(C65) (B) 		8-98066-000-1 01 1 1208-
22 08.852 SWITCH; A/C,MAIN
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98021-982-0 01 1 1208-
25 08.854 CLIP; CABLE,CONT LEVER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 09.647 ID=4.8 		8-94128-483-0 01 1 1208-
37 08.852 KNOB; SW,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98037-368-0 01 1 1208-
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39) (A) 		8-98037-369-0 01 1 1208-
58 09.787 KNOB; LVR,HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) 		8-98037-370-0 01 1 1208-
58 09.787 KNOB; LVR,HTR CONT LVR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) 		8-98037-369-0 02 1 1208-
62 08.991 BULB; HTR CONT LVR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 24V 1.1W 		8-98037-371-0 02 1 1208-
87 08.849 CAP; A/C SWITCH
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98006-089-0 01 1 1208-
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.100 M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1208-1212
98 08.852 SCREW; CONT PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301-
103 08.854 CLIP
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.742 DARK GRAY 		8-97098-326-0 01 1 1208-
