8-60 — HEATER UNIT; FRONT (#95276) — 199 parça

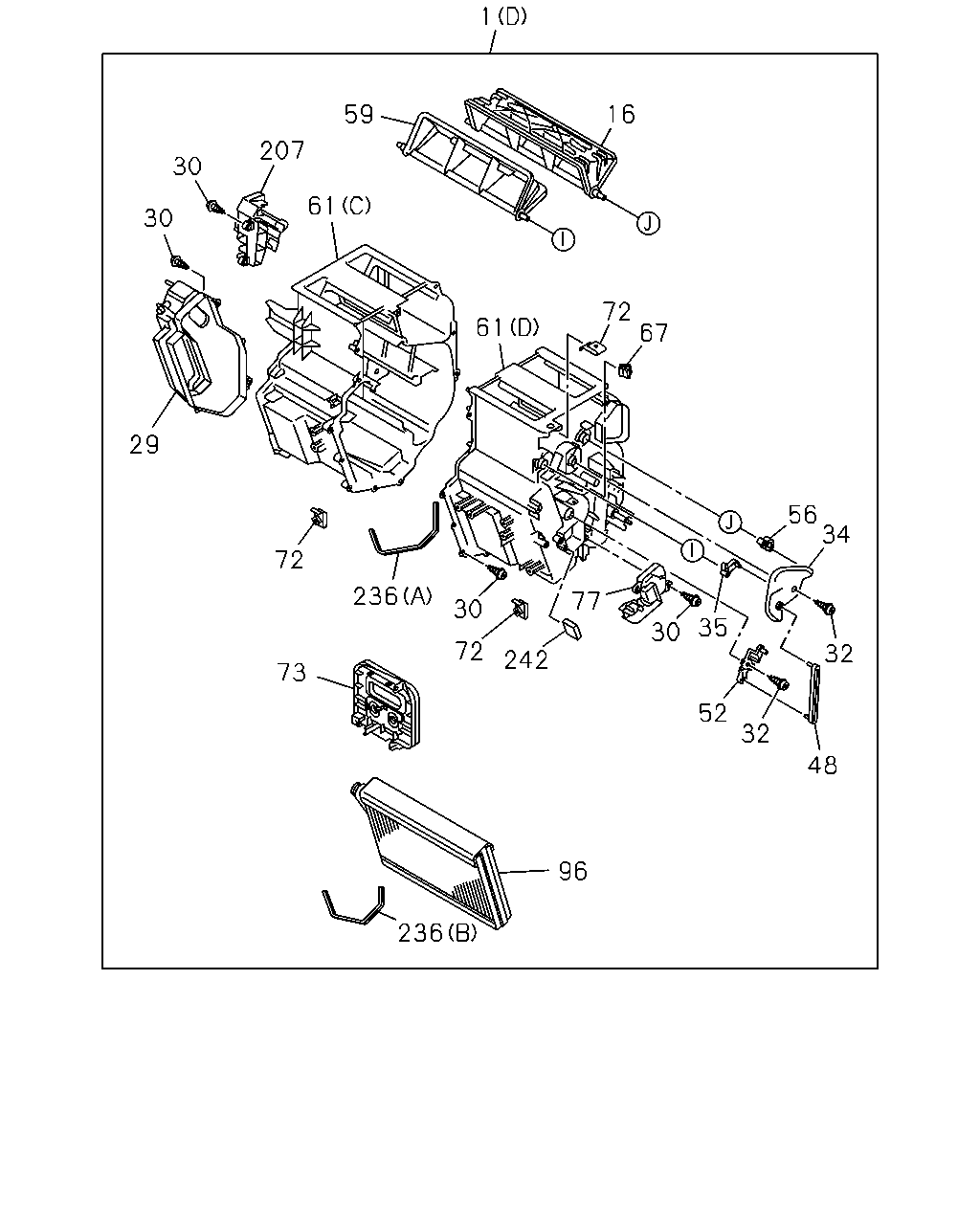

çizim 288859
48 32 52 35 30 32 34 56 77 242 72 30 236 72 73 96 236 67 72 61 61 59 16 1 207 30 30 29
BalonParca AdiParca NoAdetTipApplied Date
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98062-757-1 01 1 1208-1301
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98214-400-1 01 1 1302-
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 1208-
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1208-
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) (B) 		8-98057-980-2 01 1 1208-
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-387-0 01 1 1208-
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-367-0 01 1 1302-
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1208-1301
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1302-
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 25 1 1302-
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 25 1 1208-1301
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 20 1 1302-
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 27 1 1208-
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1208-
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1208-
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-389-0 01 1 1208-
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-392-0 01 1 1208-
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-391-0 01 1 1208-
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-390-0 01 1 1208-
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-393-0 01 1 1208-
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-386-0 01 1 1208-
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) 		8-98077-422-0 01 1 1208-
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) 		8-98077-423-0 01 1 1208-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1208-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1208-
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-98047-417-0 01 1 1208-
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1208-
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) M6 		8-98047-428-0 03 1 1208-
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 1208-1301
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1208-
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1208-
73 08.845 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 1208-
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-414-0 01 1 1208-
96 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1208-1301
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1302-
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1208-1301
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1302-
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) 		8-98047-420-0 01 1 1208-
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) 		8-98047-421-0 01 1 1208-
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1208-1411
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1412-

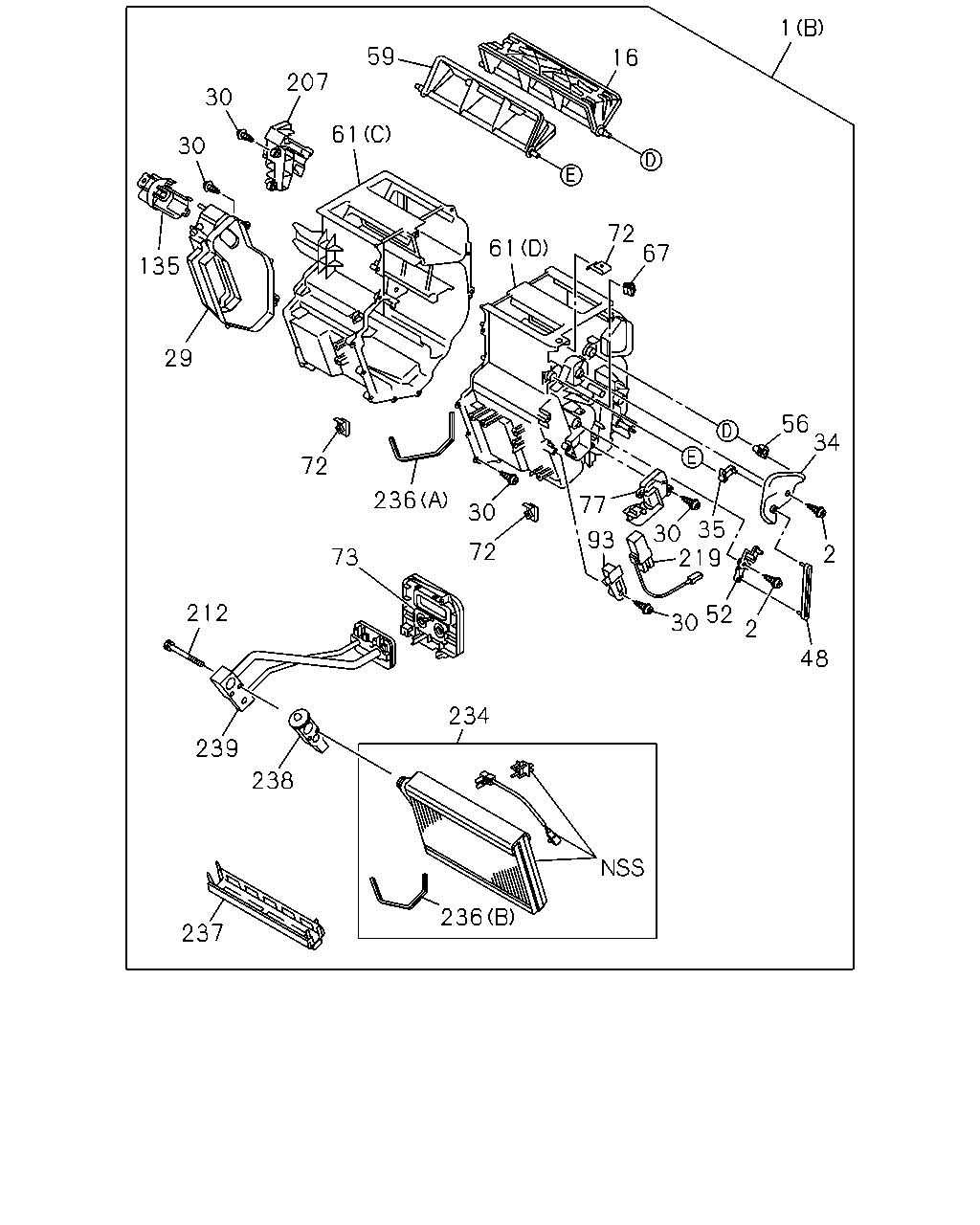

çizim 289750
48 2 52 30 219 35 30 93 77 2 34 56 67 72 61 16 1 59 207 61 30 30 135 29 72 73 236 30 72 234 236 237 238 239 212
BalonParca AdiParca NoAdetTipApplied Date
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98062-757-1 01 1 1208-1301
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98214-400-1 01 1 1302-
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 1208-
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1208-
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) (B) 		8-98057-980-2 01 1 1208-
2 08.854 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 03 1 1208-
2 08.854 SCREW; LEVER
COOLER WO/HEATER(C65) 08.852 M4X16 		8-98047-416-0 02 1 1208-
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-387-0 01 1 1208-
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-367-0 01 1 1302-
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1208-1301
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1302-
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 25 1 1302-
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 25 1 1208-1301
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 20 1 1302-
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 27 1 1208-
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-389-0 01 1 1208-
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-392-0 01 1 1208-
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-391-0 01 1 1208-
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-390-0 01 1 1208-
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-393-0 01 1 1208-
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-386-0 01 1 1208-
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) 		8-98077-422-0 01 1 1208-
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) 		8-98077-423-0 01 1 1208-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1208-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1208-
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-98047-417-0 01 1 1208-
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1208-
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) M6 		8-98047-428-0 03 1 1208-
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 1208-1301
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1208-
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1208-
73 08.845 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 1208-
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-414-0 01 1 1208-
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-427-0 01 1 1208-
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-384-0 01 1 1208-
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1208-1301
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1302-
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61 		8-98047-415-0 02 1 1208-
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1208-
219 08.854 AMPLIFIER; HEATER UNIT
COOLER WO/HEATER(C65) 		8-98064-733-0 01 1 1208-
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-116-1 01 1 1208-
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) 		8-98047-420-0 01 1 1208-
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) 		8-98047-421-0 01 1 1208-
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-382-0 01 1 1208-
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-383-0 01 1 1208-
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-115-0 01 1 1208-

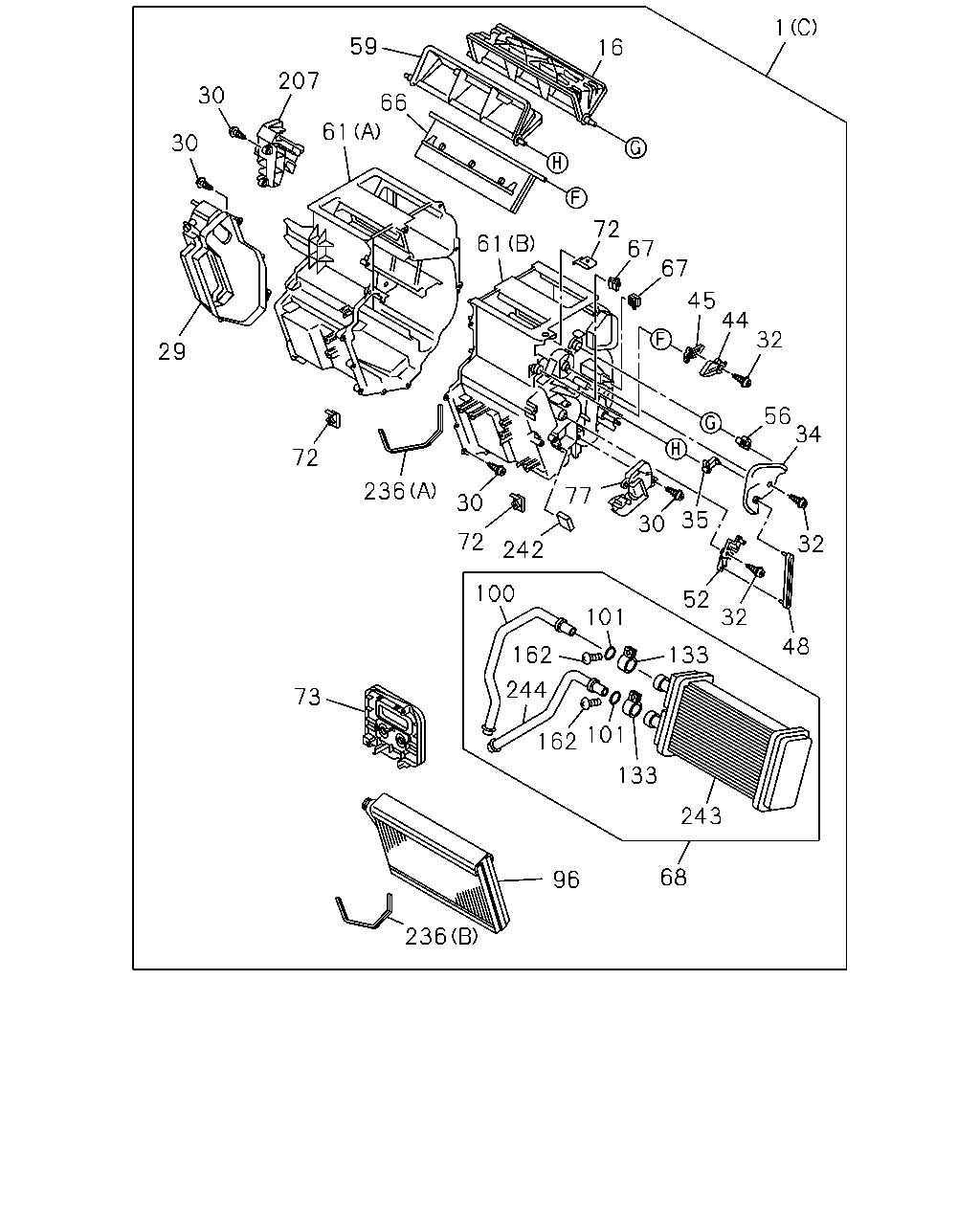

çizim 289751
1 16 32 44 45 67 67 72 61 61 66 59 207 30 30 29 72 236 30 72 242 77 30 35 56 34 32 48 32 52 133 101 100 162 244 101 162 133 243 73 236 96 68
BalonParca AdiParca NoAdetTipApplied Date
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98062-757-1 01 1 1208-1301
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98214-400-1 01 1 1302-
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 1208-
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1208-
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) (B) 		8-98057-980-2 01 1 1208-
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-387-0 01 1 1208-
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-367-0 01 1 1302-
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1208-1301
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1302-
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 25 1 1302-
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 25 1 1208-1301
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 20 1 1302-
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 27 1 1208-
32 08.852 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) M4X16 		8-98047-416-0 02 1 1208-
32 08.852 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) M4X16 		8-98047-416-0 03 1 1208-
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-389-0 01 1 1208-
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-392-0 01 1 1208-
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1208-
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1208-
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-391-0 01 1 1208-
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-390-0 01 1 1208-
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-393-0 01 1 1208-
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-386-0 01 1 1208-
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) 		8-98077-422-0 01 1 1208-
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) 		8-98077-423-0 01 1 1208-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1208-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1208-
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1208-
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-98047-417-0 01 1 1208-
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1208-
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1208-
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) M6 		8-98047-428-0 03 1 1208-
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 1208-1301
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1208-
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1208-
73 08.845 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 1208-
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-414-0 01 1 1208-
96 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1208-1301
96 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98048-815-0 01 1 1302-
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1208-
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1208-
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1208-
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1208-
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1208-1301
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1302-
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) 		8-98047-420-0 01 1 1208-
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) 		8-98047-421-0 01 1 1208-
242 08.855 GASKET; CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1208-1411
242 08.855 GASKET; CASE
HEATER & DEFROSTER(C41) 08.845 		8-98048-816-0 01 1 1412-
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1208-
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1208-
çizim 289754
48 2 52 30 133 101 100 72 30 162 244 162 101 133 243 68 236 235 238 235 234 155 73 212 240 240 239 237 219 35 30 93 77 2 34 56 2 44 45 67 67 72 61 66 61 207 59 16 1 30 30 135 29 72 236
BalonParca AdiParca NoAdetTipApplied Date
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98062-757-1 01 1 1208-1301
1 08.845 HEATER UNIT
FORGED AIR VENTILATION(C39) (D) 		8-98214-400-1 01 1 1302-
1 08.845 HEATER UNIT
HEATER & DEFROSTER(C41) (C) 		8-98062-756-1 01 1 1208-
1 08.845 HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98021-972-4 01 1 1208-
1 08.845 HEATER UNIT
COOLER WO/HEATER(C65) (B) 		8-98057-980-2 01 1 1208-
2 08.854 SCREW; LEVER
AIR CONDITIONER MANUAL CONT(C60) 08.852 M4X16 		8-98047-416-0 03 1 1208-
2 08.854 SCREW; LEVER
COOLER WO/HEATER(C65) 08.852 M4X16 		8-98047-416-0 02 1 1208-
16 09.786 SHUTTER; HTR UNIT,CENTER UPR
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-387-0 01 1 1208-
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98231-367-0 01 1 1302-
29 08.857 COVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1208-1301
29 08.857 COVER; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-119-0 01 1 1302-
30 08.845 SCREW; HTR UNIT
HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 25 1 1302-
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 25 1 1208-1301
30 08.845 SCREW; HTR UNIT
FORGED AIR VENTILATION(C39) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 20 1 1302-
30 08.845 SCREW; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 08.852 M4X16 TAPPING IDN 		8-97957-708-0 27 1 1208-
34 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-389-0 01 1 1208-
35 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-392-0 01 1 1208-
44 08.852 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-394-0 01 1 1208-
45 09.786 LEVER; SHUTTER,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-395-0 01 1 1208-
48 09.786 LEVER; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-391-0 01 1 1208-
52 08.852 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-390-0 01 1 1208-
56 09.786 LEVER; SHUTTER,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-393-0 01 1 1208-
59 08.845 SHUTTER; HTR UNIT,SIDE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-386-0 01 1 1208-
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (C) 		8-98077-422-0 01 1 1208-
61 08.854 CASE; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) (D) 		8-98077-423-0 01 1 1208-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (B) 		8-98047-375-0 01 1 1208-
61 08.854 CASE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) (A) 		8-98047-376-0 01 1 1208-
66 09.786 SHUTTER; HTR UNIT,CENTER LWR
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-385-0 01 1 1208-
67 08.854 CLIP; HTR UNIT
FORGED AIR VENTILATION(C39),COOLER WO/HEATER(C65) 		8-98047-417-0 01 1 1208-
67 08.854 CLIP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-417-0 02 1 1208-
68 08.854 CORE; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98047-380-0 01 1 1208-
72 08.845 NUT; CASE,HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) M6 		8-98047-428-0 03 1 1208-
73 08.845 PLATE; HTR UNIT
FORGED AIR VENTILATION(C39) 		8-98077-419-0 01 1 1208-1301
73 08.845 PLATE; HTR UNIT
HEATER & DEFROSTER(C41) 		8-98072-542-0 01 1 1208-
73 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98074-118-0 01 1 1208-
73 08.845 PLATE; HTR UNIT
COOLER WO/HEATER(C65) 		8-98077-420-0 01 1 1208-
77 08.857 COVER; HTR CASE
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-414-0 01 1 1208-
93 08.845 PLATE; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-427-0 01 1 1208-
100 08.854 PIPE; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-528-0 01 1 1208-
101 08.845 GASKET; CORE,HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-531-0 02 1 1208-
133 08.845 CLIP; PIPE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-530-0 02 1 1208-
135 08.854 COVER; HTR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-384-0 01 1 1208-
155 09.260 GROMMET; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-431-0 01 1 1208-
162 08.845 SCREW; CLIP FIX
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98072-529-0 02 1 1208-
207 08.845 CLAMP; HTR UNIT
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1208-1301
207 08.845 CLAMP; HTR UNIT
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-379-0 01 1 1302-
212 09.262 BOLT; HTR UNIT
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X61 		8-98047-415-0 02 1 1208-
219 08.854 AMPLIFIER; HEATER UNIT
AIR CONDITIONER MANUAL CONT(C60) 		8-98047-429-0 01 1 1208-
219 08.854 AMPLIFIER; HEATER UNIT
COOLER WO/HEATER(C65) 		8-98064-733-0 01 1 1208-
234 08.854 EVAPORATOR ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-116-1 01 1 1208-
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.260 (A) ID=11.7 IDN 		8-97095-907-0 01 1 1208-
235 08.845 GASKET; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=14.5 IDN 		8-97095-908-0 01 1 1208-
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) 		8-98047-420-0 01 1 1208-
236 08.855 GASKET; HEATER
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) 		8-98047-421-0 01 1 1208-
237 08.855 INSULATOR; EVAPORATOR
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-382-0 01 1 1208-
238 08.845 VALVE; EXPANSION
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98047-383-0 01 1 1208-
239 08.846 TUBE ASM; HEATER
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 		8-98074-115-0 01 1 1208-
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (B) ID=7.4 IDN 		8-97095-906-0 01 1 1208-
240 08.845 GASKET; HEATER
AIR CONDITIONER MANUAL CONT(C60) 09.225 (A) ID=14.5 IDN 		8-97095-908-0 01 1 1208-
243 08.854 CORE
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 01.656 		8-98048-508-0 01 1 1208-
244 08.854 PIPE; INLET
HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) 		8-98048-510-0 01 1 1208-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
