8-28 — CHASSIS ELECTRICAL (#95271) — 17 parça

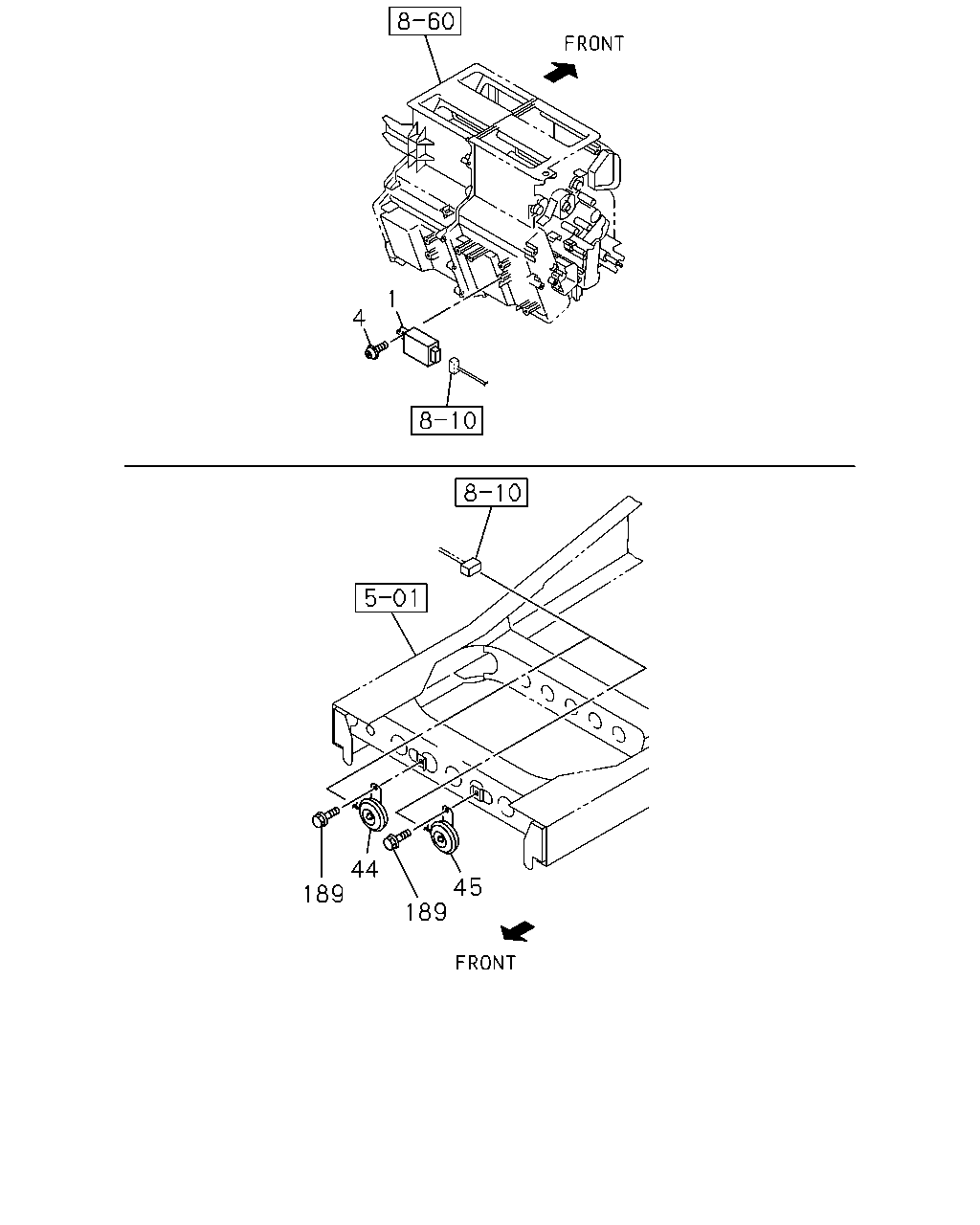

çizim 288827
44 189 45 189 4 1
BalonParca AdiParca NoAdetTipApplied Date
1 02.575 UNIT; FLASHER
IDN 		8-98025-533-1 01 1 1208-
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1208-1212
4 02.575 SCREW; FLASHER UNIT
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
44 02.810 HORN; HIGH NOTE
DUAL HEAVY DUTY HORN(6KK) IDN 		8-98070-080-0 01 1 1208-
45 02.810 HORN; LOW NOTE
IDN 		8-98022-023-0 01 1 1208-
189 02.812 BOLT; HORN
02.343 M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1208-
189 02.812 BOLT; HORN
DUAL HEAVY DUTY HORN(6KK) 02.343 M8X18.5 W/PL WASHER IDN 		8-98141-255-0 01 1 1208-
çizim 288830
770 8 540 22
BalonParca AdiParca NoAdetTipApplied Date
8 16.067 RELAY; WIPER
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1208-
22 02.679 RELAY; STOP LAMP
02.510 24V 12.5A PANASONIC 		8-97262-933-0 01 1 1208-
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (A) 		8-98060-388-0 01 1 1208-1308
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (A) 		8-98233-976-0 01 1 1309-
540 16.067 RELAY; WIPER INTERVAL
08.852 (B) 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1208-
770 02.510 RELAY; ENG BRK
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1208-
çizim 288833
236
BalonParca AdiParca NoAdetTipApplied Date
236 02.485 RELAY; FUEL PUMP
08.852 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1208-

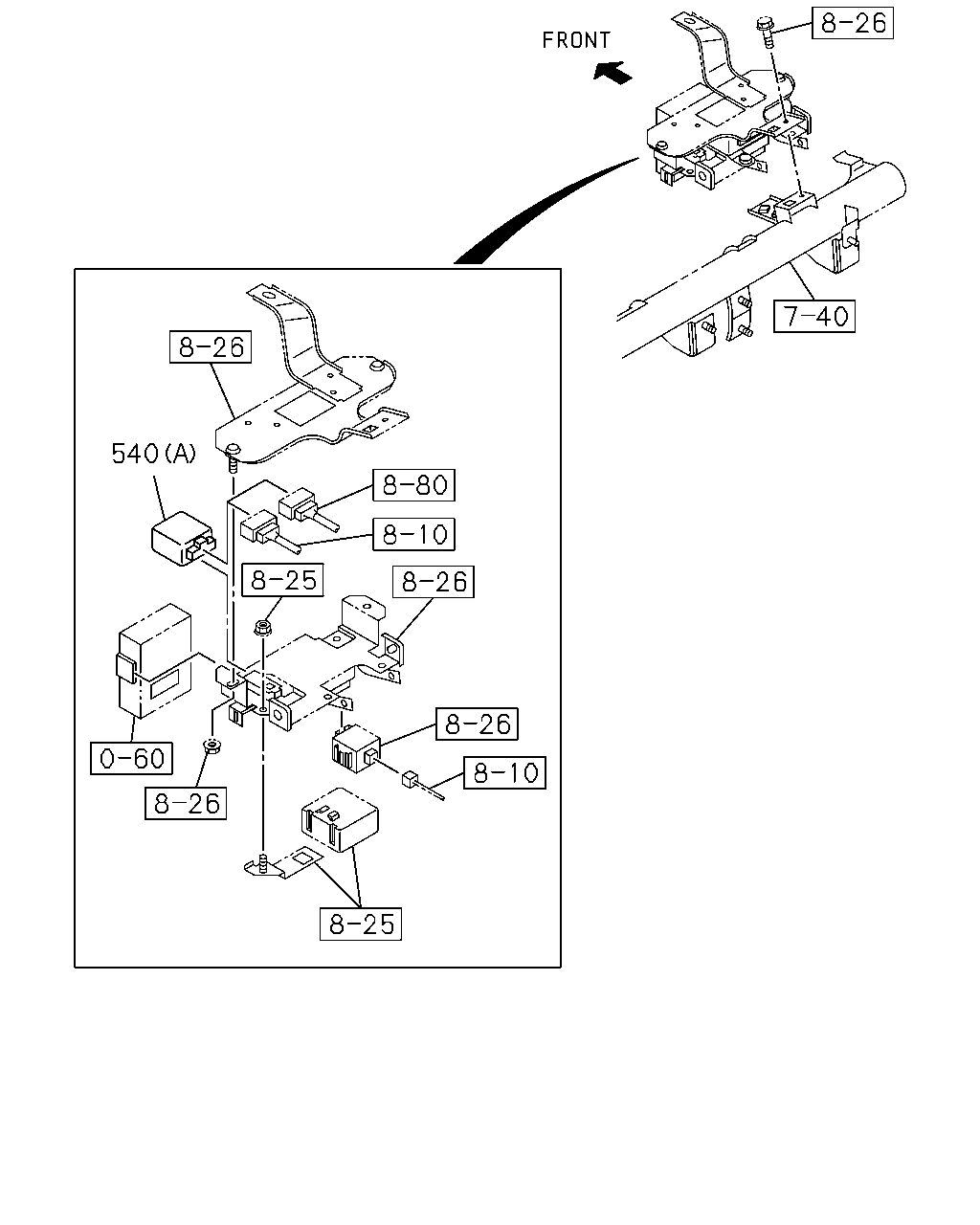

çizim 289745
540
BalonParca AdiParca NoAdetTipApplied Date
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (A) 		8-98060-388-0 01 1 1208-1308
540 16.067 RELAY; WIPER INTERVAL
INTERMITTENT WIPER<C13> (A) 		8-98233-976-0 01 1 1309-
540 16.067 RELAY; WIPER INTERVAL
08.852 (B) 24V 10A PANASONIC IDN 		8-97173-035-1 01 1 1208-
