◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51294 - NQR INDONESIA ▶ 8 - Chassis Electrical, Heating / Air Conditioning, Wipers, Radio ▶ 8-21 - METER ASM ▶
8-21 — METER ASM (#95268) — 11 parça

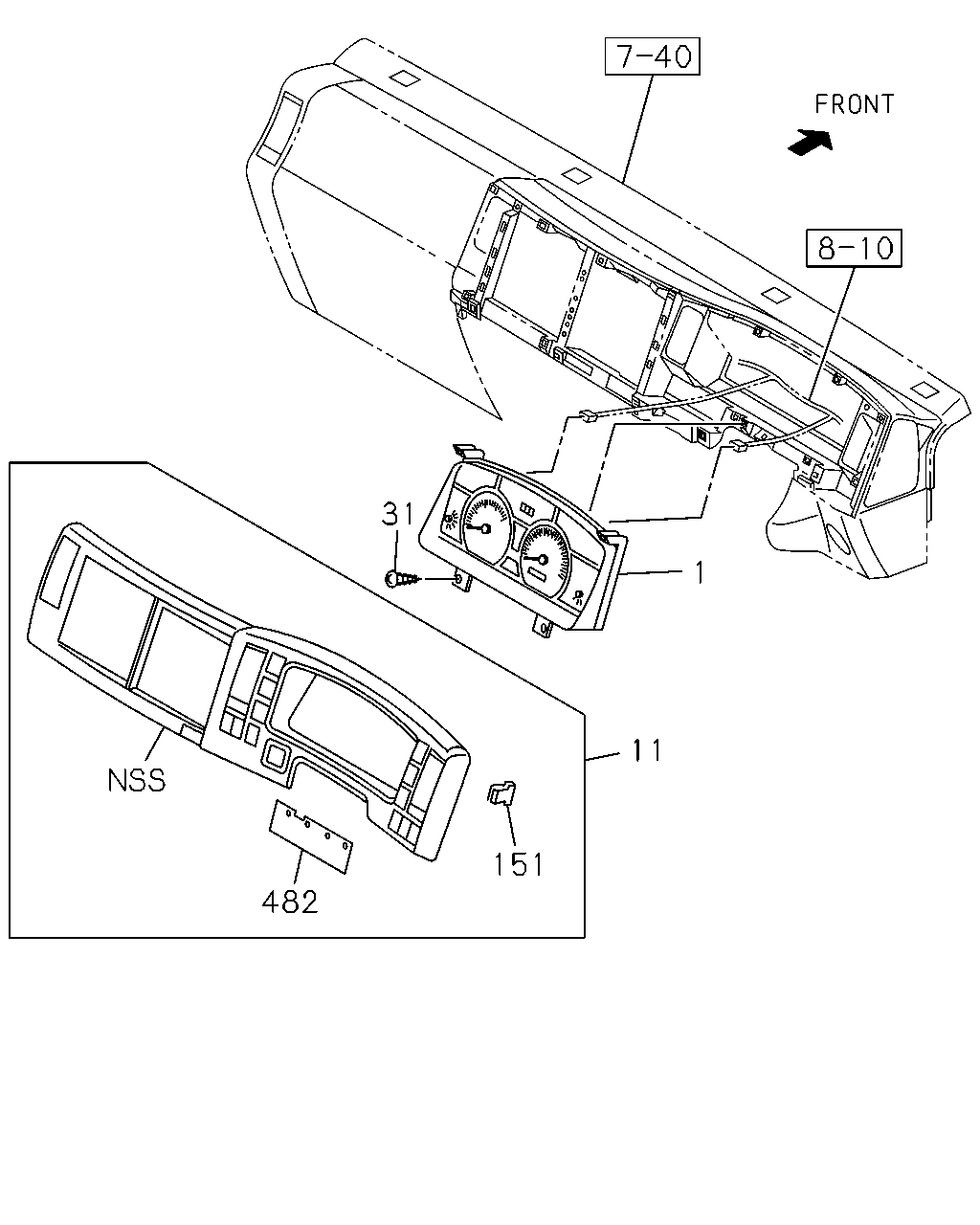

çizim 288789
482 151 31 11 1
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER 8-98168-759-0 01 1 1208-
11 09.743 CLUSTER ASM; METER
DARK GRAY IDN 		8-97405-350-6 01 1 1208-
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1208-1212
31 09.761 SCREW; METER,INST PANEL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
151 09.747 CLIP; METER CLUSTER
16.085 IDN 		8-98021-271-0 13 1 1208-
482 09.772 SEAL; CLUSTER METER
IDN 		8-98116-842-0 01 1 1208-
çizim 288796
1 2 110 81 480
BalonParca AdiParca NoAdetTipApplied Date
1 09.735 METER COMPL; CLUSTER 8-98168-759-0 01 1 1208-
2 09.735 PANEL; CLUSTER 8-98054-432-0 01 1 1208-
81 09.735 METER SUB ASM 8-98176-354-0 01 1 1208-
110 09.748 GLASS; CLUSTER METER 8-98054-431-0 01 1 1208-
480 09.748 COVER; METER
BLACK 		8-98054-433-0 01 1 1208-
