8-15 — FIXING PARTS; WIRING HARNESS (#95267) — 138 parça

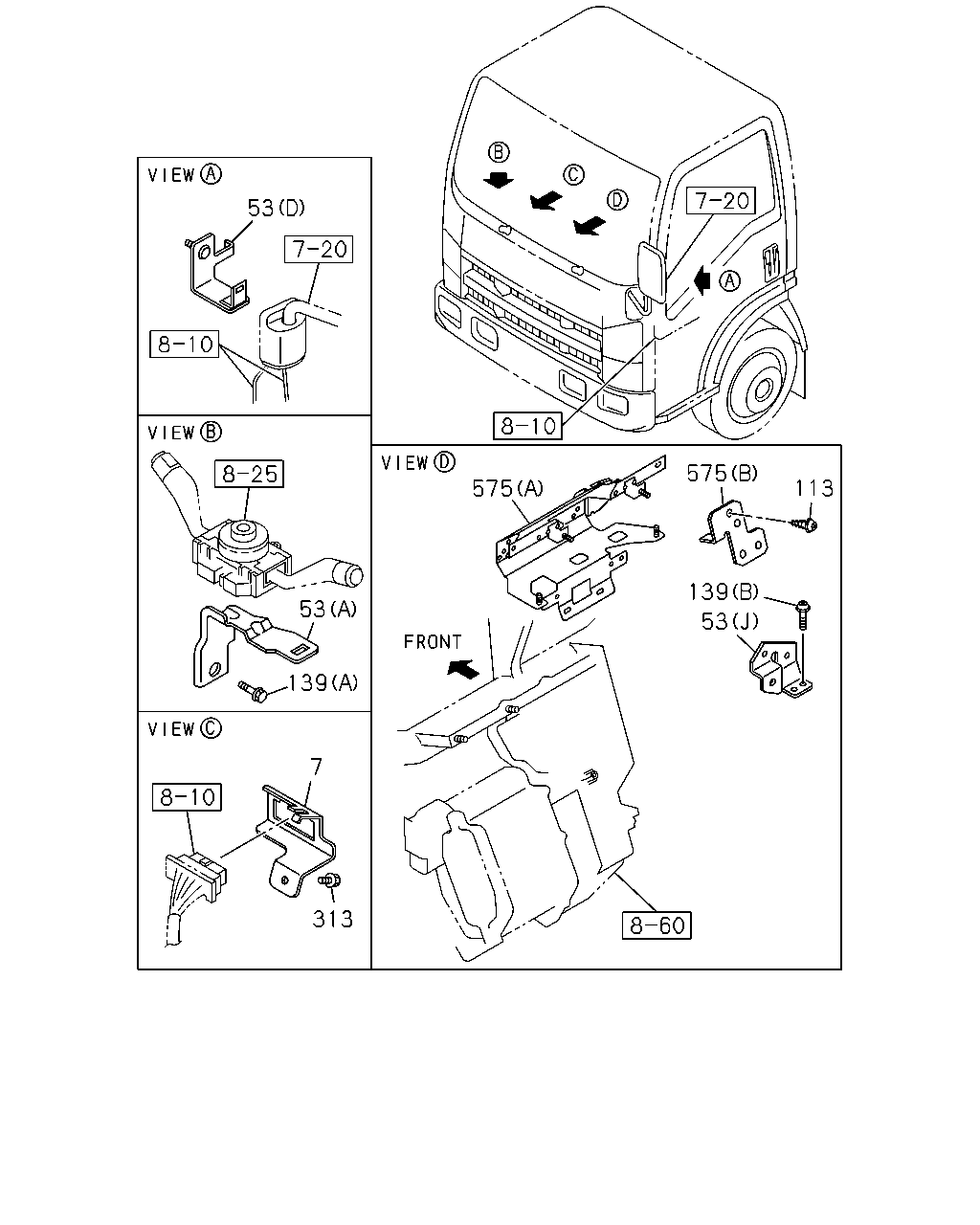

53 53 139 313 575 575 139 53 113 7

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
7	02.559 BRACKET; CONNECTOR	8-98043-070-1	01	1	1208-
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1208-
53	02.483 BRACKET; HARNESS (G) IDN	8-98051-457-0	01	1	1208-
53	02.483 BRACKET; HARNESS (A) IDN	8-98052-458-0	01	1	1208-
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1208-
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	1208-
53	02.483 BRACKET; HARNESS (D)	8-98114-461-2	01	1	1208-
53	02.483 BRACKET; HARNESS (F) IDN	8-98126-454-2	01	1	1208-1405
53	02.483 BRACKET; HARNESS EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (F) IDN	8-98126-454-2	01	1	1406-
53	02.483 BRACKET; HARNESS (I)	8-98130-669-1	01	1	1208-
53	02.483 BRACKET; HARNESS (E)	8-98132-377-0	01	1	1208-
53	02.483 BRACKET; HARNESS (B)	8-98173-558-0	01	1	1208-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J) IDN	8-98084-590-0	01	1	1208-
113	02.483 SCREW; HARNESS CONNECTOR FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> 16.090 M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1509-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1208-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1208-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1208-
575	02.559 BRACKET; FUSE BOX FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> (B)	1-82698-128-2	01	1	1509-
575	02.559 BRACKET; FUSE BOX (A) IDN	8-98173-144-3	01	1	1208-

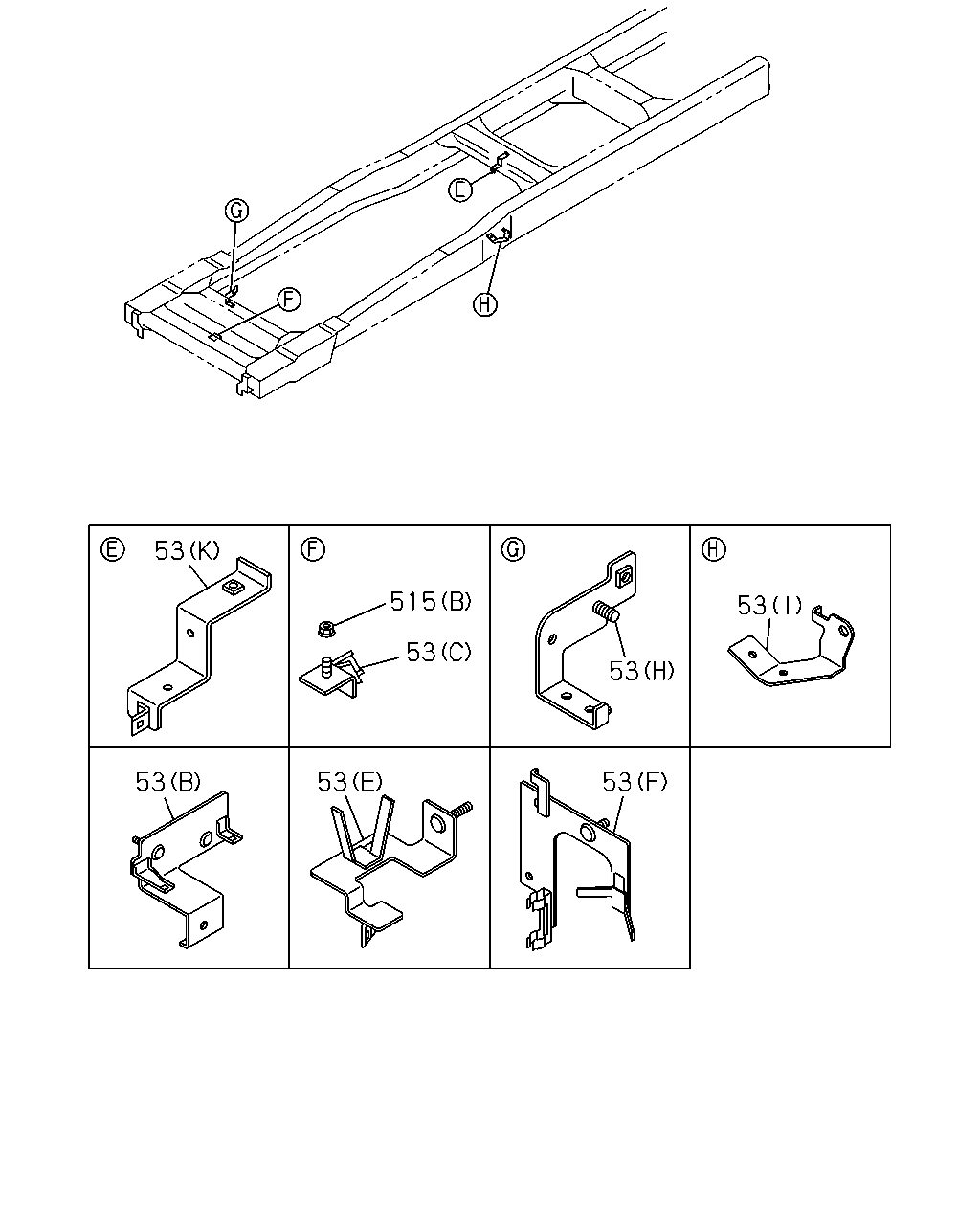

53 515 53 53 53 53 53 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1208-
53	02.483 BRACKET; HARNESS (G) IDN	8-98051-457-0	01	1	1208-
53	02.483 BRACKET; HARNESS (A) IDN	8-98052-458-0	01	1	1208-
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1208-
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	1208-
53	02.483 BRACKET; HARNESS (D)	8-98114-461-2	01	1	1208-
53	02.483 BRACKET; HARNESS (F) IDN	8-98126-454-2	01	1	1208-1405
53	02.483 BRACKET; HARNESS EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (F) IDN	8-98126-454-2	01	1	1406-
53	02.483 BRACKET; HARNESS (I)	8-98130-669-1	01	1	1208-
53	02.483 BRACKET; HARNESS (E)	8-98132-377-0	01	1	1208-
53	02.483 BRACKET; HARNESS (B)	8-98173-558-0	01	1	1208-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J) IDN	8-98084-590-0	01	1	1208-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	1208-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1208-
515	02.559 NUT; BRKT 01.062 (D) M8 FLANGE IDN	0-91180-108-0	02	1	1208-
515	02.559 NUT; BRKT 01.062 (D) M8 FLANGE IDN	0-91180-108-0	02	1	1208-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1208-1405
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1208-1405
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1208-1405
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1406-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1406-
515	02.559 NUT; BRKT EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1406-

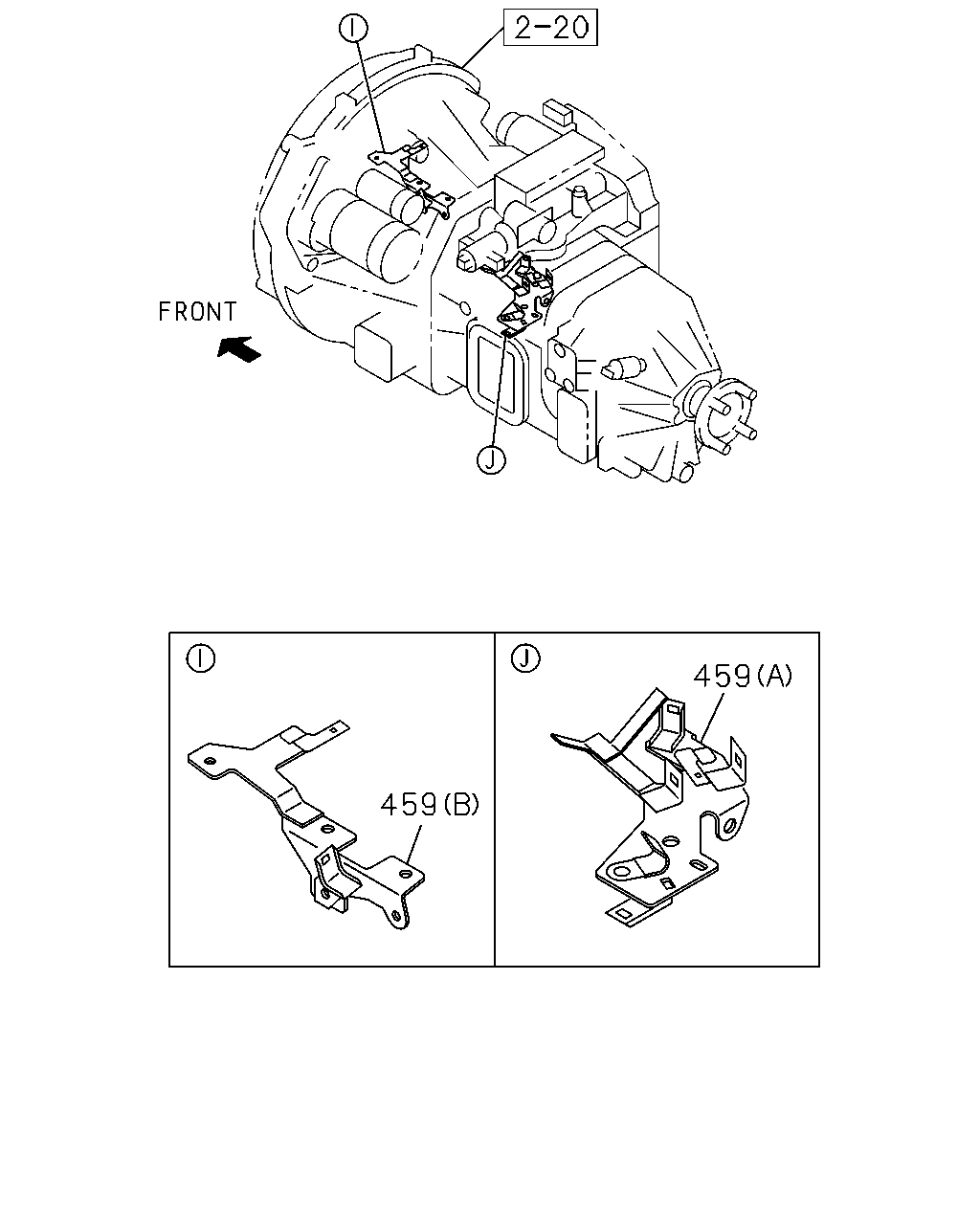

459 459

	Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
	459	02.483 BRACKET; SUPPORT,HARNESS (B)	8-98123-282-0	01	1	1208-
	459	02.483 BRACKET; SUPPORT,HARNESS (A)	8-98123-286-1	01	1	1208-

515 53

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
53	02.483 BRACKET; HARNESS (C)	8-98018-900-2	01	1	1208-
53	02.483 BRACKET; HARNESS (G) IDN	8-98051-457-0	01	1	1208-
53	02.483 BRACKET; HARNESS (A) IDN	8-98052-458-0	01	1	1208-
53	02.483 BRACKET; HARNESS (H)	8-98077-503-1	01	1	1208-
53	02.483 BRACKET; HARNESS (K)	8-98077-504-0	01	1	1208-
53	02.483 BRACKET; HARNESS (D)	8-98114-461-2	01	1	1208-
53	02.483 BRACKET; HARNESS (F) IDN	8-98126-454-2	01	1	1208-1405
53	02.483 BRACKET; HARNESS EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> (F) IDN	8-98126-454-2	01	1	1406-
53	02.483 BRACKET; HARNESS (I)	8-98130-669-1	01	1	1208-
53	02.483 BRACKET; HARNESS (E)	8-98132-377-0	01	1	1208-
53	02.483 BRACKET; HARNESS (B)	8-98173-558-0	01	1	1208-
53	02.483 BRACKET; HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (J) IDN	8-98084-590-0	01	1	1208-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	1208-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1208-
515	02.559 NUT; BRKT 01.062 (D) M8 FLANGE IDN	0-91180-108-0	02	1	1208-
515	02.559 NUT; BRKT 01.062 (D) M8 FLANGE IDN	0-91180-108-0	02	1	1208-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1208-1405
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1208-1405
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1208-1405
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1406-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1406-
515	02.559 NUT; BRKT EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1406-

16 16 513 16 530 16

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (H) L=140 IDN	5-09707-031-1	01	1	1401-
16	02.559 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) (E) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1208-1307
16	02.559 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (E) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1308-
16	02.559 CLIP; HARNESS (G) L=250 IDN	5-09707-030-1	01	1	1208-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16 IDN	8-94413-325-0	01	1	1208-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1208-
16	02.559 CLIP; HARNESS (A) L=155 IDN	8-97173-307-0	14	1	1208-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1208-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1208-
513	02.559 TAPE; SOFT,HARNESS EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 130X80 IDN	8-97304-373-0	01	1	1208-
530	02.559 SEAL; HARNESS 16.545 OD=32 BLACK	8-98031-126-0	01	1	1208-

38 313 139 480 529 480 377 377 386 386 577 24 294 515 577 515 515 552 515 552 516 139

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
24	02.559 NUT; HARNESS 01.062 M6 FLANGE IDN	0-91180-106-0	01	1	1208-1409
24	02.559 NUT; HARNESS M6 FLANGE STAINLESS IDN	8-98297-112-0	01	1	1410-
38	02.559 BOLT; CLIP,HARNESS AIR CONDITIONER MANUAL CONT(C60) 09.216 M6X12 FLANGE	0-28250-612-0	02	1	1208-1307
38	02.559 BOLT; CLIP,HARNESS AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.216 M6X12 FLANGE	0-28250-612-0	02	1	1308-
139	02.559 BOLT; BRKT 02.343 (A) M8X12 FLANGE	0-28050-812-0	01	1	1208-
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET	8-98177-744-0	01	1	1208-1212
139	02.559 BOLT; BRKT EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR	0-72180-516-0	01	1	1301-
294	02.559 NUT 02.343 M6 W/LK WASHER	8-94424-179-0	01	1	1208-
313	02.559 BOLT; BRKT 09.171 M6X16 FLANGE	0-28450-616-0	01	1	1208-
377	02.559 BOLT; CAB EARTH 02.343 (B) M8X18.5 W/PL WASHER IDN	8-98141-255-0	03	1	1208-
377	02.559 BOLT; CAB EARTH (A) M6X14 W/PL WASHER IDN	8-98164-836-0	01	1	1208-
386	02.559 BOLT; GRAND HARNESS 02.343 (A) M8X18.5 W/PL WASHER IDN	8-98141-255-0	01	1	1208-
386	02.559 BOLT; GRAND HARNESS 02.343 (B) M8X24 W/PL WASHER	8-98141-256-1	01	1	1208-
480	02.483 BOLT; BRKT 06.216 (A) M8X25 FLANGE IDN	0-28650-825-0	01	1	1208-
480	02.483 BOLT; BRKT 00.029 (B) M10X30 FLANGE	0-28651-030-0	01	1	1208-
515	02.559 NUT; BRKT 01.062 (A) M6 FLANGE IDN	0-91180-106-0	01	1	1208-
515	02.559 NUT; BRKT (B) M8 FLANGE	8-98040-024-0	01	1	1208-
515	02.559 NUT; BRKT 01.062 (D) M8 FLANGE IDN	0-91180-108-0	02	1	1208-
515	02.559 NUT; BRKT 01.062 (D) M8 FLANGE IDN	0-91180-108-0	02	1	1208-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1208-1405
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1208-1405
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1208-1405
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1406-
515	02.559 NUT; BRKT 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1406-
515	02.559 NUT; BRKT EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> 03.162 (C) M10 FLANGE IDN	0-91180-110-0	01	1	1406-
516	02.559 BOLT; HARNESS 09.650 M5X7 HEXALOBULAR SOCKET IDN	8-98063-767-0	01	1	1208-
529	02.559 BOLT; RELAY BOX 06.216 M8X25 FLANGE IDN	0-28650-825-0	03	1	1208-
552	02.483 NUT; BRKT,HARNESS 01.062 (A) M8 FLANGE IDN	0-91180-108-0	02	1	1208-
552	02.483 NUT; BRKT,HARNESS 03.162 (B) M10 FLANGE IDN	0-91180-110-0	01	1	1208-
577	02.559 NUT; FUSE BOX 01.062 (A) M6 FLANGE IDN	0-91180-106-0	02	1	1208-
577	02.559 NUT; FUSE BOX 09.744 (B) M5 FLANGE IDN	5-09440-003-0	04	1	1208-

16 48 48 483 16 16 16 22

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
16	02.559 CLIP; HARNESS COOLER WO/HEATER(C65) 03.162 (H) L=140 IDN	5-09707-031-1	01	1	1401-
16	02.559 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60) (E) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1208-1307
16	02.559 CLIP; HARNESS AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (E) ID=12 B=13 ID=6.5	5-09700-348-0	02	1	1308-
16	02.559 CLIP; HARNESS (G) L=250 IDN	5-09707-030-1	01	1	1208-
16	02.559 CLIP; HARNESS 02.343 (D) ID=10 & 16 IDN	8-94413-325-0	01	1	1208-
16	02.559 CLIP; HARNESS 02.694 (B) ID=6 & 10-13	8-97069-515-0	02	1	1208-
16	02.559 CLIP; HARNESS (A) L=155 IDN	8-97173-307-0	14	1	1208-
16	02.559 CLIP; HARNESS (C) L=40.6	8-97229-357-0	02	1	1208-
16	02.559 CLIP; HARNESS (F)	8-98052-679-0	02	1	1208-
22	02.559 CLIP; ENG HARNESS L=170.3	1-09987-182-0	01	1	1208-
48	02.559 CLIP; FRAME HARNESS 03.483 (B) L=450	1-09707-142-1	01	1	1208-1308
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47 IDN	5-09700-319-0	03	1	1208-
48	02.559 CLIP; FRAME HARNESS 01.240 (A) ID=14 L=47 IDN	5-09700-319-0	04	1	1208-
483	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> VIN MODEL YEAR 2015<VZF> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140 IDN	5-09707-031-1	03	1	1410-1410
483	02.559 CLIP; ENG HARNESS VIN MODEL YEAR 2015<VZF> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 L=140 IDN	5-09707-031-1	03	1	1410-1410
483	02.559 CLIP; ENG HARNESS FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.162 L=140 IDN	5-09707-031-1	03	1	1410-1410
483	02.559 CLIP; ENG HARNESS VIN MODEL YEAR 2015<VZF> GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140 IDN	5-09707-031-1	03	1	1411-
483	02.559 CLIP; ENG HARNESS VIN MODEL YEAR 2015<VZF> GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), BIO DIESEL FUEL B10<8NV> 03.162 L=140 IDN	5-09707-031-1	03	1	1411-
483	02.559 CLIP; ENG HARNESS HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 03.162 L=140 IDN	5-09707-031-1	03	1	1411-
483	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> VIN MODEL YEAR 2015<VZF> EXC. HIGH ALTITUDE COMPENSATOR(EE2) 03.162 L=140 IDN	5-09707-031-1	03	1	1411-
483	02.559 CLIP; ENG HARNESS FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65) 03.162 L=140 IDN	5-09707-031-1	03	1	1411-
483	02.559 CLIP; ENG HARNESS 03.162 L=140 IDN	5-09707-031-1	01	1	1208-1409
483	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 03.162 L=140 IDN	5-09707-031-1	01	1	1410-1410
483	02.559 CLIP; ENG HARNESS GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), VIN MODEL YEAR 2015<VZF> 03.162 L=140 IDN	5-09707-031-1	01	1	1410-1410
483	02.559 CLIP; ENG HARNESS FAST GLOW SYSTEM<KM6> EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),VIN MODEL YEAR 2015<VZF> 03.162 L=140 IDN	5-09707-031-1	01	1	1410-1410
483	02.559 CLIP; ENG HARNESS GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 03.162 L=140 IDN	5-09707-031-1	01	1	1411-
483	02.559 CLIP; ENG HARNESS HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 03.162 L=140 IDN	5-09707-031-1	01	1	1411-
483	02.559 CLIP; ENG HARNESS FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 03.162 L=140 IDN	5-09707-031-1	01	1	1411-
483	02.559 CLIP; ENG HARNESS AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 03.162 L=140 IDN	5-09707-031-1	01	1	1411-
483	02.559 CLIP; ENG HARNESS FAST GLOW SYSTEM<KM6> BIO DIESEL FUEL B10<8NV> EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),VIN MODEL YEAR 2015<VZF> 03.162 L=140 IDN	5-09707-031-1	01	1	1411-
