8-10 — WIRING HARNESS AND FUSE (#95266) — 87 parça

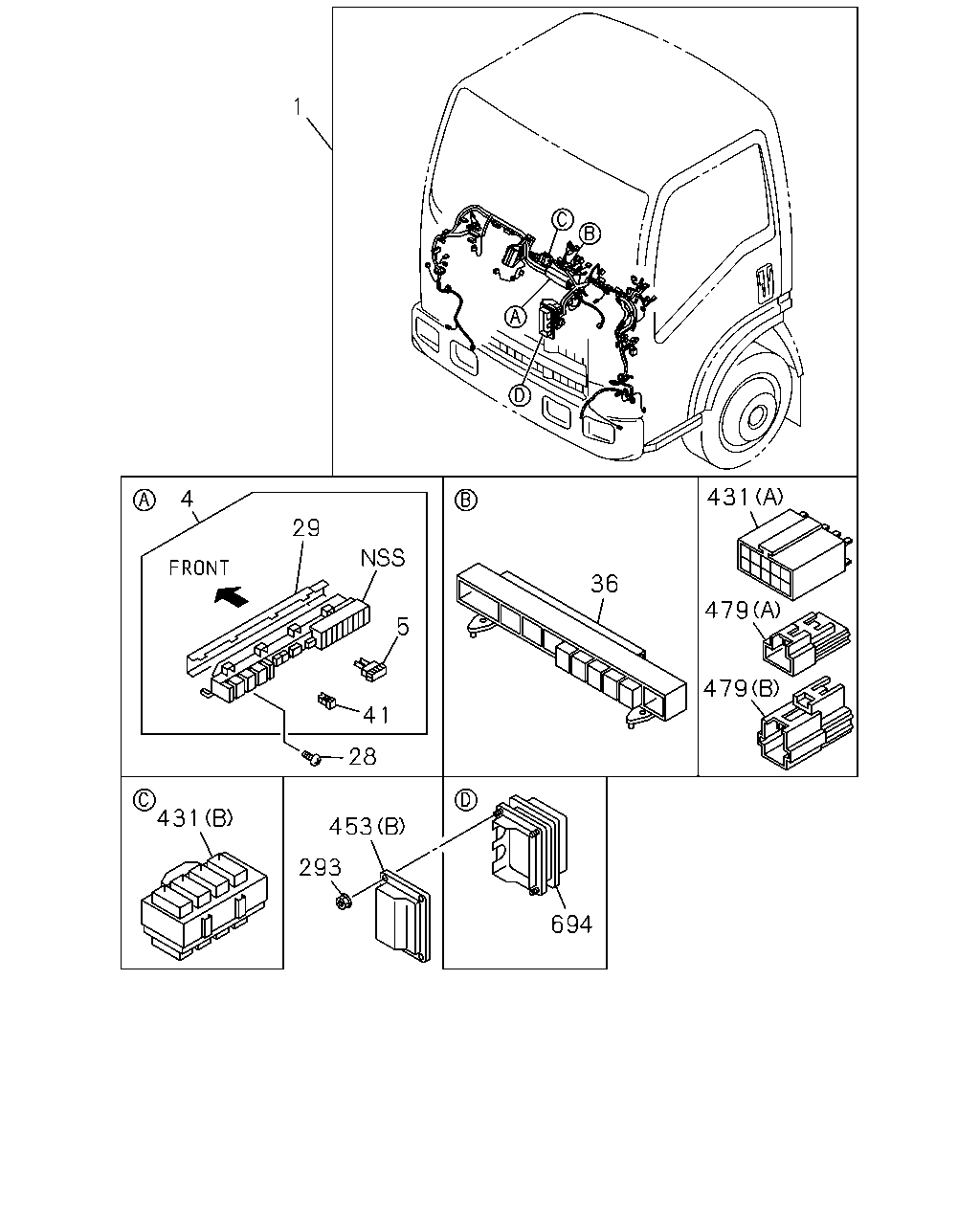

çizim 288748
1 4 29 5 41 28 431 453 293 694 36 431 479 479
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
INTERMITTENT WIPER<C13> VIN MODEL YEAR 2015<VZF> EXC. FAST GLOW SYSTEM<KM6> 		8-98291-055-0 01 1 1509-
1 02.480 HARNESS; CAB
FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> 		8-98172-115-2 01 1 1509-
1 02.480 HARNESS; CAB
VIN MODEL YEAR 2015<VZF> EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6> 		8-98298-782-0 01 1 1509-
1 02.480 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-118-2 01 1 1208-1508
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER WINDOW FRT DOOR<A32>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-118-2 01 1 1208-1508
1 02.480 HARNESS; CAB
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-118-2 01 1 1208-1508
1 02.480 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> EXC. VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-118-2 01 1 1509-
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER WINDOW FRT DOOR<A32>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-118-2 01 1 1509-
1 02.480 HARNESS; CAB
FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2015<VZF> 		8-98172-118-2 01 1 1509-
1 02.480 HARNESS; CAB
EXC. POWER WINDOW FRT DOOR<A32>,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FUEL SEDIMENTER WITH HEATER<6HU> IDN 		8-98172-117-2 01 1 1208-1508
1 02.480 HARNESS; CAB
EXC. POWER WINDOW FRT DOOR<A32>,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU> IDN 		8-98172-117-2 01 1 1509-
4 02.483 BOX ASM; FUSE,HARNESS
IDN 		8-97187-921-1 01 1 1208-
5 02.485 FUSE; FACIA HARNESS
08.965 10A MINI RED IDN 		8-97062-022-0 AR 1 1208-
5 02.485 FUSE; FACIA HARNESS
08.965 15A MINI BLUE IDN 		8-97062-023-0 AR 1 1208-
5 02.485 FUSE; FACIA HARNESS
08.965 20A MINI YELLOW IDN 		8-97062-024-0 AR 1 1509-
5 02.485 FUSE; FACIA HARNESS
08.965 25A MINI CLEAR IDN 		8-97062-025-0 AR 1 1208-
28 02.483 SCREW; FUSE BOX
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1208-1212
28 02.483 SCREW; FUSE BOX
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
29 02.483 COVER; FUSE BOX
IDN 		8-97074-955-0 01 1 1208-
36 02.530 BOX; RELAY
IDN 		8-97187-918-1 01 1 1208-
41 08.821 PULLER; FUSE
IDN 		8-97103-388-0 01 1 1208-
293 02.559 NUT
01.062 M6 FLANGE IDN 		0-91180-106-0 04 1 1208-
431 02.530 CONNECTOR; JOINT
(A) 10P IDN 		8-97077-943-0 02 1 1208-
431 02.530 CONNECTOR; JOINT
(B) IDN 		8-98046-206-0 01 1 1208-
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 03 1 1208-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98034-039-1 01 1 1208-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (A) IDN 		8-98108-678-0 01 1 1208-
479 02.530 CAP; CONNECTOR
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (B) IDN 		8-98108-679-0 01 1 1208-
694 02.483 BOX ASM; CONNECTOR
IDN 		8-98057-772-0 01 1 1208-

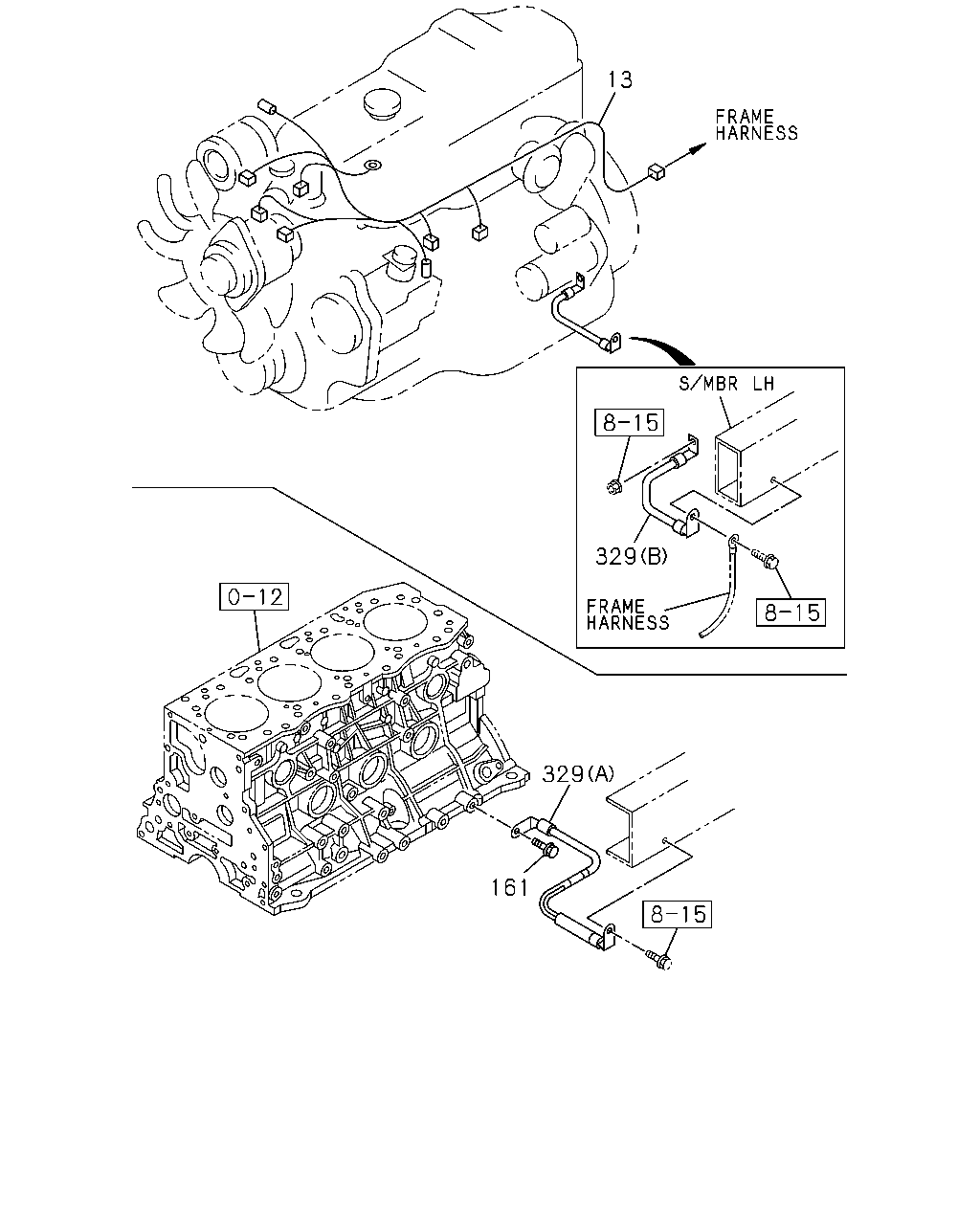

çizim 288752
161 329 329 13
BalonParca AdiParca NoAdetTipApplied Date
13 02.525 HARNESS; ENG
VIN MODEL YEAR 2015<VZF> 		8-97356-988-1 01 1 1407-1410
13 02.525 HARNESS; ENG
VIN MODEL YEAR 2015<VZF> 		8-98298-790-0 01 1 1411-
13 02.525 HARNESS; ENG 8-97360-767-1 01 1 1208-1406
13 02.525 HARNESS; ENG
EXC. VIN MODEL YEAR 2015<VZF> 		8-97360-767-1 01 1 1407-1410
13 02.525 HARNESS; ENG
GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 		8-97360-767-1 01 1 1411-
13 02.525 HARNESS; ENG
HEATER & DEFROSTER(C41) FAST GLOW SYSTEM<KM6> EXC. VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 		8-97360-767-1 01 1 1411-
13 02.525 HARNESS; ENG
FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), VIN MODEL YEAR 2015<VZF>,BIO DIESEL FUEL B10<8NV> 		8-97360-767-1 01 1 1411-
13 02.525 HARNESS; ENG
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) FAST GLOW SYSTEM<KM6>,GLOW SYSTEM DELETE<7RK> EXC. HIGH ALTITUDE COMPENSATOR(EE2),VIN MODEL YEAR 2015<VZF> 		8-97360-767-1 01 1 1411-
13 02.525 HARNESS; ENG
FAST GLOW SYSTEM<KM6> BIO DIESEL FUEL B10<8NV> EXC. AIR CONDITIONER MANUAL CONT(C60), COOLER WO/HEATER(C65),VIN MODEL YEAR 2015<VZF> 		8-97360-767-1 01 1 1411-
161 02.559 BOLT; GROUND,HARNESS
02.343 M8X16 FLANGE 		0-28050-816-0 01 1 1208-
329 02.480 CABLE; ENG TO FRAME
VIN MODEL YEAR 2015<VZF> (B) 		8-97520-927-0 01 1 1506-
329 02.480 CABLE; ENG TO FRAME
VIN MODEL YEAR 2015<VZF> (B) 		8-97177-383-0 01 1 1407-1505
329 02.480 CABLE; ENG TO FRAME
HIGH ALTITUDE COMPENSATOR(EE2) GLOW SYSTEM DELETE<7RK> BIO DIESEL FUEL B10<8NV> EXC. HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65), VIN MODEL YEAR 2015<VZF> (B) 		8-97177-383-0 01 1 1506-
329 02.480 CABLE; ENG TO FRAME
(A) 		8-98123-064-0 01 1 1208-

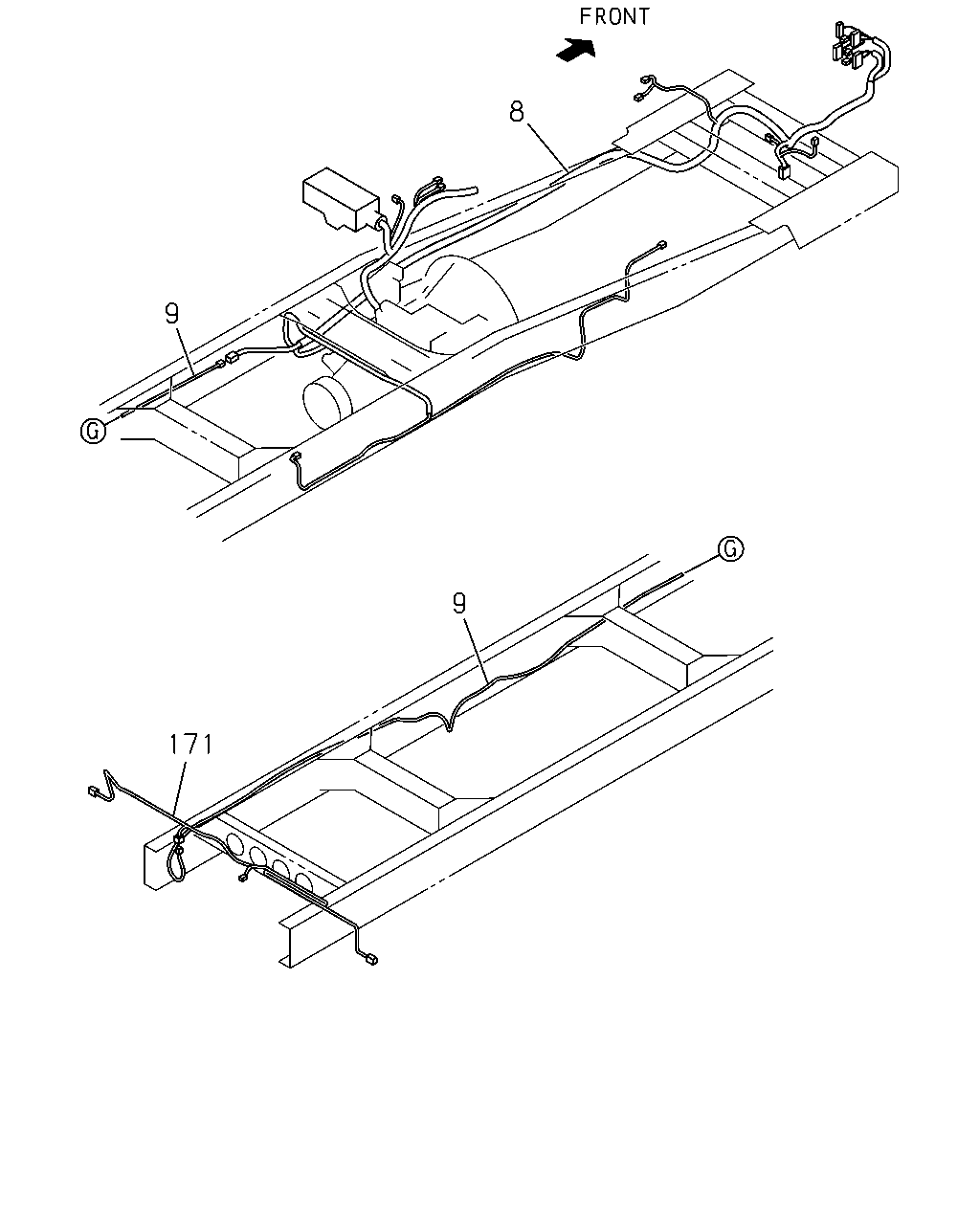

çizim 288761
8 9 9 171
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
VIN MODEL YEAR 2014<VZE> IDN 		8-98281-170-0 01 1 1406-1409
8 02.480 HARNESS; FRAME,FRT
VIN MODEL YEAR 2014<VZE> IDN 		8-98294-416-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
VIN MODEL YEAR 2015<VZF> IDN 		8-98281-171-0 01 1 1406-1409
8 02.480 HARNESS; FRAME,FRT
VIN MODEL YEAR 2015<VZF> IDN 		8-98294-417-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
IDN 		8-98199-734-1 01 1 1208-1405
8 02.480 HARNESS; FRAME,FRT
EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> IDN 		8-98199-734-1 01 1 1406-1409
8 02.480 HARNESS; FRAME,FRT
EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> IDN 		8-98294-411-0 01 1 1410-
9 02.480 HARNESS; FRAME,RR
IDN 		8-98173-517-0 01 1 1208-
171 02.596 HARNESS; CABLE,TAIL LAMP
IDN 		8-98156-028-0 01 1 1208-

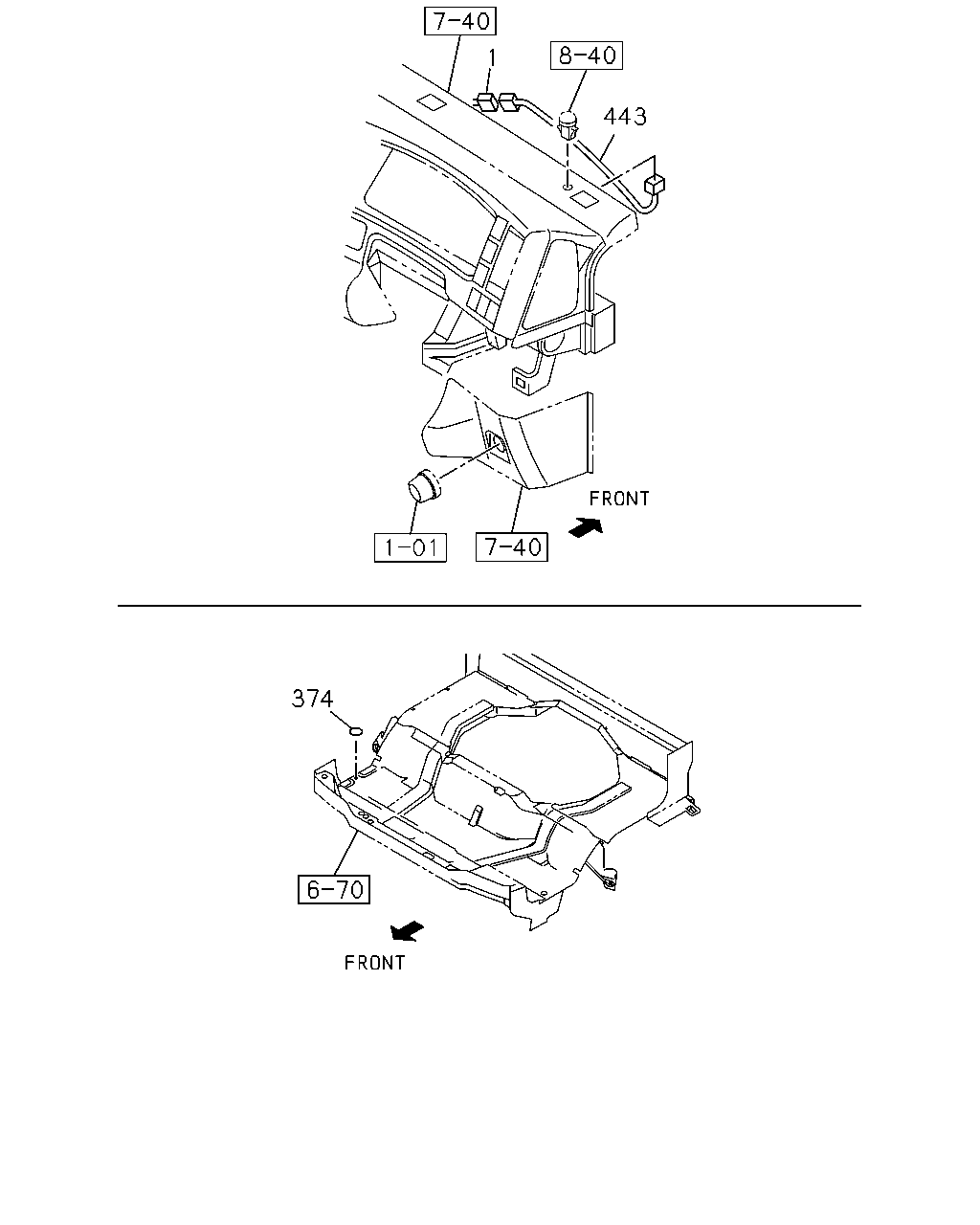

çizim 288762
1 443 374
BalonParca AdiParca NoAdetTipApplied Date
1 02.480 HARNESS; CAB
INTERMITTENT WIPER<C13> VIN MODEL YEAR 2015<VZF> EXC. FAST GLOW SYSTEM<KM6> 		8-98291-055-0 01 1 1509-
1 02.480 HARNESS; CAB
FAST GLOW SYSTEM<KM6> VIN MODEL YEAR 2015<VZF> 		8-98172-115-2 01 1 1509-
1 02.480 HARNESS; CAB
VIN MODEL YEAR 2015<VZF> EXC. INTERMITTENT WIPER<C13>,FAST GLOW SYSTEM<KM6> 		8-98298-782-0 01 1 1509-
1 02.480 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> EXC. FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-118-2 01 1 1208-1508
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER WINDOW FRT DOOR<A32>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-118-2 01 1 1208-1508
1 02.480 HARNESS; CAB
FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-118-2 01 1 1208-1508
1 02.480 HARNESS; CAB
POWER WINDOW FRT DOOR<A32> EXC. VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-118-2 01 1 1509-
1 02.480 HARNESS; CAB
AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) EXC. POWER WINDOW FRT DOOR<A32>,VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU> 		8-98172-118-2 01 1 1509-
1 02.480 HARNESS; CAB
FUEL SEDIMENTER WITH HEATER<6HU> EXC. VIN MODEL YEAR 2015<VZF> 		8-98172-118-2 01 1 1509-
1 02.480 HARNESS; CAB
EXC. POWER WINDOW FRT DOOR<A32>,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),FUEL SEDIMENTER WITH HEATER<6HU> IDN 		8-98172-117-2 01 1 1208-1508
1 02.480 HARNESS; CAB
EXC. POWER WINDOW FRT DOOR<A32>,AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65),VIN MODEL YEAR 2015<VZF>,FUEL SEDIMENTER WITH HEATER<6HU> IDN 		8-98172-117-2 01 1 1509-
374 02.530 PLUG; HARNESS CONNECTOR
16.545 OD=32 BLACK 		8-98031-126-0 01 1 1208-
443 02.480 HARNESS; EXT,A/C
COOLER WO/HEATER(C65) 		8-98103-712-0 01 1 1208-

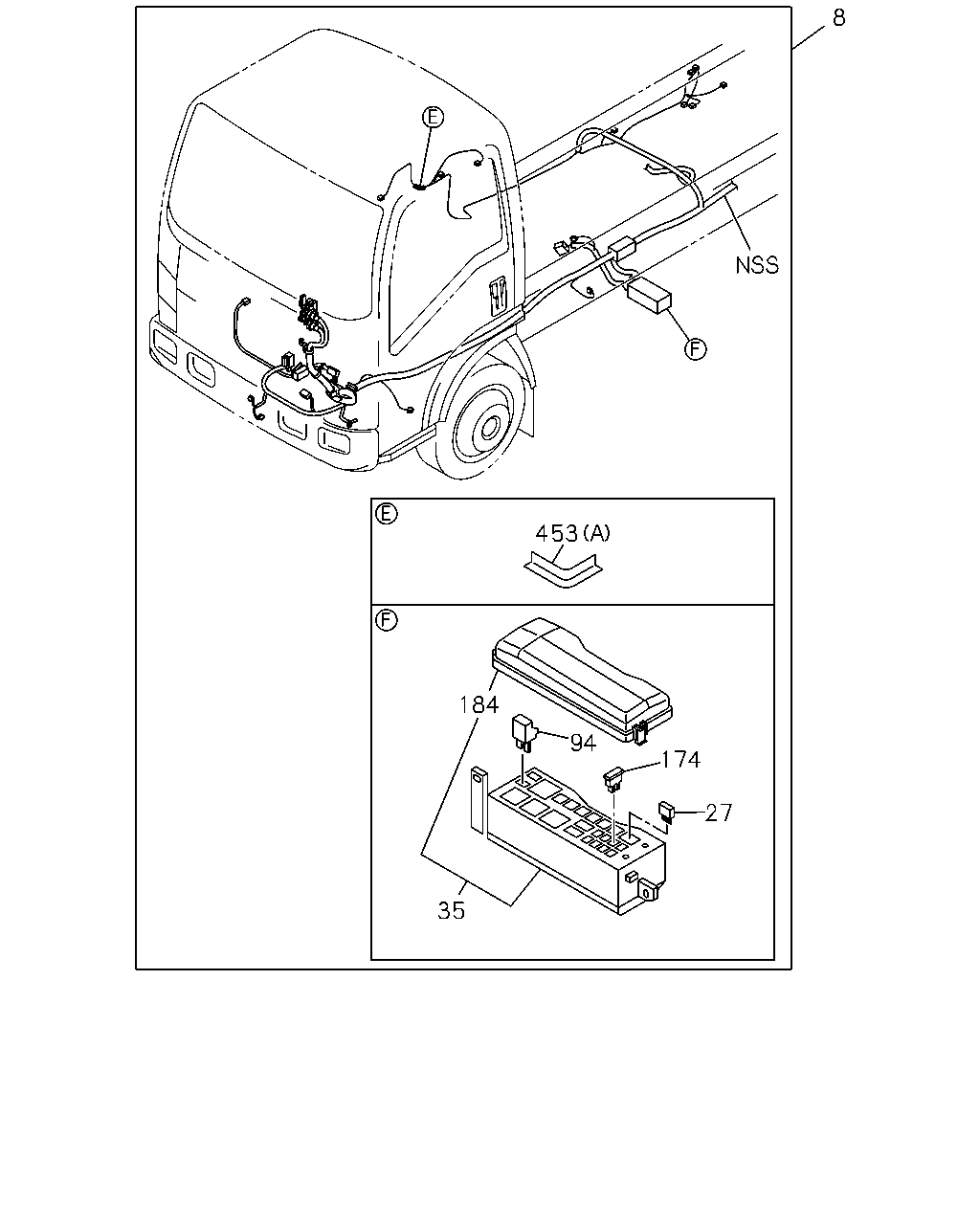

çizim 289739
8 453 184 94 174 27 35
BalonParca AdiParca NoAdetTipApplied Date
8 02.480 HARNESS; FRAME,FRT
VIN MODEL YEAR 2014<VZE> IDN 		8-98281-170-0 01 1 1406-1409
8 02.480 HARNESS; FRAME,FRT
VIN MODEL YEAR 2014<VZE> IDN 		8-98294-416-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
VIN MODEL YEAR 2015<VZF> IDN 		8-98281-171-0 01 1 1406-1409
8 02.480 HARNESS; FRAME,FRT
VIN MODEL YEAR 2015<VZF> IDN 		8-98294-417-0 01 1 1410-
8 02.480 HARNESS; FRAME,FRT
IDN 		8-98199-734-1 01 1 1208-1405
8 02.480 HARNESS; FRAME,FRT
EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> IDN 		8-98199-734-1 01 1 1406-1409
8 02.480 HARNESS; FRAME,FRT
EXC. VIN MODEL YEAR 2014<VZE>,VIN MODEL YEAR 2015<VZF> IDN 		8-98294-411-0 01 1 1410-
27 08.965 FUSE UNIT
10A MINI RED IDN 		8-97062-022-0 AR 1 1208-
35 02.530 BOX; RELAY & FUSE
IDN 		8-98173-937-0 01 1 1208-
94 02.483 DIODE; FRAME HARNESS
BLACK 2P-1.5A IDN 		8-94422-639-1 AR 1 1208-
174 08.965 FUSE; SLOW BLOW
30A PINK IDN 		8-97183-643-0 AR 1 1208-
174 08.965 FUSE; SLOW BLOW
40A GREEN IDN 		8-97183-644-0 AR 1 1208-
174 08.965 FUSE; SLOW BLOW
60A YELLOW IDN 		8-97219-407-0 AR 1 1208-
184 02.559 COVER; RELAY & FUSE BOX
IDN 		8-98179-321-0 01 1 1208-
453 02.483 PROTECTOR; HARNESS
(A) IDN 		8-94417-716-0 03 1 1208-
453 02.483 PROTECTOR; HARNESS
(B) 		8-98034-039-1 01 1 1208-

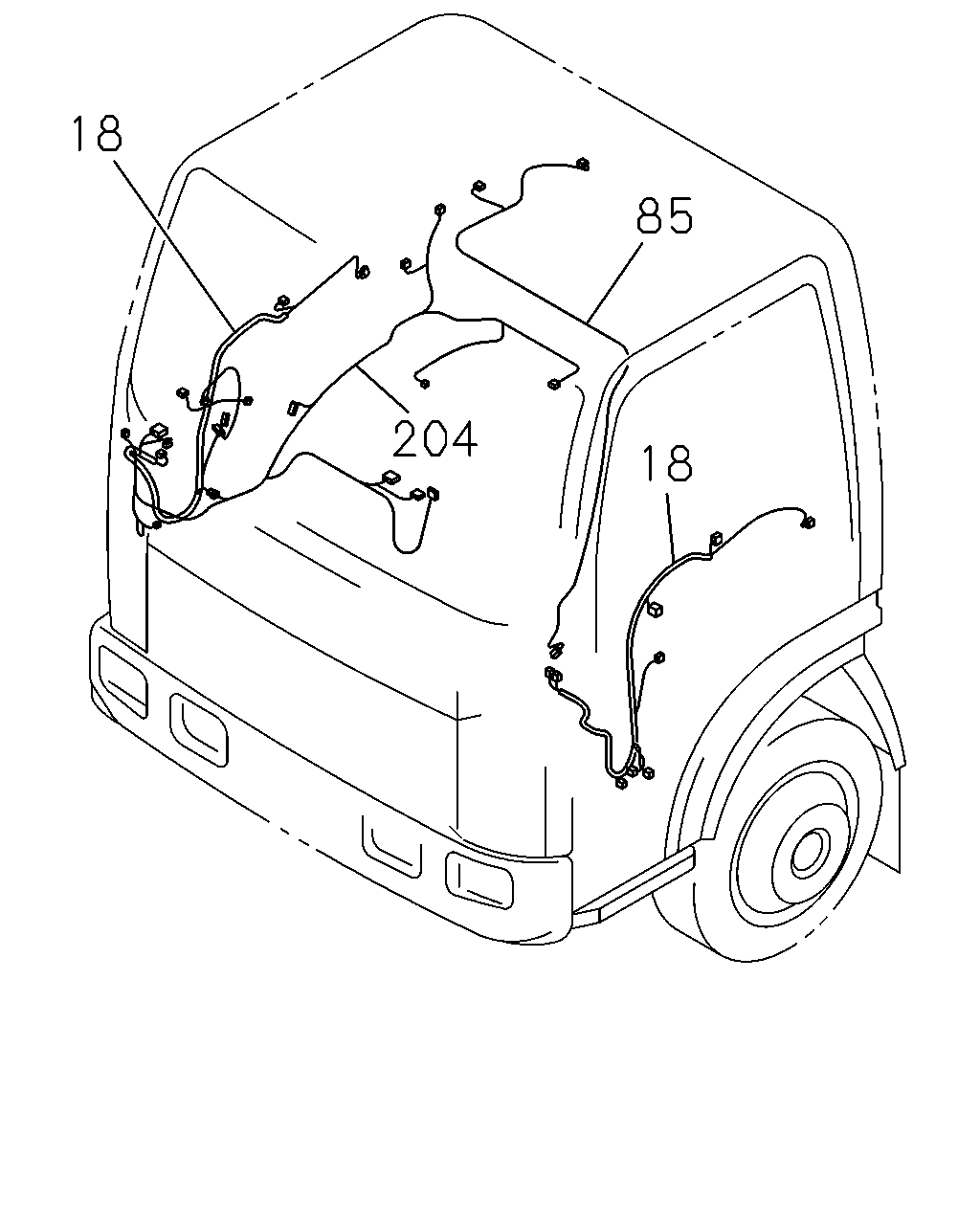

çizim 289760
204 18 85 18
BalonParca AdiParca NoAdetTipApplied Date
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98071-076-2 01 1 1208-
18 02.480 HARNESS; DOOR
POWER WINDOW FRT DOOR<A32> 		8-98071-084-3 01 1 1208-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> IDN 		8-98071-075-2 01 1 1208-
18 02.480 HARNESS; DOOR
EXC. POWER WINDOW FRT DOOR<A32> IDN 		8-98071-083-2 01 1 1208-
85 06.495 HARNESS; ROOM LAMP
IDN 		8-98047-149-3 01 1 1208-
204 02.559 HARNESS; CABLE,FLOOR
IDN 		8-98070-787-4 01 1 1208-
