Isuzu WW
▶
TRUCKS
▶
NQR
▶
51294 - NQR INDONESIA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-60 - SEAT BELT
▶
7-60 — SEAT BELT
(#95262) — 17 parça
◀

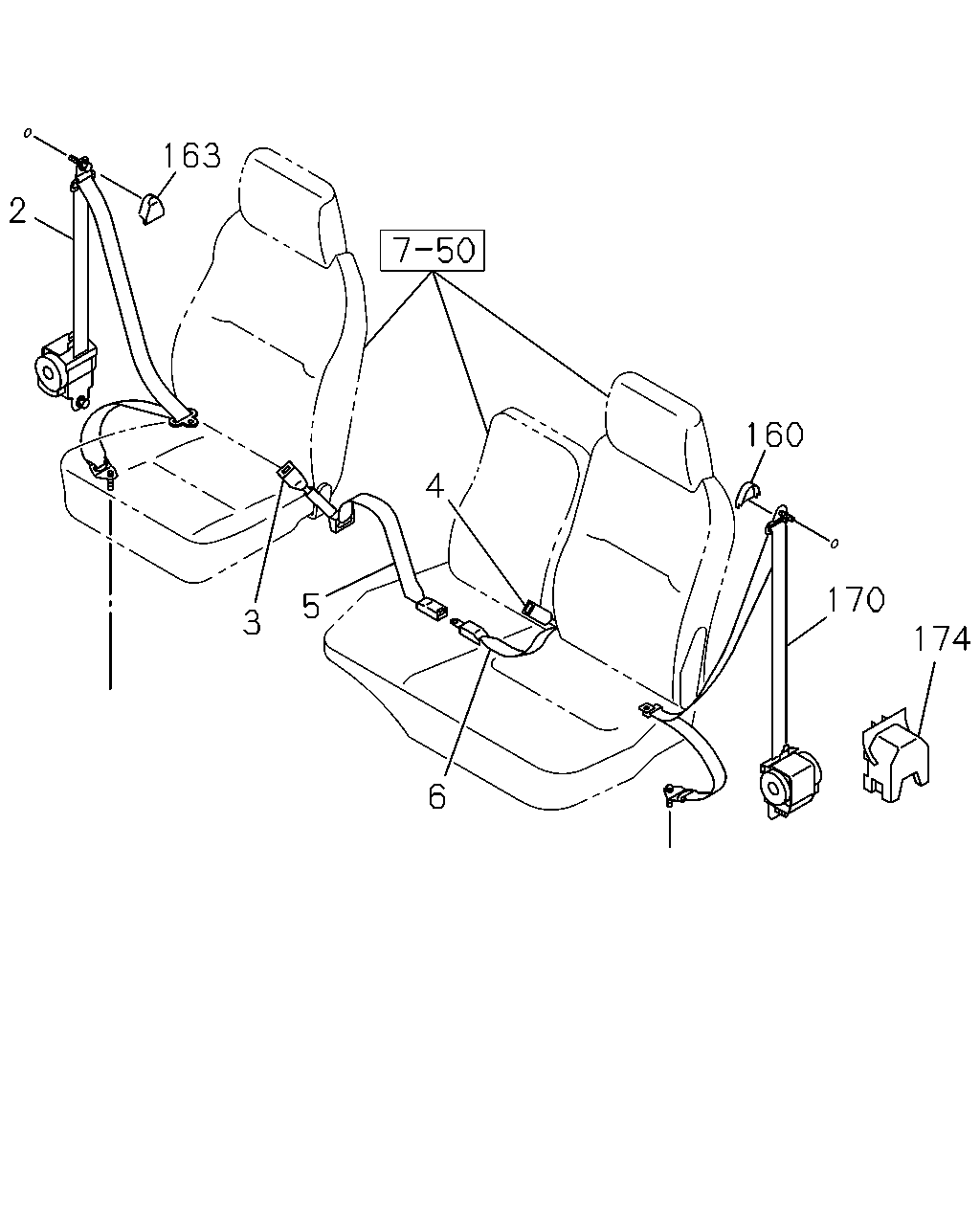

[760A] FRONT SEAT (11 parça)
[760A] SEAT BELT ANCHOR (6 parça)
▶
163
2
3
4
5
6
160
170
174
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
2
16.714 BELT; SEAT,TONGUE SIDE
GRAY
8-97405-180-7
01
1
1208-1406
2
16.714 BELT; SEAT,TONGUE SIDE
GRAY IDN
8-97428-457-1
01
1
1407-
3
16.714 BELT; SEAT,BUCKLE SIDE
GRAY IDN
8-97405-175-2
01
1
1208-
4
16.714 BELT; PASSENGER SEAT,BUCKLE SIDE
GRAY IDN
8-97405-178-0
01
1
1208-
5
16.714 BELT; CENTER SEAT,BUCKLE SIDE
GRAY IDN
8-97405-182-1
01
1
1208-
6
16.714 BELT; CENTER SEAT,TONGUE SIDE
GRAY IDN
8-97411-507-2
01
1
1208-
160
16.714 COVER; THROUGH ANCHOR
GRAY IDN
8-97405-991-0
01
1
1208-
163
16.714 COVER; ADJUSTER
GRAY IDN
8-97405-991-0
01
1
1208-
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY
8-97405-180-7
01
1
1208-1406
170
16.714 BELT; PASSENGER SEAT,TONGUE SIDE
GRAY IDN
8-97428-457-1
01
1
1407-
174
16.714 COVER; RETRACTOR,SEAT BELT
IDN
8-98039-376-1
01
1
1208-
165
166
168
167
161
166
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
161
16.714 REINFORCEMENT; SEAT BELT ANCHOR
16.545 IDN
8-98015-216-2
01
1
1208-
165
16.714 HOOK; SEAT BELT ANCHOR
IDN
8-98040-143-0
01
1
1208-
166
16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE IDN
0-28650-825-0
04
1
1208-
166
16.714 BOLT; SEAT BELT ANCHOR
06.216 M8X25 FLANGE IDN
0-28650-825-0
05
1
1208-
167
16.714 PLATE; ANCHOR
IDN
8-97589-140-0
01
1
1208-
168
16.714 NUT; ANCHOR PLATE
01.062 M8 FLANGE IDN
0-91180-108-0
02
1
1208-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
