◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51294 - NQR INDONESIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-50 - FRONT SEAT ▶
7-50 — FRONT SEAT (#95261) — 60 parça

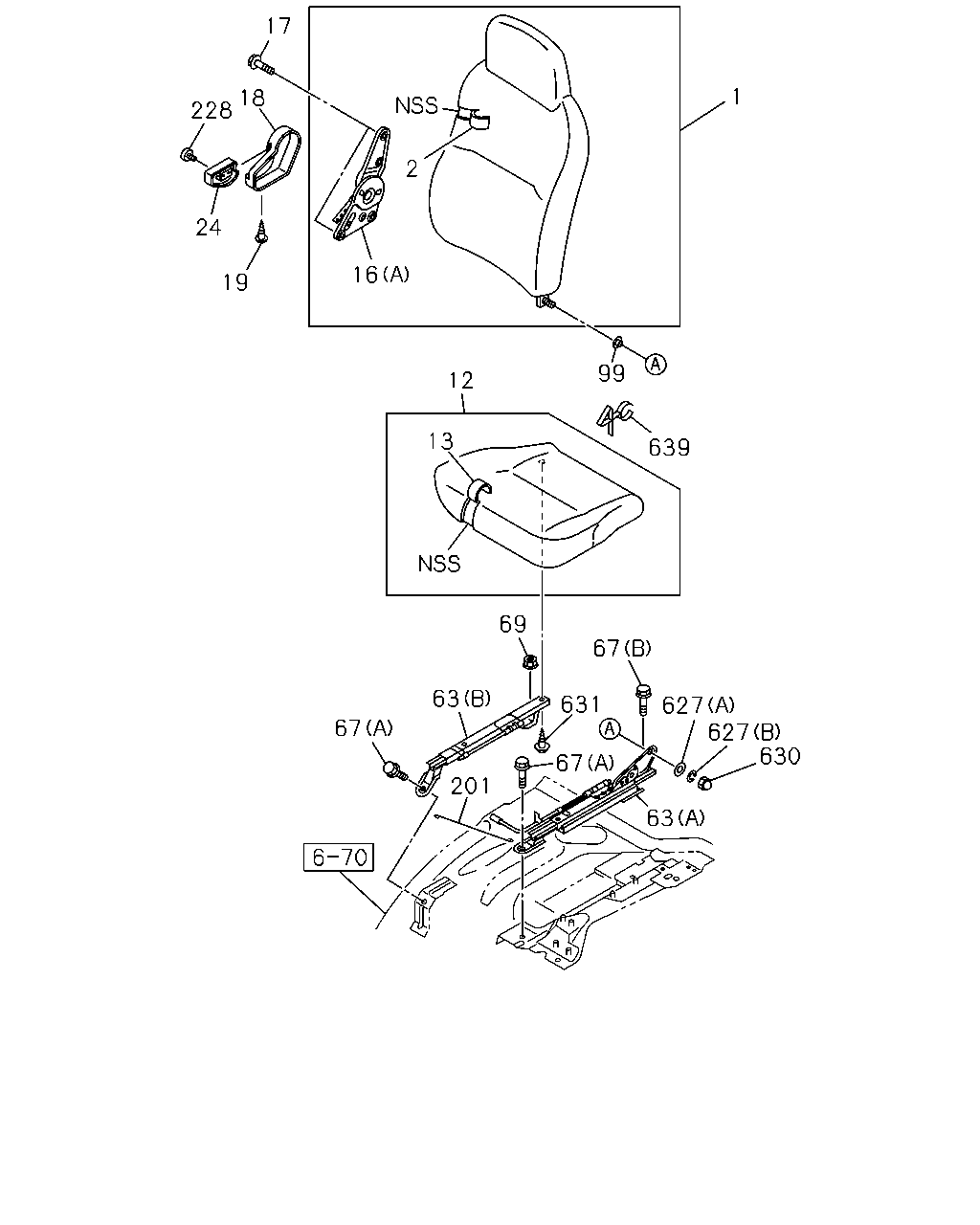

çizim 288715
17 18 228 24 19 16 2 1 12 99 639 13 69 67 631 627 627 630 63 67 201 67 63
BalonParca AdiParca NoAdetTipApplied Date
1 16.720 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-142-7 01 1 1208-
1 16.720 BACK ASM; SEAT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-312-7 01 1 1208-
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-235-1 01 1 1208-
1 16.720 BACK ASM; SEAT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY IDN 		8-97421-234-1 01 1 1208-
2 16.724 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97411-910-2 01 1 1208-
2 16.724 COVER; TRIM,FRT SEAT,BACK
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97409-318-2 01 1 1208-
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-254-0 01 1 1208-
2 16.724 COVER; TRIM,FRT SEAT,BACK
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY IDN 		8-97421-253-0 01 1 1208-
12 16.670 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-149-0 01 1 1208-
12 16.670 CUSHION; SEAT,FRT
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-706-0 01 1 1208-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-248-2 01 1 1208-
12 16.670 CUSHION; SEAT,FRT
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY IDN 		8-97421-247-2 01 1 1208-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-860-0 01 1 1208-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
VINYL SEAT W/RECLINING<A83> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97414-707-0 01 1 1208-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> SEAT FRT,LONG SIZE<7UG> DARK GRAY 		8-97421-268-2 01 1 1208-
13 16.717 COVER; TRIM,FRT SEAT,CUSHION
SEAT CLOTH<7FL> EXC. SEAT FRT,LONG SIZE<7UG> DARK GRAY IDN 		8-97421-267-2 01 1 1208-
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB 		8-97859-273-3 01 1 1208-
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB IDN 		8-97859-274-3 01 1 1208-
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) 		8-98003-087-1 01 1 1208-
17 16.682 BOLT; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M10X20 		8-98062-661-0 04 1 1208-
18 16.682 COVER; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY 		8-97409-332-0 01 1 1208-
19 16.686 SCREW; COVER
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M5 		8-98062-663-0 01 1 1208-
24 16.682 KNOB; RECLINING,FRT,SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY 		8-97409-333-0 01 1 1208-
63 16.682 ADJUSTER; SEAT SLIDE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) 		8-97382-800-2 01 1 1208-
63 16.682 ADJUSTER; SEAT SLIDE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) 		8-97382-801-1 01 1 1208-
67 16.682 BOLT; FRT SEAT TO BODY
(A) M10X20 FLANGE IDN 		8-98055-941-0 02 1 1208-
67 16.682 BOLT; FRT SEAT TO BODY
(B) M10X30 FLANGE IDN 		8-98055-942-0 01 1 1208-
69 16.682 NUT; FRT SEAT
M10 FLANGE IDN 		8-98055-961-0 01 1 1208-
99 16.716 BUSHING; SEAT BACK
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 		8-98112-751-0 01 1 1208-
201 16.682 CABLE; ADJ
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 		8-98003-086-1 01 1 1208-
228 16.714 SCREW; KNOB
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4 		8-98062-662-0 01 1 1208-
627 16.682 WASHER; FRT SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) 		8-98063-223-0 01 1 1208-
627 16.682 WASHER; FRT SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) 		8-98063-224-0 01 1 1208-
630 16.682 NUT; CAP
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8 		8-98063-225-0 01 1 1208-
631 16.682 BOLT; ADJ,SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X25 W/LK WASHER 		8-98062-658-0 02 1 1208-
631 16.682 BOLT; ADJ,SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X32 W/LK WASHER 		8-98062-659-0 02 1 1208-
639 16.679 CLIP; SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 		8-98097-693-0 01 1 1208-
çizim 288716
460 368 361 141 160 161 126 16 139 139 139 478 460 114 126 16 361 368 139
BalonParca AdiParca NoAdetTipApplied Date
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (B) BLACK W/KNOB 		8-97859-273-3 01 1 1208-
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (C) BLACK W/KNOB IDN 		8-97859-274-3 01 1 1208-
16 16.682 ADJUSTER ASM; RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> (A) 		8-98003-087-1 01 1 1208-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97409-276-1 01 1 1208-
114 16.724 COVER; TRIM,PASSENGER SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY IDN 		8-97421-291-0 01 1 1208-
126 16.686 BUSHING; HINGE,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> IDN 		8-98069-558-0 02 1 1208-
139 16.679 BOLT; PASSENGER SEAT
M8X20 W/PL WASHER 		8-98031-841-0 04 1 1208-
141 16.724 COVER; TRIM,BENCH SEAT,BACK
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97409-336-2 01 1 1208-
141 16.724 COVER; TRIM,BENCH SEAT,BACK
SEAT CLOTH<7FL> DARK GRAY IDN 		8-97421-305-1 01 1 1208-
160 16.650 CONSOLE; UPR,BACK CENTER
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> GRAY IDN 		8-97405-361-1 01 1 1208-
161 16.650 SCREW; CONSOLE
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M4X12 IDN 		8-94279-351-0 04 1 1208-
361 16.682 BOLT; ADJ,RECLINING
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> M8X18 		8-94279-109-1 04 1 1208-
368 16.682 BOLT; SEAT
VINYL SEAT W/RECLINING<A83>,SEAT CLOTH<7FL> 16.320 M8X24.5 W/LK&PL WASHER IDN 		8-94279-217-0 02 1 1208-
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> (B) DARK GRAY 		8-97405-334-4 01 1 1208-
460 16.670 BACK ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> (A) DARK GRAY 		8-97405-337-4 01 1 1208-
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (B) DARK GRAY IDN 		8-97421-278-0 01 1 1208-
460 16.670 BACK ASM; PASSENGER SEAT
SEAT CLOTH<7FL> (A) DARK GRAY IDN 		8-97421-299-1 01 1 1208-
478 16.716 BRACKET ASM; HINGE,PASSENGER SEA
IDN 		8-98002-092-0 01 1 1208-

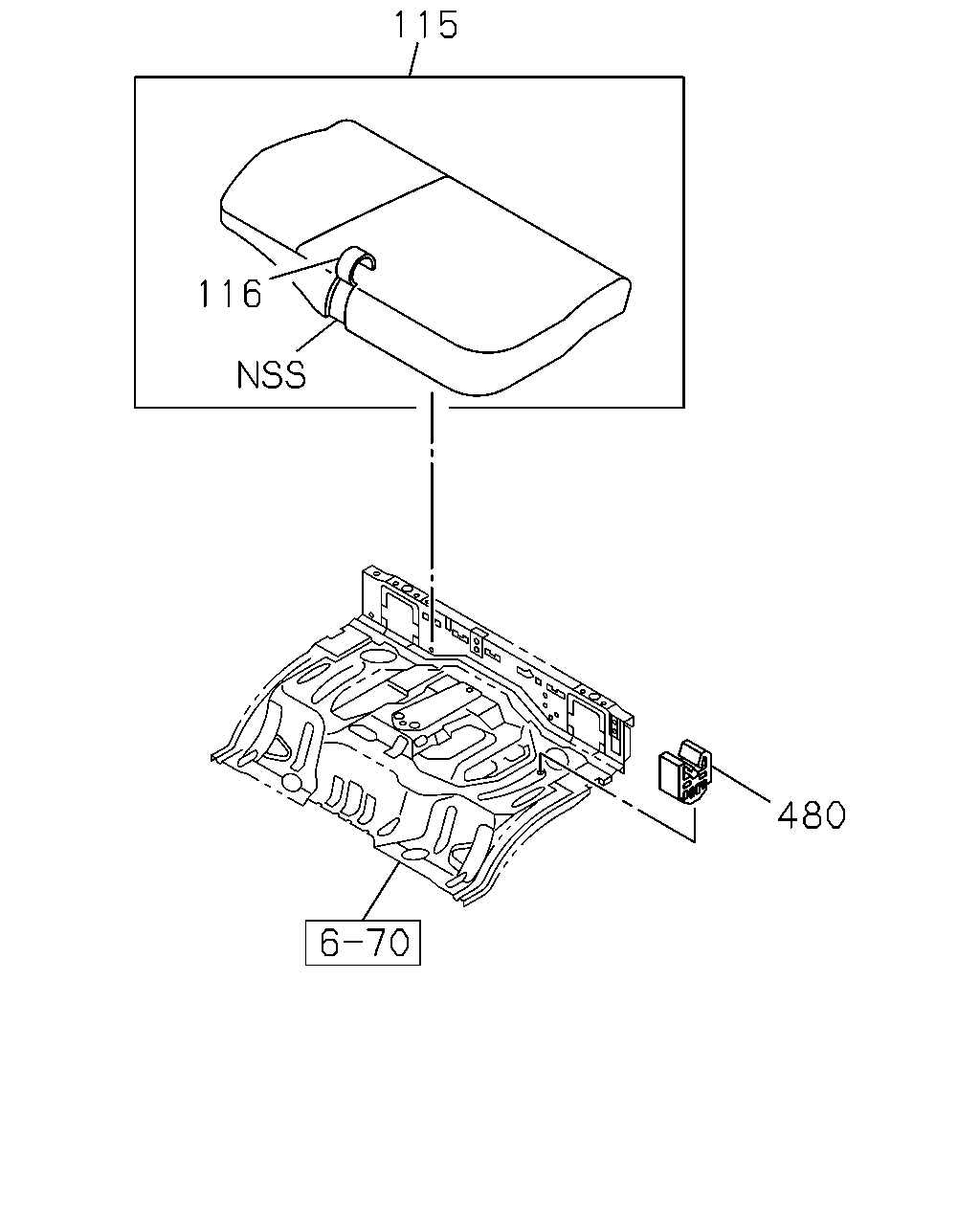

çizim 289738
115 116 480
BalonParca AdiParca NoAdetTipApplied Date
115 16.720 CUSHION ASM; PASSENGER SEAT
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97405-346-5 01 1 1208-
115 16.720 CUSHION ASM; PASSENGER SEAT
SEAT CLOTH<7FL> DARK GRAY IDN 		8-97421-321-3 01 1 1208-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
VINYL SEAT W/RECLINING<A83> DARK GRAY 		8-97409-290-3 01 1 1208-
116 16.717 COVER; TRIM,PASSENGER SEAT,CUSHI
SEAT CLOTH<7FL> DARK GRAY IDN 		8-97421-341-2 01 1 1208-
480 16.716 CLIP; CUSHION
IDN 		8-94279-977-0 05 1 1208-
