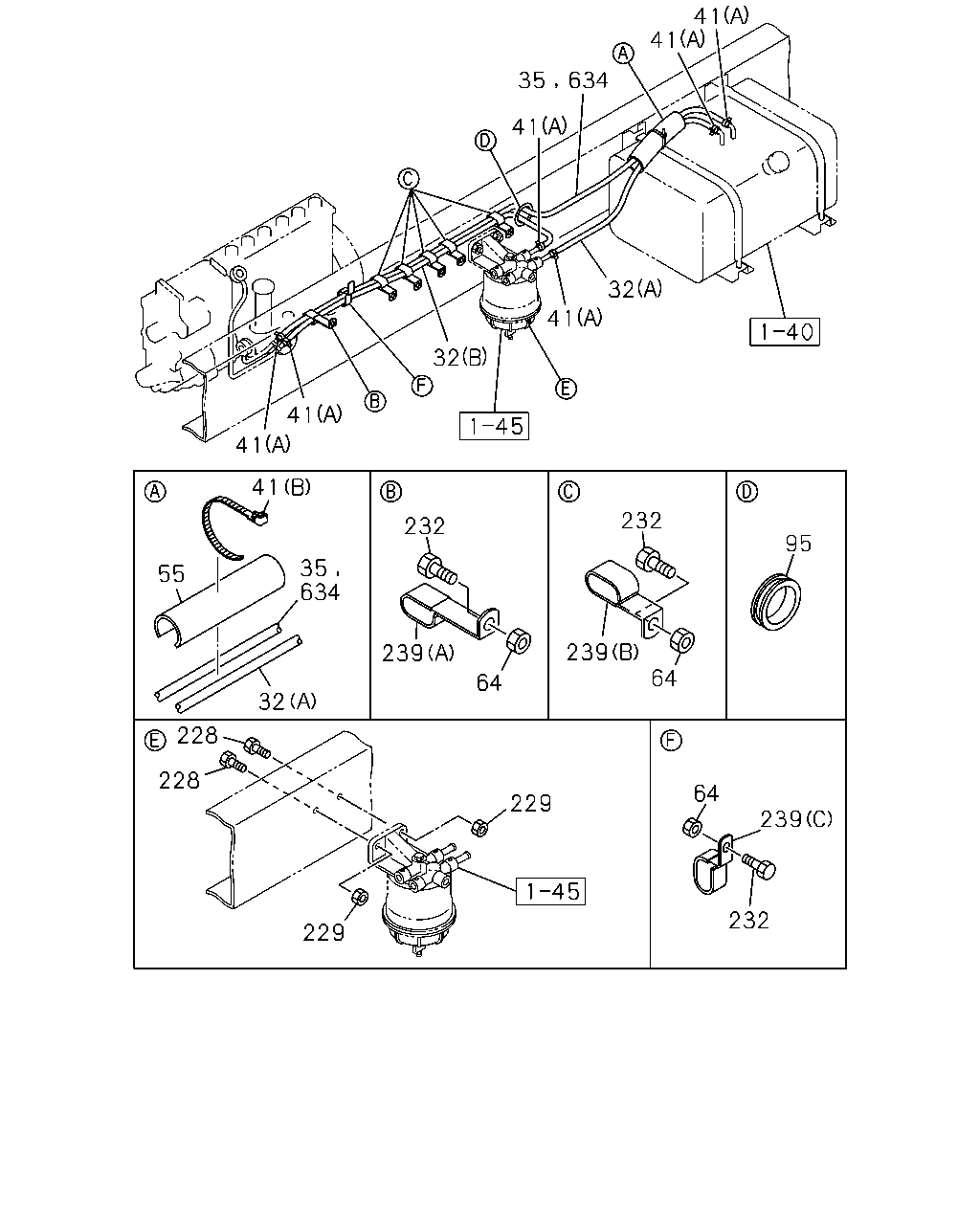

1-41 — FUEL PIPING; CHASSIS (#9526) — 48 parça

35 634 41 41 41 32 41 32 41 41 41 35 55 634 32 232 239 64 232 95 239 64 228 228 229 229 64 232 239

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date	A	B	C
32	PIPE; DELIVERY,FUEL TANK (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210	●
32	PIPE; DELIVERY,FUEL TANK (A) L=700 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK (B) L=1750 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210	●
32	PIPE; DELIVERY,FUEL TANK STD CAB(FT*M) (B) L=1650 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK (A) L=860 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210			●
32	PIPE; DELIVERY,FUEL TANK DOUBLE CAB(FT*W) (A) L=2200 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
32	PIPE; DELIVERY,FUEL TANK (B) L=2300 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210			●
35	PIPE; FUEL TANK,RETURN L=1500 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210	●
35	PIPE; FUEL TANK,RETURN L=2950 SERVICED BY L=3000	0-01260-300-0	01	1	0005-0210			●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0005-0210	●		●
41	CLIP; FUEL PIPE,FUEL TANK (A) ID=14	1-09704-102-0	06	1	0211-		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0005-0210	●		●
41	CLIP; FUEL PIPE,FUEL TANK (B) L=250	5-09707-030-1	01	1	0211-		●
55	COVER; PIPE,FUEL TANK L=1300	1-09360-677-1	01	1	0005-0210	●		●
55	COVER; PIPE,FUEL TANK L=250 SERVICED BY L=1300	1-09360-677-1	01	1	0211-		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	03	1	0005-0210	●
64	NUT; CLIP STD CAB(FT*M) M8 FLANGE	0-91150-108-0	05	1	0211-0602		●
64	NUT; CLIP STD CAB(FT*M) M8 FLANGE	0-91180-108-0	05	1	0603-		●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	06	1	0005-0005			●
64	NUT; CLIP M8 FLANGE	0-91150-108-0	07	1	0005-0210			●
64	NUT; CLIP DOUBLE CAB(FT*W) M8 FLANGE	0-91150-108-0	09	1	0211-0602		●
64	NUT; CLIP DOUBLE CAB(FT*W) M8 FLANGE	0-91180-108-0	09	1	0603-		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0005-0009	●		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=17	9-09956-256-1	01	1	0010-0210	●		●
95	BUSHING; PIPE,FUEL TANK ID=28 OD=35 T=25	1-09332-011-1	01	1	0211-		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0005-0210	●		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28681-040-0	02	1	0211-0512		●
228	BOLT; BRKT,SEDIMENTER M10X40 FLANGE	0-28651-040-0	02	1	0601-		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0005-0210	●		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91150-210-0	02	1	0211-0602		●
229	NUT; BRKT,FUEL FILTER M10 FLANGE	0-91180-210-0	02	1	0603-		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	03	1	0005-0210	●
232	BOLT; CLIP,PIPE WHEEL BASE 5500MM(55W) M8X30 FLANGE	0-28680-830-0	06	1	0005-0210	●
232	BOLT; CLIP,PIPE STD CAB(FT*M) M8X30 FLANGE	0-28680-830-0	05	1	0211-0512		●
232	BOLT; CLIP,PIPE STD CAB(FT*M) M8X30 FLANGE	0-28650-830-0	05	1	0601-		●
232	BOLT; CLIP,PIPE M8X30 FLANGE	0-28680-830-0	07	1	0005-0210			●
232	BOLT; CLIP,PIPE DOUBLE CAB(FT*W) M8X30 FLANGE	0-28680-830-0	09	1	0211-0512		●
232	BOLT; CLIP,PIPE DOUBLE CAB(FT*W) M8X30 FLANGE	0-28650-830-0	09	1	0601-		●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	03	1	0005-0210	●
239	CLIP; FUEL PIPE STD CAB(FT*M) (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0211-		●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	0005-0210	●		●
239	CLIP; FUEL PIPE (A) M13X2 H=20 L=60	1-09701-280-0	01	1	0211-		●
239	CLIP; FUEL PIPE (C) ID=14X29 H=15 L=20	1-09700-744-0	01	1	0005-0210			●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	04	1	0005-0005			●
239	CLIP; FUEL PIPE (B) ID=14X29 H=30 L=25	1-09701-101-0	05	1	0005-0210			●
239	CLIP; FUEL PIPE DOUBLE CAB(FT*W) (B) ID=14X29 H=30 L=25	1-09701-101-0	08	1	0211-		●
634	HOSE; RUBBER RETURN STD CAB(FT*M) L=1450 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
634	HOSE; RUBBER RETURN DOUBLE CAB(FT*W) L=2750 SERVICED BY L=3000	0-01260-300-0	01	1	0211-		●
