7-43 — SUN VISOR AND ASSIST GRIP (#95259) — 55 parça

344 356 356 356 344 356 359 354 355 344 344 15 355 356 356 344 356 344 344 344 344 354 15 359 141 144

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY IDN	8-97406-299-0	02	1	1208-
15	16.742 FASTENER; HEADER SHELF BOARD HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IDN	8-97406-299-0	02	1	1208-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) L=62 B=25 DARK GRAY IDN	8-97405-173-0	01	1	1208-
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY IDN	8-97405-173-0	01	1	1208-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY IDN	8-97405-173-0	01	1	1208-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1208-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1208-
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE IDN	8-98059-421-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE IDN	8-98059-421-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK IDN	5-76777-036-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK IDN	5-76777-036-0	04	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE IDN	8-98059-421-0	01	1	1208-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE IDN	8-98059-421-0	01	1	1208-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE IDN	8-98059-421-0	01	1	1208-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR ARC WHITE(729) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 OD=20 T=0.05 WHITE IDN	8-98059-421-0	01	1	1504-
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK IDN	5-76777-036-0	01	1	1208-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK IDN	5-76777-036-0	01	1	1208-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK IDN	5-76777-036-0	01	1	1208-1503
144	16.070 SEAL; LOCATION HOLE BODY COLOR MARINE BLUE(890),BODY COLOR QUICK SILVER MET(998),BODY COLOR TRANS BLUE(999) EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> 16.165 OD=20 T=0.05 BLACK IDN	5-76777-036-0	01	1	1504-
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> 03.604 M6X12 FLANGE	8-97108-669-0	08	1	1208-
344	16.450 BOLT; BRKT,FRT HEADER TRAY DRIVER & PASSENGER<8LY> 03.604 M6X12 FLANGE	8-97108-669-0	08	1	1208-
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97408-064-2	01	1	1208-
354	16.120 TRAY; HEADER ROOF HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97408-065-2	01	1	1208-
355	16.742 SCREW; TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR IDN	0-72380-516-0	04	1	1208-
355	16.742 SCREW; TRAY HEADER TRAY DRIVER & PASSENGER<8LY> 16.570 M5X16 TAPPING HEXALOBULAR IDN	0-72380-516-0	04	1	1208-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A)	8-98036-022-4	01	1	1208-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (A)	8-98036-023-4	01	1	1208-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (C)	8-97386-874-1	01	1	1208-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (C)	8-97386-874-1	01	1	1208-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (B)	8-97585-576-4	01	1	1208-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (B)	8-97585-576-4	01	1	1208-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (D)	8-97585-577-1	01	1	1208-
356	16.742 BRACKET; ROOF OUTER HEADER TRAY DRIVER & PASSENGER<8LY> (D)	8-97585-577-1	01	1	1208-
359	16.070 HOLDER; HEADER TRAY HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY>	8-98041-754-0	02	1	1208-
359	16.070 HOLDER; HEADER TRAY HEADER TRAY DRIVER & PASSENGER<8LY>	8-98041-754-0	02	1	1208-

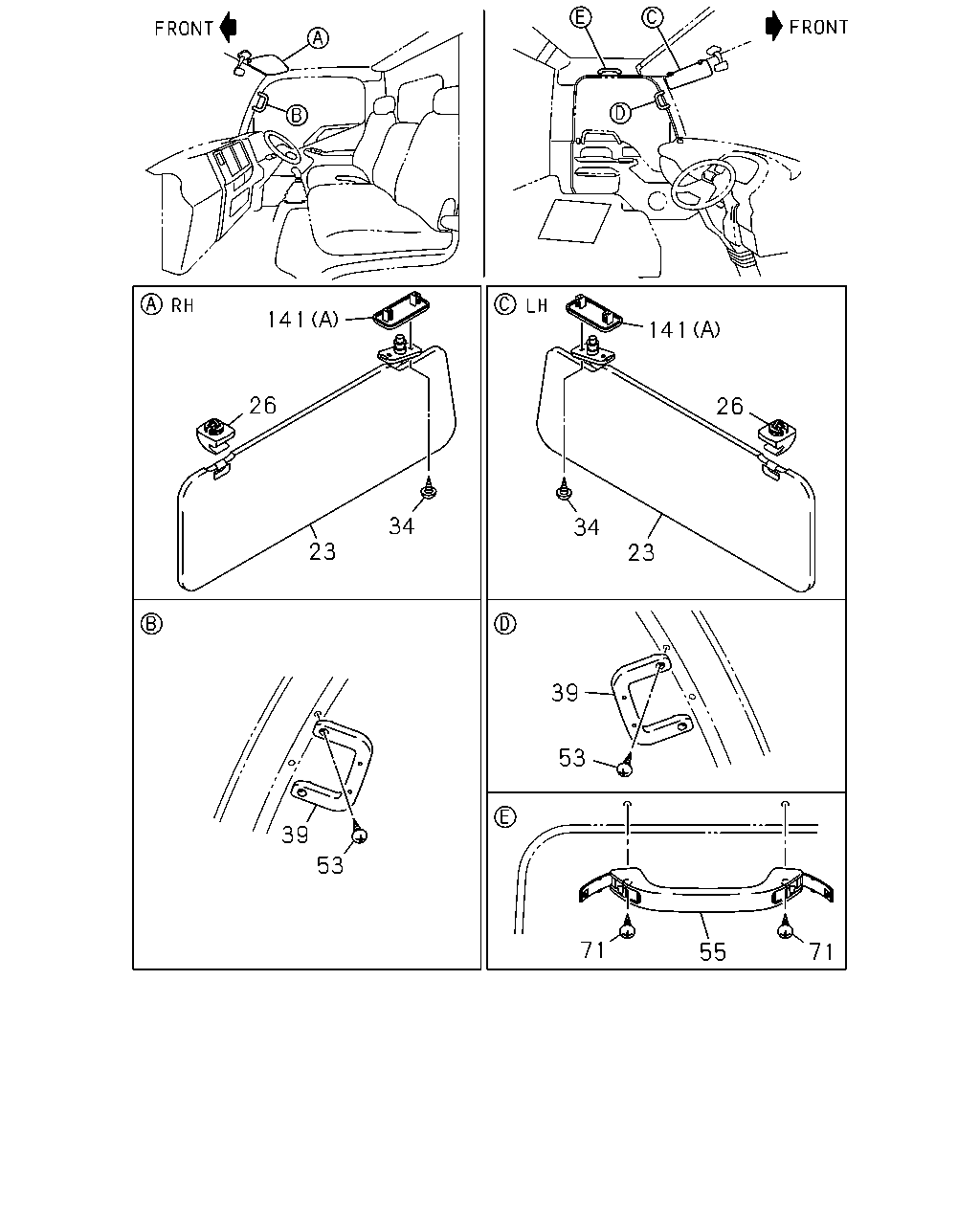

141 26 34 23 39 53 55 71 71 53 39 23 34 26 141

Balon	Parca Adi	Parca No	Adet	Tip	Applied Date
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-170-3	01	1	1208-
23	16.070 SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-169-1	01	1	1208-
23	16.070 SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97408-059-1	01	1	1208-
23	16.070 SUN VISOR EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IDN	8-97407-895-0	01	1	1208-
26	16.070 HOLDER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1208-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97405-171-0	01	1	1208-
26	16.070 HOLDER; SUN VISOR EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-200-0	01	1	1208-
26	16.070 HOLDER; SUN VISOR SUNVISOR PASSENGER SIDE<D20> EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY	8-97406-200-0	01	1	1208-
34	16.070 SCREW; SUN VISOR M6X26	8-98033-674-0	02	1	1208-
34	16.070 SCREW; SUN VISOR SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	1208-
34	16.070 SCREW; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> M6X26	8-98033-674-0	02	1	1208-
39	16.450 HANDLE; ASSIST,A-POST DARK GRAY	8-97405-249-2	02	1	1208-
53	16.450 SCREW; ASSIST HANDLE M6X28	8-98004-344-0	04	1	1208-
55	16.450 GRIP; ASSIST,CAB SIDE UPR ASSIST GRIP PASSENGER<EG5> DARK GRAY	8-97405-285-2	01	1	1208-
71	16.450 SCREW ASSIST GRIP PASSENGER<EG5> M6X28	8-98004-344-0	02	1	1208-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> (A) L=62 B=25 DARK GRAY IDN	8-97405-173-0	01	1	1208-
141	16.070 COVER; SUN VISOR EXC. SUNVISOR PASSENGER SIDE<D20>,HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY IDN	8-97405-173-0	01	1	1208-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> (A) L=62 B=25 DARK GRAY IDN	8-97405-173-0	01	1	1208-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (A) L=66 B=30 DARK GRAY	8-97408-029-0	01	1	1208-
141	16.070 COVER; SUN VISOR HEADER TRAY DRIVER & PASSENGER<8LY> EXC. SUNVISOR PASSENGER SIDE<D20> (B) OD=30 T=0.05 DARK GRAY	8-97408-030-0	01	1	1208-
