◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51294 - NQR INDONESIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-40 - INSTRUMENT PANEL AND BOX ▶
7-40 — INSTRUMENT PANEL AND BOX (#95257) — 135 parça

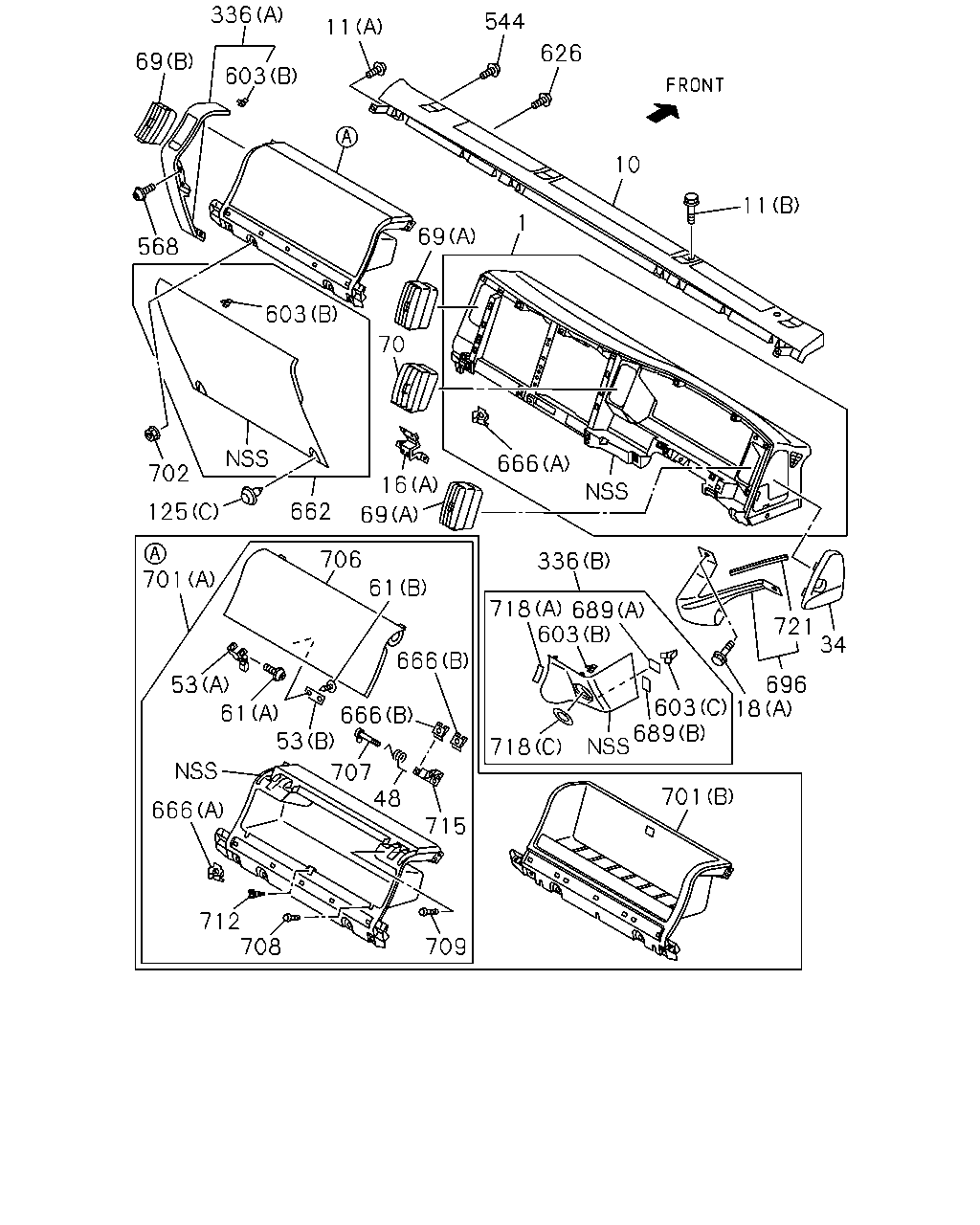

çizim 289736
11 10 626 544 11 336 69 603 568 603 69 70 666 16 69 662 702 125 706 61 666 701 666 53 61 53 707 48 715 709 708 712 666 336 689 718 603 721 34 696 18 603 689 718 701 1
BalonParca AdiParca NoAdetTipApplied Date
1 16.080 PANEL; INST
GRAY IDN 		8-97405-253-8 01 1 1208-
10 16.069 PANEL ASM; GARNISH
GRAY IDN 		8-97419-683-5 01 1 1208-
11 16.090 BOLT; INST PNL
(B) M6X25 W/LK&PL WASHER 		8-98018-440-0 04 1 1208-
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 08 1 1208-1212
11 16.090 BOLT; INST PNL
(A) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 08 1 1301-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 1208-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 1208-
16 16.085 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 1208-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1208-
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1208-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1208-
34 16.085 LID; OIL TANK
GRAY IDN 		8-97405-260-1 01 1 1208-
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-98034-986-0 01 1 1208-1311
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-97926-410-0 01 1 1312-1405
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-98270-763-0 01 1 1406-
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-98034-987-0 01 1 1208-1311
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-97926-411-0 01 1 1312-1405
48 16.110 SPRING; GLOVE BOX LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-98270-764-0 01 1 1406-
53 16.115 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-913-0 01 1 1208-1405
53 16.115 STRIKER; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) IDN 		8-98270-765-0 01 1 1406-
61 16.100 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) 		8-98108-915-0 01 1 1208-1405
61 16.100 SCREW; GLOVE BOX
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M4X85 IDN 		8-97926-404-0 02 1 1406-
69 09.264 GRILLE; SIDE,AIR OUTLET
(A) IDN 		8-98028-561-2 02 1 1208-
69 09.264 GRILLE; SIDE,AIR OUTLET
(B) IDN 		8-98028-562-2 01 1 1208-
70 09.264 GRILLE; CENTER,AIR OUTLET
IDN 		8-98028-563-2 01 1 1208-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1208-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1208-
125 16.085 CLIP; INST PANEL
(C) GRAY IDN 		8-97419-968-1 02 1 1208-
336 16.081 COVER; INST PANEL SIDE
(A) GRAY IDN 		8-97405-259-4 01 1 1208-
336 16.081 COVER; INST PANEL SIDE
(B) GRAY IDN 		8-97414-961-4 01 1 1208-
544 16.085 SCREW; TRAY
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1208-1212
544 16.085 SCREW; TRAY
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
568 09.744 BOLT; COVER
16.090 SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1208-1212
568 09.744 BOLT; COVER
16.090 SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
603 16.090 CLIP; COVER
16.085 (C) IDN 		8-98021-271-0 03 1 1208-
603 16.090 CLIP; COVER
16.165 (A) IDN 		8-98004-025-0 01 1 1208-
603 16.090 CLIP; COVER
16.085 (B) IDN 		8-98021-271-0 02 1 1208-
603 16.090 CLIP; COVER
16.085 (B) IDN 		8-98021-271-0 05 1 1208-
626 16.080 RETAINER
16.069 OD=15 BLACK 		8-94279-804-0 02 1 1208-
662 16.081 COVER; LWR,INST PANEL
GRAY IDN 		8-97405-258-2 01 1 1208-
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) IDN 		8-98037-629-0 02 1 1208-
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) IDN 		8-98038-450-0 04 1 1208-1311
666 16.085 INSERT; INST PANEL
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (B) M5 IDN 		8-97926-400-0 04 1 1312-
666 16.085 INSERT; INST PANEL
(A) IDN 		8-98037-629-0 15 1 1208-
689 09.743 SEAL; INST
(A) 7X31 IDN 		8-98061-777-0 01 1 1208-
689 09.743 SEAL; INST
(B) 18X170 IDN 		8-98061-778-1 01 1 1208-
696 16.085 BRACKET; KNEE
IDN 		8-97589-189-4 01 1 1208-1211
696 16.085 BRACKET; KNEE
IDN 		8-98199-366-0 01 1 1212-
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY IDN 		8-97415-542-6 01 1 1208-1405
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> (A) GRAY IDN 		8-97429-702-1 01 1 1406-
701 16.100 TRAY; INST
COMPARTMENT-I/P ASSIS SIDE WITHOUT LID<JDP> (B) GRAY 		8-97422-091-1 01 1 1208-
702 16.069 NUT; TRAY
01.062 M6 FLANGE IDN 		0-91180-106-0 02 1 1208-
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY IDN 		8-97415-541-0 01 1 1208-1405
706 16.081 LID; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> GRAY IDN 		8-97429-992-0 01 1 1406-
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-98035-730-1 02 1 1208-1311
707 09.744 SHAFT; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-97926-393-0 02 1 1312-
708 16.100 STOPPER; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-98010-867-1 02 1 1208-
709 16.085 SCREW; TRAY INST
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> M5X16 TAPPING IDN 		0-71040-516-0 04 1 1208-
712 16.110 LOCK; TRAY INST LID
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-98031-846-0 01 1 1208-
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-98034-928-0 01 1 1208-1311
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-97926-396-0 01 1 1312-
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-98034-929-0 01 1 1208-1311
715 16.081 SUPPORT; TRAY,HINGE
COMPARTMENT-I/P ASSIS SIDE WITH LID<JDN> IDN 		8-97926-397-0 01 1 1312-
718 16.100 SEAL; COVER
(B) 5X30 IDN 		8-98176-199-0 01 1 1208-
718 16.100 SEAL; COVER
(A) 30X15 IDN 		8-98097-696-0 01 1 1208-
718 16.100 SEAL; COVER
(C) IDN 		8-98218-319-0 01 1 1208-
718 16.100 SEAL; COVER
(B) 8X80 IDN 		8-98200-040-0 01 1 1208-
718 16.100 SEAL; COVER
(B) 4X35 IDN 		8-98200-041-0 01 1 1208-
721 16.650 FINISHER; BRKT,KNEE
L=95 IDN 		8-97995-992-0 01 1 1208-1211
721 16.650 FINISHER; BRKT,KNEE
L=75 IDN 		8-98176-240-0 01 1 1212-

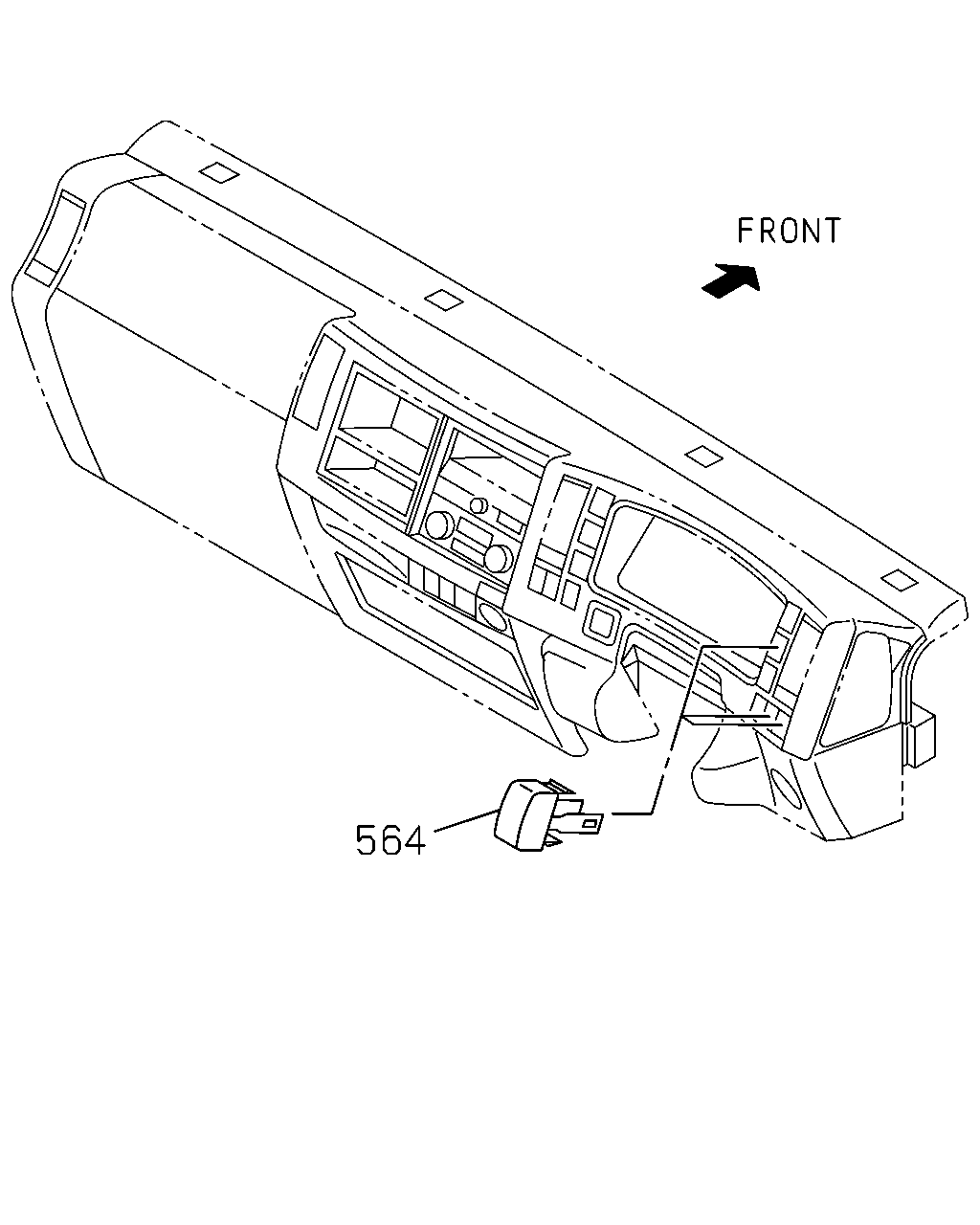

çizim 289737
564
BalonParca AdiParca NoAdetTipApplied Date
564 16.081 COVER; SW 8-98025-954-1 03 1 1208-

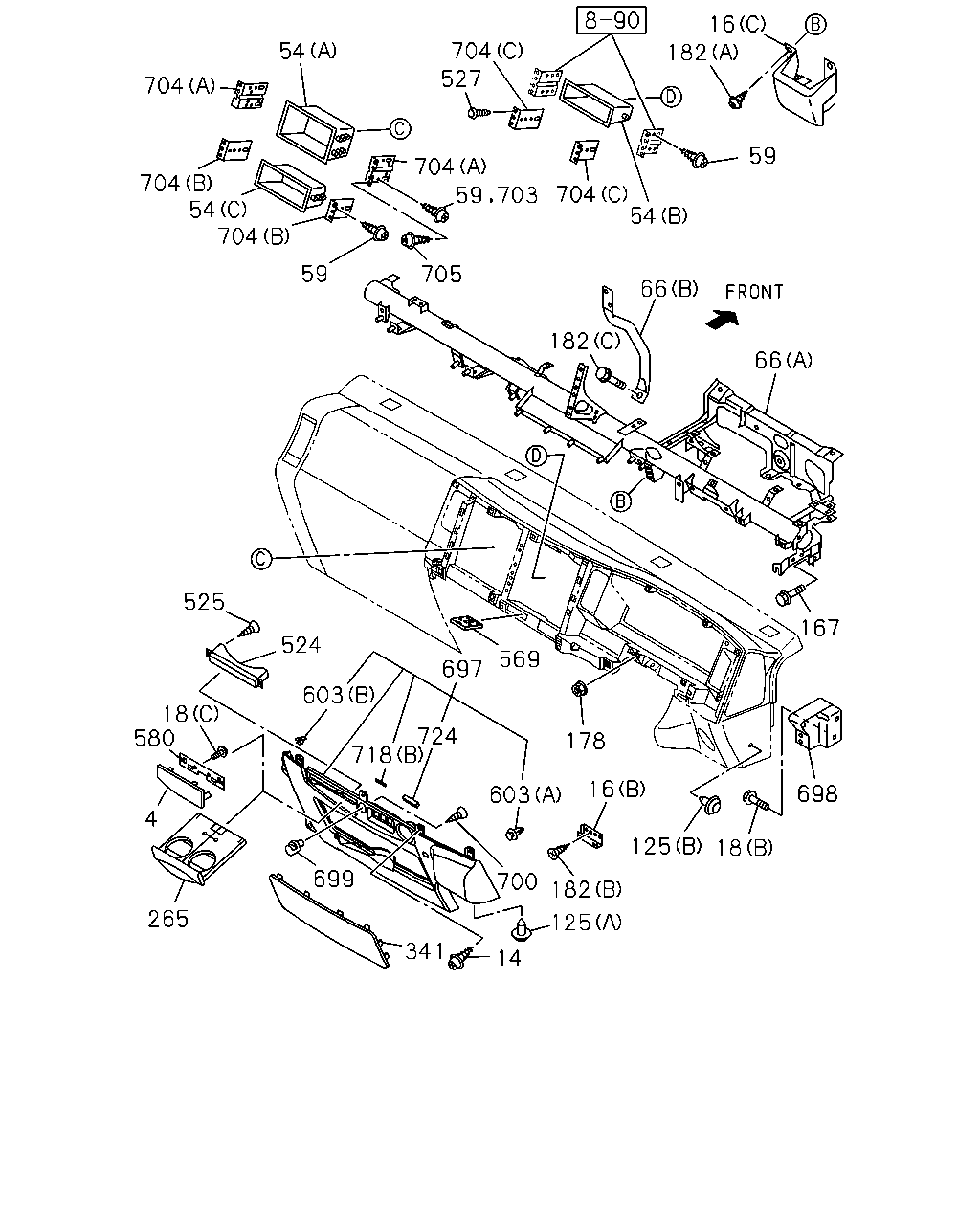

çizim 289742
14 341 699 265 4 580 525 18 524 603 718 603 700 182 125 125 18 16 178 724 697 569 698 167 66 66 182 705 59 704 54 54 54 59 59 703 704 182 16 704 527 704 704 704
BalonParca AdiParca NoAdetTipApplied Date
4 16.080 COVER; INST PNL
EXC. CUP HOLDER<7KZ> GRAY IDN 		8-97407-898-1 01 1 1208-
14 16.085 SCREW; INST PNL
16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 04 1 1208-1212
14 16.085 SCREW; INST PNL
16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 04 1 1301-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (B) 		8-97585-532-0 01 1 1208-
16 16.085 BRACKET; INST PNL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) (A) 		8-97585-612-2 01 1 1208-
16 16.085 BRACKET; INST PNL
(C) IDN 		8-98053-711-0 01 1 1208-
18 16.085 BOLT; BRKT
02.343 (B) M8X16 FLANGE 		0-28050-816-0 04 1 1208-
18 16.085 BOLT; BRKT
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 02 1 1208-1212
18 16.085 BOLT; BRKT
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 02 1 1301-
18 16.085 BOLT; BRKT
EXC. CUP HOLDER<7KZ> 16.100 (C) SCREW T25 L=10 HEXALOBULAR 		8-98058-632-0 03 1 1208-
54 16.100 POCKET; CENTER CLUSTER
(A) H=108.4 BLACK IDN 		8-97407-129-3 01 1 1208-
54 16.100 POCKET; CENTER CLUSTER
(B) H=58.4 BLACK IDN 		8-97408-864-3 01 1 1208-
54 16.100 POCKET; CENTER CLUSTER
(C) H=69.8 BLACK IDN 		8-97408-865-3 01 1 1208-
54 16.100 POCKET; CENTER CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) H=69.8 BLACK IDN 		8-97408-865-3 01 1 1208-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1208-
59 16.100 SCREW; CLUSTER POCKET
T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1208-
59 16.100 SCREW; CLUSTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) T25 L=10 HEXALOBULAR 		8-98058-632-0 02 1 1208-
66 16.085 REINFORCEMENT; INST PANEL
(A) IDN 		8-98199-358-1 01 1 1208-
66 16.085 REINFORCEMENT; INST PANEL
(B) IDN 		8-97585-578-1 01 1 1208-
125 16.085 CLIP; INST PANEL
(A) GRAY 		8-97408-063-0 02 1 1208-
125 16.085 CLIP; INST PANEL
(B) GRAY 		8-97408-817-0 02 1 1208-
125 16.085 CLIP; INST PANEL
(C) GRAY IDN 		8-97419-968-1 02 1 1208-
167 16.085 BOLT; REINF TO INST
16.090 M8X23 FLANGE 		8-97264-766-0 04 1 1208-
178 16.085 NUT; INST PANEL
01.062 M6 FLANGE IDN 		0-91180-106-0 03 1 1208-
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 02 1 1208-1212
182 16.085 BOLT; BRKT,INST PANEL
FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60) ,COOLER WO/HEATER(C65) 16.090 (B) SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 02 1 1301-
182 16.085 BOLT; BRKT,INST PANEL
(C) M8X20 W/LK&PL WASHER 		8-97359-709-0 01 1 1208-
182 16.085 BOLT; BRKT,INST PANEL
16.585 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		8-98177-720-0 03 1 1208-1212
182 16.085 BOLT; BRKT,INST PANEL
16.650 (A) SCREW T25 M6X12 HEXALOBULAR SOCKET 		0-38050-612-0 03 1 1301-
265 16.100 HOLDER; CUP
CUP HOLDER<7KZ> GRAY 		8-97418-528-0 01 1 1208-
341 16.110 LID; FUSE BOX
GRAY IDN 		8-97423-658-0 01 1 1208-
524 16.100 STAND ASM; CUP,INST
CUP HOLDER<7KZ> 		8-98054-414-0 01 1 1208-
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 03 1 1208-1212
525 16.100 SCREW; CUP STAND
CUP HOLDER<7KZ> 16.090 M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 03 1 1301-
527 16.100 CLIP; INST CLUSTER
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 16.742 DARK GRAY 		8-97098-326-0 01 1 1208-
569 16.100 HOLDER; CARD
IDN 		8-97410-276-1 01 1 1208-
580 16.080 BRACKET; COVER
EXC. CUP HOLDER<7KZ> IDN 		8-98091-546-0 01 1 1208-
603 16.090 CLIP; COVER
16.085 (C) IDN 		8-98021-271-0 03 1 1208-
603 16.090 CLIP; COVER
16.165 (A) IDN 		8-98004-025-0 01 1 1208-
603 16.090 CLIP; COVER
16.085 (B) IDN 		8-98021-271-0 02 1 1208-
603 16.090 CLIP; COVER
16.085 (B) IDN 		8-98021-271-0 05 1 1208-
697 16.080 PANEL; INST CENTER
GRAY IDN 		8-97423-656-1 01 1 1208-
698 16.085 BRACKET; INST BAR SIDE
IDN 		8-98089-256-1 01 1 1208-
698 16.085 BRACKET; INST BAR SIDE
IDN 		8-98089-257-1 01 1 1208-
699 16.081 HOOK; INST PANEL
GRAY IDN 		8-97408-927-0 01 1 1208-
700 16.090 BOLT; HOOK
SCREW M5X16 HEXALOBULAR SOCKET 		8-98177-744-0 01 1 1208-1212
700 16.090 BOLT; HOOK
SCREW M5X16 TAPPING HEXALOBULAR 		0-72180-516-0 01 1 1301-
703 16.085 SCREW; CENTER POCKET
16.100 T25 L=10 HEXALOBULAR 		8-98058-632-0 04 1 1208-
704 16.085 BRACKET; CENTER POCKET
(B) IDN 		8-97585-616-2 02 1 1208-
704 16.085 BRACKET; CENTER POCKET
(A) IDN 		8-97585-618-2 02 1 1208-
704 16.085 BRACKET; CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) (C) IDN 		8-98107-549-0 02 1 1208-
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1208-1212
705 16.100 SCREW; BRACKET CENTER POCKET
M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 04 1 1208-1212
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
705 16.100 SCREW; BRACKET CENTER POCKET
09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 04 1 1301-
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) M5X20 HEXALOBULAR SOCKET 		8-98177-743-0 01 1 1208-1212
705 16.100 SCREW; BRACKET CENTER POCKET
EXC. FORGED AIR VENTILATION(C39),HEATER & DEFROSTER(C41),AIR CONDITIONER MANUAL CONT(C60),COOLER WO/HEATER(C65) 09.647 M5X20 TAPPING HEXALOBULAR 		0-72180-520-0 01 1 1301-
718 16.100 SEAL; COVER
(B) 5X30 IDN 		8-98176-199-0 01 1 1208-
718 16.100 SEAL; COVER
(A) 30X15 IDN 		8-98097-696-0 01 1 1208-
718 16.100 SEAL; COVER
(C) IDN 		8-98218-319-0 01 1 1208-
718 16.100 SEAL; COVER
(B) 8X80 IDN 		8-98200-040-0 01 1 1208-
718 16.100 SEAL; COVER
(B) 4X35 IDN 		8-98200-041-0 01 1 1208-
724 16.085 INSULATOR; INST PANEL
IDN 		8-98200-042-0 01 1 1208-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
Isuzu EPC — test · veri: yerel (eski sürüm)
