Isuzu WW
▶
TRUCKS
▶
NQR
▶
51294 - NQR INDONESIA
▶
7 - Interior Trim, Emblems / Labels, Seats, Mirrors
▶
7-20 - MIRROR AND MIRROR STAY
▶

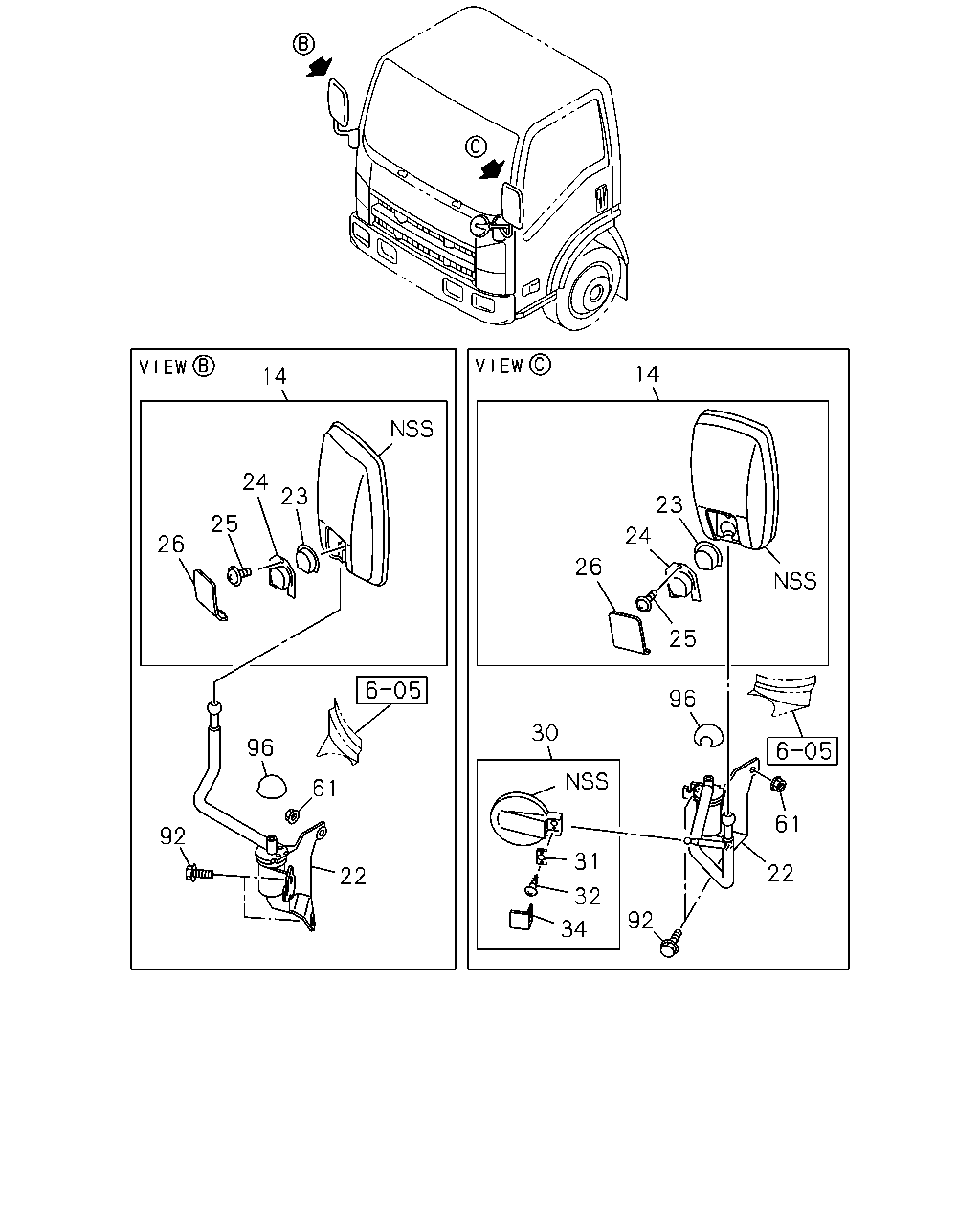

7-20 — MIRROR AND MIRROR STAY
(#95255) — 22 parça
◀
[720A] OUTSIDE MIRROR (20 parça)
[720A] ROOM MIRROR (2 parça)
▶
14
14
23
24
26
25
22
61
31
32
34
92
22
61
96
92
23
24
25
26
30
96
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
14
16.068 MIRROR ASM; OUTSIDE
IDN
8-94262-542-3
01
1
1208-
14
16.068 MIRROR ASM; OUTSIDE
IDN
8-94262-542-3
01
1
1208-
22
16.069 STAY; OUTSIDE MIRROR
UNDER MIRROR<RR9>
8-98027-519-0
01
1
1208-
22
16.069 STAY; OUTSIDE MIRROR
IDN
8-98038-224-1
01
1
1208-
22
16.069 STAY; OUTSIDE MIRROR
EXC. UNDER MIRROR<RR9> IDN
8-98070-509-0
01
1
1208-
23
16.069 WASHER; OUTSIDE MIRROR
T=2.0 IDN
8-94262-545-0
01
1
1208-
23
16.069 WASHER; OUTSIDE MIRROR
T=2.0 IDN
8-94262-545-0
01
1
1208-
24
16.069 HOLDER; OUTSIDE MIRROR
T=1.6 IDN
8-94262-546-1
01
1
1208-
24
16.069 HOLDER; OUTSIDE MIRROR
T=1.6 IDN
8-94262-546-1
01
1
1208-
25
16.069 SCREW; OUTSIDE MIRROR
M6X30 IDN
8-94279-365-0
01
1
1208-
25
16.069 SCREW; OUTSIDE MIRROR
M6X30 IDN
8-94279-365-0
01
1
1208-
26
16.069 COVER; OUTSIDE MIRROR
T=2.3 IDN
8-94262-547-2
01
1
1208-
26
16.069 COVER; OUTSIDE MIRROR
T=2.3 IDN
8-94262-547-2
01
1
1208-
30
16.068 MIRROR; UNDER
UNDER MIRROR<RR9>
8-94262-625-2
01
1
1208-
31
16.069 PLATE; MIRROR
UNDER MIRROR<RR9>
8-94262-631-0
01
1
1208-
32
16.069 SCREW; UNDER MIRROR
UNDER MIRROR<RR9> M5X18
8-94279-372-0
02
1
1208-
34
16.069 CAP; MIRROR
UNDER MIRROR<RR9>
8-94262-629-0
01
1
1208-
61
16.069 NUT; STAY,OUTSIDE MIRROR
01.062 M8 FLANGE IDN
0-91180-108-0
02
1
1208-
92
16.069 BOLT; STAY BRKT,MIRROR
06.216 M8X25 FLANGE IDN
0-28650-825-0
04
1
1208-
96
16.069 CAP; MIRROR STAY
IDN
8-98027-552-2
02
1
1208-
2
1
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.068 MIRROR; ROOM
DARK GRAY IDN
8-98097-534-1
01
1
1208-
2
16.069 SCREW; MIRROR TO BODY
16.070 M6X26
8-98033-674-0
02
1
1208-
Seçili parçaları sepete ekle
İpucu: çizimdeki balona veya tablodaki
Balon
sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
