◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51294 - NQR INDONESIA ▶ 7 - Interior Trim, Emblems / Labels, Seats, Mirrors ▶ 7-10 - CAUTION PLATE AND LABEL ▶
7-10 — CAUTION PLATE AND LABEL (#95254) — 7 parça

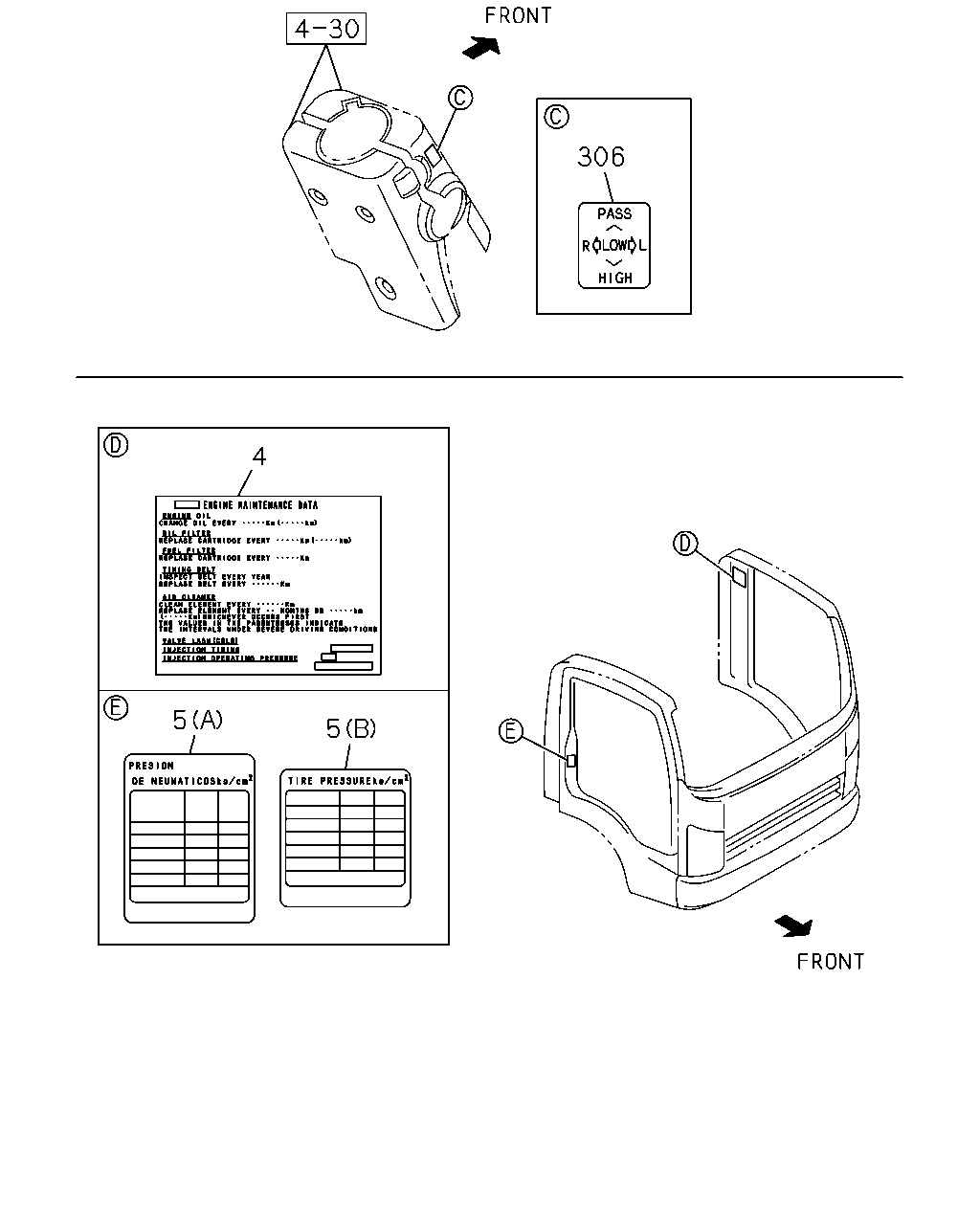

çizim 289733
306 4 5 5
BalonParca AdiParca NoAdetTipApplied Date
4 00.004 LABEL; ENG MAINTENANCE
EXC. CAUTION SPANISH<YN1> IDN 		8-97187-424-0 01 1 1208-
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) CAUTION SPANISH<YN1> (A) 		8-97188-835-0 01 1 1208-
5 05.880 LABEL; TIRE AIR PRESSURE
FRT&RR 215/75R17.5 17.5X6.00-127 SILVER(CQU) EXC. CAUTION SPANISH<YN1> (B) 		8-97188-834-0 01 1 1208-
306 08.808 LABEL; BEAM & PASS
IDN 		8-98070-239-0 01 1 1208-
çizim 289757
49 234
BalonParca AdiParca NoAdetTipApplied Date
49 08.808 PLATE; CAUTION,FUSE BOX
IDN 		8-98173-142-0 01 1 1208-
234 08.808 PLATE; CAUTION,ENG COVER
CAUTION SPANISH<YN1> 		8-98071-067-0 01 1 1208-
234 08.808 PLATE; CAUTION,ENG COVER
EXC. CAUTION SPANISH<YN1> IDN 		8-97994-545-0 01 1 1208-
İpucu: çizimdeki balona veya tablodaki Balon sütununa tıkla; ilgili parçalar vurgulanır. Birden çok çizim varsa üstteki seçim kutusu/oklarla gezin.
