1 |

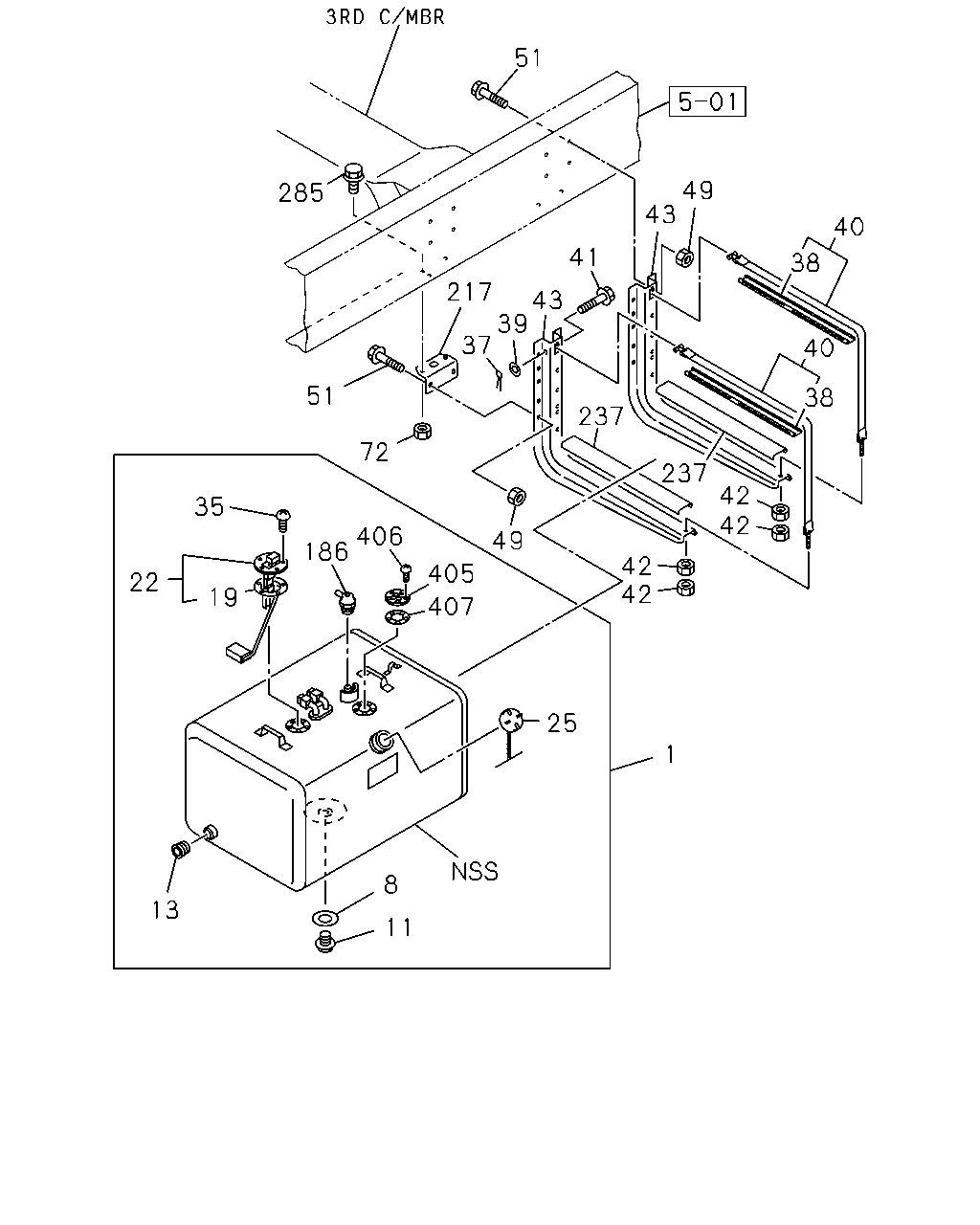

TANK; FUEL
869X597X413 200L
|
1-22400-819-0 |
01 |
1 |
0005-0107 |
● |
● |
|
| |
1 |
TANK; FUEL
864X597X413 200L
|
1-22401-174-0 |
01 |
1 |
0108-0210 |
● |
● |
|
| |
1 |
TANK; FUEL
864X597X413 200L
|
1-22401-174-0 |
01 |
1 |
0211-0501 |
|
|
● |
| |
1 |
TANK; FUEL
864X597X413 200L
|
8-98003-138-0 |
01 |
1 |
0502-0804 |
|
|
● |
| |
1 |
TANK; FUEL
864X597X413 200L
|
8-98114-400-0 |
01 |
1 |
0805- |
|
|
● |
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0108-0210 |
● |
● |
|
| |
8 |
GASKET; DRAIN PLUG,FUEL TANK
ID=14.2 OD=23.0
|
9-09572-014-0 |
01 |
1 |
0211- |
|
|
● |
| |
11 |
PLUG; DRAIN,FUEL TANK
|
1-09604-082-0 |
01 |
1 |
0005-0107 |
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
M14X14
|
9-09862-156-0 |
01 |
1 |
0108-0210 |
● |
● |
|
| |
11 |
PLUG; DRAIN,FUEL TANK
M14X14
|
9-09862-156-0 |
01 |
1 |
0211- |
|
|
● |
| |
13 |
PLUG; SCREW,SUB TANK JOINT
|
8-94421-626-0 |
02 |
1 |
0108-0210 |
● |
● |
|
| |
13 |
PLUG; SCREW,SUB TANK JOINT
|
8-94421-626-0 |
02 |
1 |
0211- |
|
|
● |
| |
19 |
GASKET; FUEL TANK UNIT
|
1-83149-003-0 |
01 |
1 |
0211- |
|
|
● |
| |
22 |
UNIT; FUEL TANK
|
1-83141-121-0 |
01 |
1 |
0005-0210 |
● |
● |
|
| |
22 |
UNIT; FUEL TANK
|
1-83141-121-0 |
01 |
1 |
0211-0501 |
|
|
● |
| |
22 |
UNIT; FUEL TANK
|
1-83141-149-0 |
01 |
1 |
0502- |
|
|
● |
| |
25 |
CAP; FILLER,FUEL TANK
|
1-22440-050-0 |
01 |
1 |
0005-0107 |
● |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
|
8-97233-810-0 |
01 |
1 |
0108-0210 |
● |
● |
|
| |
25 |
CAP; FILLER,FUEL TANK
|
8-97233-810-0 |
01 |
1 |
0211- |
|
|
● |
| |
35 |
SCREW; FUEL TANK UNIT
|
1-09187-007-0 |
05 |
1 |
0005-0107 |
● |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0108-0210 |
● |
● |
|
| |
35 |
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
|
9-03910-510-0 |
05 |
1 |
0211-0604 |
|
|
● |
| |
35 |
SCREW; FUEL TANK UNIT
M5X10 W/LK WASHER
|
0-36220-510-0 |
05 |
1 |
0605- |
|
|
● |
| |
37 |
PIN; SPLIT,SUPPORT BELT
OD=3.7 L=28
|
9-08114-028-0 |
02 |
1 |
0005-0107 |
● |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
|
1-22553-059-0 |
02 |
1 |
0108-0210 |
● |
● |
|
| |
38 |
INSULATION; SUPPORT BELT
|
1-22553-059-0 |
02 |
1 |
0211- |
|
|
● |
| |
39 |
WASHER; PL,SUPPORT BELT
ID=17
|
9-09164-516-0 |
02 |
1 |
0005-0107 |
● |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=1035
|
1-22550-221-0 |
02 |
1 |
0005-0107 |
● |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=925
|
1-22550-255-1 |
02 |
1 |
0108-0210 |
● |
● |
|
| |
40 |
BELT; SUPPORT,FUEL TANK
L=925
|
1-22550-255-1 |
02 |
1 |
0211- |
|
|
● |
| |
41 |
PIN; SUPPORT BELT
OD=16 L=75
|
9-08224-675-0 |
02 |
1 |
0005-0107 |
● |
● |
|
| |
42 |
NUT; SUPPORT BELT
|
1-09487-027-1 |
04 |
1 |
0005-0107 |
● |
● |
|
| |
42 |
NUT; SUPPORT BELT
M10
|
9-09110-510-0 |
04 |
1 |
0108-0210 |
● |
● |
|
| |
42 |
NUT; SUPPORT BELT
M10
|
9-09110-510-0 |
04 |
1 |
0211-0512 |
|
|
● |
| |
42 |
NUT; SUPPORT BELT
M10
|
0-91110-510-0 |
04 |
1 |
0601- |
|
|
● |
| |
43 |
BRACKET; FUEL TANK
|
1-53461-354-2 |
02 |
1 |
0005-0107 |
● |
● |
|
| |
43 |
BRACKET; FUEL TANK
|
1-53461-527-1 |
02 |
1 |
0108-0210 |
● |
● |
|
| |
43 |
BRACKET; FUEL TANK
|
1-53461-527-1 |
02 |
1 |
0211- |
|
|
● |
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91150-212-0 |
12 |
1 |
0005-0210 |
● |
● |
|
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91150-212-0 |
12 |
1 |
0211-0602 |
|
|
● |
| |
49 |
NUT; BRKT
M12 FLANGE
|
0-91180-212-0 |
12 |
1 |
0603- |
|
|
● |
| |
51 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28681-235-0 |
12 |
1 |
0005-0210 |
● |
● |
|
| |
51 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28681-235-0 |
12 |
1 |
0211-0512 |
|
|
● |
| |
51 |
BOLT; BRKT TO FRAME
M12X35 FLANGE
|
0-28651-235-0 |
12 |
1 |
0601- |
|
|
● |
| |
72 |
NUT; BRKT
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
0005-0210 |
● |
● |
|
| |
72 |
NUT; BRKT
M12 FLANGE
|
0-91150-212-0 |
04 |
1 |
0211-0602 |
|
|
● |
| |
72 |
NUT; BRKT
M12 FLANGE
|
0-91180-212-0 |
04 |
1 |
0603- |
|
|
● |
| |
186 |
VALVE; GT,FUEL TANK
|
1-22453-005-0 |
01 |
1 |
0005-0107 |
● |
● |
|
| |
186 |
VALVE; GT,FUEL TANK
|
1-22453-003-0 |
01 |
1 |
0108-0210 |
● |
● |
|
| |
186 |
VALVE; GT,FUEL TANK
|
1-22453-003-0 |
01 |
1 |
0211-0804 |
|
|
● |
| |
186 |
VALVE; GT,FUEL TANK
|
8-98103-512-0 |
01 |
1 |
0805- |
|
|
● |
| |
217 |
BRACKET; FUEL TANK,LOW
|
1-53461-432-1 |
02 |
1 |
0005-0210 |
● |
● |
|
| |
217 |
BRACKET; FUEL TANK,LOW
|
1-53461-432-1 |
02 |
1 |
0211- |
|
|
● |
| |
237 |
GASKET; BRKT TO FUEL TANK
L=480
|
1-22553-002-0 |
02 |
1 |
0108-0210 |
● |
● |
|
| |
237 |
GASKET; BRKT TO FUEL TANK
L=480
|
1-22553-002-0 |
02 |
1 |
0211- |
|
|
● |
| |
285 |
BOLT; BRKT
M12X40 FLANGE
|
0-28681-240-0 |
04 |
1 |
0005-0210 |
● |
● |
|
| |
285 |
BOLT; BRKT
M12X40 FLANGE
|
0-28681-240-0 |
04 |
1 |
0211-0512 |
|
|
● |
| |
285 |
BOLT; BRKT
M12X40 FLANGE
|
0-28651-240-0 |
04 |
1 |
0601- |
|
|
● |
| |
405 |
VALVE ASM; SAFETY,PRESS FUEL TANK
|
1-22451-012-0 |
01 |
1 |
0108-0210 |
● |
● |
|
| |
405 |
VALVE ASM; SAFETY,PRESS FUEL TANK
|
1-22451-012-0 |
01 |
1 |
0211-0804 |
|
|
● |
| |
405 |
VALVE ASM; SAFETY,PRESS FUEL TANK
|
8-98106-041-0 |
01 |
1 |
0805- |
|
|
● |
| |
406 |
SCREW; PRESS SAFETY VLV,FUEL TANK
M5X14 W/LK WASHER
|
9-03910-514-0 |
05 |
1 |
0108-0210 |
● |
● |
|
| |
406 |
SCREW; PRESS SAFETY VLV,FUEL TANK
M5X14 W/LK WASHER
|
9-03910-514-0 |
05 |
1 |
0211-0604 |
|
|
● |
| |
406 |
SCREW; PRESS SAFETY VLV,FUEL TANK
M5X14 W/LK WASHER
|
0-36220-514-0 |
05 |
1 |
0605- |
|
|
● |
| |
407 |
GASKET; PRESS SAFETY VLV,FUEL TANK
|
1-22459-001-1 |
01 |
1 |
0108-0210 |
● |
● |
|
| |
407 |
GASKET; PRESS SAFETY VLV,FUEL TANK
|
1-22459-001-1 |
01 |
1 |
0211- |
|
|
● |
