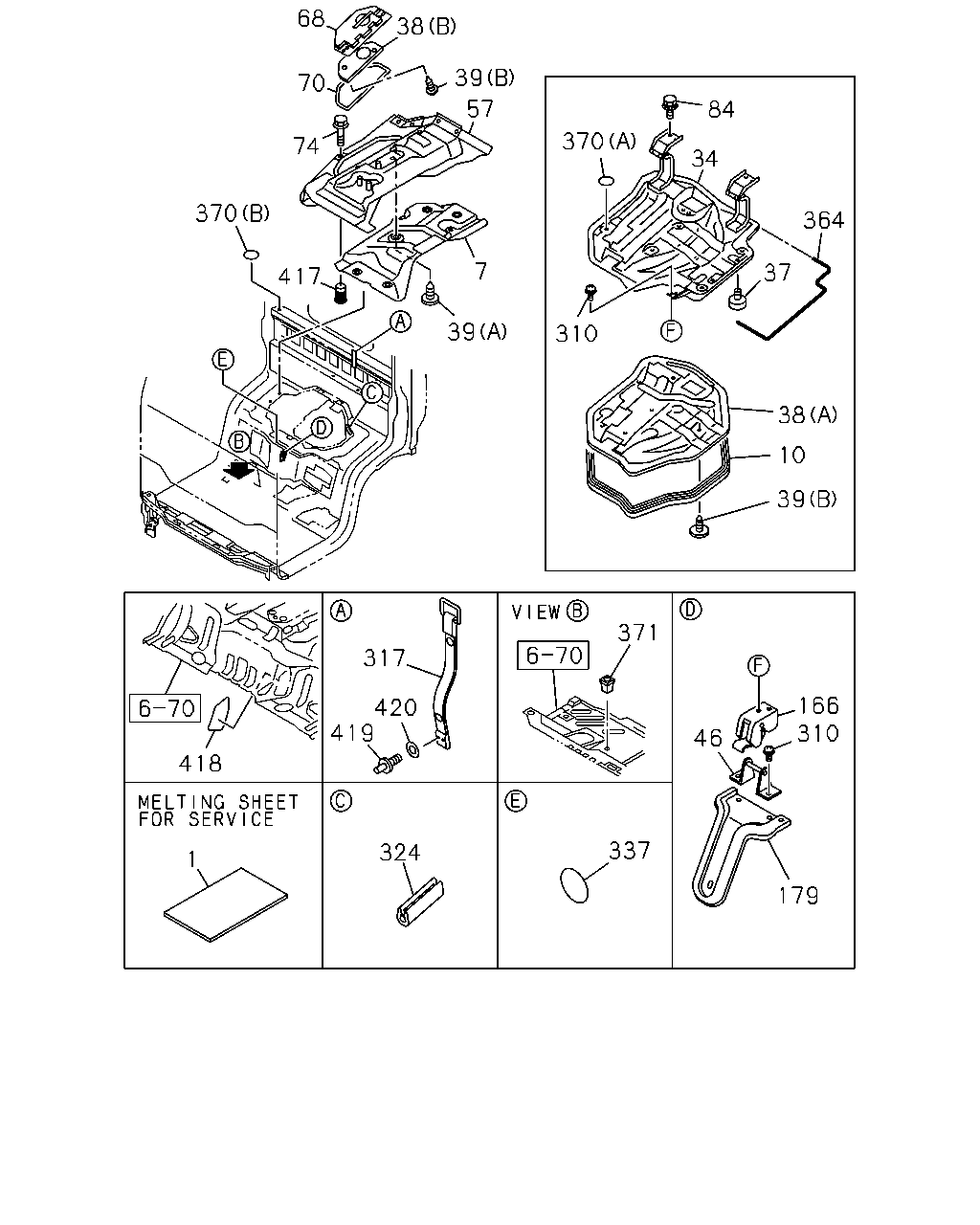

1 |
16.850 SHEET; MELTING,FLOOR
NON ASBESTOS 1000X600 T=1.5; PARTS ONLY
|
8-94262-093-0 |
AR |
1 |
1208- |
| |
7 |
16.545 INSULATOR; SUPPORT COVER
IDN
|
8-97586-175-1 |
01 |
1 |
1208-1408 |
| |
7 |
16.545 INSULATOR; SUPPORT COVER
IDN
|
8-98242-228-0 |
01 |
1 |
1409- |
| |
10 |
16.549 SEAL; ENG COVER
IDN
|
8-98029-377-0 |
01 |
1 |
1208- |
| |
34 |
16.549 COVER ASM; ENG,CAB FLOOR
IDN
|
8-97587-395-3 |
01 |
1 |
1208- |
| |
37 |
16.549 RUBBER; BUFFER,ENG COVER
16.155
OD=30 T=10
IDN
|
5-74917-001-2 |
02 |
1 |
1208- |
| |
38 |
16.549 INSULATOR; ENG COVER
(B)
IDN
|
8-97586-169-2 |
01 |
1 |
1208-1408 |
| |
38 |
16.549 INSULATOR; ENG COVER
(B)
IDN
|
8-98242-234-0 |
01 |
1 |
1409- |
| |
38 |
16.549 INSULATOR; ENG COVER
(A)
IDN
|
8-97586-182-2 |
01 |
1 |
1208-1408 |
| |
38 |
16.549 INSULATOR; ENG COVER
(A)
IDN
|
8-98242-226-0 |
01 |
1 |
1409- |
| |
39 |
16.549 CLIP; INSULATOR,COVER
(B)
OD=30
IDN
|
8-94279-952-0 |
07 |
1 |
1208- |
| |
39 |
16.549 CLIP; INSULATOR,COVER
08.021
(A)
ID=6.2 L=11.4
|
8-97808-623-0 |
05 |
1 |
1208- |
| |
46 |
16.549 HOOK ASM; ENG COVER
IDN
|
8-98040-145-0 |
02 |
1 |
1208- |
| |
57 |
16.549 COVER ASM; SUPPORT,CAB FLOOR
IDN
|
8-97587-400-3 |
01 |
1 |
1208- |
| |
68 |
16.549 COVER ASM; SUB,ENG COVER
IDN
|
8-98040-141-0 |
01 |
1 |
1208- |
| |
70 |
16.549 SEAL; ENG SUB COVER,CAB FLOOR
IDN
|
8-97853-050-1 |
01 |
1 |
1208- |
| |
74 |
16.549 BOLT; SUPPORT COVER TO FLOOR
01.531
M8X20 FLANGE
IDN
|
0-28650-820-0 |
10 |
1 |
1208- |
| |
84 |
16.549 BOLT; ENG COVER HINGE
01.531
M8X20 FLANGE
IDN
|
0-28650-820-0 |
04 |
1 |
1208- |
| |
166 |
16.549 LOCK; ENG COVER
IDN
|
8-98040-152-0 |
02 |
1 |
1208- |
| |
179 |
16.549 REINFORCEMENT; COVER
IDN
|
8-98048-301-1 |
01 |
1 |
1208- |
| |
310 |
16.549 SCREW; ENG COVER HOOK
02.343
M6X16 FLANGE
|
0-28650-616-0 |
04 |
1 |
1208- |
| |
310 |
16.549 SCREW; ENG COVER HOOK
16.570
M6X16
IDN
|
0-38050-616-0 |
05 |
1 |
1208- |
| |
317 |
16.549 BAND; ENGINE COVER
IDN
|
8-97585-575-0 |
01 |
1 |
1208- |
| |
324 |
16.545 FINISHER; FLOOR PANEL
L=140
IDN
|
8-97892-742-0 |
03 |
1 |
1208- |
| |
337 |
16.545 SEAL; CLIP HOLE
OD=32 BLACK
|
8-98031-126-0 |
01 |
1 |
1208- |
| |
337 |
16.545 SEAL; CLIP HOLE
OD=32 BLACK
|
8-98031-126-0 |
04 |
1 |
1208- |
| |
337 |
16.545 SEAL; CLIP HOLE
OD=32 BLACK
|
8-98031-126-0 |
08 |
1 |
1208- |
| |
364 |
16.545 FINISHER; ENG COVER SIDE
L=1100
IDN
|
8-97892-744-0 |
01 |
1 |
1208- |
| |
370 |
16.549 SEAL; LOCATION HOLE
16.165
(A)
OD=25 BLACK
|
1-76798-019-0 |
01 |
1 |
1208- |
| |
370 |
16.549 SEAL; LOCATION HOLE
16.165
(B)
OD=20 T=0.05 BLACK
IDN
|
5-76777-036-0 |
03 |
1 |
1208- |
| |
371 |
16.549 GROMMET; LOCATION HOLE
16.547
14.5X14.5 BLACK
IDN
|
8-94279-714-0 |
02 |
1 |
1208- |
| |
417 |
16.549 NUT; POP
09.786
M6 POP NUT
IDN
|
8-98013-752-0 |
01 |
1 |
1208- |
| |
418 |
16.549 SEAL; PROTECTOR
IDN
|
8-98090-191-1 |
01 |
1 |
1208-1412 |
| |
418 |
16.549 SEAL; PROTECTOR
IDN
|
8-98090-192-1 |
01 |
1 |
1208-1412 |
| |
419 |
09.786 RIVET; ENG COVER
IDN
|
8-98065-262-0 |
01 |
1 |
1208- |
| |
420 |
09.786 WASHER; ENG COVER
02.335
ID=5.3 OD=16
IDN
|
0-91614-705-0 |
01 |
1 |
1208- |
