Isuzu WW
▶
TRUCKS
▶
NQR
▶
51294 - NQR INDONESIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-66 - HEAD LINING AND TRIM
▶

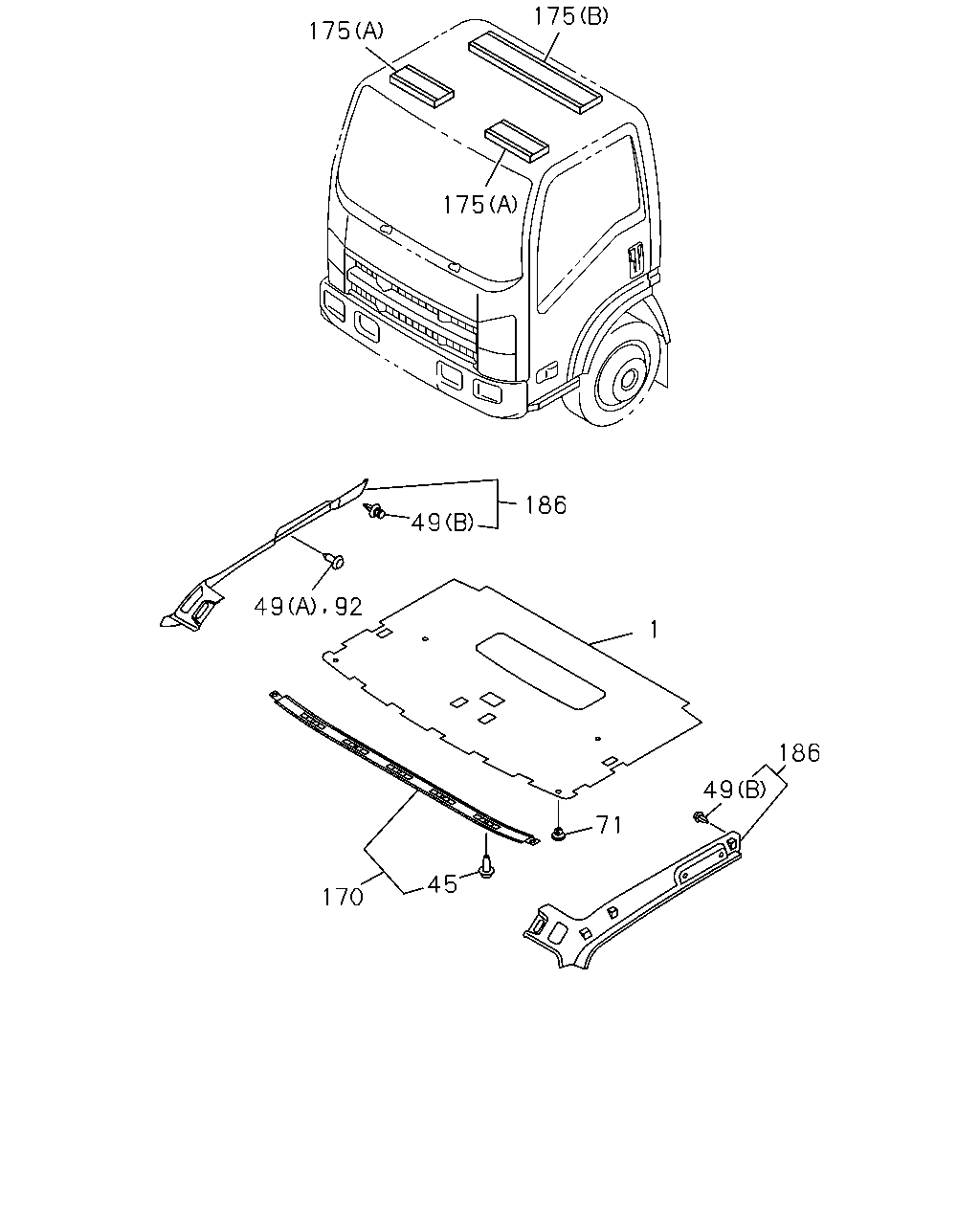

6-66 — HEAD LINING AND TRIM
(#95244) — 16 parça
175
175
175
186
1
49
92
49
170
45
71
49
186
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.742 LINING; HD
HEADER TRAY DRIVER<W56> DARK GRAY
8-97405-272-8
01
1
1208-
1
16.742 LINING; HD
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-270-8
01
1
1208-
1
16.742 LINING; HD
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IDN
8-97405-269-7
01
1
1208-
45
16.742 CLIP; FINISHER
IDN
8-98035-592-1
03
1
1208-
49
16.742 CLIP; TRIM COVER
ASSIST GRIP PASSENGER<EG5> (A) DARK GRAY
8-97407-768-0
02
1
1208-
49
16.742 CLIP; TRIM COVER
16.578 (B) IDN
8-98059-610-0
03
1
1208-1410
49
16.742 CLIP; TRIM COVER
16.578 (B) IDN
8-98059-610-0
02
1
1411-
71
16.742 FASTENER; HD LINING
D=8.7X16.5 DARK GRAY
8-97405-282-0
06
1
1208-
92
16.742 RETAINER; TRIM COVER
EXC. ASSIST GRIP PASSENGER<EG5> DARK GRAY
8-97407-768-0
04
1
1208-
170
16.742 FINISHER; HEAD LINING
DARK GRAY IDN
8-97405-281-5
01
1
1208-
175
16.742 CUSHION; HEAD LINING
(A) IDN
8-98037-299-3
02
1
1208-
175
16.742 CUSHION; HEAD LINING
(B) IDN
8-98037-300-3
01
1
1208-
186
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER& PASSENGER<8LY> DARK GRAY
8-97405-250-3
01
1
1208-
186
16.742 TRIM; ROOM,CANT RAIL SIDE
HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY
8-97405-252-3
01
1
1208-
186
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER<W56>,HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IDN
8-97405-251-3
01
1
1208-
186
16.742 TRIM; ROOM,CANT RAIL SIDE
EXC. HEADER TRAY DRIVER & PASSENGER<8LY> DARK GRAY IDN
8-97405-263-3
01
1
1208-
