Isuzu WW
▶
TRUCKS
▶
NQR
▶
51294 - NQR INDONESIA
▶
6 - Exterior Body, Glass Mounting, Door Trim, Molding
▶
6-35 - FRONT DOOR TRIM
▶

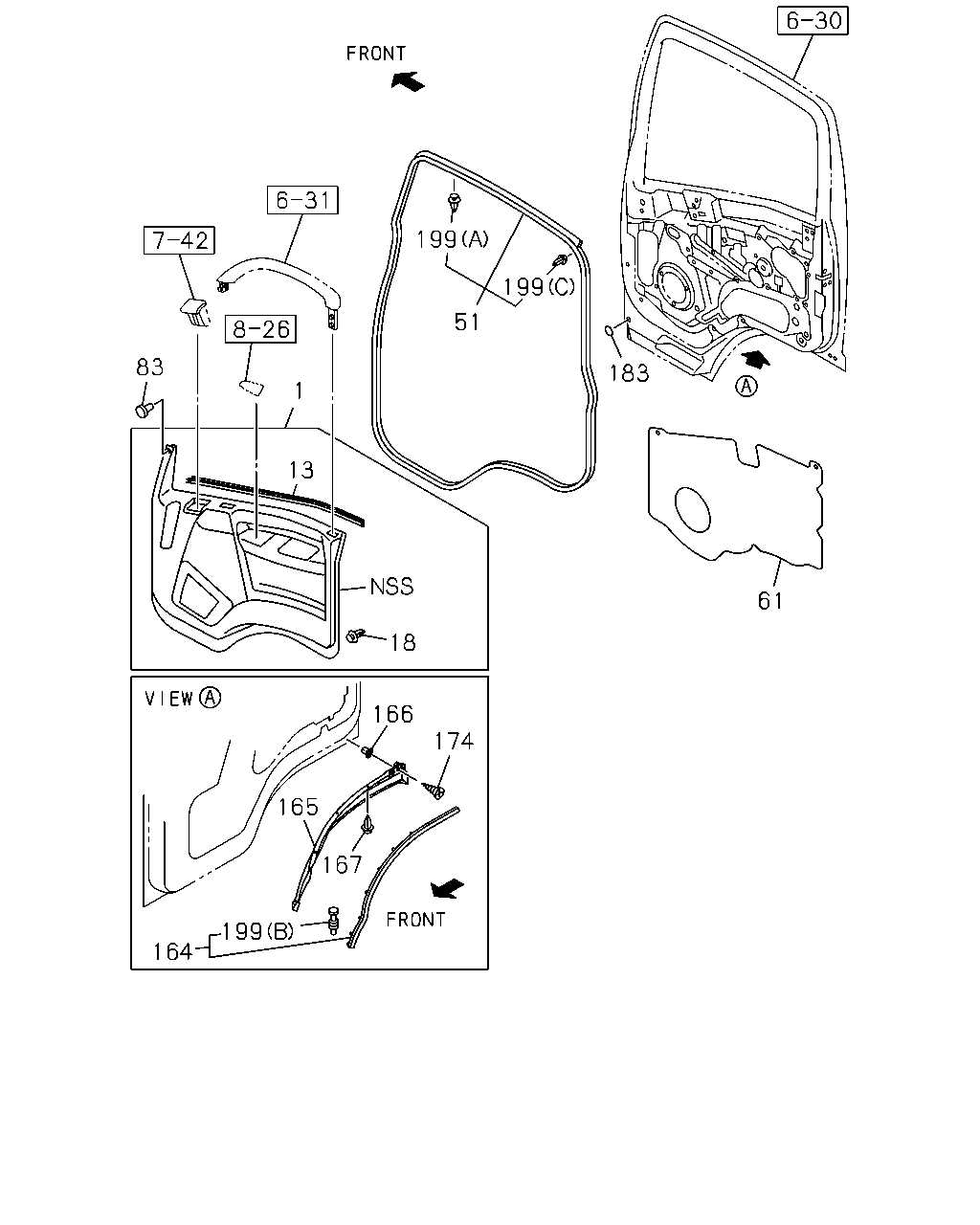

6-35 — FRONT DOOR TRIM
(#95240) — 23 parça
61
183
199
199
51
1
13
18
166
174
165
167
199
164
83
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
1
16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY
8-97405-304-6
01
1
1208-
1
16.165 PAD; TRIM,FRT DOOR
POWER WINDOW FRT DOOR<A32> GRAY
8-97405-306-6
01
1
1208-
1
16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY IDN
8-97405-305-6
01
1
1208-
1
16.165 PAD; TRIM,FRT DOOR
EXC. POWER WINDOW FRT DOOR<A32> GRAY IDN
8-97405-307-6
01
1
1208-
13
16.165 SEAL; DOOR TRIM
IDN
8-98029-201-1
01
1
1208-
13
16.165 SEAL; DOOR TRIM
IDN
8-98029-202-1
01
1
1208-
18
16.165 CLIP; DOOR PAD
IDN
8-98004-025-0
14
1
1208-
51
16.225 WEATHERSTRIP; FRONT DOOR
IDN
8-98029-198-3
01
1
1208-
51
16.225 WEATHERSTRIP; FRONT DOOR
IDN
8-98029-199-3
01
1
1208-
61
16.165 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> IDN
8-98029-394-2
01
1
1208-
61
16.165 SEAL; WATER,DOOR PAD
2-SPEAKER SYSTEM BASE<U95> IDN
8-98029-395-2
01
1
1208-
61
16.165 SEAL; WATER,DOOR PAD
EXC. 2-SPEAKER SYSTEM BASE<U95>
8-98029-396-0
02
1
1208-
83
16.165 CLIP; DOOR TRIM
GRAY IDN
8-97405-308-0
02
1
1208-
164
16.165 SEAL; SUB,SILL SIDE
IDN
8-98022-741-1
02
1
1208-
165
16.165 LINER; DOOR LWR
IDN
8-98022-738-1
01
1
1208-
165
16.165 LINER; DOOR LWR
IDN
8-98022-739-1
01
1
1208-
166
16.155 PLUG; HOLE
01.269 D=8.6X7.7 L=7.5 IDN
8-94279-078-0
04
1
1208-
167
16.165 CLIP; LINER
08.155 D6X16 PUSH RIVET IDN
1-09983-105-0
06
1
1208-
174
16.175 SCREW; LINER
04.681 T25 M5X12 TAPPING HEXALOBULAR IDN
0-72180-512-0
04
1
1208-
183
16.165 SEAL; LOCATION HOLE
OD=25 BLACK
1-76798-019-0
02
1
1208-
199
16.165 CLIP; SEAL
(B) NATURAL IDN
8-98027-457-0
20
1
1208-
199
16.165 CLIP; SEAL
(A) NATURAL IDN
8-98062-270-0
80
1
1208-
199
16.165 CLIP; SEAL
(C) RED IDN
8-98062-271-0
02
1
1208-
