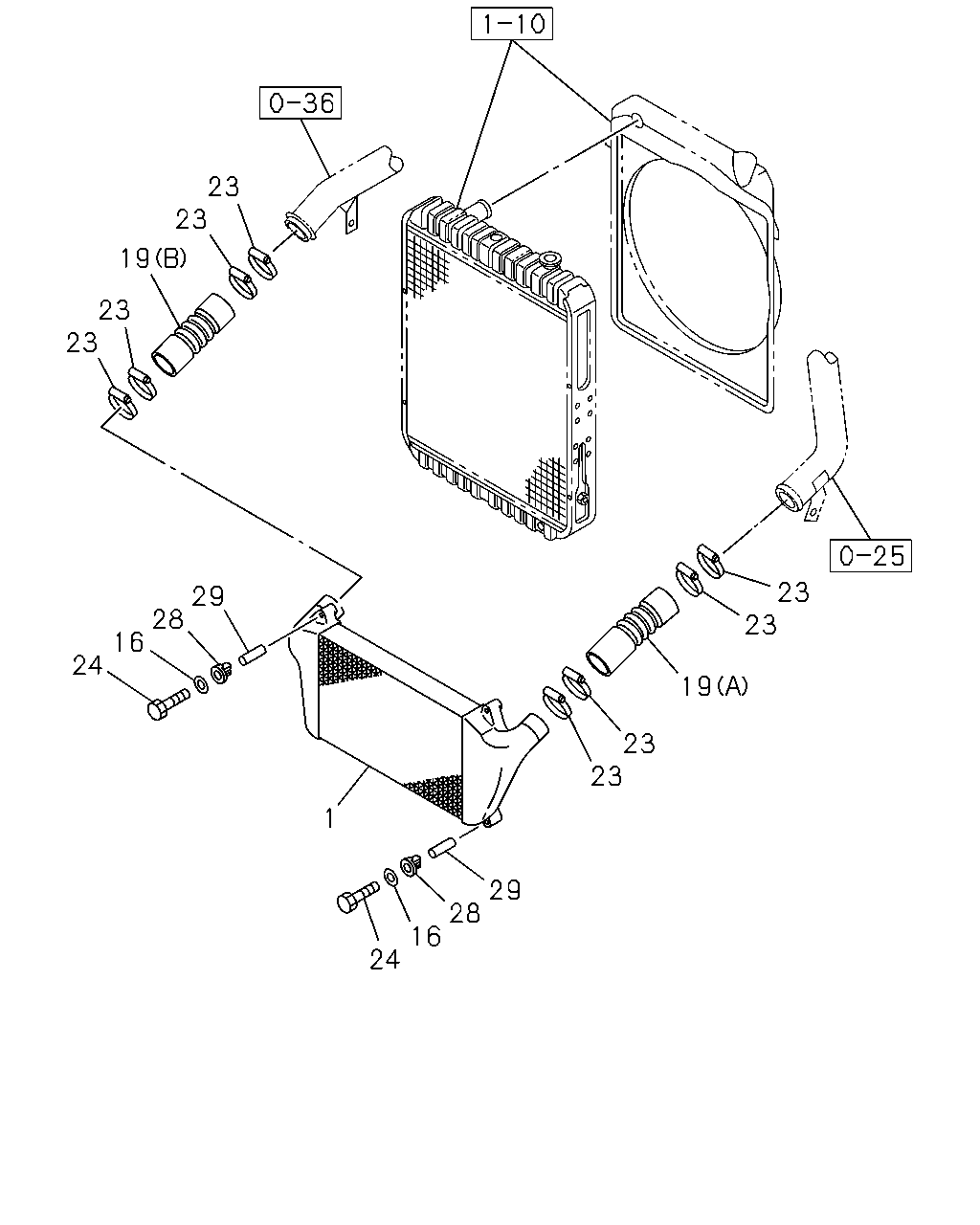

1-35 — CHARGE AIR COOLER
(#9524) — 18 parça
Tümü
A - 6HE1 TC ENG
B - 6HK1 TCC ENG
23
23
19
23
23
23
23
29
28
16
24
19
23
23
1
29
28
16
24
Balon
Parca Adi
Parca No
Adet
Tip
Applied Date
A
B
1
COOLER; CHARGE AIR
1-14431-041-1
01
1
0005-0210
●
1
COOLER; CHARGE AIR
8-94392-923-2
01
1
0211-
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
0005-0210
●
16
WASHER; PL,CHARGE AIR COOLER
ID=10.5 OD=32
9-09164-810-0
04
1
0211-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
8-94395-022-0
01
1
0005-0210
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(A)
8-94395-022-0
01
1
0211-
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
8-94395-023-1
01
1
0005-0210
●
19
HOSE; FLEX,CHARGE AIR COOLER,RAD
(B)
8-94395-023-1
01
1
0211-
●
23
CLIP; HOSE
ID=58-79
8-94126-771-0
08
1
0005-0210
●
23
CLIP; HOSE
ID=58-79
8-94126-771-0
08
1
0211-0307
●
23
CLIP; HOSE
ID=58-76
1-09707-203-0
08
1
0308-0811
●
23
CLIP; HOSE
ID=55-75
8-98133-349-0
08
1
0812-
●
24
BOLT; COOLER TO RAD
M8X35 FLANGE
0-28080-835-0
04
1
0005-0210
●
24
BOLT; COOLER TO RAD
M8X35 FLANGE
0-28080-835-0
04
1
0211-
●
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
0005-0210
●
28
RUBBER; MTG,CHARGE AIR COOLER
1-21467-015-1
04
1
0211-
●
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
0005-0210
●
29
COLLAR; MTG RUBBER,CAC BRKT
1-21469-100-0
04
1
0211-
●
