◀ 🏠 ▶ Isuzu WW ▶ TRUCKS ▶ NQR ▶ 51294 - NQR INDONESIA ▶ 6 - Exterior Body, Glass Mounting, Door Trim, Molding ▶ 6-05 - FRONT PANEL ▶
6-05 — FRONT PANEL (#95234) — 48 parça

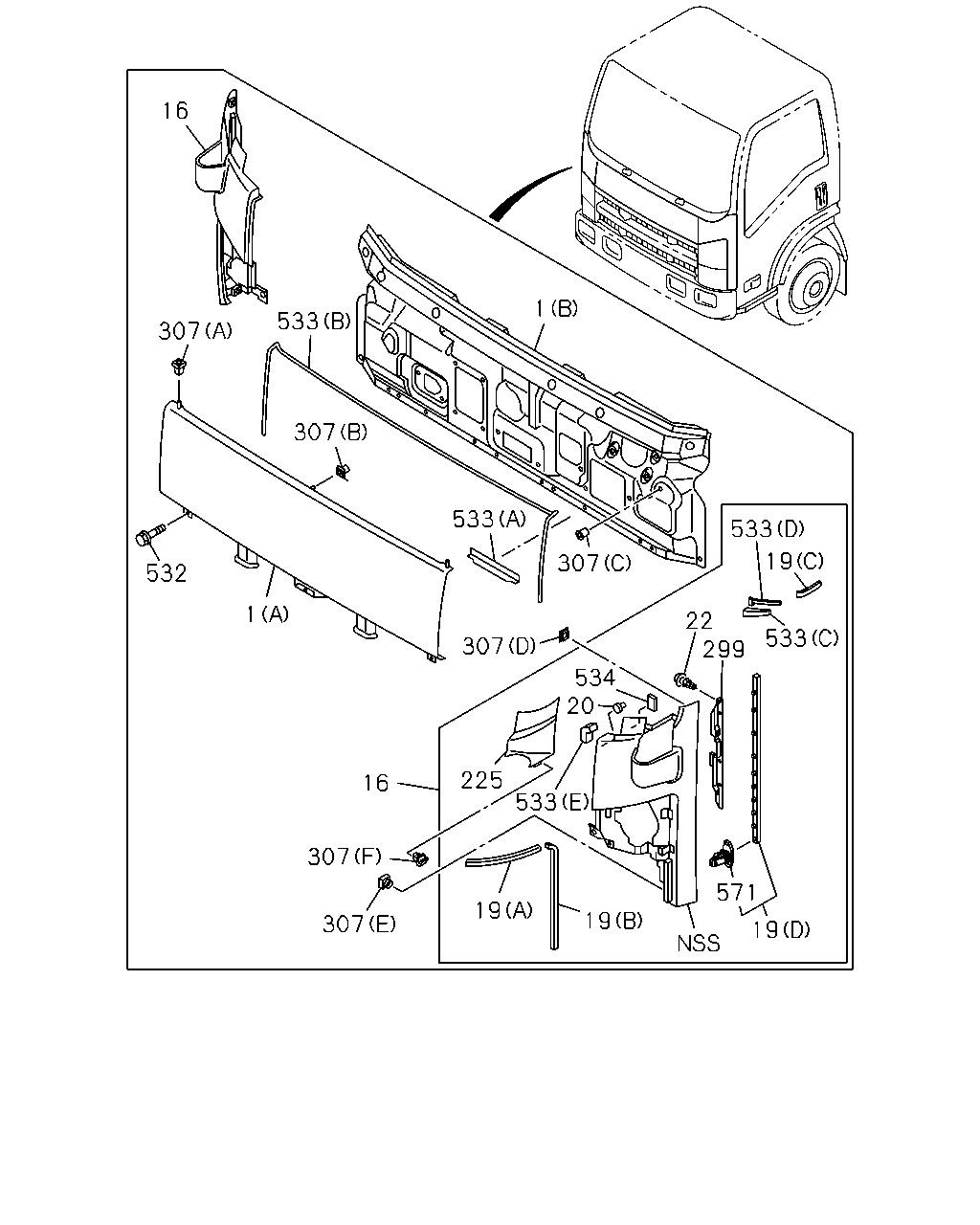

çizim 288580
1 16 533 307 533 307 533 307 19 22 533 299 534 307 20 533 225 16 1 532 571 19 19 19 307 307
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1208-
1 16.550 PANEL ASM; FRT
(B) IDN 		8-98181-027-0 01 1 1208-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE IDN 		8-97405-621-8 01 1 1208-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR ARC WHITE(729) WHITE IDN 		8-97405-625-8 01 1 1208-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-103-8 01 1 1208-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR MARINE BLUE(890) BLUE 		8-97412-114-8 01 1 1208-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-619-8 01 1 1208-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR QUICK SILVER MET(998) LIGHT GRAY 		8-97405-623-8 01 1 1208-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-620-8 01 1 1208-
16 16.588 PANEL; FRONT,SIDE
BODY COLOR TRANS BLUE(999) BLUE 		8-97405-624-8 01 1 1208-
19 16.588 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) (D) IDN 		8-98028-749-3 01 1 1208-
19 16.588 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) (D) IDN 		8-98028-750-3 01 1 1208-
19 16.588 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) (A) IDN 		8-98035-268-0 02 1 1208-
19 16.588 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) (C) IDN 		8-98038-608-0 02 1 1208-
19 16.588 SEAL; FRT SIDE PANEL
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) (B) IDN 		8-98062-215-0 02 1 1208-
20 16.588 CLIP; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) IDN 		8-97410-739-1 04 1 1208-
22 16.588 SCREW; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) M4X10 TAPPING W/PL WASHER IDN 		0-74360-410-0 06 1 1208-
225 16.069 COVER; SIDE,FRT
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-98036-520-3 01 1 1208-
225 16.069 COVER; SIDE,FRT
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) PLEASE PAINT TO MATCH BODY COLOR IDN 		8-98036-521-3 01 1 1208-
299 16.069 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) IDN 		8-98028-144-1 01 1 1208-
299 16.069 COVER; FRT PANEL SIDE
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) IDN 		8-98028-145-1 01 1 1208-
307 16.125 GROMMET; FRT PANEL
(D) IDN 		8-97410-738-0 02 1 1208-
307 16.125 GROMMET; FRT PANEL
(E) IDN 		8-98021-300-1 04 1 1208-
307 16.125 GROMMET; FRT PANEL
(A) IDN 		8-98021-968-0 01 1 1208-
307 16.125 GROMMET; FRT PANEL
(A) IDN 		8-98021-969-0 01 1 1208-
307 16.125 GROMMET; FRT PANEL
(B) IDN 		8-98023-229-1 01 1 1208-
307 16.125 GROMMET; FRT PANEL
(F) IDN 		8-98028-743-0 02 1 1208-
307 16.125 GROMMET; FRT PANEL
(C) OD=20 IDN 		8-98034-363-1 04 1 1208-
532 08.143 BOLT; FRT PANEL
M6X16 W/LK&PL WASHER IDN 		0-52010-616-0 04 1 1208-
533 08.143 SEAL; FRT PANEL
(B) IDN 		8-98021-964-4 01 1 1208-1506
533 08.143 SEAL; FRT PANEL
(B) IDN 		8-98309-764-0 01 1 1507-
533 08.143 SEAL; FRT PANEL
(A) IDN 		8-98021-965-2 01 1 1208-
533 08.143 SEAL; FRT PANEL
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) (C) IDN 		8-98043-509-0 01 1 1208-
533 08.143 SEAL; FRT PANEL
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) (C) IDN 		8-98043-510-0 01 1 1208-
533 08.143 SEAL; FRT PANEL
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) (D) IDN 		8-98043-511-1 02 1 1208-
533 08.143 SEAL; FRT PANEL
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) (E) IDN 		8-98064-939-0 02 1 1208-
534 16.550 FASTENER
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) 20X30 IDN 		8-98059-208-1 02 1 1208-
571 16.570 CLIP; SEAL
BODY COLOR ARC WHITE(729),BODY COLOR QUICKSILVER MET(998),BODY COLOR TRANS BLUE(999) 16.165 NATURAL IDN 		8-98027-457-0 20 1 1208-

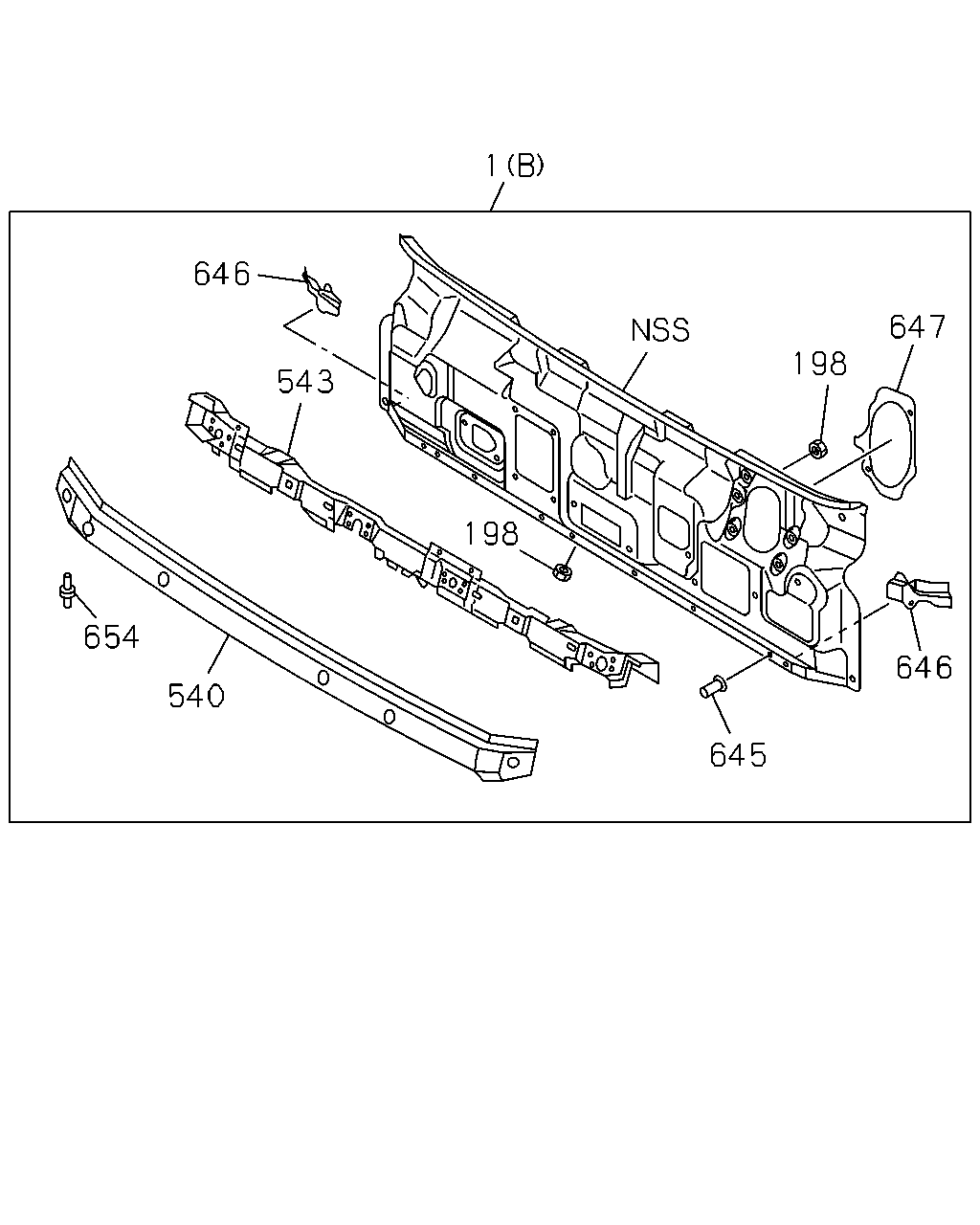

çizim 289731
1 647 198 646 645 198 543 646 540 654
BalonParca AdiParca NoAdetTipApplied Date
1 16.550 PANEL ASM; FRT
(A) 		8-98122-695-0 01 1 1208-
1 16.550 PANEL ASM; FRT
(B) IDN 		8-98181-027-0 01 1 1208-
198 16.125 NUT; PANEL
16.545 M6 		9-09114-086-0 04 1 1208-
540 16.588 PANEL; FRONT,OUTER
IDN 		8-97585-325-3 01 1 1208-
543 16.570 CLOSING; FRT MTG RAIL
IDN 		8-97585-328-5 01 1 1208-
645 16.588 STUD; FRT PANEL
M6X12 		8-98013-112-0 06 1 1208-
646 08.155 REINFORCEMENT; DASH
IDN 		8-98023-098-1 01 1 1208-
646 08.155 REINFORCEMENT; DASH
IDN 		8-98023-099-1 01 1 1208-
647 08.155 REINFORCEMENT; WIPER MOTOR
IDN 		8-98006-327-0 01 1 1208-
654 16.125 PIN; FRT PANEL
IDN 		8-98021-967-2 02 1 1208-
