6-03 — RADIATOR GRILLE (#95233) — 11 parça

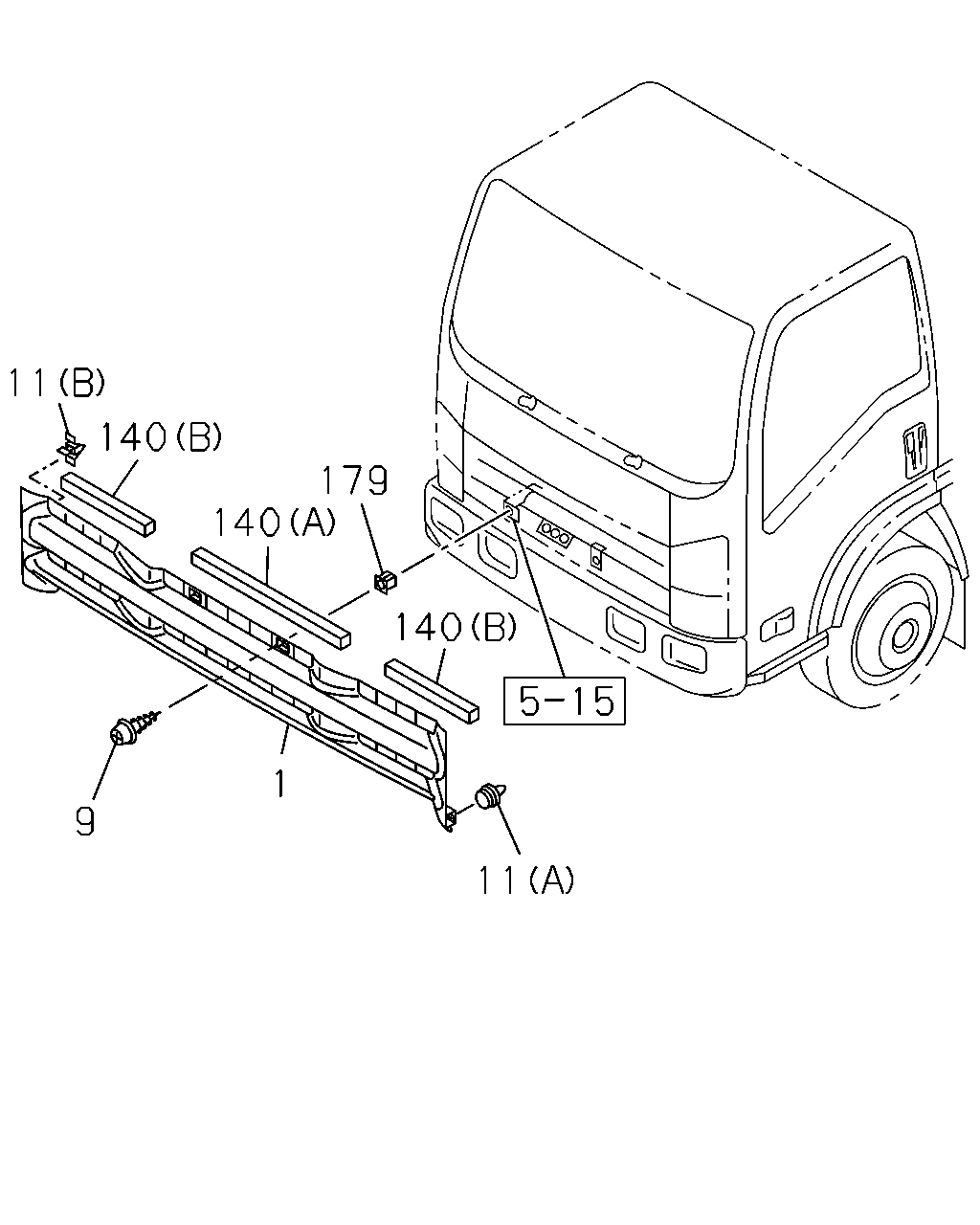

çizim 288570
11 1 9 140 140 179 140 11
BalonParca AdiParca NoAdetTipApplied Date
1 01.266 GRILLE; RAD
RADIATOR GRILLE NON PAINT<7LB> 		8-98025-468-4 01 1 1208-
1 01.266 GRILLE; RAD
BODY COLOR ARC WHITE(729) EXC. RADIATOR GRILLE NON PAINT<7LB> WHITE IDN 		8-97407-294-4 01 1 1208-
1 01.266 GRILLE; RAD
BODY COLOR MARINE BLUE(890) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE IDN 		8-97412-398-4 01 1 1208-
1 01.266 GRILLE; RAD
BODY COLOR QUICK SILVER MET(998) EXC. RADIATOR GRILLE NON PAINT<7LB> LIGHT GRAY IDN 		8-97407-293-4 01 1 1208-
1 01.266 GRILLE; RAD
BODY COLOR TRANS BLUE(999) EXC. RADIATOR GRILLE NON PAINT<7LB> BLUE IDN 		8-97407-292-4 01 1 1208-
9 01.269 SCREW; RAD GRILLE
M5X16 TAPPING W/PL WASHER IDN 		0-74165-516-0 01 1 1208-
11 01.269 CLIP; RAD GRILLE
(A) 		8-97581-651-2 02 1 1208-
11 01.269 CLIP; RAD GRILLE
(B) 		8-98025-698-0 05 1 1208-
140 01.266 SEAL; RAD GRILLE
(A) 		8-98054-280-0 01 1 1208-
140 01.266 SEAL; RAD GRILLE
(B) 		8-98054-281-0 02 1 1208-
179 01.269 RETAINER; GRILLE,RAD
02.726 D=7X7 L=7.5 IDN 		8-94291-927-0 01 1 1208-
